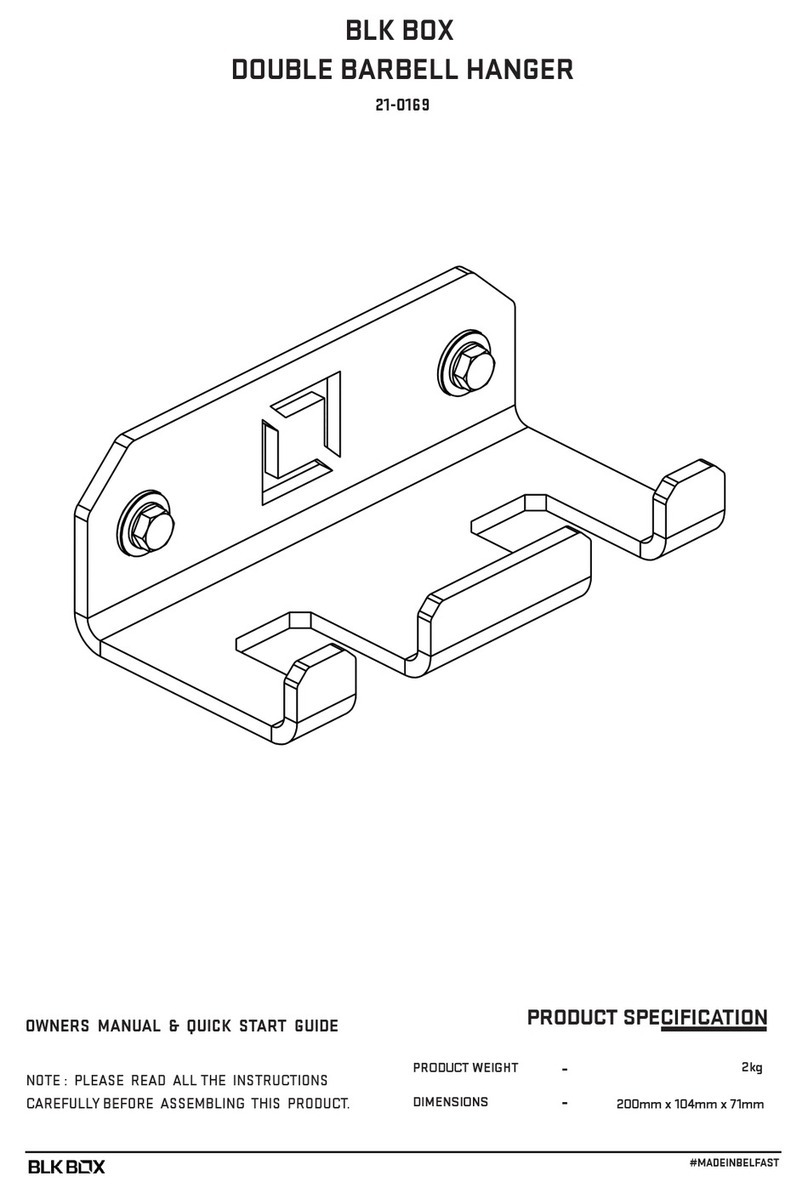

BLK BOX 21-0169 Manuel utilisateur

BLK BOX

BLK BOX GOLIATH 21-0129-0B Manuel utilisateur

BLK BOX

BLK BOX GOLIATH 21-0816 Manuel utilisateur

BLK BOX

BLK BOX 21-0109-0K Manuel utilisateur

BLK BOX

BLK BOX 21-0126-0B Manuel utilisateur

BLK BOX

BLK BOX 21-0122-0B Manuel utilisateur

BLK BOX

BLK BOX 21-0181 Manuel utilisateur

BLK BOX

BLK BOX 21-0115-0C Manuel utilisateur

BLK BOX

BLK BOX 50-0141 Manuel utilisateur

BLK BOX

BLK BOX 21-0123-0D Manuel utilisateur

BLK BOX

BLK BOX 21-0133-0B Manuel utilisateur

BLK BOX

BLK BOX GOLIATH 21-0726 Manuel utilisateur

BLK BOX

BLK BOX 21-0863 Manuel utilisateur

BLK BOX

BLK BOX BLACKOUT Manuel utilisateur

BLK BOX

BLK BOX GOLIATH 21-0815 Manuel utilisateur

BLK BOX

BLK BOX 21-0118-0B Manuel utilisateur

BLK BOX

BLK BOX 21-0112-0J Manuel utilisateur

Manuels Équipement de fitness populaires d'autres marques

NSD

NSD PB-188P Manuel utilisateur

Performance

Performance HyperVibe Manuel utilisateur

Scalamobil

Scalamobil S27 Manuel utilisateur

Precor

Precor Experience Series Manuel utilisateur

FYTTER

FYTTER RedMIUM BENCH BE-T6R Manuel utilisateur

Taurus

Taurus TF-RK1312 Manuel utilisateur

Nustep

Nustep T5 Manuel utilisateur

Precor

Precor CW-507 Manuel utilisateur

Movement

Movement BICEPS Idea Manuel utilisateur

Kegel8

Kegel8 V For Men Manuel utilisateur

Skandika

Skandika Styrke II Manuel utilisateur

Stamina

Stamina aeropilates premier 299 Manuel utilisateur

SPORTSTECH

SPORTSTECH PBX300 Manuel utilisateur

ParaBody

ParaBody Serious Steel 877102 Manuel utilisateur

Weslo

Weslo Gym 650 Manuel utilisateur

Rebel

Rebel ACTIVE RBA-1011 Manuel utilisateur

4iiii

4iiii FLiiiight Manuel utilisateur


Image 540 Manuel utilisateur

OWNERS MANUAL & QUICK START GUIDE

BINARY RACK

NOTE : PLEASE READ ALL THE INSTRUCTIONS

CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

BLK BOX

21-0549-0A

#MADEINBELFAST

628mm x 1450mm x 2212mm

2128mm x 2950mm x 3076mm

65kg

PRODUCT SPECIFICATION

PRODUCT WEIGHT

MAX USER WEIGHT

MAX USER

MAX TRAINING WEIGHT

DIMENSIONS

SAFE WORKING ZONE

-125kg

200kg

-

-

-

-

1

-

All manuals and user guides at all-guides.com

SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE

BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF

INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE).

WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.

EACH PERSON SHOULD BE EQUIPPED WITH SAFETY GLASSES, STEEL TOE CAP BOOTS AND EAR PLUGS.

PLEASE BE AWARE OF THIS SYMBOL AS AN INDICATION TO CHECK THAT A PART IS LEVEL

OR PLUMB.

WARNING

SPIRIT LEVEL

10MM MASONRY

DRILL BIT

TOOLS REQUIRED

2x 30MM SPANNER

2x 17MM SPANNER

1x 13MM SPANNER

HAMMER

HAMMER DRILL VACUUM STEP LADDER

#MADEINBELFAST

TAPE MEASURE

All manuals and user guides at all-guides.com

PARTS & ATTACHMENTS

#MADEINBELFAST

1

2

3

4

3

6

7

8

9

10

11

12

13

14

16

15

All manuals and user guides at all-guides.com

ASSEMBLY

1

PLACE THE WM STRINGER (20-0350-0A) IN A VERTICAL POSITION AGAINST THE WALL ,

PERPENDICULAR TO THE FLOOR.

MARK THE LOCATION OF THE INDICATOR ON THE WALL, USING THE POINT IN THE CENTRE

AS A GUIDE.

#MADEINBELFAST

All manuals and user guides at all-guides.com

#MADEINBELFAST

2

MOVE THE STRINGER 1200MM LEFT/RIGHT AND REPEAT STEP 1.

1200 MM

All manuals and user guides at all-guides.com

3

MARK OUT THE REST OF THE HOLES USING THE GUIDE BELOW.

#MADEINBELFAST

All manuals and user guides at all-guides.com

#MADEINBELFAST

4

CHECK THAT THE STRINGERS ARE LEVEL AND ALIGN WITH THE HOLES THAT HAVE BEEN

MARKED OUT. DRILL 10MM HOLES, 90MM DEEP. VACUUM OUT THE DUST

All manuals and user guides at all-guides.com

5

BOLT 4QTY HINGE BRACKET (21-0552-0B) TO 2QTY WM STRINGER WITH BOLTS

ASSEMBLY AS SHOWN.

#MADEINBELFAST

10-0031 x 2

10-0019 x 2

10-0019 x 2

10-0024 x 2

30

Nm

All manuals and user guides at all-guides.com

#MADEINBELFAST

6

SECURE STRINGERS TO THE WALL USING 16QTY M10 SLEEVE ANCHOR BOLTS (10-0031)

AND THE PREDRILLED HOLES.

30

Nm

All manuals and user guides at all-guides.com

7

BOLT 4QTY FOLDING RACK BOX CM (21-0551-0A) TO 2QTY UPRIGHT (21-0557-0A).

#MADEINBELFAST

10-0134 x 2

10-0023 x 2

10-0023 x 2

10-0028 x 2

10-0134 x 2

10-0023 x 2

10-0023 x 2

10-0028 x 2

All manuals and user guides at all-guides.com
