OWNERS MANUAL & QUICK START GUIDE

WALL MOUNTED COMPACT 1 BAY GOLIATH

NOTE : PLEASE READ ALL THE INSTRUCTIONS

CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

BLK BOX

PRODUCT SPECIFICATION

1200mm x 2408mm x 760mm

21-0130-0E

2700mm x 3272mm x 1960mm

#MADEINBELFAST

PRODUCT WEIGHT

MAX USER WEIGHT

MAX USER

MAX TRAINING WEIGHT

DIMENSIONS

SAFE WORKING ZONE

-125kg

300kg

WARNING

SPIRIT LEVEL

10MM MASONRY

DRILL BIT

TOOLS REQUIRED

17MM SPANNER X2

13MM SPANNER

HAMMER

HAMMER DRILL VACUUM STEP LADDER

PARTS & ATTACHMENTS

No. Name SKU QTY

1 2.4 UPRIGHT DNA60

WITH FEET

21-0036-0A 2

2 0.7 SINGLE BAR WM

DNA60

21-0032-0B 2

3 1.2 SINGLE BAR CM

DNA60

21-0015-0A 1

4 J-HOOKS PAIR 16-0001 1

5 M10X80 SLEEVE

ANCHOR

10-0031 6

6 M10X90 BOLT 10-0008 10

7 M10 NYLOCK NUT 10-0024 16

8 M10 FLAT WASHER 10-0019 10

SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE

BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF

INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE).

WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.

EACH PERSON SHOULD BE EQUIPPED WITH SAFETY GLASSES, STEEL TOE CAP BOOTS AND EAR PLUGS.

PLEASE BE AWARE OF THIS SYMBOL AS AN INDICATION TO CHECK THAT A PART IS LEVEL

OR PLUMB.

THIS SYMBOL IS AN INDICATION OF THE RECOMMENDED TORQUE EACH

BOLT SHOULD BE TIGHTENED TO. THIS VALUE WILL BE DEPENDENT ON

THE BOLT TYPE. PLEASE HAND TIGHTEN ALL BOLTS UNTIL YOU SEE THIS SYMBOL.

#MADEINBELFAST

ASSEMBLY

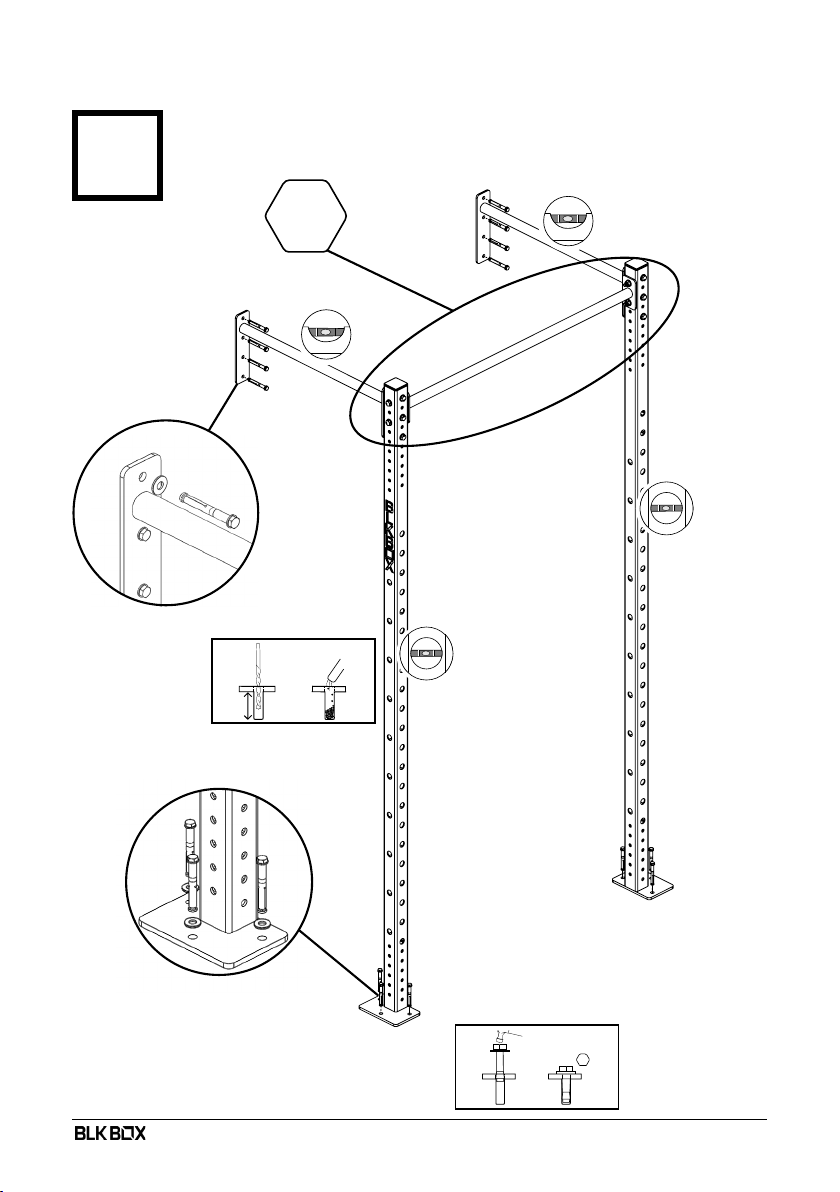

BOLT 1QTY 1.2 SINGLE BAR CM (21-0015-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A)

AND 2QTY 0.7 SINGLE BAR WM (21-0032-0B) WITH BOLTS ASSEMBLY AS SHOWN.

LOGO ON UPRIGHTS ARE FACING OUTWARD AND ALL BOLTS FACING INWARDS.

#MADEINBELFAST

10.0008

10.0019 x2

10.0024

x10

DRILL HOLE VACUUM

90MM

TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE TO THE SPECIFIED TORQUE . ENSURE

UPRIGHTS ARE PLUMB AND ALL SINGLE BAR ARE LEVEL. DRILL AND SECURE UPRIGHTS

AND 1.2 SINGLE BAR WM (21-0032-0B) AS SHOWN IN GUIDE.

#MADEINBELFAST

10.0031

10.0019

10.0031

10.0019

HAMMER IN

BOLT TIGHTEN

SLEEVE ANCHOR BOLT FITTING

-HAMMER SLEEVE ANCHOR INTO THE HOLE.

-TIGHTEN SLEEVE ANCHOR TO SPECIFIED TORQUE

USING 13MM SPANNER.

-DRILL 10MM HOLE, 90MM

DEEP USING PLATE AS

A GUIDE.

-VACUUM OUT THE DUST.

SLEEVE ANCHOR BOLT FITTING

#MADEINBELFAST

1:1 SCALE FASTENERS

FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT

www.blkboxfitness.com/pages/terms-conditions

GET IN TOUCH

TEL: 028 9045 4123

EMAIL: info@blkboxfitness.com

DISCOVER MORE AT:

www.blkboxfitness.com

M10x80 SLEEVE ANCHOR

10-0031

M10x90 BOLT

10-0008

NYLOCK NUT

10-0024

M10 FLAT WASHER

10-0019
