Blicube RLINK Manuel utilisateur

RLINK User Manual

RLINKUser Manual

1/14

RLINK

Version

Data

Finisher

Description

V1.0

2021/05/30

Qingchuan

The initial version

V2.0

2021/10/07

Alan

English version

Statement:

The user's use of the RLINK Wireless Data Link Communication module is considered to

be an automatic acceptance of this statement.

Please read this manual carefully before using the RLINK, and if you have any questions,

please contact technical support email blicube.sp.@gmail.com.

RLINKUser Manual

2/14

RLINK

INDEX

Part 1 Introduction............................................................................................................................................................ 3

1.1

Summary

.................................................................................................................................................................... 3

1.2

Technical Specifications

......................................................................................................................................... 4

1.3

Physical Dimension

................................................................................................................................................. 5

Part 2 Use Guide ................................................................................................................................................................ 6

2.1 Interface

..................................................................................................................................................................... 6

2.2 Default parameter

.................................................................................................................................................... 6

2.3 Communication

........................................................................................................................................................ 6

2.4 Power Suply

.............................................................................................................................................................. 6

2.5 Ground Station

......................................................................................................................................................... 7

Part 3 Configuration......................................................................................................................................................... 8

3.1 Enter configuration mode

....................................................................................................................................... 8

3.2 Common commands reference

............................................................................................................................... 8

3.3 Point to Point Configuration

................................................................................................................................. 9

3.4 Point to Mutlipoint Configuration

......................................................................................................................10

Part 4 Precautions ...........................................................................................................................................................11

Part 5 Purchase ................................................................................................................................................................12

5.1 The link to purchase

..............................................................................................................................................12

5.2 The list of a RLINK kit

..........................................................................................................................................12

5.3 Express delivery

..................................................................................................................................................... 13

5.4 Wholesale

................................................................................................................................................................13

RLINKUser Manual

3/14

RLINK

Part 1 Introduction

1.1 Summary

RLINK is a long-distance wireless data link communication module developed by

blicube.LLC, supporting Point to Point and Point to Multipoint. Using two RLINK

modules to form a pair of data links for mutual communication, when one connected to the

device end and the other connected to the computer end. With three or more RLINK

modules, it can be used forPoint to Multipoint.

Based on bulid-in P900 module, RLINK has the characteristics of high transmission power,

high link rate, high receiving sensitivity, etc. The ground-to-air communication distance is

up to 30+KM, the transmitting power can reach 1W, besides the module supports wide

voltage input (5～55V) and high-speed frequency hopping. The module has the operating

temperature range of -40 to 80 degrees, with shell of CNC aviation aluminum alloy

materials.

Figure 1.1 RLINK module

RLINKUser Manual

4/14

RLINK

1.2 Technical Specifications

➢Performance

Item

Specification

Frequency

902-928MHz

Spreading Method

Frequency Hopping

Encryption

Range

Forward Error Detection

Error Detection

Optional(see –AES option)

Up to 60 KM(in theory)

Hamming

BCH

Golay

Reed-Solomon

32 bits of CRC, ARQ

Output Power

100mW-1W（20-30dBm）

Serial Interface

3.3V TTL

Baud Rate

57600（default & changeable）

Link Rate

Sensitivity (@10-4)

57.6 –276 kbps

-114 dBm@ 57.6 kbps

-112 dBm@ 115.2 kbps

-109 dBm@ 172.8 kbps

-107 dBm@ 230.4 kbps

Blocking

Supply Voltage

+/- 1 MHz > 55 dBc

+/- 2.5 MHz > 60 dBc

+/- 5 MHz > 65 dBc

> 930 MHz > 70 dBc

< 890 MHz > 70 dBc

5～55v

Antenna Interface

SMA

Environmental

-55～85℃

Size

50mm*38mm*14mm

Weight

39g

RLINKUser Manual

5/14

RLINK

1.3 Physical Dimension

The module size is shown in Figure 1.2. The mounting hole is a through hole with a

diameter of 3.2, which is suitable for M3 bolt.

Figure 1.2 The physical dimension of RLINK

RLINKUser Manual

6/14

RLINK

Part 2 Use Guide

2.1 Interface

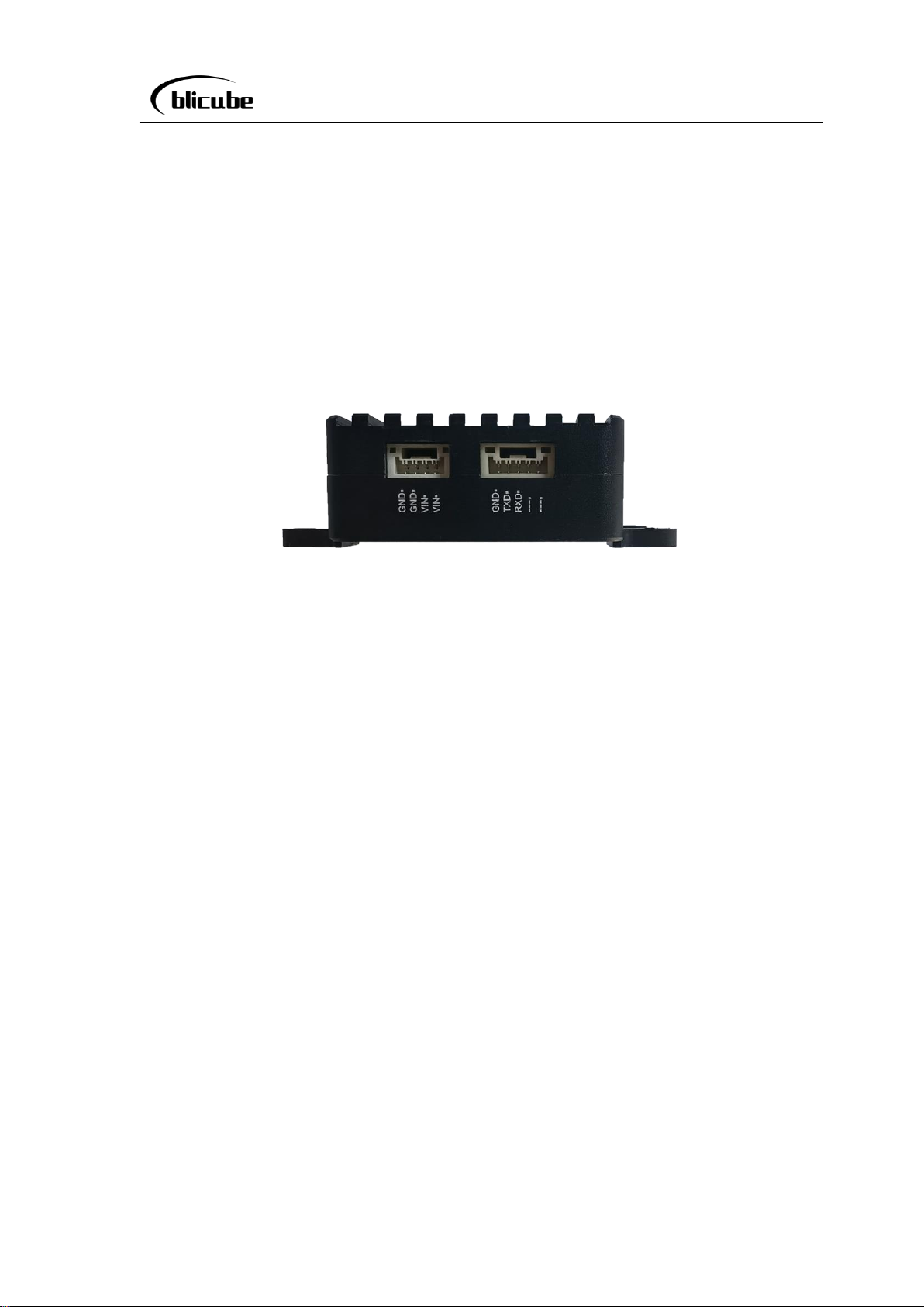

The RLINK module has two GH1.25 interfaces, shown in Figure 2 .1, where the left side is

the power supply interface, which is recommended to use the provided circuit board for

power supply, and the right side is a serial interface.

Figure 2.1 The interfaces of RLINK

2.2 Default Parameter

RLINK has been configured when you get it. The default link rate is 115 kbps, the boud

rate of serial interface is 57600, and the default broadcast mode is Point to Point. If you

want to modifythe relevant parameters, please refer to Part 3 for custom configurations.

2.3 Communication

➢Pixhawk Flight Controller

Please connect the RLINK serial interface to controller’s Telem1 or Telem2 interface.

➢Other Devices

Please follow the interface definition to connect the RLINK serial interface to other

device serial interface (RX-TX TX-RX GND-GND), if needed.

2.4 Power Suply

Since output power up to 1W, some controller’s and computer’s interfaces have not the

ability to supply such high power, it is recommended strongly that using a separate battery

to supply power for RLINK forthestability.

RLINKUser Manual

7/14

RLINK

2.5 Ground Station

Connect RLINK(the ground end) to computer as a monitor via a data cable, it can be auto

connected when using QGroundControl. While when using Mission Planner as your

ground station, it is necessary to select communication port and baud rate as shown in

figure 2.2 at first, click CONNECTand then wait forthe connection to complete.

Figure 2.2 Settings in Mission Planner for RLINK

RLINKUser Manual

8/14

RLINK

Part 3 Configuration

RLINK has been configured at the factory and generally does not require additional

configuration. If you need to modify the parameters, you can customize the configuration

according to the instructions below.

3.1 Enter Configuration Mode

Connect RLINK(the ground end) to the computer via a data cable at first, make sure the

your serial assistant can communicate with RLINK, press and hold the RLINK CONFIG

key with a thimble or other sharp object. The RLINK will enter configuration mode when

the serial assistant pops up theNO CARRIER 0K prompt and then release CONFIG key.

Figure 3.1 Enterconfiguration mode

After entering configuration mode, the configuration can be completed by sending the

relevant parameters via the serial assistant (all with OK after successful configuration).

Noting that every configuration command needs to be followed by a carriage return.

3.2 Common CommandsReference

➢Common commands

ATS101: Operator Mode（0 –Master；1 –Repeater；2 –Slave）

ATS133: Network Type（0 –Point to Mutlipoint；1 –Point to Point）

ATS102: Serial Baud Rate（0 - 230400；1 - 115200；2 - 57600；3 - 38400；4 - 28800；

5 - 19200；6 - 14400；7 - 9600；8 - 7200；9 - 4800；10 - 3600；11 - 2400；12 - 1200；

13 –600；14 - 300）

ATS103: Wireless Link Rate（0 - 172800；1 - 230400；2 - 276480；3 - 57600；4 - 115200）

ATS108: Output Power（20 - 100；21 - 125；22 - 160；23 - 200；24 - 250；25 - 320；

26 - 400；27 - 500；28 - 630；29 - 900；30 -1000）

RLINKUser Manual

9/14

RLINK

ATS104: Network Address（1 ~ 4294967295）

ATS105: Unit Address (1 ~ 65535)

ATS140: Destination Address (1 ~ 65535)

➢LoadFactoryDefaultConfiguration

AT&F10: Master of Point to Point

AT&F11: Slave of Point to Point

AT&F12: Repeater of Point to Point

AT&F7: Master of Point to Multipoint

AT&F8: Slave of Point to Multipoint

AT&F9: Repeater of Point to Multipoint

3.3 Point to Point Configuration

Please copy the reference commands to the serial assistant, press enter and then click Send,

and the configuration is successful with OK:

➢Master (groundend)parametersettings：

⚫Note：

ATS105: 1;

ATS140: from 2 to65535.

⚫Example:

Set to Master mode, Baud rate of 115200, Link rate of 230400, Network address

1234567890, Output power 100mW, Unit address 1, Destination address 2.

Please follow commands below to set RLINK:

AT&F10

ATS101=0

ATS102=1

ATS103=1

ATS104=1234567890

ATS108=20

ATS105=1

ATS140=2

AT&V

AT&W
