LIG1014A, LIG1080A, LIG1082A

INDUSTRIAL

SWITCH

QUICK START GUIDE

STEP 1 - Hardware Description

LIG1014A

TABLE 1. COMPONENTS

COMPONENT LIG1014A LIG1080A LIG1082A

RJ-45 ports 10 8 6

SFP cages 4 None 2

P1 LED 1 1 1

P2 LED 1 1 1

ALM LED 1 1 1

Ethernet Port Link LED 10 8 6

Ethernet Port Speed LED 10 8 6

SFP Port Link LED 4 None 2

SFP Port Speed LED 4 None 2

LIG1082A

LIG1080A

STEP 2 - What's Included

WHAT'S INCLUDED

• (1) INDUSTRIAL MANAGED GIGABIT

ETHERNET SWITCH

• (2) WALLMOUNT PLATES

• (1) DIN RAIL CLIP

• (1) DC POWER TERMINAL BLOCK

• RJ-45 PORT DUST COVERS

• SFP PORT DUST COVERS

• THIS QUICK START GUIDE

TABLE 2. LED STATUS INDICATORS

LED NAME STATUS DESCRIPTION

P1/P2 ON Green P1/P2 power line has power

OFF P1/P2 power line is disconnected or does not have power

Alarm ON Red Ethernet link fails, alarm or power failure alarm occurs

OFF No Ethernet link fails and no power failure alarm

Copper port Link/Act

ON Green Ethernet link up but no traffic is detected

Flashing Green Ethernet link up and traffic is detected

OFF Ethernet link down

Copper port Speed ON Yellow A 1000-Mbps connection is detected

OFF No 1000-Mbps link, a 10-Mbps or 100-Mbps connection is detected

SFP port Link/Act ON Green Ethernet link up

OFF Ethernet link down

SFP port Speed ON Yellow SFP port speed 1000-Mbps connection is detected

OFF No link or an SFP port speed 100-Mbps connection is detected

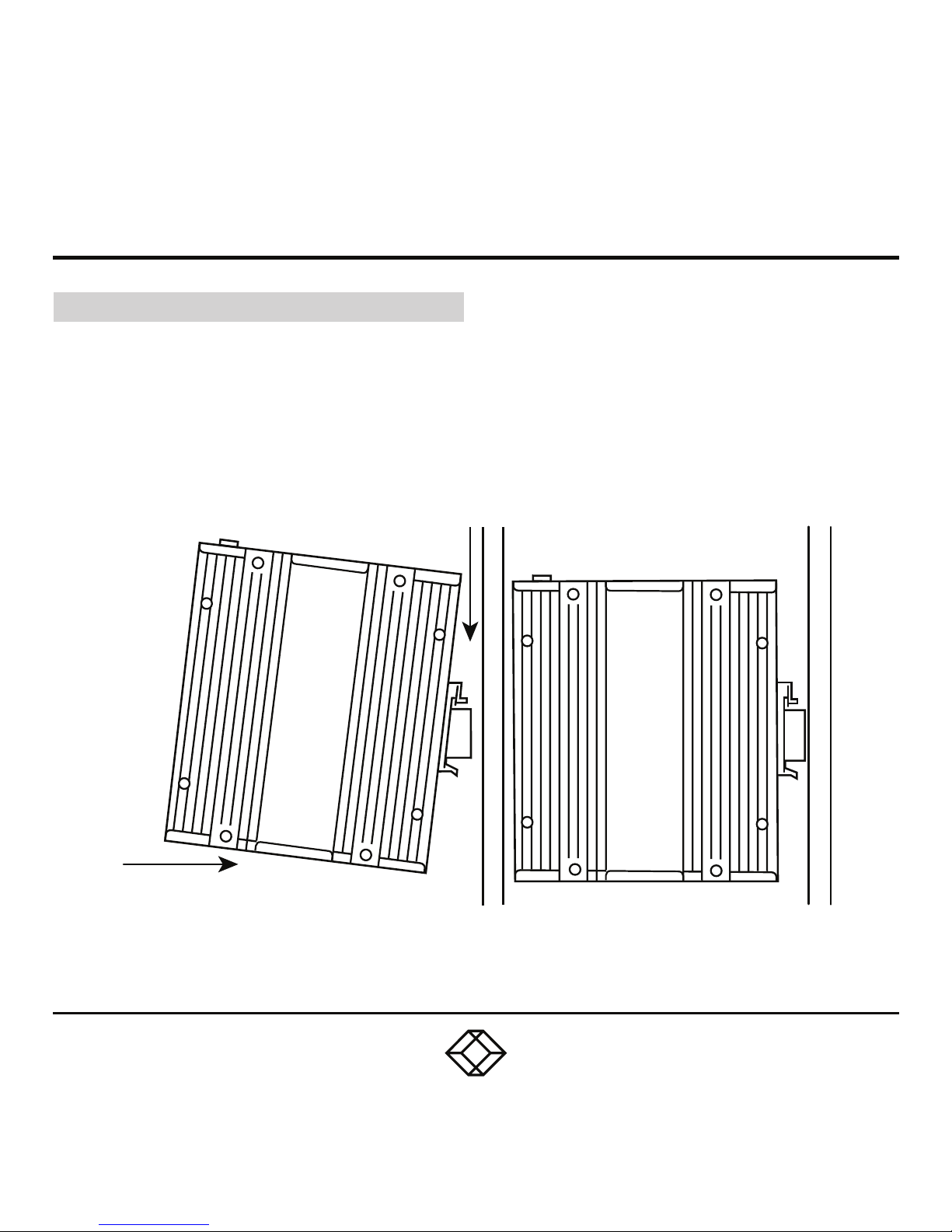

STEP 3A - Install on DIN Rail

INSTALL THE UNIT ON A DIN RAIL

1. Attach the screws to the DIN clip.

2. Hook the unit onto the DIN rail.

3. Push the bottom of the unti towards the DIN

rail until it locks into place.

STEP 3B - Mount on a Wall

INSTALL THE UNIT ON A WALL

1. Attach the screws to the wallmount brackets.

2. Using M4 screws, attach the unit and bracket

assembly to the wall.

–

P1 P2 ALM

9 10

–

STEP 4A - Connect the RJ-45 Ethernet Interface

CONNECT THE SWITCH TO PC OR DEVICE

1. To connect the switch to a PC, use a straight-

through Ethernet or crossover cable.

2. To connect the switch to an Ethernet device,

use unshielded twisted-pair (UTP) or shielded

twisted-pair (STP) Ethernet cables.

NOTE: The pin assignments of the 10BASE-T,

100BASE-TX and 1000BASE-T connector

(RJ-45) are shown in the diagram at right

and the table below.

TABLE 3. 10/100/1000 PORT PINOUTS

PIN REGULAR PORTS

1TP0+

2 TP0 -

3 TP1 +

4 TP2 +

5 TP2 -

6 TP1 - -

7 TP3 +

8 TP3 -

LOCAL EXTENDER,

REAR VIE W

8 7 6 5 4 3 2 1

TABLE 3. 10/100/1000 PORT PINOUTS

PIN REGULAR PORTS

1TP0+

2 TP0 -

3 TP1 +

4 TP2 +

5 TP2 -

6 TP1 - -

7 TP3 +

8 TP3 -

LOCAL EXTENDER,

REAR VIE W

STEP 4B - Connect the Fiber SFP Ethernet Interface

1001000BASE-FX CONNECTIONS

For both 100/1000 Mbps fiber speed

connections, the SFP slots are available.

The SFP slot accepts the SFP transceivers

shown in the table below.

DANGER! Never look directly at optical

connectors that might be emitting optical

energy. YOUR EYES MIGHT BE DAMAGED!

TABLE 4. COMPATIBLE SFPS

PART NUMBER DESCRIPTION

LFP411 SFP/1250 Extended Diagnostics, LC multimode, 850 nm, 550 m

LFP412 SFP/1250 Extended Diagnostics, LC multimode, 1310 nm, 2 km

LFP413 SFP/1250 Extended Diagnostics, LC single-mode, 1310 nm, 10 km

LFP414 SFP/1250 Extended Diagnostics, LC single-mode, 1310 nm, 40 km

LFP401 SFP/155 Extended Diagnostics, LC multimode, 850 nm, 2 km

LFP403 SFP/155 Extended Diagnostics, LC single-mode, 1310 nm, 30 km

LFP404 SFP/155 Extended Diagnostics, LC single-mode, 1310 nm, 60 km

LFP402 SFP/155 Extended Diagnostics, LC multimode, 1310 nm, 2 km

LFP418 SFP/1250 Extended Diagnostics, LC single-mode, 1550 nm, 80 km

LFP420 Simplex SFP/1250, Extended Diagnostics, single-mode, 1550 nm TX, 1310 nm RX

STEP 5 - Connect the Power

ALARM RELAY AND GROUND

The alarm relay output contacts are in the

middle of the DC terminal block connector

as shown in the diagram below.

The alarm relay out is “Normal Open” and will

close when it detects a power or Ethernet

link failure.

The relay has a current carrying capacity

of 0.5 A at 24 VDC.

CONNECTING POWER TERMINAL BLOCK

The switch can be powered from two DC power

supplies (input range 12 VDC to 58 VDC).

1. Insert the positive and negative wires into

the V+ and V- contacts on the terminal block.

2. Tighten the wire clamp screws to prevent

the wires from becoming loose.

PWR1

CONSOLE RESET

+ – – +

ALM PWR2

12–48 VDC POWER INPUT

GROUND

3 (RD)

4 (TD)

6 (DGND)

DGND

STEP 6 - Connect the Console Port

CONSOLE CONNECTION

Use the console port to manage the switch

locally via a terminal emulator or a computer

with terminal emulation software.

Connect the switch's DB9 connector to a

computer's COM port with the following

properties:

• Baud rate: 115200 bps

• 8 data bits

• 1 stop bit

• No Priority

• No Flow Control

To connect the host PC to the console port,

you need an RJ-45 male to RS-232 DB9 female

connector cable.

1. Connect the RJ-45 end of the cable to the

switch‘s console port.

2. Connect the DB9 end of the cable to the

PC's COM port.

STEP 7 - Connect and Login to the Switch

CONNECT TO THE ETHERNET PORT

1. Connect to the Ethernet port of the

managed switch.

Factory Default IP: 192.0.2.1

2. Log in with the default username

and password:

Username: admin

Password: (blank) (Just press the Enter key.)

OPTIONAL: DOWNLOAD USER MANUAL

For product specifications and regulatory

information, refer to the User Manual. You can

download this document from our web site.

1. Go to www.blackbox.com

2. Enter the part number (LIG1014A, LIG1080A

or LIG1082A) in the search box.

3. Click on the product in the “Product

Results” page.

4. Click on the “Support” tab on the product page,

and select the document you wish to download.

If you have any trouble accessing the Black Box

site to download the manual, you can contact

our Technical Support at 877-877-2269

or INFO@BLACKBOX.COM.
