Black Box LPH1006A-R2 Manuel utilisateur

STEP X - Name of Step

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

LPH1006A-R2

GB POE+

SWITCH

QUICK START GUIDE

LPH1006A-R2

10/100/1000T

PW1 PW2 Fault

1000M 100M

PoE

P5 P6

100/1000X

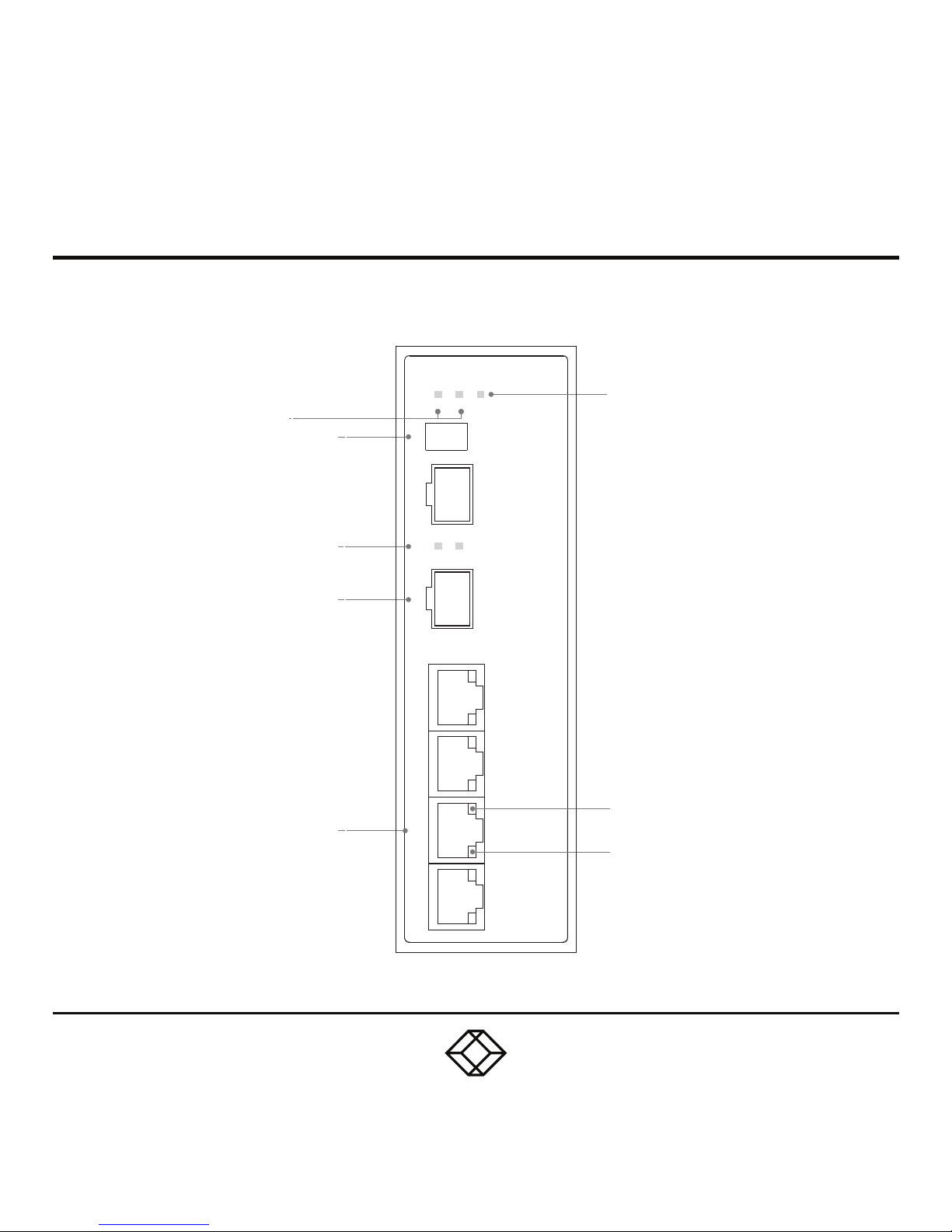

STEP 1 - Overview

DIP switch select

Power Fault LED

Power LEDs

Green Link/Act

Green PoE power injected

Gigabit LAN Port

SFP Link/Act LED

100/1000BASE-X SFP port

STEP 1 (CONTINUED) - Overview

TABLE 1. COMPONENTS ON THE SWITCH

COMPONENT DESCRIPTION

(2) Power LEDs (green) Lights when PWR1 or PWR2 to the switch is on

DIP Switch Select Choose 1000 M or 100 M for Port 5 or 6

(2) SFP Link/Act. LEDs Lights when Port 5 or Port 6 is running at 1000 M

(2) 100/1000BASE-X SFP Ports Houses SFP module (see Table on the next page)

(4) Gigabit LAN Ports (RJ-45) Link to 10-/100-/1000-Mbps Ethernet devices

(1) Power Fault LED (amber) Indicates PWR1 or PWR2 failure

(4) Link/Act. LEDs (green/amber) Green for 1000 Mbps; Amber for 10/100 Mbps

(4) Power Injected LEDs (green) Lights when PoE power is injected

STEP 2 - Install the SFPs

TABLE 2. COMPATIBLE SFPS

SFP PART NUMBER DESCRIPTION

LFP401 SFP, 155-Mbps Fiber with Extended Diagnostics, 850-nm MM, LC, 2 km

LFP402 SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm MM, LC, 2 km

LFP403 SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm SM, Plus, LC, 30 km

LFP404 SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm SM, Plus, LC, 60 km

LFP411 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 850-nm MM, LC, 300 m

LFP412 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 1310-nm MM, LC, 2 km

LFP413 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 1310-nm SM, LC, 10 km

LFP414 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 1310-nm SM, LC, 30 km

LFP416 SFP with SGMII Interface, 1.25-Gbps Copper with Ext. Diag., 10/100/1000BASE-T

INSTALL THE SFPS

Install two of the SFPs listed in the table below

into the empty SFP cages on the switch.

STEP 3 - Set the DIP switches

TABLE 3. DIP SWITCH SETTINGS

DIP 1 DIP 2 DESCRIPTION

OFF OFF Power failure relay alarm disabled

ON OFF PWR 1 failure relay alarm enabled

OFF ON PWR 2 failure relay alarm enabled

ON ON PWR 1 or PWR 2 failure, relay alarm enabled

DIP SWITCHES

Locate the DIP switches on the top of the

Industrial Ethernet PoE+ Switch and set them

according to Table 3 below.

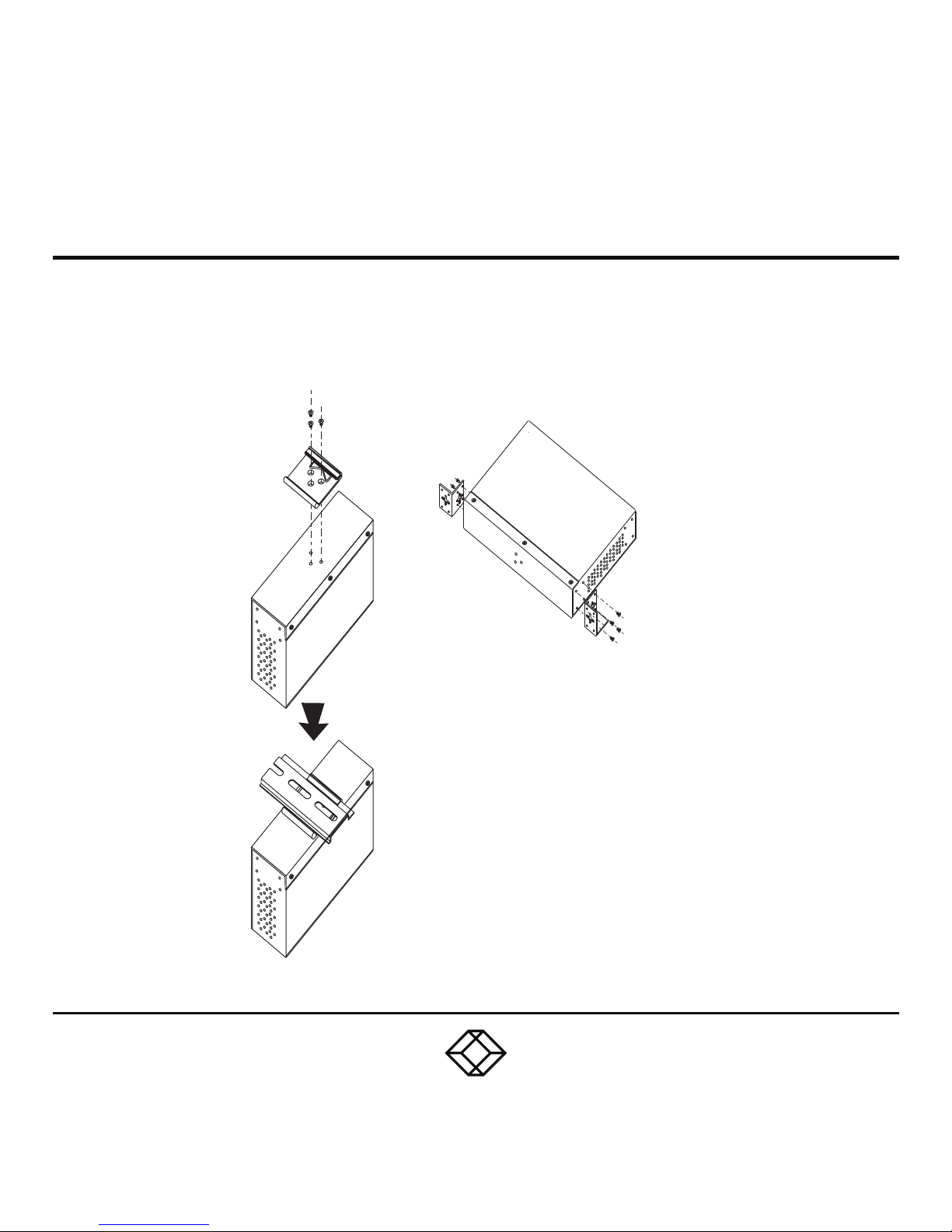

STEP 4 - Install the switch on a DIN rail or wall

DIN rail

installation

Wallmount

installation

STEP 5 - Connect power and network devices

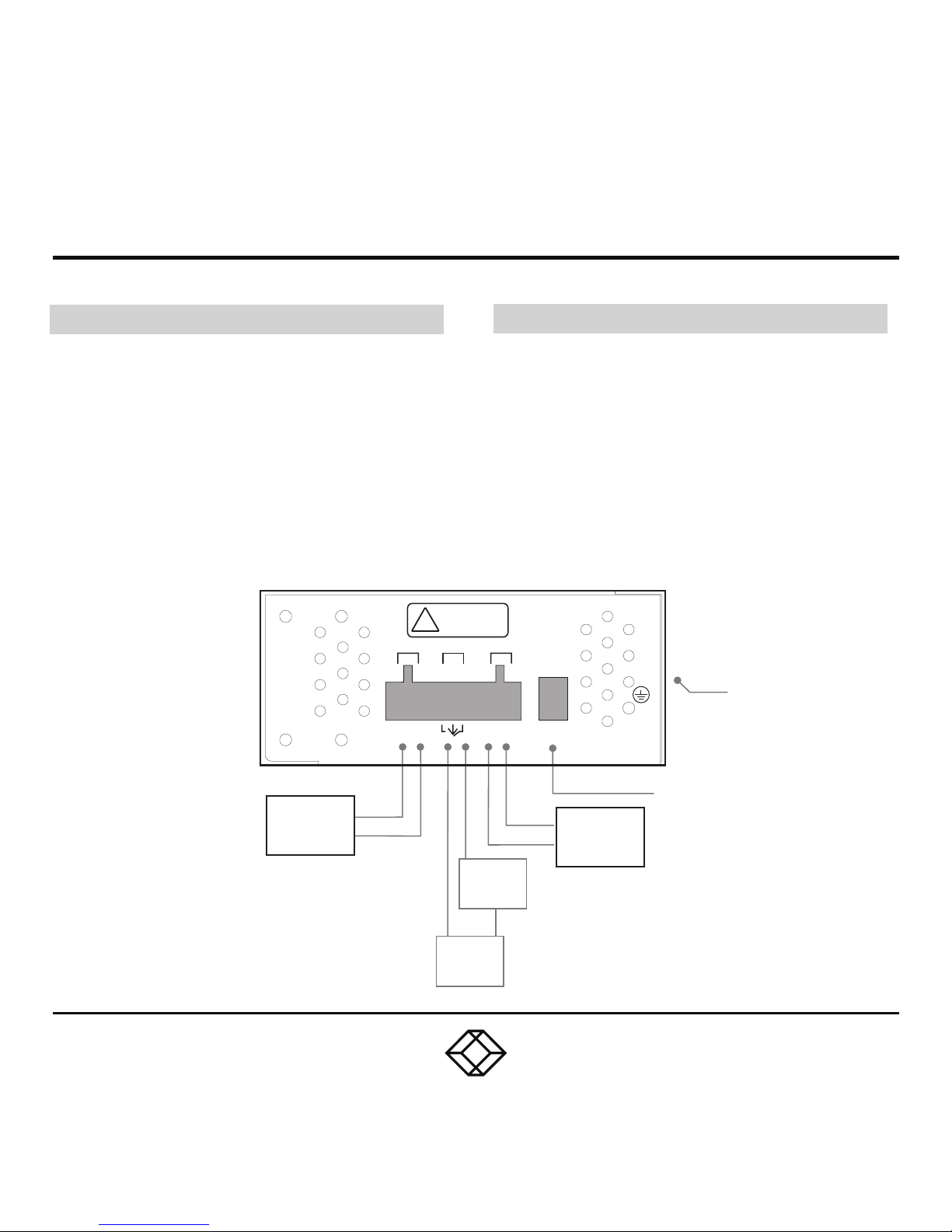

CONNECT POWER

Connect the power to the switch as shown

in the diagram below

PWR-1PWR-2

V2- V2+ V1- V1+

1A@24V

Check Polarity First.

炰

Frame

Ground

DIP switch select

for Power Alarm

Relay Output

Warning

Device

V+

V-

Power

Supply

12–57 VDC

Power

Supply

12–57 VDC

Power

Supply

Power

Supply

12–57 VDC

V+

V-

CONNECT NETWORK DEVICES

Connect your devices using standard UTP/STP

cable, single-mode fiber cable, or multimode

fiber cable with RJ-45 or LC connectors to the

switch.

2. The corresponding RJ-45 or SFP LED will light if

the Ethernet connection is linked successfully.

3. The Link/Act LED will blink while the switch

transfers data.
