Black Box VX-HDMI-TP-3D40M Manuel utilisateur

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.

call 724-746-5500) • FREE technical support 24 hours a day, 7 days

a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:

Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

BL A C K B O X®

Boost your video/audio transmission distance

up to 200 feet (60 m) in HDTV 1080i,

130 feet (40 m) in HDTV 1080p, or 65 feet

(20 m) in HDTV 1080p with 36-bit color depth.

3D HDMI Extender

VX-HDMI-TP-3D40M

724-746-5500 | blackbox.com

Page 2

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks

of BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged

to be the property of the trademark owners.

724-746-5500 | blackbox.com Page 3

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY

CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such

interference when the equipment is operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause interference, in

which case the user at his own expense will be required to take whatever

measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

724-746-5500 | blackbox.com

Page 4

NOM Statement

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más

allá a lo descrito en las instrucciones de operación. Todo otro servicio

deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo

del tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no

sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

724-746-5500 | blackbox.com Page 5

NOM Statement

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com

Page 6

Safety Instructions

The 3D HDMI Extender has been tested for conformance to safety regulations

and requirements, and has been certified for international use. However, like all

electronic equipment, the extender should be used with care. Please read and

follow the safety instructions to protect yourself from possible injury and to

minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.

• Do not attempt to service this unit yourself, except where explained in this

manual.

• Provide proper ventilation and air circulation and do not use near water.

• Keep objects that might damage the device away from it and be sure to place

this unit on a stable surface.

• Use only the power adapter and power cords and connection cables designed

for this unit.

• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the

power to the device before cleaning.

724-746-5500 | blackbox.com Page 7

Table of Contents

1. Specifications ................................................................................................8

2. Overview ................................................................................................9

2.1 Introduction........................................................................................9

2.2 Features ..............................................................................................9

2.3 What’s Included................................................................................10

2.4 Hardware Description.......................................................................10

2.4.1 Transmitter ............................................................................10

2.4.2 Receiver.................................................................................13

2.5 Typical Configuration........................................................................15

3. Hardware Installation .................................................................................16

4. EDID Learning.............................................................................................17

5. Performance Notes.....................................................................................18

Appendix. Pin Definitions.................................................................................20

A.1 HDMI ....................................................................................................20

A.2 CAT5 (RJ-45) .......................................................................................21

724-746-5500 | blackbox.com

Page 8

Chapter 1: Specifications

1. Specifications

Audio Support — Surround sound (up to 7.1 ch) or stereo digital audio

Compliance — HDMI Deep Color and full 3D, HDCP, HDMI 1.3a

Equalization — 8-level digital control at RX

ESD Protection — (1) human body model: ±19 kV (air-gap discharge)

and ±12 kV (contact discharge); (2) core chipset: ±8 kV

HDMI over Coax Transmission Range — Full HD (1080p): 130 ft. (40 m)

using CAT5e cable, 165 ft. (50 m) using CAT6 cable;

HD (720p/1080i): 165 ft. (50 m) using CAT5e cable, 200 ft. (60 m)

using CAT6 cable

Housing — Metal enclosure

Input DDC Signal — 5 volts (peak-to-peak, TTL)

Input TMDS Signal — 1.2 volts (peak-to-peak)

PCB Stack-up — 4-layer board (impedance control: differential 100 ohms,

single 50 ohms)

Video Bandwidth — Single-link 225 MHz (6.75 Gbps)

Video Support — 480i, 480p, 720p, 1080i, 1080p (up to 36-bit color)

User Controls — Transmitter: (1) mode rotary switch;

Receiver: (1) signal-level rotary switch

Connectors — Transmitter: Input: (1) HDMI Type A (19-pin female),

Output: (1) RJ-45 (WE/SS 8P8C with [2] LED indicators), (1) HDMI Type A

connector (19-pin female);

Receiver: Input: (1) RJ-45 (WE/SS 8P8C with [2] LED indicators),

Output: (1) HDMI Type A (19-pin female)

Indicators — Each unit: (2) LEDs

Temperature Tolerance — Operating: +32 to +104° F (0 to +40° C);

Storage: -4 to +140° F (-20 to +60° C)

Relative Humidity — 20 to 90%, noncondensing

Power — Power supply: (1) 5 VDC, 2-A;

Consumption: Transmitter: 4 watts (maximum);

Receiver: 1.5 watts (maximum)

Size — Each unit: 1"H x 2.4"W x 3.6"D (2.6 x 6 x 9.1 cm)

Weight — Transmitter: 0.43 lb. (0.2 kg);

Receiver: 0.37 lb. (0.19 kg)

724-746-5500 | blackbox.com Page 9

Chapter 2: Overview

2. Overview

2.1 Introduction

The 3D HDMI Extender boosts your video/audio transmission distance up to

200 feet (60 meters) in HDTV 1080i format, 130 feet (40 m) in HDTV 1080p

format, and 65 feet (20 m) in HDTV 1080p with 36-bit color depth.

The extender also supports the most advanced 3D video format compliant with

the HDMI 1.3a specification and therefore guarantees the highest 3D video

compatibility on the market. With only one CAT5/5e/6 cable, users can readily

extend HDTV sources from DVD players, Blu-ray Disc players, PS3s, PCs, and any

other kinds of sources compliant with TMDS to distant display monitors

including HDMI/DVI enabled TV sets or LCD PC monitors. This flexibility enables

HDCP compliant DVD players or PS3s to transmit the utmost high-quality video

and audio with a greater distance at minimal cost, when integrating several

components.

The extender includes two units: a transmitter and a receiver. The transmitter

captures the input HDMI/DVI signals and carries the signals via one CAT5/5e/6

cable. The receiver equalizes the transmitted HDMI signal. The transmission

distance between the sending and receiving units can be up to 200 feet (60 m)

at HD 720p or 1080i; or 130 feet (40 m) at Full HD 1080p. With an 8-level

equalization rotary control on the receiving unit, users can adjust the

equalization strength to the received HDMI signals accordingly, and optimize

the transmission distance between source and destination.

2.2 Features

• Supports HDMI Deep Color and full 3D.

• Extends the transmission up to 200 feet (60 m) from the HDMI source

at HD 1080i or 720p, 24-bit color.

• Extends the transmission up to 130 feet (40 m) from the HDMI source

at Full HD 1080p, 24-bit color.

• Extends the transmission length up to 65 feet (20 m) from the HDMI source

under Full HD resolution (1080p at 36-bit color depth).

• HDCP 1.1 compliant.

• Minimizes the cable skew by an adjustable 8-level equalization control.

• Transmits pure unaltered, uncompressed 7.1 ch digital HDMI over CAT5/5e/6

cable transmission.

• Supports DTS-HD and Dolby TrueHD high bit rate audio.

• Enables cascading.

• Wallmount housing is easy to install.

• Compatible with other HDMI over CAT5/5e/6 series products.

724-746-5500 | blackbox.com

Page 10

Chapter 2: Overview

NOTES:

1. The claimed transmission distance here depends on the installed cable grade,

source device, and display.

2. For CAT5/coax transmission, you must use a solid cable, not stranded cable.

Any keystone jack along the transmission path will decrease the transmission

performance significantly.

2.3 What’s Included

Your package should contain the following items. If anything is missing

or damaged, contact Black Box Technical Support at 724-746-5500

or info@blackbox.com.

• (1) Transmitter

• (1) Receiver

• (2) 5-VDC, 2-A wallmount power supplies

• This user’s manual

2.4 Hardware Description

2.4.1 Transmitter

Figures 2-1 and 2-2 show the transmitter’s front and back panels. Table 2-1

describes its components.

1 2

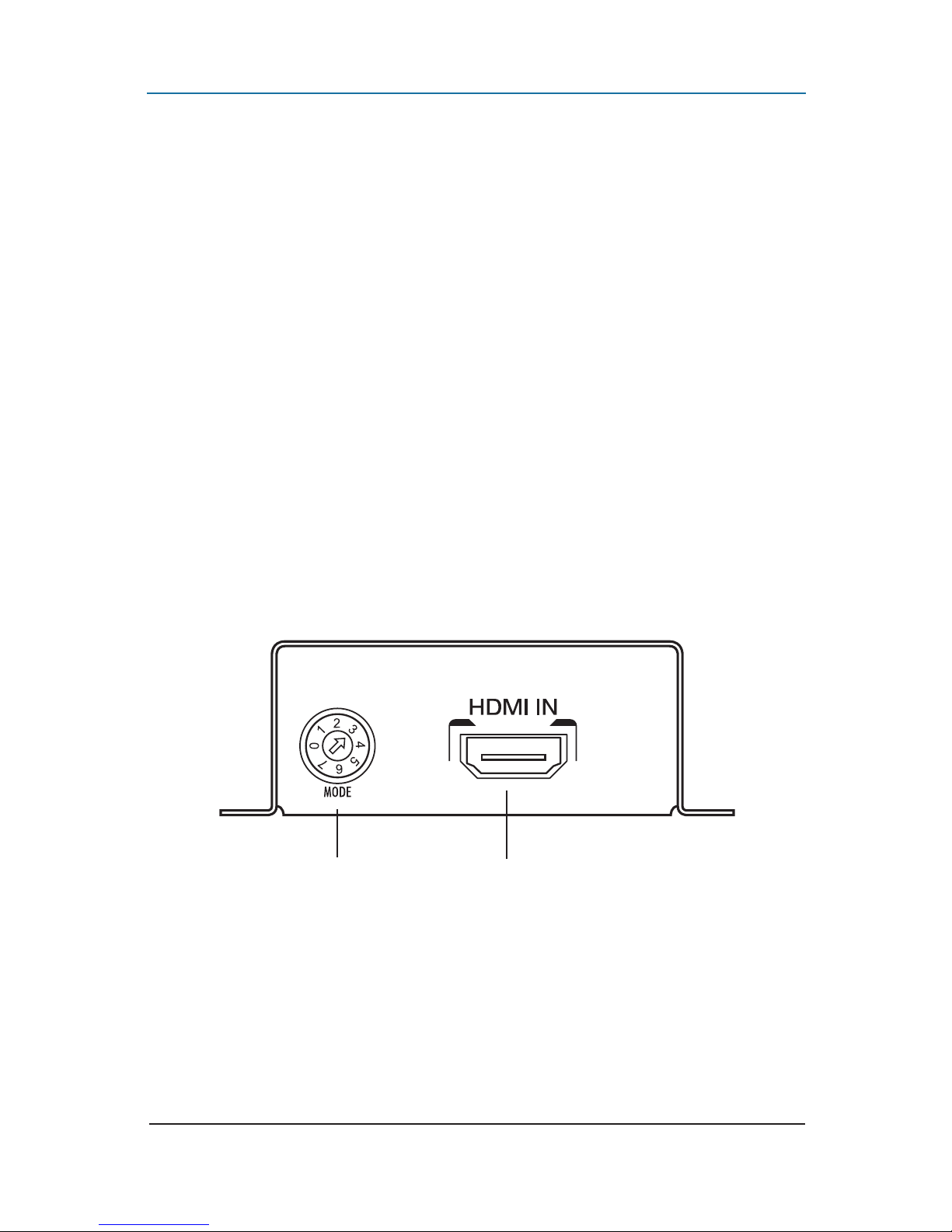

Figure 2-1. Transmitter front panel.

Table des matières

Autres manuels Black Box Extenseur

Black Box

Black Box LB304A Manuel utilisateur

Black Box

Black Box ACS2009A-R2-xx Manuel utilisateur

Black Box

Black Box LPR1111 Manuel utilisateur

Black Box

Black Box VX-HDMI-4KIP-TX Manuel utilisateur

Black Box

Black Box ServSwitch ACU5000A Manuel utilisateur

Black Box

Black Box AC1000A-R3 Manuel utilisateur

Black Box

Black Box IC408A-R2 Manuel utilisateur

Black Box

Black Box ACU8000A Manuel utilisateur

Black Box

Black Box ServSwitch Wizard ACU5012A Manuel utilisateur

Black Box

Black Box VX-1001-RX Manuel utilisateur

Black Box

Black Box ServSwitch ACU075A-PS2 Manuel utilisateur

Black Box

Black Box VX-VGA520-TA Manuel utilisateur

Black Box

Black Box ACU5050A Manuel utilisateur

Black Box

Black Box KVX Series Instructions d'utilisation

Black Box

Black Box KVX Series Instructions d'utilisation

Black Box

Black Box ServSwitch ACU6001A Manuel utilisateur

Black Box

Black Box ACS4001A-MM Manuel utilisateur

Black Box

Black Box LBPS01A-KIT Manuel utilisateur

Black Box

Black Box ServSwitch ACU3001A Manuel utilisateur

Black Box

Black Box AVX-HDMI2-HDB-R2 Manuel utilisateur

Black Box

Black Box ServSwitch ACS253A-CT Manuel utilisateur

Black Box

Black Box ACS4002A-R2 Manuel utilisateur

Black Box

Black Box AVX-HDMI2-FO-HDB Manuel utilisateur

Black Box

Black Box LB400A Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
