High Speed

Ethernet Extender

DECEMBER 2006

LB400A

HIGH SPEED ETHERNET EXTENDER

CE NOTICE

The CE symbol on your Black Box equipment indicates that it is in compliance

with the Electromagnetic Compatibility (EMC) directive and the Low Voltage

Directive (LVD) of the European Union (EU). A Certiﬁcate of Compliance is

available by contacting Technical Support.

RADIO AND TV INTERFERENCE

The High Speed Ethernet Extender generates and uses radio frequency energy,

and if not installed and used properly-that is, in strict accordance with the manu-

facturer’s instructions-may cause interference to radio and television reception.

The High Speed Ethernet Extender has been tested and found to comply with the

limits for a Class A computing device in accordance with speciﬁcations in Sub-

part B of Part 15 of FCC rules, which are designed to provide reasonable protec-

tion from such interference in a commercial installation. However, there is no

guarantee that interference will not occur in a particular installation. If the Ether-

net Extender does cause interference to radio or television reception, which can

be determined by disconnecting the unit, the user is encouraged to try to correct

the interference by one or more of the following measures: moving the comput-

ing equipment away from the receiver, re-orienting the receiving antenna and/or

plugging the receiving equipment into a different AC outlet (such that the com-

puting equipment and receiver are on different branches).

WARNING

Theis device is NOT intended nor approved to be con-

nected to the PSTN. It is intended only for connection to

customer premise equipment.

WARNING

• This device contains no user serviceable parts. The

equipment shall be returned to Black Box for repairs, or

repaired by qualiﬁed service personnel.

• The external power adapter should be a listed Limited

Power Source. Ensure that the power cable used meets

all applicable standards for the country in which it is to

be installed, and that it is connected to a wall outlet

which has earth ground. The mains outlet that is uti-

lized to power the device shall be within 10 feet (3

meters) of the device, shall be easily accessible, and

protected by a circuit breaker.

• Do not work on the system or connect or disconnect

cables during periods of lightning activity.

HIGH SPEED ETHERNET EXTENDER

TRADEMARKS USED IN THIS MANUAL

All applied-for and registered trademarks are the property of their respective owners.

NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT

Instrucciones De Seguridad

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para ref-

erencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más

allá a lo descrito en las instrucciones de operación. Todo otro servicio

deberá ser referido a personal de servicio caliﬁcado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no interﬁ-

era su uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra

o superﬁcie similar puede bloquea la ventilación, no se debe colocar en libre-

ros o gabinetes que impidan el ﬂujo de aire por los oriﬁcios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

ampliﬁcadores) que producen calor.

In accordance with the requirements of council direc-

tive 2002/96/EC on Waste of Electrical and Electronic

Equipment (WEEE), ensure that at end-of-life you sepa-

rate this product from other waste and scrap and deliver

to the WEEE collection system in your country for recy-

cling.

HIGH SPEED ETHERNET EXTENDER

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo

descrito en el instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra ﬁsica y la polarización

del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean

pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo

particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomen-

daciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas

de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derra-

mados sobre la cubierta u oriﬁcios de ventilación.

18. Servicio por personal caliﬁcado deberá ser provisto cuando:

A. El cable de poder o el contacto ha sido dañado; u

B. Objectos han caído o líquido ha sido derramado dentro del aparato; o

C. El aparato ha sido expuesto a la lluvia; o

D. El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E. El aparato ha sido tirado o su cubierta ha sido dañada.

HIGH SPEED ETHERNET EXTENDER

CONTENTS

CE Notice .................................................................................................... 2

Radio and TV Interference.......................................................................... 2

Trademarks Used In This Manual............................................................... 3

Normas Oficiales Mexicanas (NOM) Electrical Safety Statement............. 3

1. General Information ....................................................................................7

1.1 Features ...............................................................................................7

1.2 Description ......................................................................................... 7

2. Installation................................................................................................... 9

2.1 Installing the High Speed Ethernet Extender .....................................9

2.2 Connecting the Twisted-Pair Line Interface..................................... 10

2.3 Connecting the 10/100Base-T Ethernet Interface ............................ 11

2.4 Connecting Power ............................................................................ 12

3. Configuration............................................................................................. 13

3.1 Configuring DIP Switch S1 ..............................................................14

3.1.1 Switch S2-1: Symmetric/Asymmetric Operation ..................15

3.1.2 Switches S2-2 and S2-3: Data Rate....................................... 15

3.1.3 Switches S2-4, S2-5 and S2-6: Ethernet Configuration ........ 15

3.1.4 Switch S2-7: Ethernet Shutdown........................................... 16

3.1.5 Switch S2-8: Remote Configuration...................................... 16

4. Operation................................................................................................... 17

4.1 Power Up ..........................................................................................17

4.2 Front Panel LED Status Monitors .................................................... 17

A. Specifications ............................................................................................ 19

A.1 LAN Connection ..............................................................................19

A.2 Transmission Line ............................................................................19

A.3 Line Rate and Distance .....................................................................19

A.4 Surge Suppressor ..............................................................................19

A.5 LED Status Indicators .......................................................................19

A.6 Power Supply ....................................................................................19

A.7 Temperature Range ..........................................................................20

A.8 Humidity ...........................................................................................20

A.9 Dimensions .......................................................................................20

HIGH SPEED ETHERNET EXTENDER

B. High Speed Ethernet Extender Interface Pin Assignment......................... 21

B.1 10/100Base-T Interface ....................................................................21

B.2 Line Interface ....................................................................................21

C. Distance Chart, Based on 24 AWG (0.5 MM) .......................................... 22

HIGH SPEED ETHERNET EXTENDER

1. General Information

Thank you for your purchase of this Black Box product. If any questions arise

during installation or use of the unit, contact Black Box Tech Support at (724)

746-5500.

1.1 Features

•

Variable rate ethernet extender - Easy to conﬁgure

•

Auto-MDIX Ethernet

•

Conﬁgurable 10/100, Full/Half, and Auto-Negotiating Ethernet

•

Extends network connections up to 6,000 ft (1.8 km) over 2-wire 24-AWG

unconditioned lines

•

Switch selectable line rates up to 50 Mbps

•

6 symmetric or asymmetric settings via DIP switch

•

Transparent operation

•

LED indicators for Power, Link, and Ethernet Link & Activity

•

Surge suppression up to 20 kA (8/20

•

Made in the USA

1.2 Description

The Black Box LB400A Ethernet Extenders provide high-speed LAN connec-

tions between peered Ethernet LANs, remote PC’s, or any other network enabled

10/100Base-T devices.

Operating in pairs, one LB400A is conﬁgured as the (L) Local unit located at one

end of the LAN extension and the other LB400A is conﬁgured as the (R) Remote

unit at the other end. The LB400A is conﬁgured as a L or R via the switch on the

rear panel. These units can automatically forward LAN broadcasts, multicasts,

and frames across a 2-wire voice-grade twisted-pair link. The data is passed

transparently (unmodiﬁed) through the high speed ethernet extenders. The

LB400A automatically adds and deletes MAC addresses, only passing packets

across the line that is meant for the remote peered LAN.

HIGH SPEED ETHERNET EXTENDER

Figure 1.

Typical application

The pair of LB400A models work together to create a transparent extension

between two peered Ethernet LANs. Figure 1 shows a typical point-to-point

application.

HIGH SPEED ETHERNET EXTENDER

2. Installation

2.1 Installing the High Speed Ethernet Extender

Do the following:

1. Connect the line interface between the units (refer to section 2.2, “Connect-

ing the Twisted-Pair Line Interface” on page 10)

Note

See Figure 2 for the standalone unit’s rear panel arrangements.

2. Connect the Ethernet interface (refer to section 2.3, “Connecting the

10/100Base-T Ethernet Interface” on page 11).

3. Connect the power plug (refer to section 2.4, “Connecting Power” on

page 12).

Figure 2.

High Speed Ethernet Extender rear panel

CAUTION

The Interconnecting cables shall be acceptable for

external use and shall be rated for the proper applica-

tion with respect to voltage, current, anticipated tem-

perature, ﬂammability, and mechanical serviceability.

Line Power

Made in the USA

Ethernet

LB400A

Power

jack

Ethernet

port

Local/Remote

switch

Rem Loc

LINE twisted-pair

RJ-45 interface

HIGH SPEED ETHERNET EXTENDER

2.2 Connecting the Twisted-Pair Line Interface

The High Speed Ethernet Extender supports communication between two peer

Ethernet LAN sites over a distance of up to 6,000 ft (1.83 km) over 24 AWG

(0.5 mm) twisted-pair wire.

Note

Actual distance and link performance may vary depending on the envi-

ronment and type/gauge of wire used.

Follow the steps below to connect the High Speed Ethernet Extender interfaces.

Note

The LB400A works in pairs. One of the units must be a L (Local), and

the other unit must be a R (Remote). It does not matter which end is the L

and which is the R. The link is always initiated by the Remote.As long as

the Local is powered on, the Remote can establish a link by being pow-

ered on or by having its power reset.

1. To function properly, the two LB400As must be connected together using

twisted-pair, unconditioned, dry, metal wire, between 19 (0.9mm) and 26

AWG (0.4mm). Leased circuits that run through signal equalization equip-

ment are not acceptable.

2. The LB400A is equipped with an RJ-45 interface jack that to be used for

the LINE interface. This LINE interface is a two-wire interface. Observe

the signal/pin relationships on the LB400A’s LINE jack.

The RJ-45 connector on the LB400A's twisted pair interface is polarity insensi-

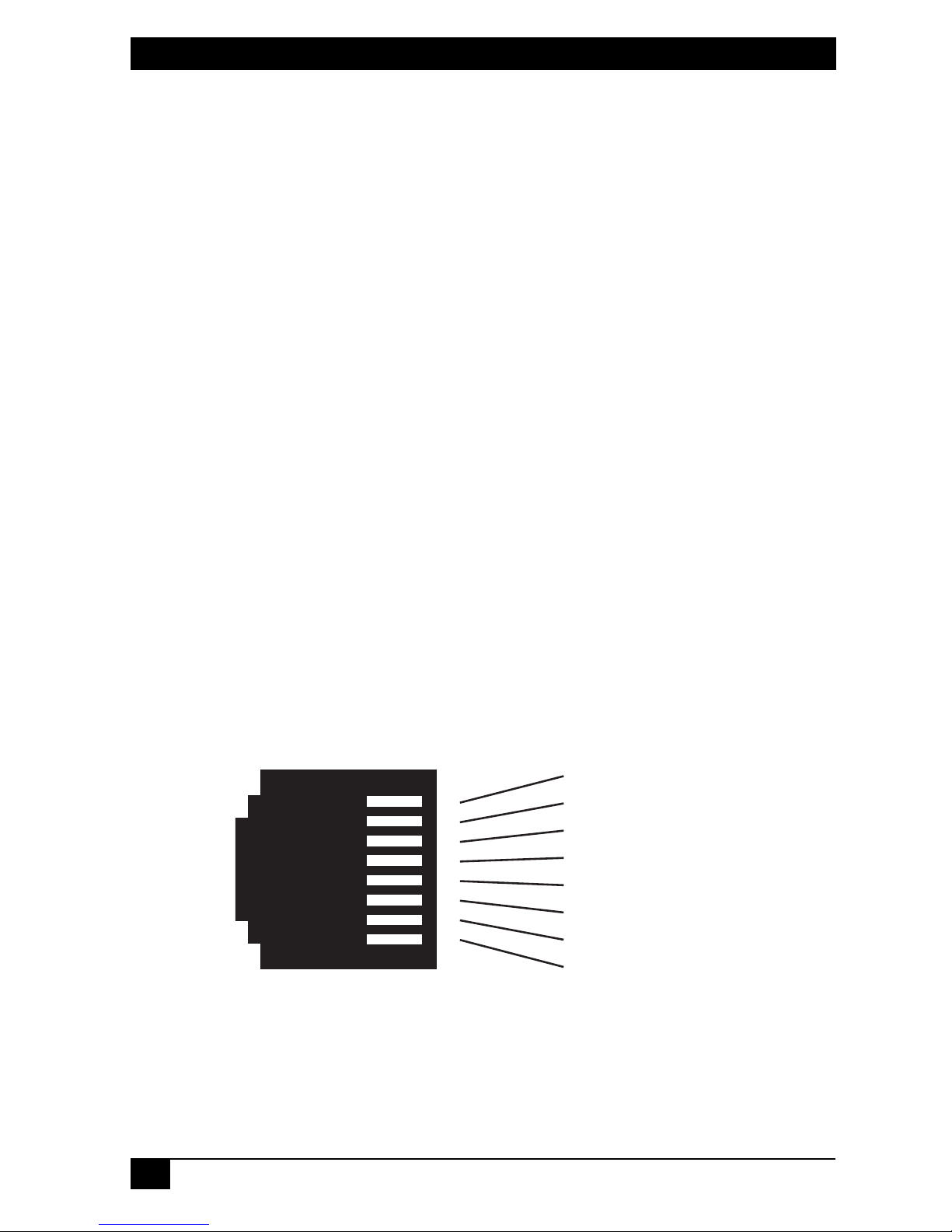

tive and is wired for a two-wire interface. The signal/pin relationship is shown in

Figure 3.

(RJ-45) twisted pair line interface.

1 (no connection)

2 (no connection)

3 (no connection)

4 (RING)

5 (TIP)

6 (no connection)

7 (no connection)

8 (no connection)

Table des matières

Autres manuels Black Box Extenseur

Black Box

Black Box AVX-HDMI2-FO-HDB Manuel utilisateur

Black Box

Black Box AC550A Manuel utilisateur

Black Box

Black Box ACS2028A-Series Manuel utilisateur

Black Box

Black Box ServSwitch ACU2001A Manuel utilisateur

Black Box

Black Box ServSwitch ACU3201A Manuel utilisateur

Black Box

Black Box ServSwitch ACX310 Manuel utilisateur

Black Box

Black Box AC074A Manuel utilisateur

Black Box

Black Box 3-Channel DVI Extender Manuel utilisateur

Black Box

Black Box 4KDPKVMXT-100M Manuel utilisateur

Black Box

Black Box ACS1009A series Manuel utilisateur

Black Box

Black Box EHN250-0050 Manuel utilisateur

Black Box

Black Box IC553A Manuel utilisateur

Black Box

Black Box ServSwitch ACU4001A Manuel utilisateur

Black Box

Black Box ACS4001A-MM Manuel utilisateur

Black Box

Black Box ACU1700A Manuel utilisateur

Black Box

Black Box LB323A Manuel utilisateur

Black Box

Black Box ServSwitch ACU6001A Manuel utilisateur

Black Box

Black Box ACS4422A-R2 Manuel utilisateur

Black Box

Black Box IC402A-R2 Manuel utilisateur

Black Box

Black Box IC404A-R2 Manuel utilisateur

Black Box

Black Box ServSwitch ACS253A-CT Manuel utilisateur

Black Box

Black Box LB300A-R3 Instructions d'installation et d'utilisation

Black Box

Black Box ACX1MT Series Manuel utilisateur

Black Box

Black Box LBPS310A-KIT Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
