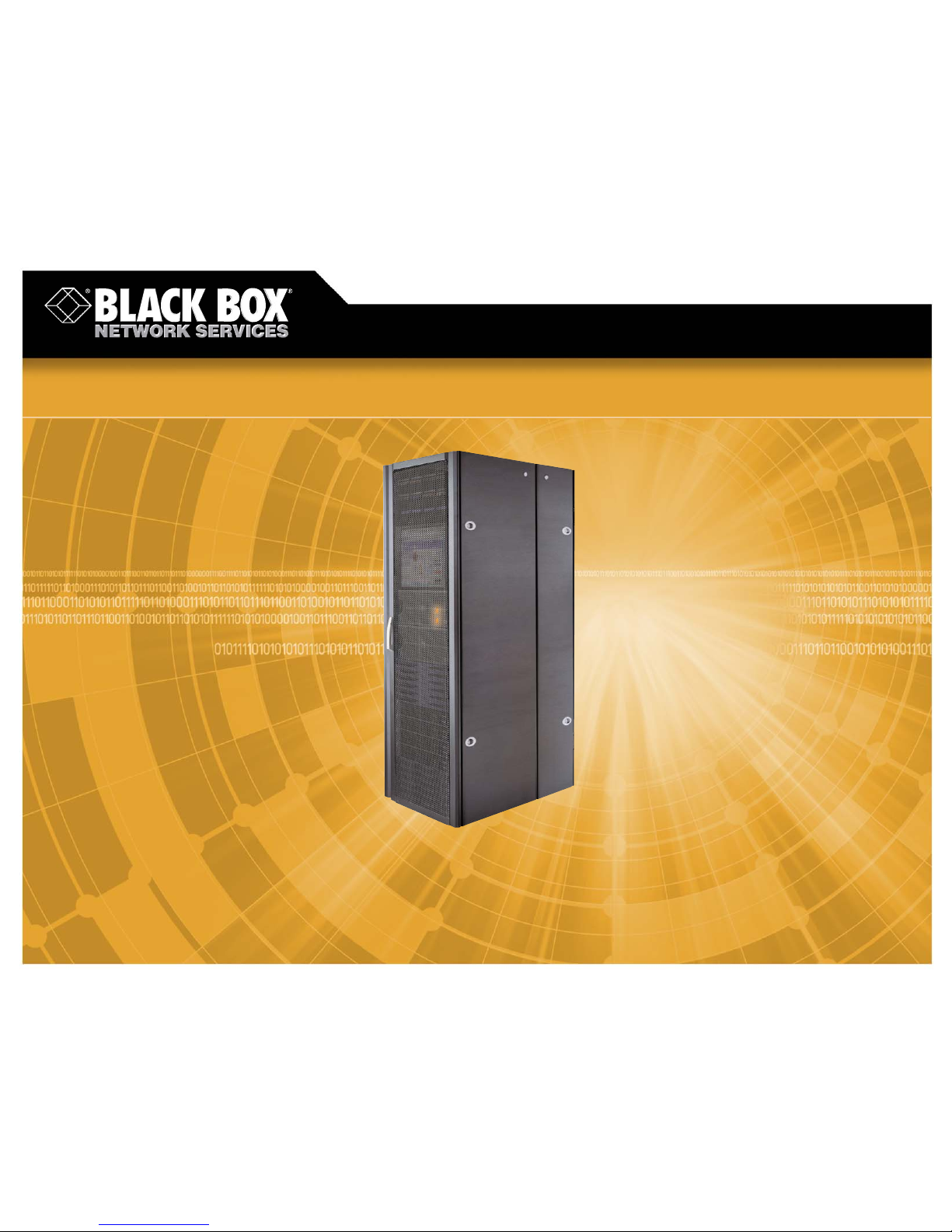

Black Box Universal Server Cabinet Manuel utilisateur

Tough, easy-access server cabinets

designed to maximize air flow.

Tough, easy-access server cabinets

designed to maximize air flow.

Universal Server Cabinets

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 2

6/21/2007

#26676

724-746-5500 blackbox.com

FEATURES

• Weight capacity of 2640 pounds.

• Constructed of welded steel.

• Generous 42" or 48" depths accomm-

odate your deepest servers plus cabling

and power.

• Ideal for high-density blade server

installations.

• Perforated front and rear doors plus a

vented top panel provide optimum

ventilation.

• Add an optional fan tray to increase

ventilation.

• Rear door is split for easy access.

• Quick-release split side panels provide

instant access to components.

• Heavy-duty casters and leveling feet are

included.

• Front door features a key-locked double-

handle lock.

• Rear door, side panels, and top panel are

also key locked.

• Protective grounding provisions.

TECH SPECS

Rack Units — 42U

Exterior Height — 80"

Exterior Width — 24"

Exterior Depth — RM8042A: 42";

RM8048A: 48"

Interior Width — 21.3"

Interior Depth — 38.5"

Weight — RM8042A: 290 lb.;

RM8048A: 310 lb.

Weight Capacity — RM8042A, RM8048A: 2640 lb.;

RM8000, RM8001: 220 lb.

OVERVIEW

Today’s high-density servers need a cabinet tailored to

their requirements. They need the Universal Server Cabinet

from Black Box. It’s designed for maximum airflow, efficient

cable management, and optimum security.

So cool.

The cabinet is specifically designed to dissipate the heat

generated by high-density installations. The mesh front and

rear doors feature a unique hexagonal pattern that provides

the maximum ventilation per square inch with up to 80%

perforated area. The top panel is vented for still more airflow.

Add the optional Rackmount Fan Tray for additional

ventilation within the cabinet.

Elbow room.

Universal Server Cabinets are extra-deep at 42 or 48

inches—so there’s plenty of space for even the largest servers

plus room for cables and power.

Vertical and multidirectional cable channels make routing

cable easy. Because the cabling is top to bottom and front to

rear, you don’t waste valuable rackmounting or access space.

Heavy lifter.

The Universal Server Cabinet stands up to the heavy loads

imposed by very-high-density installations. Its exceptionally

stable welded steel construction provides a load rating of up

to 2640 pounds. Use the included extension plinth to fasten

the cabinet to the floor for extra stability.

Locked up tight.

The Universal Server Cabinet is secure, too. The front door,

rear door, side panels, and top panel are all lockable. Keeping

your equipment secured and limiting access to it is as impor-

tant as making sure the enclosure environment is the right

one.

Universal storage.

The standard 19"rails with M6 holes are ideal for mounting

regular servers and blade servers from leading vendors such as

Apple®, Dell®, HP®, IBM®, and Sun®. For convenience, rails are

marked to indicate rack units. A grounding kit is included.

Item Code

Universal Server Cabinets, 42U

42"D RM8042A

48"D RM8048A

You may also need…

Heavy-Duty Fixed Shelves, 220-lb. Capacity

27.6"D RM8000

31.5"D RM8001

Rackmount Fan Tray, 1U RM8002

Baying Kit RM8003

✦

(1) Cabinet

✦

(4) Heavy-duty casters

✦

(4) Leveling feet

✦

(1) Grounding Kit

✦

(50) M6 screws

WHAT‘S INCLUDED
