BIXOLON XT5-40 Series Instructions d'installation

1. Turn the Power Switch Off at the rear of the Printer and open the Cover.

2. Disassemble the Cover STD by pressing it down (yellow arrow).

3. Align the red marked part with the yellow square groove, and assemble with 2

screws provided.

4. Loosen 1(one) side Screw at the below red marked.

4. Insert & assemble the hook on the red circle mark into the yellow mark and tighten

the screw loosened in step 4.

※When assembling, be careful not to pinch the wire.

5. Insert Peeler Wire into Peeler Connector and arrange wire with Cable Tie.

6. Please close the Cover.

7. Press the Peeler Lever inward (yellow arrow) to open the cover, and change

the Switch to On. Then close the Peeler Cover until it clicks into place.

8. Turn on the power and check if the Peeler Sensor LED turns green.

※Refer to the User Manual for how to install paper.

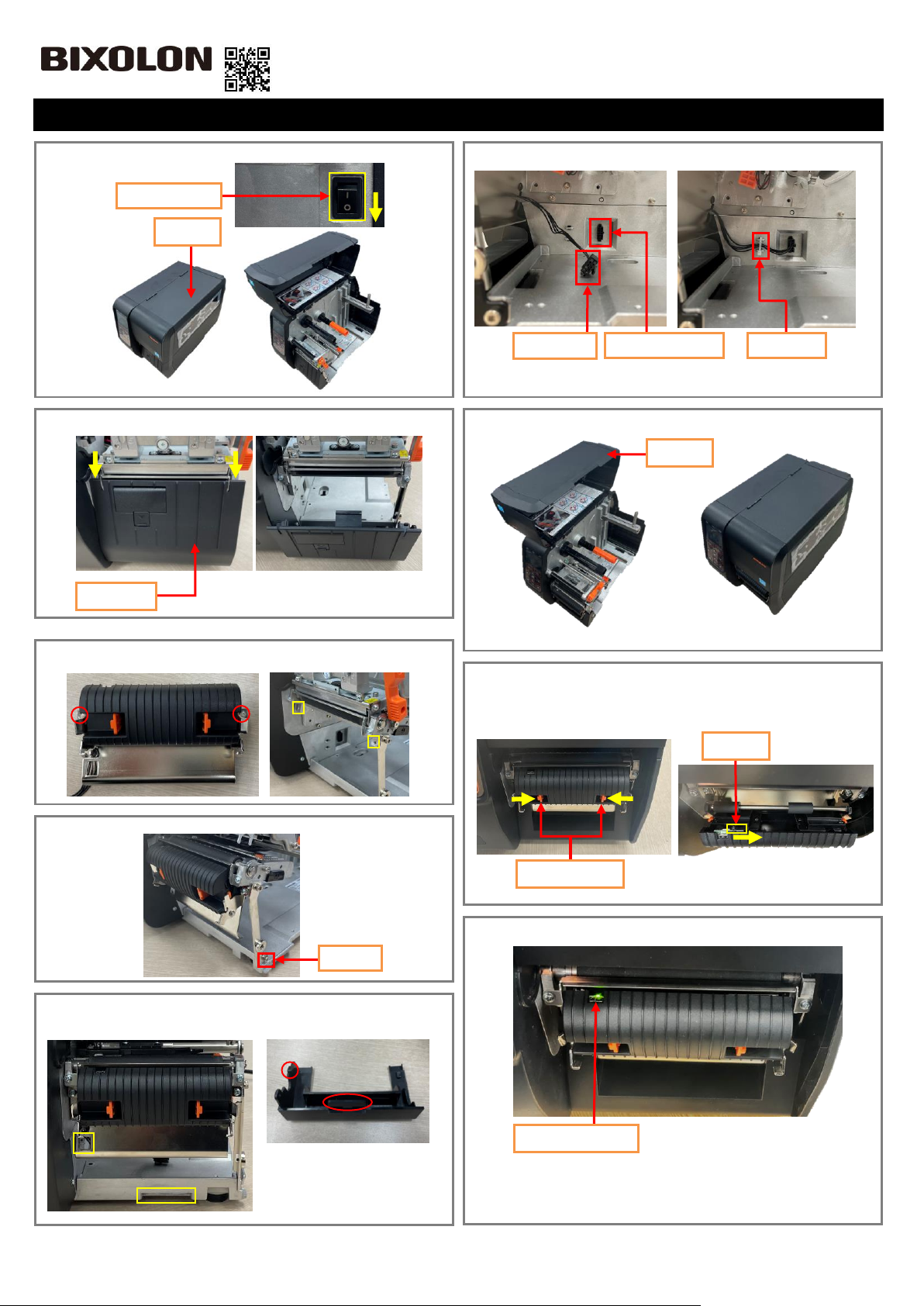

How to Mount Peeler

KN04-00219A (Ver.1.0)

XT5 Series

Cover STD

Cover

Off

Power Switch

Screw

Peeler Lever

Switch

Peeler Wire

Peeler Connector

Cable Tie

Cover

Peeler Sensor LED

1. Printer 후면의 Power Switch 를Off 하고 Cover 를열어주십시오

2. Cover STD 를아래 방향(노란색 화살표)으로 눌러 분리하십시오.

3. 빨간색 원표시 부Hole 을노란색 사각형 홈에 맞추어 제공된 Screw 2 개를

체결하십시오.

4. 측면 Screw 1 개를 분리하십시오.

4. 빨간색 원표시 부의 Hook 를노란색 사각형 홈에 삽입하여 조립하고

순서 4에서 분리한 Screw 를체결하십시오

※조립 시Wire 가끼이지 않도록 주의하십시오.

5. Peeler Wire 를방향에 맞추어 Peeler Connector 에삽입하고 Cable Tie 로

Wire 를정형하십시오.

6. Cover 를닫아주십시오.

7. Peeler Lever 를안쪽방향(노란색 화살표)으로 눌러 커버를 열고 하기와 같이

Switch 를On 으로 변경하십시오. 그리고 Peeler Cover 를딸깍 소리가 날때까지

닫아주십시오.

8. 전원장치를 연결하여 전원을 켜고 Peeler Sensor LED 에녹색 점등이 되는지

확인하십시오.

※용지 설치 방법은 User Manual 을참조하여 주십시오.

Peeler 장착 방법

KN04-00219A (Ver.1.0)

XT5 시리즈

Cover STD

Cover

Off

Power Switch

Screw

Peeler Lever

Switch

Peeler Wire

Peeler Connector

Cable Tie

Cover

Peeler Sensor LED
