BIXOLON XD Series Instructions d'installation

1. Turn the Power Switch Off at the rear of the Printer.

2. As shown below, press the right side of the Cover STD in the direction

indicated by the yellow arrow to remove it

※You can also remove it by pressing the left side in the same manner.

3. Insert the Peeler Wire into the Wire Hole.

4. With the Wire inserted, fit the right Boss of the Peeler to the Boss Hole as

shown below. Also, fit the left one to the Boss Hole.

5. Remove the Cover Roller L&R and fit the Peeler Bars to the square-shaped

sockets (red circles) by matching each Bar to the corresponding side. Then,

reinstall the removed Cover Roller L&R.

※Be careful to install the Peeler Bar correctly. Otherwise, the Peeler will not work

properly.

6. Turn the Switch On as shown below. Then, engage the Peeler Levers with the

sockets (yellow circles) to close so that they make a clicking sound.

※If the Levers are not engaged correctly, try again after repeating steps 2 and 3.

7. Make the bottom of the Printer face the front. Press the Hooks (red circles)

toward the inner direction to remove the Cover Dip and shape the Peeler Wire

as shown below.

※Be careful to avoid tangling with other Wires when shaping.

8. Insert the Peeler Wire to the Peeler Connector (yellow square) in the correct

direction.

9. Reinstall the Cover Dip that was removed in step 7. Then, connect the

power supply and turn the power on to check if the Peeler Sensor LED is

green when turned on.

※See the User Manual for how to supply paper.

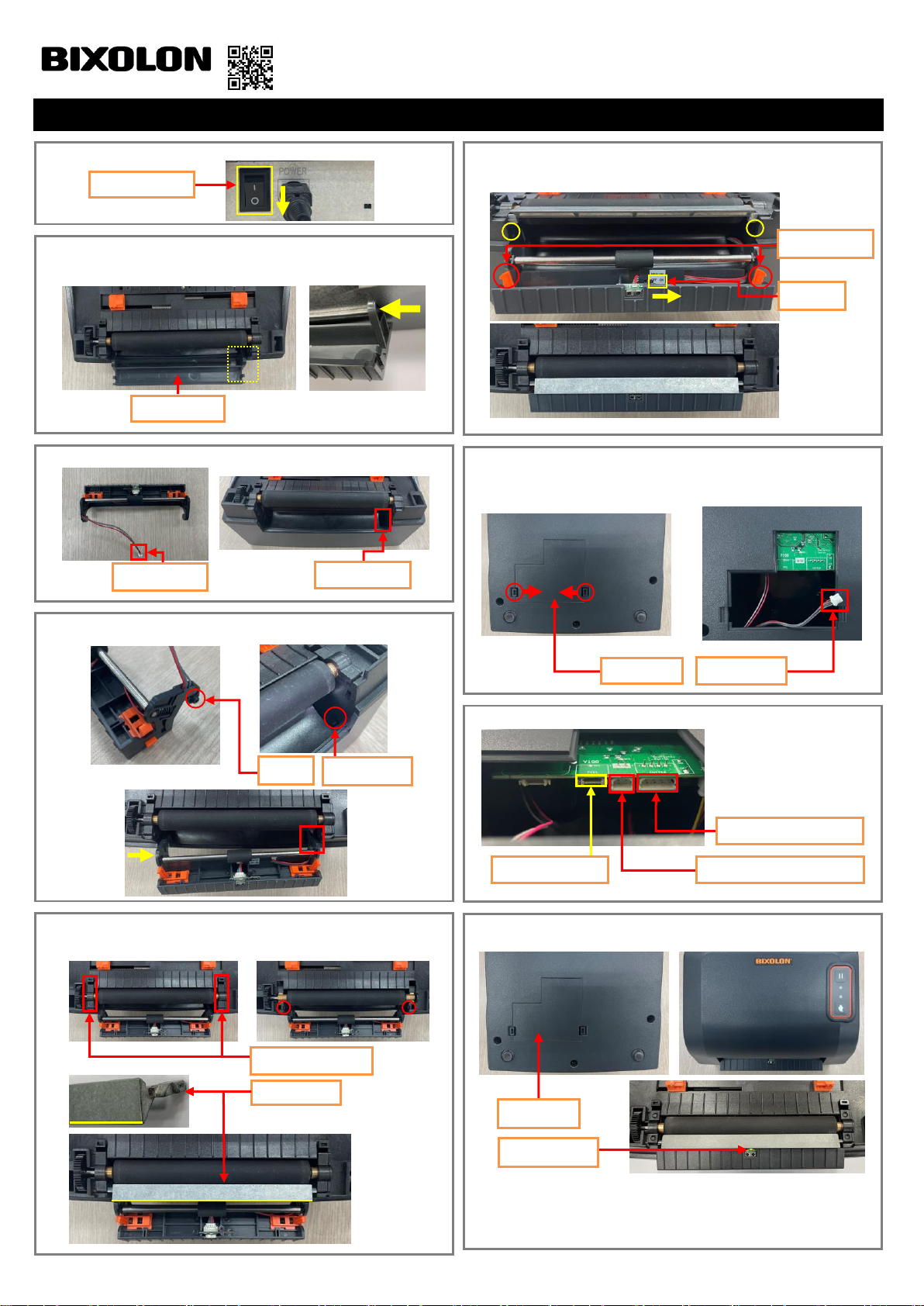

How to Mount Peeler

KN04-00216A (Ver.1.0)

XD/XQ (4inch Model) Series

Off

Power Switch

Peeler Wire

Wire Hole

Cover STD

Boss

Boss Hole

Front

Peeler Bar

Cover Roller L&R

Front

Switch

Peeler Lever

Cover DIP

Peeler Wire

Peeler Connector

Auto Cutter Connector

Auto Cutter GND Connector

Cover DIP

Peeler Sensor

1. Printer 후면의 Power Switch 를Off 하십시오.

2. 하기와 같이, Cover STD 의우측을 내측 방향(노란색 화살표)으로 눌러

분리하십시오.

※같은 방법으로 좌측을 눌러 분리해도 무관합니다.

3. Peeler Wire 를Wire Hole 에삽입하십시오.

4. Wire 를삽입한 상태로 하기와 같이 Peeler 의우측 부Boss 를Boss Hole 에

조립한 뒤, 좌측 부분도 Boss Hole 에맞추어 조립하십시오.

5. Cover Roller L&R 을분리하고 하기 사각 홈(빨간색 원)에Peeler Bar 를

방향에 맞추어 조립하십시오. 이후, Cover Roller L&R 을재조립하십시오.

※Peeler Bar 오조립 시, Peeler 가제대로 동작하지 않으므로 주의하십시오.

6. 하기와 같이 Switch 를On 으로 변경하십시오. 그리고 Peeler Lever 가노란색 원

표시 홈에 딸각 소리가 날때까지 닫아 주십시오.

※체결이 안될경우, 순서 2-3 과정을 반복 후, 재시도 하십시오.

7. Printer 바닥 면이 정면으로 향하게 하십시오. Hook(빨간색 원)를내측 방향으로

눌러 Cover DIP 을분리하고 Peeler Wire 를하기 그림과 같이 보이게

정형하십시오.

※다른 Wire 와꼬이지 않게 정형 하십시오.

8. Peeler Wire 를방향에 맞추어 Peeler Connector(노란색 사각형)에삽입하십시오.

9. 순서 7 에서 분리한 Cover DIP 을재조립하십시오. 이후, 전원장치를 연결하여

전원을 켜고 Peeler Sensor LED 에녹색 점등 되는지 확인하십시오.

※용지 설치 방법은 User Manual 을참조하여 주십시오.

Peeler 장착 방법

KN04-00216A (Ver.1.0)

XD/XQ (4inch Model) 시리즈

Off

Power Switch

Peeler Wire

Wire Hole

Cover STD

Boss

Boss Hole

정면부

Peeler Bar

Cover Roller L&R

정면부

Cover DIP

Peeler Wire

Peeler Connector

Auto Cutter Connector

Auto Cutter GND Connector

Cover DIP

Peeler Sensor

Switch

Peeler Lever
