TP45 HP/TP43 HP BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power ofCMOS

RAM is supplied by abattery sothat it retains theSetup information when the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage ofthe booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 ofthe EPAGreen PC specification.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel andToshiba.

TP45 HP/TP43 HP BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus specification.

DRAM Support

DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings applyfor most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor yourreferenceonly. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

TP45 HP/TP43 HP BIOS Manual

1 Main Menu

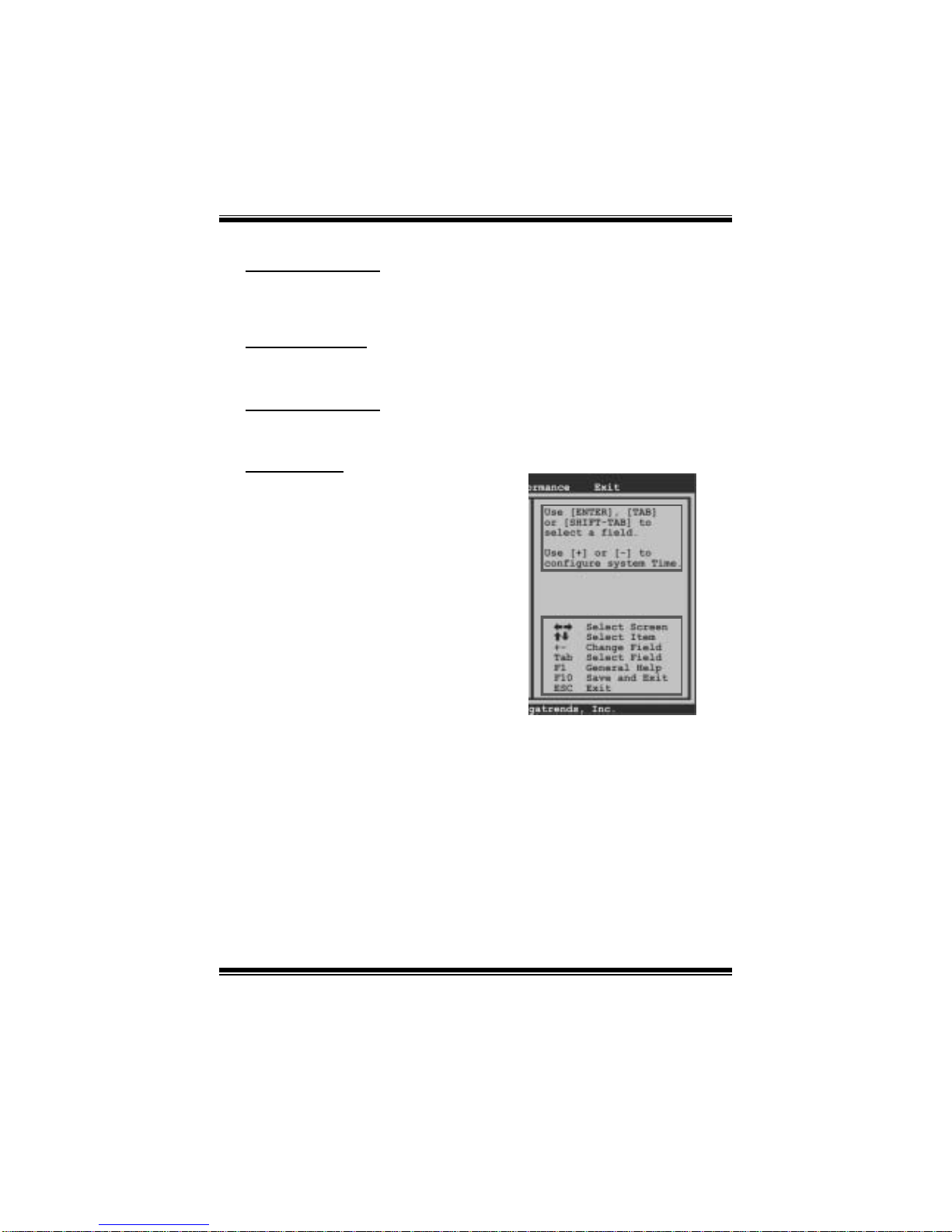

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

System Memory

[ :00:00]

System Date [Tue 01/01/2008]

Floppy A

> IDE/SATA Configuration

Version :01.01.01

Build Date:01/01/08

Size :

System Time 00

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded..

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Floppy A

Select the typeof floppy disk drive installed in yoursystem.

Options: 360K, 5 1/4 in / 1.2M, 5 1/4 in / 720K, 3 1/2 in/ 1.44M,3 1/2 in /

2.88M, 3 1/2 in / Disabled

TP45 HP/TP43 HP BIOS Manual

IDE/SATA Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu ofdetailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE/SATA Confuguration

> SATA 1 Device

> SATA 2 Device

> SATA 3 Device

> SATA 4 Device

> SATA 5 Device

> SATA 6 Device

> Primary IDE Master

> Primary IDE Slave

Hot Plug [Disabled]

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

Configure SATA#1 as [IDE]

Max Ports on SATA#1 [6 Ports]

SATA#2 Configuration [Enhanced]

SATA#1 Configuration [Compatible]

> AHCI Configuration

Options

Disabled

Compatible

Enhanced

SATA#1 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Compatible(Default)/ Disabled / Enhanced

Configure SATA#1 as

Thisitem allows you to choosetheSATAoperation mode.

Options: IDE (Default) / AHCI

Max Ports onSATA#1

Thisitem appears only when SATA mode is set toAHCI/RAID.

Options: 6 Ports (Default) / 4 Ports

SATA#2 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Enhanced (Default) / Disabled

TP45 HP/TP43 HP BIOS Manual

AHCI Configuration

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Settings

AHCI CD\DVD Boot Time out [35]

> AHCI Port0

> AHCI Port1

> AHCI Port2

> AHCI Port3

> AHCI Port4

> AHCI Port5

AHCI BIOS Support [Enabled]

Enables for supporting

AHCI BIOS Support

ThisBIOS feature controls the AHCI function of the SATA controller.

Options: Enabled (Default) / Diabled

AHCICD/DVDBoot Time Out

ThisBIOS feature allows you to set the AHCICD/DVD boot time out.

Options: 35 (Default) / 0 / 5 /10 / 15 /20 / 25 / 30

AHCI Port0/Port1/Port2/Port3/Port4/Port5

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Port0

S.M.A.R.T. [Enabled]

Device :

SATA Port0 [Auto]

Select the type

of device connected

to the system.

TP45 HP/TP43 HP BIOS Manual

Device

This areashows the detected connected device.

SATA Port0/1/2/3/4/5

This item allows you to select the connected device type.

Options: Auto (Default)

S.M.A.R.T.

This item allows you to control thedevice S.M.A.R.T function.

Options: Enabled (Default) / Disabled

SATA1/2/3/4/5/6 Device; Primary IDEMaster/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA 1 Device

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Aut o]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown below to the name ofthesub-menu.

Type

Select the typeofthe IDE/SATAdrive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block(Multi-Sector Transfer)

Enable or disable multi-sector trans fer.

Options: Auto (Default) / Disabled

TP45 HP/TP43 HP BIOS Manual

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 / 3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Disabled

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hot Plug

This item allows you to control the device Hot-Plug function. The Hot-Plug

function is only allowed in AHCImode.

Options: Disabled (Default) / Enabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDEDetect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default) / 30 / 25/ 20 / 15 / 10 / 5 / 0

TP45 HP/TP43 HP BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and othersystem devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advan ced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Setti ngs

WARNING: Setti ng wrong values in below sections

may cause system to malfunction.

> Intel VT-d Configuration

> USB Configur ation

> Config Onboa rd PCI/PCI-E Devices

> SuperIO Conf iguration

> Hardware Hea lth Configuration

> Smart Fan Co nfiguration

> PM/ACPI Conf iguration

> CPU Configur ation

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enable or

disable the Enhanced

Halt State.

Configure advanced CPU settings

Module Version:3F.09

Manufacturer:Intel

Frequency :

FSB Speed :

Cache L1 :

Cache L2 :

Ratio Status:

Ratio Actual Value:

C1E Support [Enabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Max CPUID Value Limit [Disabled]

Execute-Disable Bit Capability[Enabled]

Core Multi-Processing [En abled]

Intel(R) C-STATE Tech [En abled]

Intel(R) Virtualization Tech [Enabled]

TP45 HP/TP43 HP BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat by lowering CPU frequency while the processor is not working.

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches dat a and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

Execute-Disable Bit Capability

Thisitem allows you to configure the Execute Disabled Bit function, which protects

yoursystem from buffer overflow attacks.

Options: Enabled (Default) / Disabled

Autres manuels pour TP43 HP - BIOS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar H61MHV2 Guide de l'utilisateur

Biostar

Biostar TPOWER N750 Guide de l'utilisateur

Biostar

Biostar GF8100M2TE Guide de l'utilisateur

Biostar

Biostar U8668-D Manuel utilisateur

Biostar

Biostar M5ALA Manuel utilisateur

Biostar

Biostar K8T890-A9 Manuel utilisateur

Biostar

Biostar P4 TDP Manuel utilisateur

Biostar

Biostar TA790GX3 A2 PLUS - BIOS Guide de l'utilisateur

Biostar

Biostar H110MLC Manuel utilisateur

Biostar

Biostar H510MX/E 2.0 Manuel utilisateur

Biostar

Biostar Hi-Fi H170S3H Manuel utilisateur

Biostar

Biostar TP55 - BIOS Guide de l'utilisateur

Biostar

Biostar EIH81-IHP Manuel utilisateur

Biostar

Biostar A320MH Manuel utilisateur

Biostar

Biostar B450MH Manuel utilisateur

Biostar

Biostar TF520-A2 Guide de l'utilisateur

Biostar

Biostar B150GTN Manuel utilisateur

Biostar

Biostar H81MHC Guide de l'utilisateur

Biostar

Biostar M6TWL Manuel utilisateur

Biostar

Biostar P4TSG PRO Manuel utilisateur

Biostar

Biostar H310MHP 3.0 Manuel utilisateur

Biostar

Biostar NM70I-847 Manuel utilisateur

Biostar

Biostar P4M800-M7 A Manuel utilisateur

Biostar

Biostar NF4 Ultra-A9 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
