TA960 BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the

basic system configuration and save these settings to CMOS RAM. The

power of CMOS RAM is supplied by a battery so that it retains the Setup

information when the power is turned off.

Basic Input-Output System (BIOS) determines what a computer can do

without accessing programs from a disk. This system controls most of the

input and output devices such as keyboard, mouse, serial ports and disk

drives. BIOS activates at the first stage of the booting process, loading and

executing the operating system. Some additional features, such as virus and

password protection or chipset fine-tuning options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in

BIOS Setup.

Plug and Play Support

This AMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

This AMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Version 1.1&1.2 of the Advanced Power

Management (APM) specification. Power management features are

implemented via the System Management Interrupt (SMI). Sleep and

Suspend power management modes are supported. Power to the hard disk

drives and video monitors can also be managed by this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

TA960 BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

This AMI BIOS supports the AMD CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the BIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top

right corner, and this is providing a

brief description of the selected item.

Navigation Keys for that particular

menu are at the bottom right corner,

and you can use these keys to select

item and change the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum

performance of the motherboard. If the system becomes unstable after

changing any settings, please load the default settings to ensure system’s

compatibility and stability. Use Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously

updated. The BIOS information described in this manual is for your

reference only. The actual BIOS information and settings on board may be

slightly different from this manual.

zThe content of this manual is subject to be changed without notice. We will

not be responsible for any mistakes found in this user’s manual and any

system damage that may be caused by wrong-settings.

General Help

Navigation Keys

TA960 BIOS Manual

1 Main Menu

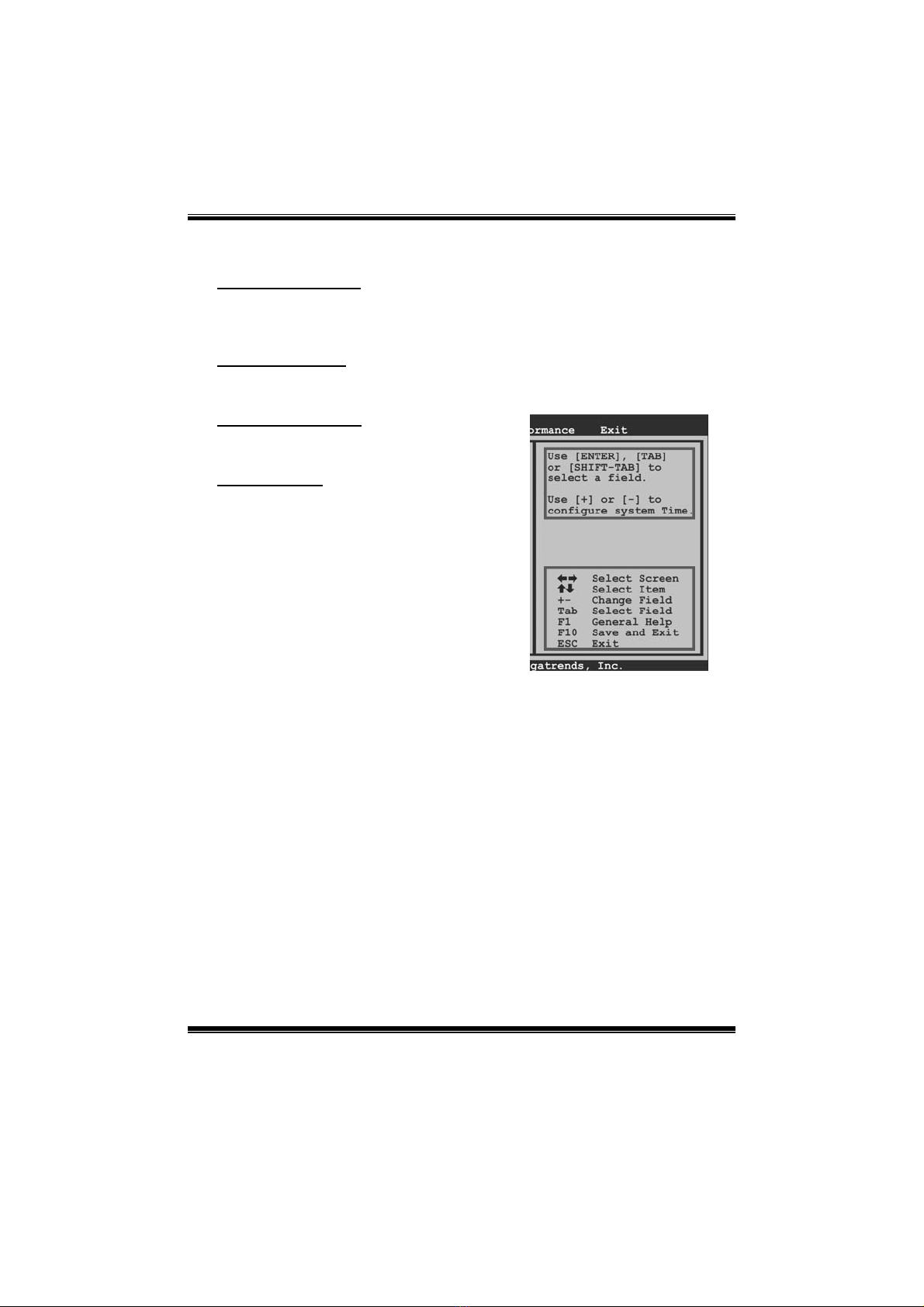

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview of the basic system information.

BIOS SETUP UTILIT

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

Version :01.01.01

Build Date:01/01/12

System Memory

Size :

System Time [ :00:00]00

System Date [Sun 01/01/2012]

> SATA Configuration

Exit

AMI BIOS

Shows system information including BIOS version and built date.

System Memory

Shows system memory size, VGA shard memory will be excluded..

System Time

Set the system internal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set

the date.

TA960 BIOS Manual

SATA Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There

is a sub-menu for each IDE/SATA device. Select a device and press <Enter>

to enter the sub-menu of detailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

While entering setup,

BIOS auto detects the

presence of IDE

devices. This displays

the status of auto

detection of IDE

devices.

IDE Confuguration

Hard Disk Write Protect [Disabled]

> Primary IDE Slave

> SATA 1 Device

> SATA 2 Device

> SATA 3 Device

> SATA 4 Device

> Primary IDE Master

> SATA 5 Device

> SATA 6 Device

Primary IDE Master/Slave/ SATA1-6

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Disabled: Disables LBA

Mode.

Auto: Enables LBA

Mode if the device

supports it and the

device is not already

formatted with LBA

Mode disabled.

Primary IDE Master/Slave

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and

these information and values are shown below to the name of the sub-menu.

TA960 BIOS Manual

Type

Select the type of device connected to the system. (The setting is for IDE.)

Options: Auto (Default) / Not Installed / CD/DVD/ ARMD

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

PIO Mode

Select the PIO mode.

Options: Auto (Default) / 0 / 1 / 2 / 3 / 4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / SWDMA0 ~ 2 / MWDMA0 ~ 2 / UDMA0 ~ 5

S.M.A.R.T

Set the Smart Monitoring, Analysis, and Reporting Technology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the

device is accessed through BIOS.

Options: Disabled (Default) / Enabled

TA960 BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O,

Power Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> SuperIO Configuration

> Smart Fan Configuration

> Hardware Health Configuration

> Power Configuration

> USB Configuration

> CPU Configuration

Exit

CPU Configuration

This item shows the CPU information that the BIOS automatically detects.

BIOS SETUP UTILIT

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Enable/Disable

Secure Virtual Machine

Mode (SVM)

CPU Configuration

Module Version:

AGESA Version:

Physical Count:

Logical Count:

AMD CPU

Revision:

Cache L1:

Cache L2:

Cache L3:

Speed : NB Clk:

ncHT Speed : WidthI/O :

Able to Change Freq :

uCode Patch Level :

Secure Virtual Machine Mode [Enabled]

PowerNow [Enabled]

CState Mode [Disabled}

CPB Mode [Auto]

TA960 BIOS Manual

Secure Virtual Machine Mode

Virtualization Technology can virtually separate your system resource into

several parts, thus enhance the performance when running virtual machines

or multi interface systems.

Options: Enabled (Default) / Disabled

PowerNow

This item allows you to enable or disable the PowerNow power saving

technology.

Options: Enabled (Default) / Disabled

CState Mode

The item specifies the method of C-State enablement.

Options: Disabled (Default) / C6

CPB Mode

If this item is enabled, Revision E CPU automatically transition to pop-down

p-state

Options: Auto (Default) / Disabled

ACPI SRAT Table

The operating system scans the ACPI SRAT at boot time and uses the

information to better allocate memory and schedule software threads for

maximum performance. This item controls whether the SRAT is made

available to the operating system at boot up, or not.

Options: Enabled (Default) / Disabled

C1E Support

Configures C1E type. Auto will use Message-Triggered if supported by

hardware.

Options: Disabled (Default) / Auto / Message-Triggered / Hardware

HTC temperature limit

This item allows you to set HTC temperature limit. Range: 70℃- 95℃

Options: 70℃(Default)

TA960 BIOS Manual

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Select

Parallel Port1 Base

Addresses.

Configure ITE8728 Super IO Chipset

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Keyboard Poweron [Disabled]

Mouse PowerOn [Disabled]

Restore on AC Power Loss [Power Off]

Serial Port1 Address

This item allows you to determine access onboard serial port1 controller with

which I/O Address.

Options: 3F8, IRQ4 (Default) / 2F8, IRQ3 / 3E8, IRQ4 / 2E8, IRQ3 /

Disabled

Parallel Port Address

This item allows you to determine access onboard parallel port controller with

which I/O Address.

Options: 378 (Default) / 278 / 3BC / Disabled

Parallel Port Mode

This item allows you to determine how the parallel port should function.

Options: Normal (Default) Using Parallel port as Standard Printer Port.

EPP Using Parallel Port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

Parallel Port IRQ

This item allows you to select the IRQ for the onboard parallel port.

Options: IRQ7 (Default) / IRQ5

TA960 BIOS Manual

Keyboard PowerOn

This item allows you to control the keyboard power on function.

Options: Disabled (Default) / Any Key / Stroke Key / Specific Key

Stroke Keys Selected

This item will show only when Keyboard PowerOn is set “Stroke Key.”

Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3

/ Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specific Key Enter

This item will show only when Keyboard PowerOn is set “Specific Key.”

Press Enter to set Specific key.

Mouse PowerOn

This item allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

Restore on AC Power Loss

This setting specifies how your system should behave after a power fail or

interrupts occurs. By choosing Disabled will leave the computer in the power

off state. Choosing Enabled will restore the system to the status before

power failure or interrupt occurs.

Options: Power Off (Default) / Power On / Last State

Autres manuels pour TA960

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar M7 VKD Manuel utilisateur

Biostar

Biostar A75MH Guide de l'utilisateur

Biostar

Biostar TF7025-M2 Manuel utilisateur

Biostar

Biostar P4 SFA Guide de l'utilisateur

Biostar

Biostar TH55 HD - BIOS Manuel utilisateur

Biostar

Biostar TA970 Guide de l'utilisateur

Biostar

Biostar M7SXG Manuel utilisateur

Biostar

Biostar G41D3 - SET UP Manuel utilisateur

Biostar

Biostar A785G3 PLUS - BIOS 2 Manuel utilisateur

Biostar

Biostar TA970XE Manuel utilisateur

Biostar

Biostar H81M-IDE Guide de l'utilisateur

Biostar

Biostar CX70M-PE Guide de l'utilisateur

Biostar

Biostar GF8200 M2G PLUS - BIOS Manuel utilisateur

Biostar

Biostar G41D3C Guide de l'utilisateur

Biostar

Biostar B760M-SILVER Manuel utilisateur

Biostar

Biostar GF7025-M2 TE - BIOS SETUP Guide de l'utilisateur

Biostar

Biostar M6VCT Manuel utilisateur

Biostar

Biostar 915GV-M7 Manuel utilisateur

Biostar

Biostar A68I-350 DELUXE R2.0 Manuel utilisateur

Biostar

Biostar P4 TSV Guide de l'utilisateur

Biostar

Biostar H55A Guide de l'utilisateur

Biostar

Biostar P4 TPT Guide de l'utilisateur

Biostar

Biostar TA890FXE - BIOS Manuel utilisateur

Biostar

Biostar U8798 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
