T5 XE/T5XE CFX-SLI BIOS Manual

BIOS Setup.................................................................................................1

1Main Menu...............................................................................................3

2Advanced Menu.......................................................................................8

3PCIPnP Menu........................................................................................22

4Boot Menu..............................................................................................25

5Chipset Menu.........................................................................................28

6O.N.EMenu...........................................................................................31

7Exit Menu...............................................................................................42

T5 XE/T5XE CFX-SLI BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by abattery so that it retains theSetup information when the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage ofthe booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports thePlug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 ofthe EPA Green PC specification.

APM Support

This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management

(APM) specification. Power management features are implemented via the System

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel and Toshiba.

T5 XE/T5XE CFX-SLI BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor yourreferenceonly. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

T5 XE/T5XE CFX-SLI BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overviewof the basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

Version :01.01.01

Build Date:01/01/09

System Memory

Size :

System Time [ :00:00]00

System Date [Thu 01/01/2009]

Floppy A

> IDE/SATA Configuration

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded.

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Floppy A

Select the typeof floppy disk drive installed in yoursystem.

Options: 360K, 5.25in / 1.2M, 5.25 in/ 720K, 3.5 in / 1.44M, 3.5 in /

2.88M, 3.5in / None

T5 XE/T5XE CFX-SLI BIOS Manual

IDE/SATA Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu of detailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE/SATA Configuration

SATA#1 Configura tion [Compatible]

> SATA 1 Device

> SATA 3 Device

> SATA 2 Device

> SATA 4 Device

> SATA 5 Device

> SATA 6 Device

> Primary IDE Slave

Hot Plug [Disabled]

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

ATA(PI)80Pin Cable Detection [Host & Device]

SATA#2 Configuration [Enhanced]

> Primary IDE Master

Configure SATA as [IDE]

> AHCI Configuration

Options

IDE

RAID

AHCI

Disabled

Configure SATA as

Thisitem allows you to choose theSATA operation mode.

Options: IDE (Default) / RAID / AHCI / Disabled

SATA#1 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Compatible(Default)/ Enhanced

SATA#2 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Enhanced (Default) / Disabled

T5 XE/T5XE CFX-SLI BIOS Manual

AHCI Configuration

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Settings

> AHCI Port0

> AHCI Port1

> AHCI Port2

> AHCI Port3

> AHCI Port4

> AHCI Port5

AHCI BIOS Support [Enabled]

Enables for supporting

AHCI BIOS Support

ThisBIOS feature controls the AHCI function ofthe SATA controller.

Options: Enabled (Default) / Disabled

AHCI Port0/Port1/Port2/Port3/Port4/Port5

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Port0

S.M.A.R.T. [Enabled]

Device :

AHCI Port0 [Auto]

Select the type

of device connected

to the system.

T5 XE/T5XE CFX-SLI BIOS Manual

Device

This area shows the detected connected device.

SATA Port0/1/2/3/4/5

This item allows you to select the connected device type.

Options: Auto (Default) / Not Installed

S.M.A.R.T.

This item allows you to control thedevice S.M.A.R.Tfunction.

Options: Enabled (Default) / Disabled

SATA1/3/2/4/5/6 Device; Primary IDE Master/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

Primary IDE Master

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown belowto the name of thesub-menu.

Type

Select the typeofthe IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

T5 XE/T5XE CFX-SLI BIOS Manual

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 / 3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / SWDMA0 ~2 / MWDMA0 ~ 2 / UDMA0 ~ 5

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hot Plug

Thisitem allows you to control thehot-plug function under RAID or AHCI mode.

Options: Disabled (Default) / Enabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

ATA(PI) 80Pin Cable Detection

Select the mechanism for detecting 80Pin ATA(PI) Cable..

Options: Host & Device (Default) / Host / Device

T5 XE/T5XE CFX-SLI BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

vxx.xx (C)Copyright 198 5-200x, Amer ican Megatrends, Inc.

Select Screen

Select Item

Go to Sub Scr een

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting w rong values in below sec tions

may cause system to malfunction.

> SuperIO Configur ation

> Hardware Health Configuratio n

> Smart Fan Config uration

> USB Configuration

> CPU Configuration

ACPI Configuration

> Onboard PCI/PCI- E Devices Co nfiguration

> Intel VT-d Confi guration

> MPS Configuration

> PCI Express Configuration

> Smbios Configura tion

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

vxx.xx (C)Copyright 198 5-200x, American Megatrends, Inc.

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enab le or

disable the “Enh anced

Halt State”.

Configure advanced CPU settings

Module Version:01. 04

Manufacturer:Intel CPU

Frequency :

BCLK Speed :

Cache L1 :

Cache L2 :

Ratio Status:

Ratio Actual Value:

Cache L3 :

CIE Support [Enabled]

Hardware Prefetche r [Enabled]

Adjacent Cache Lin e Prefetch [Enabled]

Max CPUID Value Li mit [Disabled]

Execute-Disable Bi t Capability[Enabled]

Intel(R) Virtualiz ation Tech [Enabled]

CPU TM function [Enabled]

T5 XE/T5XE CFX-SLI BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat by lowering CPU frequency while the processor is not working.

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches dat a and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

CPUTM Function

The CPU TM Function is to throttle the clock speed ofhigher speed Prescott's to

help keep them cool.

Options: Disabled (Default) / Enabled

Autres manuels pour T5XE CFX-SLI

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar M6TZE Manuel utilisateur

Biostar

Biostar M6TSS Manuel utilisateur

Biostar

Biostar P43-A7 Guide de l'utilisateur

Biostar

Biostar MCP6PB M2 PLUS - BIOS Guide de l'utilisateur

Biostar

Biostar Z590I VALKYRIE Manuel utilisateur

Biostar

Biostar PT880 Pro-A7 Combo Manuel utilisateur

Biostar

Biostar A770L3 - BIOS Manuel utilisateur

Biostar

Biostar N3700NH Guide de l'utilisateur

Biostar

Biostar M7 VKD Manuel utilisateur

Biostar

Biostar TB360-BTC D+ Manuel utilisateur

Biostar

Biostar H510MHP Manuel utilisateur

Biostar

Biostar H55A Manuel utilisateur

Biostar

Biostar U8798 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Guide de l'utilisateur

Biostar

Biostar M6TBC Manuel utilisateur

Biostar

Biostar Racing X470GTN Manuel utilisateur

Biostar

Biostar J1900NH3 Guide de l'utilisateur

Biostar

Biostar G41-DVI Guide de l'utilisateur

Biostar

Biostar H61B Manuel utilisateur

Biostar

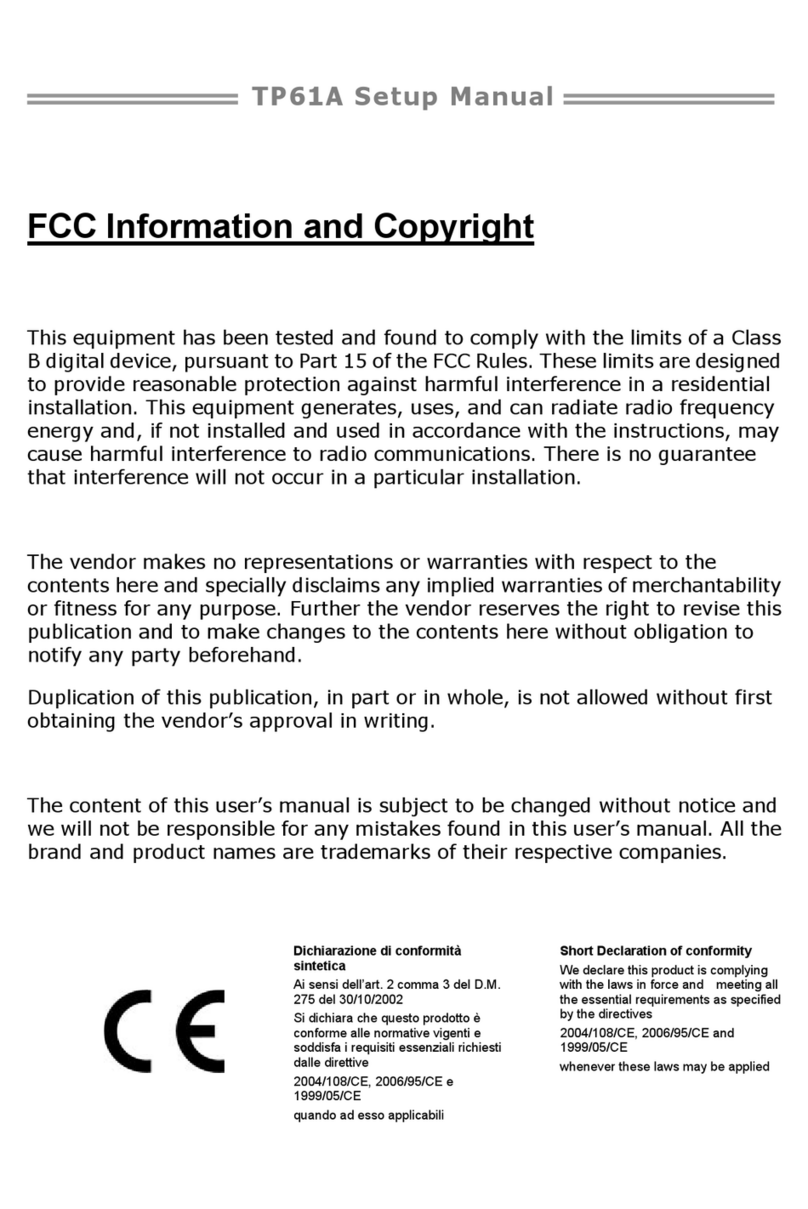

Biostar TP61A Guide de l'utilisateur

Biostar

Biostar H81MHP Guide de l'utilisateur

Biostar

Biostar Z590I VALKYRIE Manuel utilisateur

Biostar

Biostar H61MLC Guide de l'utilisateur

Biostar

Biostar P4 VTG Manuel

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
