Biostar P4 TPT Manuel utilisateur

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

P4TPT Features .................................................................................................................1

Package contents..............................................................................................................2

Layout of P4TPT ................................................................................................................2

CPU Installation.................................................................................................................3

DDR DIMM Modules: DDR1-2 ...........................................................................................4

Jumpers, Headers, Connectors & Slots..........................................................................5

ESPAÑOL ................................................................................................. 10

Características del P4TPT ..............................................................................................10

Contenido del Paquete.................................................................................................... 11

Disposición del P4TPT.................................................................................................... 11

Instalación de la CPU......................................................................................................12

Módulos DDR DIMM: DDR1-2......................................................................................... 13

Puentes, Cabezales, Conectores y Ranuras.................................................................14

WARPSPEEDER ...................................................................................... 19

Introduction......................................................................................................................19

System Requirement....................................................................................................... 20

Installation........................................................................................................................20

Usage................................................................................................................................22

TROUBLE SHOOTING............................................................................. 30

SOLUCIÓN DE PROBLEMAS ................................................................. 31

English

P4TPT Features

 Use Intel 845PE/ ICH4 Chipset, ITE IT8712.

 Contains on board I/O facilities, which include two serial ports, a parallel

port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a

game port .

 Supports the Intel Pentium 4®(Socket 478) processor up to 2.8GHz.

 Supports Intel Pentium 4 processor with Hyper-Threading.

 Supports Ultra 100/66/33, BMIDE and PIO modes.

 Supports up to 2 DDR 200/266/333 MHz devices, running at 400/533 MHz

Front Side Bus frequency.

 Suppport a maximun memory size up to 2GHz.

 Supports five 32-bit PCI Bus slots, one AGP Slot, and one CNR Slot (Type

A only) .

(If the function CODEC is onboard, then the CNR slot only support

slave card. But if the H/W Audio is onboard, then the CNR slot

support only primary card . )

 Supports USB1.1 and USB2.0.

 Complies with PC ATX form factor specifications.

 Supports popular operating systems such as Windows 98, Windows NT,

Windows 2000, Windows ME, Windows XP, LINUX and SCO UNIX.

 DIMM Power Selection by BIOS setup to adjust DDR DIMM voltage. (If you

meet the DDR DIMM compatible program, try to adjust the DDR Voltage to

fix the compatible program.)

 Intel®AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 6CH , applicable for leading motherboard chipsets.

 Line-in phone-jack share with rear out .

 Mic-in phone-jack share with Bass and Center.

 Support front audio pin head functions.

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 USB Cable X 2 (Optional)

Layout of P4TPT

DDR 1

DDR 2

INTEL 845PE

Socket 478

JAUDIO1

K/B

Mouse

JKBMS1

JUSB1

JPRNT1

JCOM1

JCOM2

COM1

Parallel Port

PCI3

CNR1

BAT1

JATXPWR1

JCFAN1

JUSB3

AGP1

JUSBV1

JCDIN1

JGAME1

GAME Port

SP-OUT

LINE-IN

MIC-IN

JATXPWR2

PCI1

PCI2

PCI4

Codec

(optional)

H/W

AUDIO

Chip

(optional)

I/O

JKBV1

IDE1

JCMOS1

INTEL ICH4

PRIMARY IDE CONN.

JSFAN1

PCI5

1JPANEL1

FDD1

JWOL1

223

SECONDARY IDE CONN.

FLOPPY DISK CONN.

IDE2

JUSB2

BIOS

JUSBV2_3

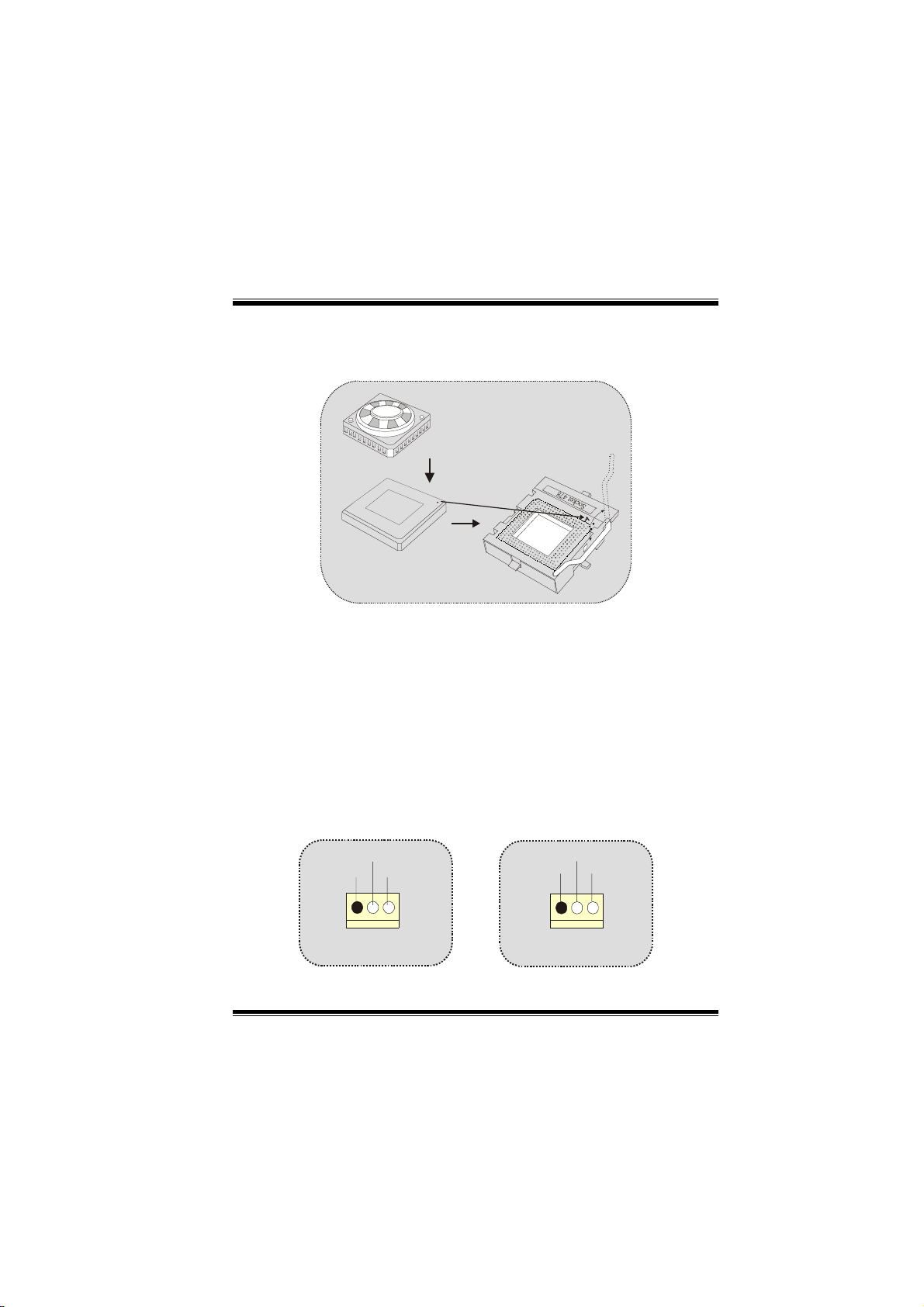

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

JCFAN1 JSFAN1

Ground12V

Sense

Ground12V

Sense

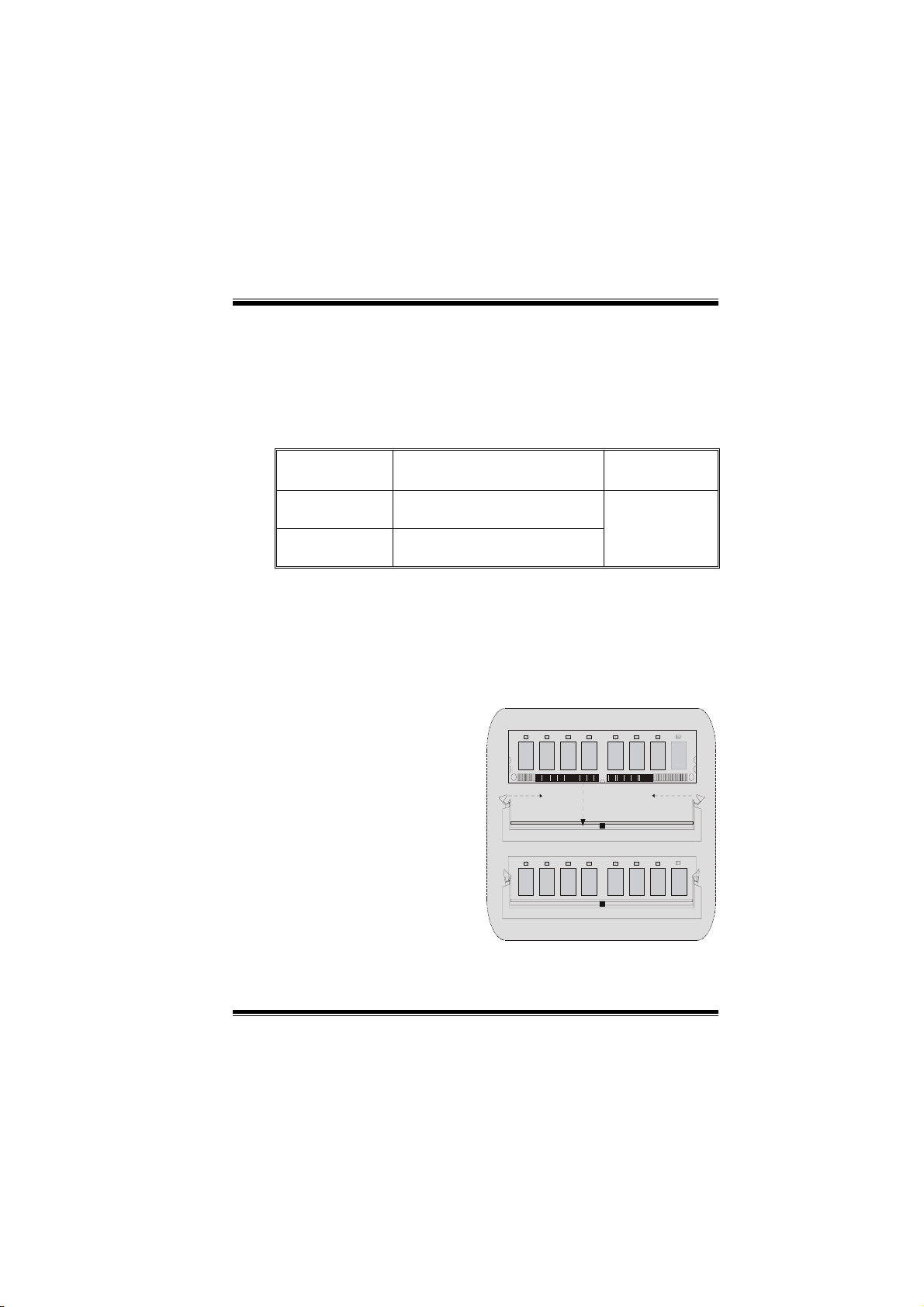

DDR DIMM Modules: DDR1-2

Supports DDR200/266/333 unregistered 184-pin non-ECC DDR

SDRAM DIMMs. Does not support double-size x16 DDR DIMMs.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

* The list shown above for DRAM configuration is only for reference.

 If use FSB 400MHz CPU, the memory run only at DDR200/266.

 If use FSB 533MHz CPU, the memory run only at DDR266/333.

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only (slave card only) .

(If the function CODEC is onboard, then the CNR slot only support

slave card. But if the H/W Audio is onboard, then the CNR slot

support only primary card . )

Accelerated Graphics Port Slot: AGP1

Unlike the mouse ports, keyboard ports and printer ports this

motherboard does not have built in video facilities and therefore requires

a video card for one of the expansion slots. Your monitor will attach

directly to that video card. This motherboard supports video cards for

PCI but is also equipped with an Accelerated Graphics Port (AGP). An

AGP card will take advantage of AGP technology for improved video

efficiency and performance, especially with 3D graphics.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

Power Connectors: JATXPWR1/ JATXPWR2

Wake On LAN Header: JWOL1

Front USB Header: JUSB2/ JUSB3

WOL1

5V_SB Wake up

Ground

JATXPWR1

(ATX Main Power Conn.)

JATXPWR1

(ATX Main Power Conn.)

JATXPWR2

(ATX 12V Power Conn.)

JUSB2/3

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

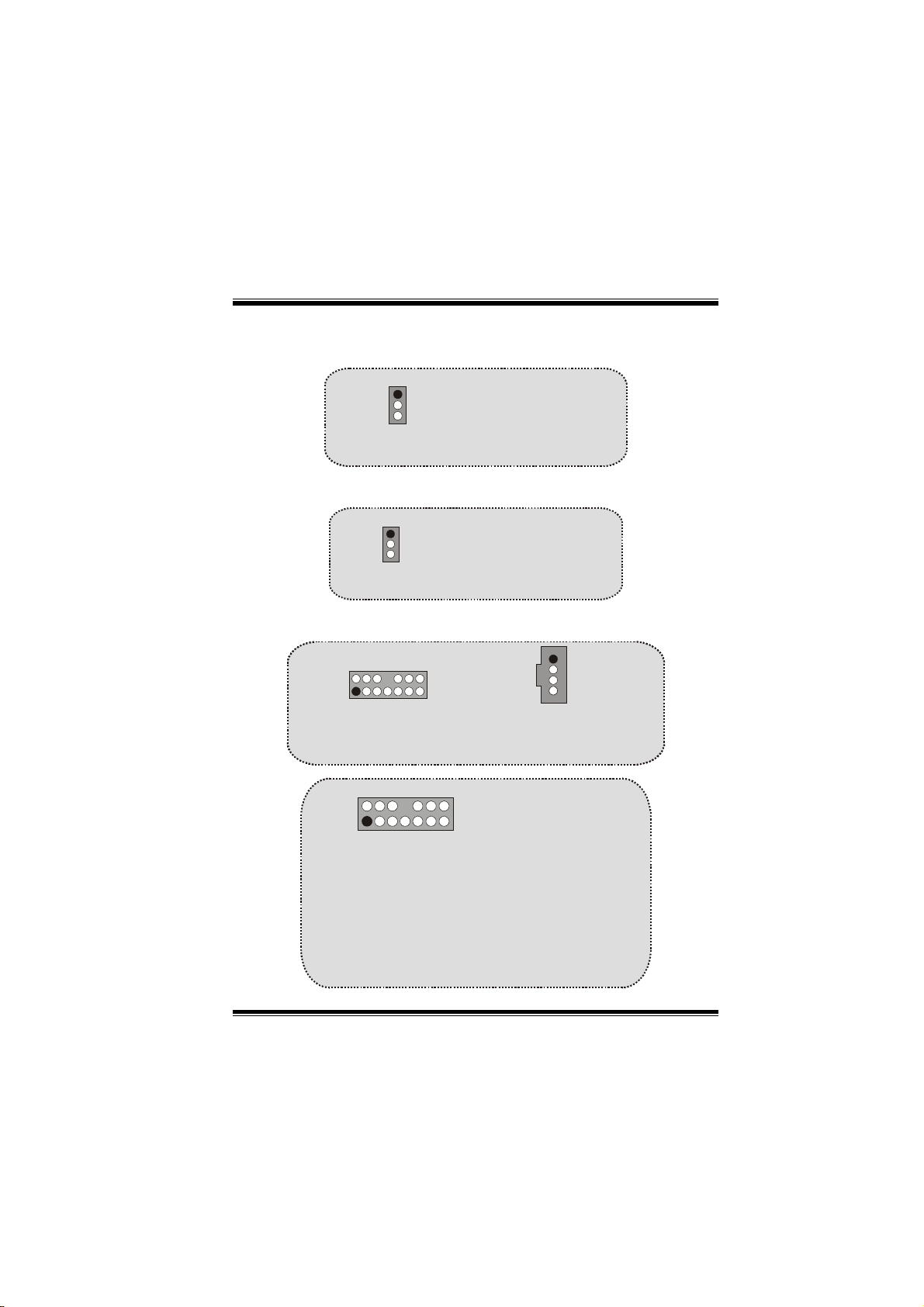

5V/ 5VSB Selection for USB: JUSBV1/2_3

5V/ 5VSB Selection for KB: JKBV1

Audio Subsystem: JAUDIO1/ JCDIN1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JKBV1

JUSBV1/2_3

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JAUDIO1

(Front Audio Header)

JCDIN1

(CD-ROM Audio-In Header)

JAUDIO1

(Front Audio Header)

JCDIN1

(CD-ROM Audio-In Header)

Pin1 ==> Mic In Pin2 ==> Ground

Pin3 ==> Mic Power Pin4 ==> Audio Power

Pin5 ==> RT Line Out Pin6 ==> RT Line Out

Pin7 ==> Reserved Pin8 ==> KEY

Pin9 ==> LFT Line Out Pin10 ==> LFT Line Out

Pin11==> RT Line In Pin12 ==> RT Line In

Pin13 ==> LFT Line In Pin14 ==> LFT Line In

JAUDIO1

213

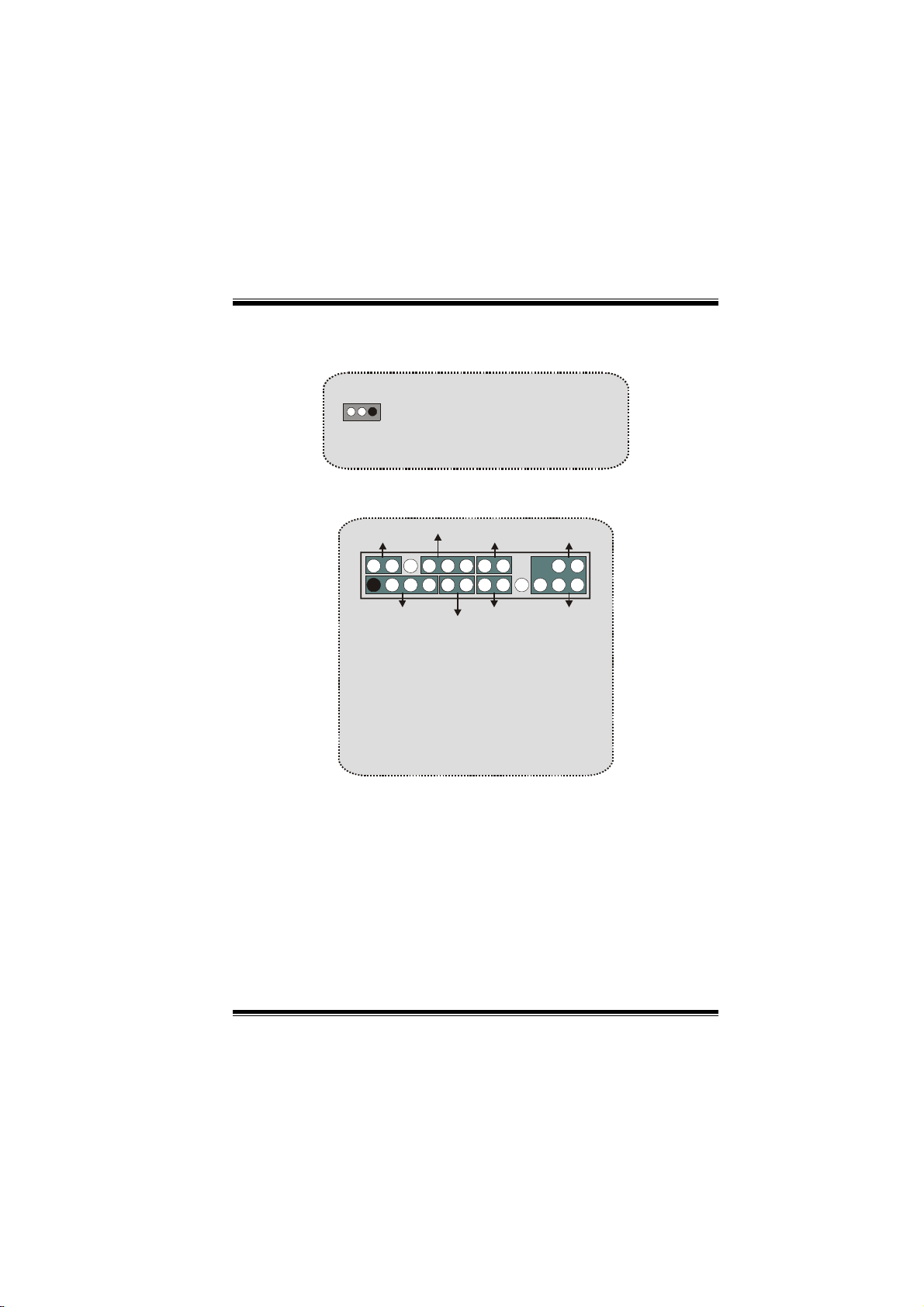

Clear CMOS Jumper: JCMOS1

Front Panel Connector: JPANEL1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

(+) (-)

(+) (-)(+)

JCMOS1

Pin 1-2 on ==> Normal Operation

(default)

Pin 2-3 on ==> Clear CMOS Data

Autres manuels pour P4 TPT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar J1900NH3 Guide de l'utilisateur

Biostar

Biostar 915GV-M7 Manuel utilisateur

Biostar

Biostar NF4ST-A9 Guide de l'utilisateur

Biostar

Biostar NF520B A2G PLUS - BIOS SETUP Manuel utilisateur

Biostar

Biostar Hi-Fi Z97WE Guide de l'utilisateur

Biostar

Biostar PT880 Pro-A7 Combo Manuel utilisateur

Biostar

Biostar M6TWL Manuel utilisateur

Biostar

Biostar N68S3PLUS - BIOS Guide de l'utilisateur

Biostar

Biostar K8T890-A9 Manuel utilisateur

Biostar

Biostar TG31-A7 Guide de l'utilisateur

Biostar

Biostar P4TDH Guide de l'utilisateur

Biostar

Biostar A68N-2100E Manuel utilisateur

Biostar

Biostar GF8100M2TE Guide de l'utilisateur

Biostar

Biostar Hi-Fi A88S2 Manuel utilisateur

Biostar

Biostar TA760G M2+ Guide de l'utilisateur

Biostar

Biostar A690G M2+ Guide de l'utilisateur

Biostar

Biostar TA785GE - SETUP Guide de l'utilisateur

Biostar

Biostar M6VLQ Grand Manuel utilisateur

Biostar

Biostar Z270GT6 Manuel utilisateur

Biostar

Biostar A68MHD Guide de l'utilisateur

Biostar

Biostar I945P-A7 Manuel utilisateur

Biostar

Biostar M5ATC Manuel utilisateur

Biostar

Biostar A58MDP Guide de l'utilisateur

Biostar

Biostar TA75 Guide de l'utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
