English

M7VIG Pro Features

 Use VIA VT8375 (KM266)/ VT8235 Chipset, Winbond W83697HF, LAN

Chip- VT6103 (optional).

 Contains on board I/O facilities, which include one serial port, one VGA port,

a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB

2.0 ports, a LAN port (optional) and a game port.

 Supports the single AMD Socket A for Athlon™(Thunderbird™) / Athlon

XP™/ Duron ™processors running at 200/266 MHz Front Side Bus (FSB).

 Supports Ultra 133/100/66/33, PIO modes, IDE hard disk drives, LBA

mode.

 Supports 2 DDR 200/266 MHz (without ECC) devices, maximun memory

size up to 2GB.

 Supports 2 SDR 100/133 MHz (without ECC) devices, maximun memory

size up to 2 GB.

 Supports one CNR Slot (Type B only), three 32-bit PCI Bus slots, and one

AGP Slot.

 Complies with PC Micro-ATX form factor specifications.

 Supports popular operating systems such as Windows NT, Windows 2000,

Windows ME, Windows XP, LINUX and SCO UNIX.

 AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 6CH DAC, applicable for leading motherboard chipsets.

 Line-in phonejack share with rear out.

 Supports front audio pin head functions.

iip

iio

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 Flash Memory Writer for BIOS update X 1

 USB Cable X 2 (Optional)

 Rear I/O Panel for ATX Case X 1 (Optional)

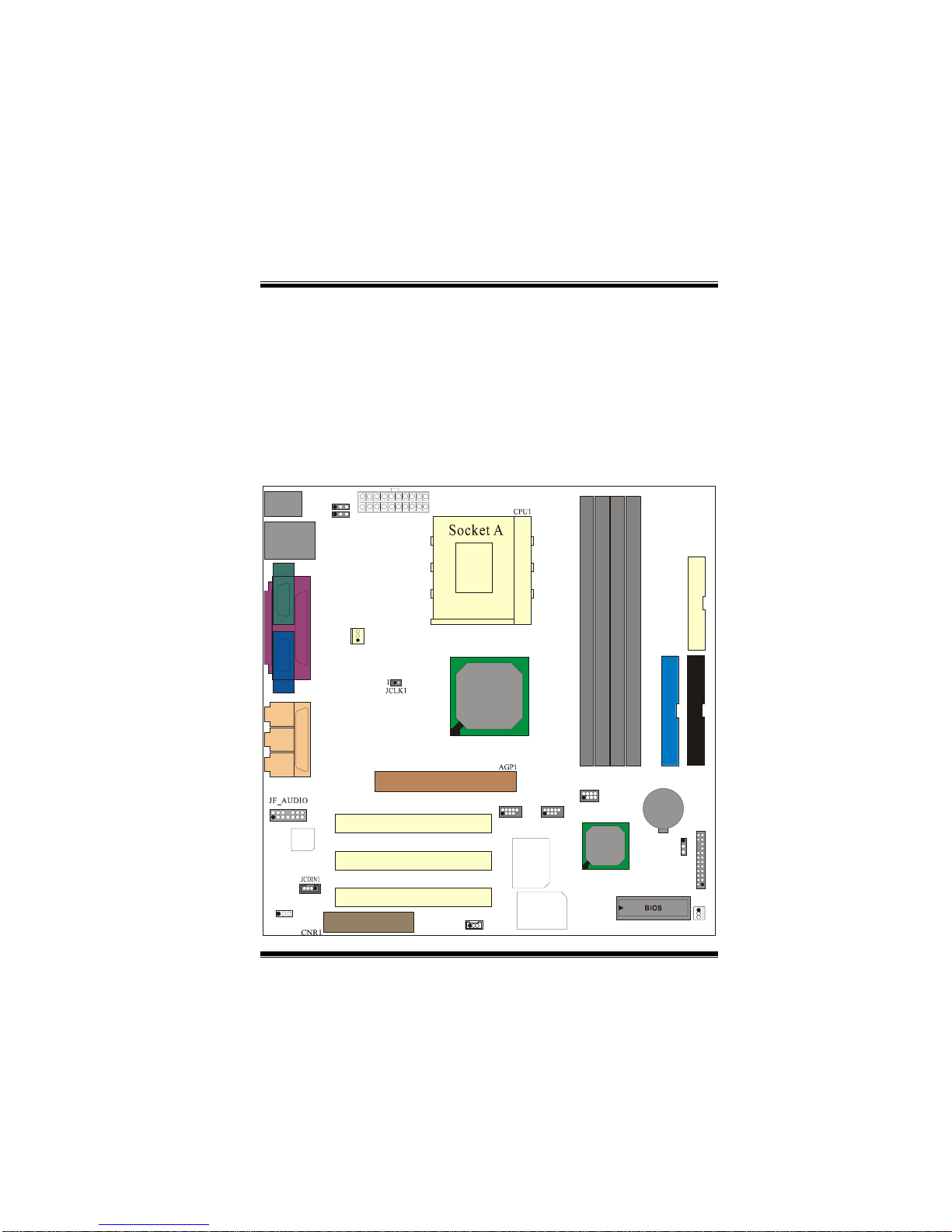

Layout of M7VIG Pro

JPRNT1

JCOM1

JVGA1

JKBMS1

JUSBLAN1

JAUD GAME

JSPKR1

SP-OUT

JMIC1

MIC-IN

JLIN1

LINE-IN

JMIC1

GAME Port

PCI3

PCI2

PCI1

T8375

(

KM 266

)

JCFAN1

JSFAN1

JPANEL1 12

2324

FDD1

FLOPPY DISK CONN.

IDE1 IDE2

PRIMARY IDECONN.

JCMOS1

BAT1

JDIMMVOLT

JATXPWR1

JUSB2

JWOL1

JCODECSEL

213

Winbond

I/O

T8235

SECONDARY IDE CONN.

SDR2

SDR1

DDR2

DDR1

JUSB3

JKBV11

JUSBV1

Codec

LAN Chip

iip

iio

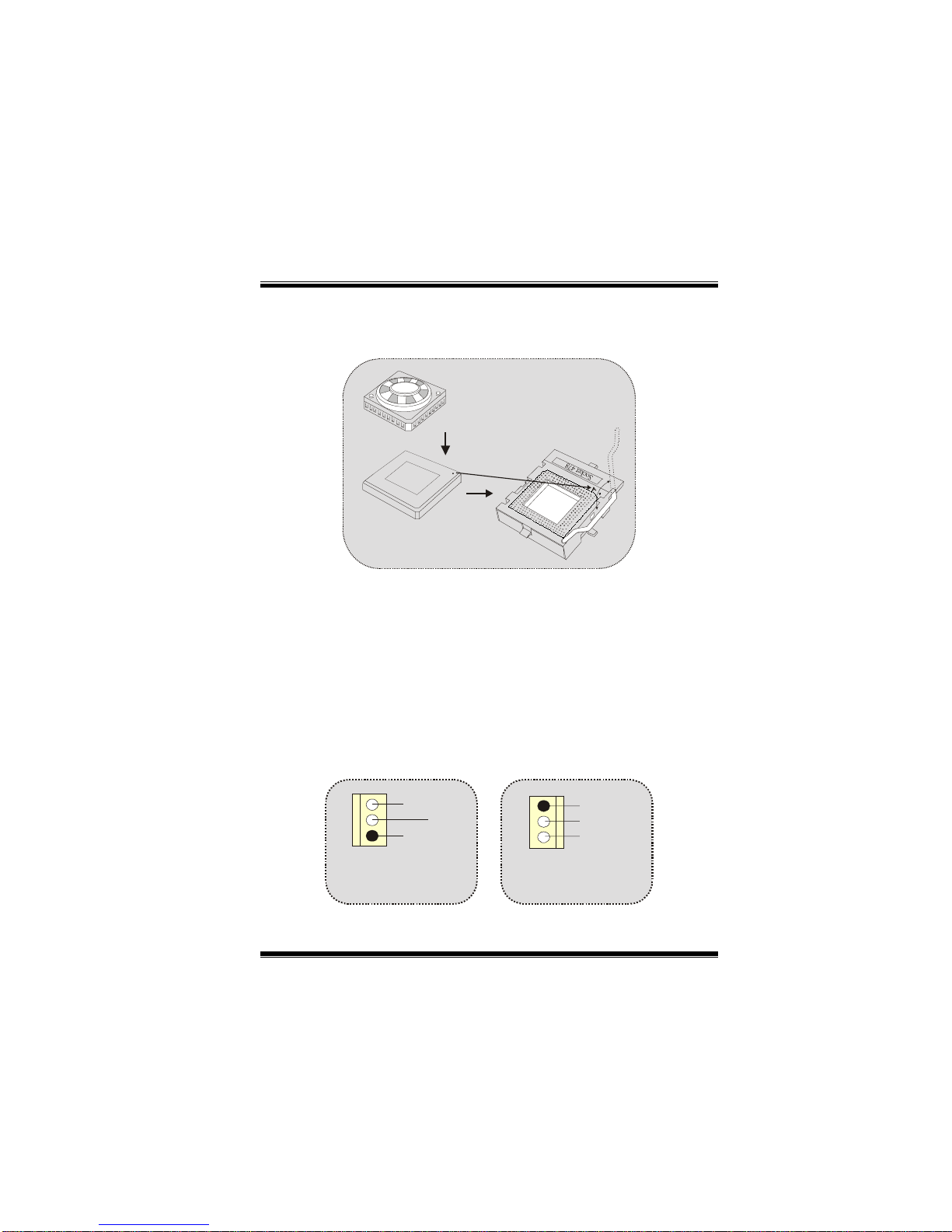

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

JSFAN1

Ground

12V

Sense

JCFAN1

1Ground

12V

Sense

iip

iio

DDR DIMM Modules: DDR1-2

DRAM Access Time: 2.5V Unbuffered DDR 200/266 MHz Type

required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

 The list shown above for DRAM configuration is only for reference.

SDR DIMM Modules: SDR1-2

DRAM Access Time: 3.3V Unbuffered SDR 100/133 MHz Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location SDR Module Total Memory

Size (MB)

SDR 1 64MB/128MB/256MB/512MB/1GB

SDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

 The list shown above for DRAM configuration is only for reference.

When you use DDR SDRAM, the memory power will

automatically set to 2.5V.

When you use SDRAM, the memory power will automatically set

to 3.3V.



For the above settings, you can only use one kind of memory on

this motherboard. It is forbidden to insert both kind of memory

simultaneously. You must insert only DDR or SDRAM.

iip

iio

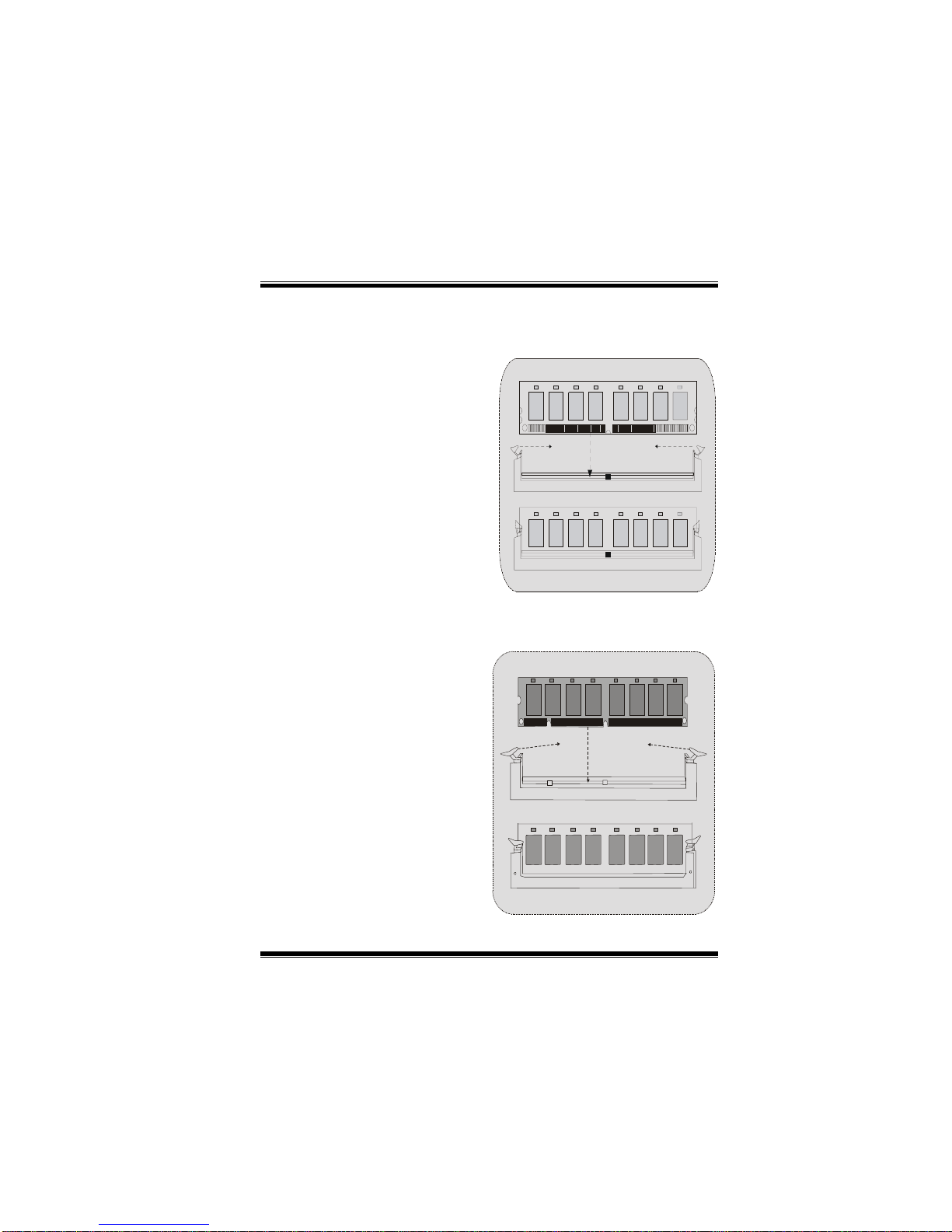

How to install a DIMM Module

DDR SDRAM

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

SDRAM

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle,

then push down vertically so that

it will fit into the place.

3. The Mounting Holes and

plastic tabs should fit over the

edge and hold the DIMM

memory modules in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100/ 133

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports

modem only.

Peripheral Component Interconnect Slots: PCI1-3

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards. This PCI slot is designated as 32 bits.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port (AGP). An AGP card will take advantage of

AGP technology for improved video efficiency and performance,

especially with 3D graphics.

iip

iio

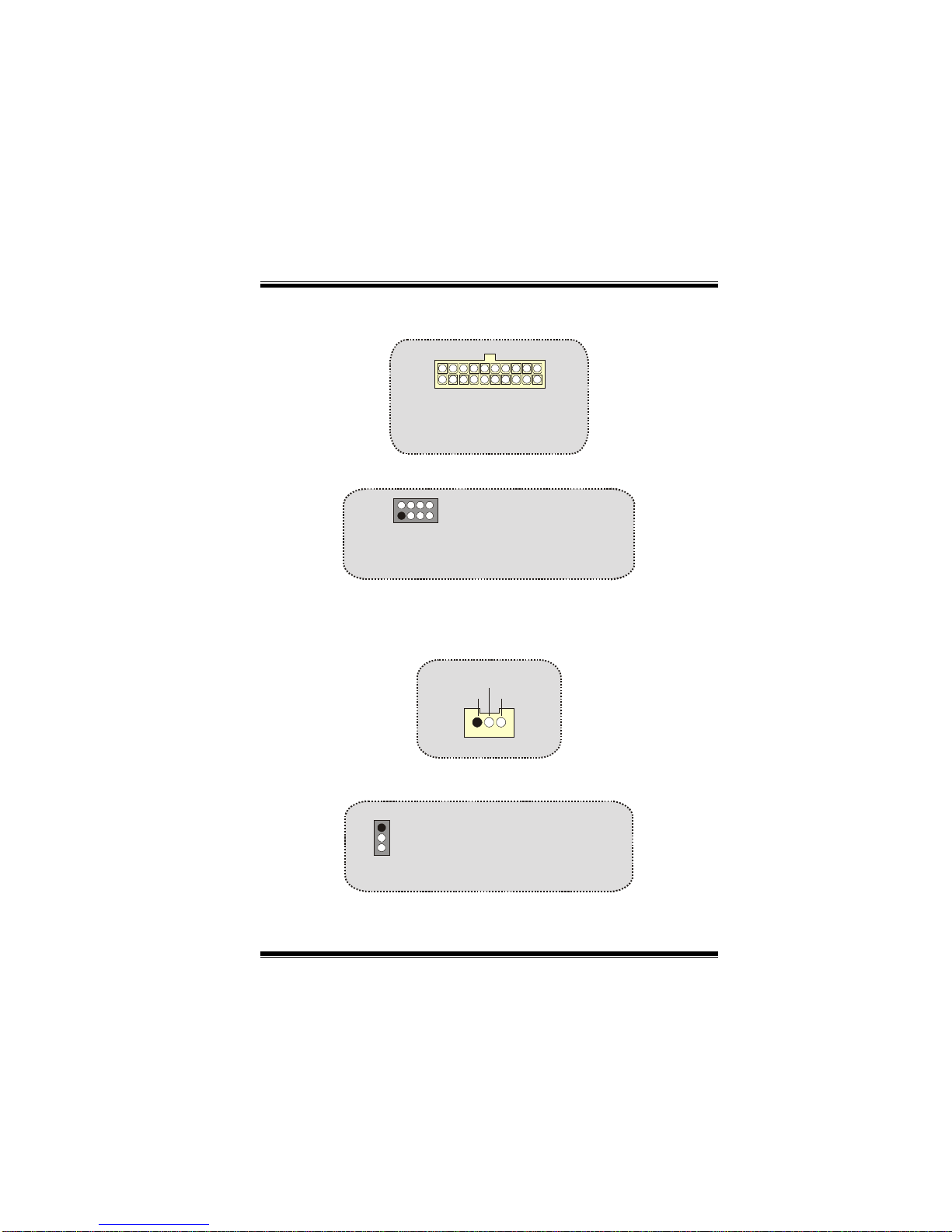

Power Connectors: JATXPWR1

DIMM Power Selection Connector: JDIMMVOLT

 It strongly recommended to set DDR DIMM voltage in default setting

2.5V, and it for over voltage function.

Wake On LAN Header: WOL1

Clear CMOS Jumper: JCMOS1

WOL1

5V_SB Wake up

Ground

JATXPWR1

(ATX Main Power Conn.)

JATXPWR1

(ATX Main Power Conn.)

JCMOS1

Pin 1-2 on ==> Normal Operation

(default)

Pin 2-3 on ==> Clear CMOS Data

JDIMMVOLT

Pin 1-2 on ==> 2.5V

Pin 3-4 on ==> 2.6V

Pin 5-6 on ==> 2.7V

Pin 7-8 on ==> 2.8V

(Default ==> 2.5V)

iip

iio

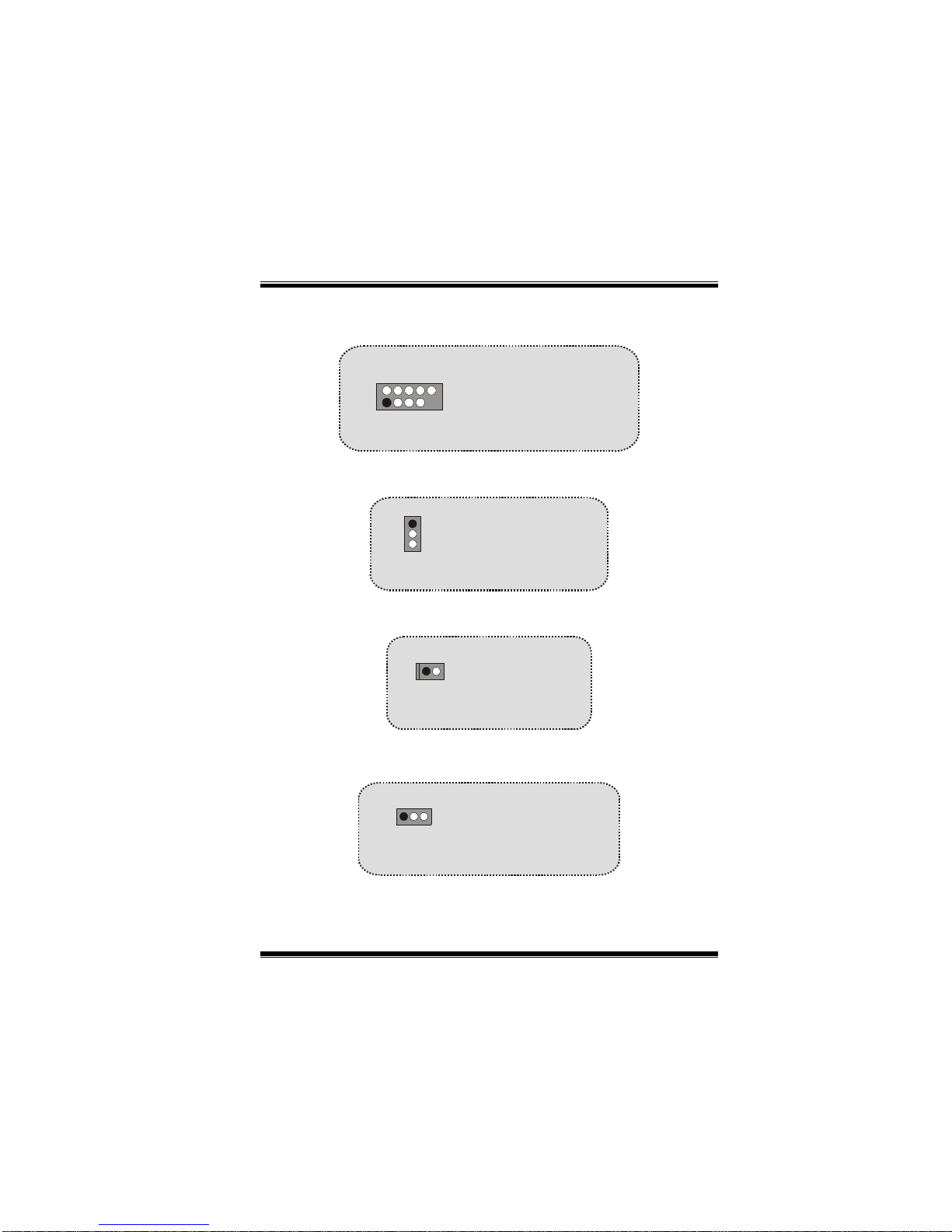

Front USB Header: JUSB2/ JUSB3

5V/ 5VSB Selection for USB: JUSBV1

CPU Frequency Selection: JCLK1

5V/ 5VSB Selection for Keyboard: JKBV1

JUSB2/3

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

JKBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JUSBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JCLK1

On ==> 100MHz

Off ==> 133MHz

Autres manuels pour M7VIG Pro D

Table des matières

Langues :

Autres manuels Biostar Carte mère

Biostar

Biostar U8668-D Manuel utilisateur

Biostar

Biostar P43C-A7 - BIOS Manuel utilisateur

Biostar

Biostar H61MGE Manuel utilisateur

Biostar

Biostar Z590GTA Manuel utilisateur

Biostar

Biostar B660GTQ Manuel utilisateur

Biostar

Biostar H55A Guide de l'utilisateur

Biostar

Biostar TH61U3+ Guide de l'utilisateur

Biostar

Biostar P4 TSV Guide de l'utilisateur

Biostar

Biostar A620MT-E Manuel utilisateur

Biostar

Biostar P4 SXQ Manuel utilisateur

Biostar

Biostar M6TLA Manuel utilisateur

Biostar

Biostar TA870 PLUS - SETUP 2 Guide de l'utilisateur

Biostar

Biostar A770E - BIOS Guide de l'utilisateur

Biostar

Biostar 945GC-M4 - BIOS Manuel utilisateur

Biostar

Biostar M6TWJ Manuel utilisateur

Biostar

Biostar TA790GXE 128M Guide de l'utilisateur

Biostar

Biostar A690G M2+ Guide de l'utilisateur

Biostar

Biostar X370GT3 Manuel utilisateur

Biostar

Biostar BIPV8M-IAE Guide de l'utilisateur

Biostar

Biostar P4 TPT Guide de l'utilisateur

Biostar

Biostar A57A2 Manuel utilisateur

Biostar

Biostar GF7100P-M7 - BIOS SETUP Guide de l'utilisateur

Biostar

Biostar TForce P965 Ver 5.x Guide de l'utilisateur

Biostar

Biostar B350GT3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
