Biostar M7NCD Pro Manuel utilisateur

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee that

interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents

here of and specially disclaims any implied warranties of merchantability or fitness

for any purpose. Further the vendor reserves the right to revise this publication

and to make changes to the contents here of without obligation to notify any party

beforehand.

Duplication of this publication, in part or in whole is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we will not

be responsible for any mistakes found in this user’s manual. All the brand and

product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

M7NCD Pro Features...................................................................................................... 1

Package contents........................................................................................................... 2

Layout of M7NCD Pro..................................................................................................... 3

CPU Installation.............................................................................................................. 4

DDR DIMM Modules: DIMMB1/ DIMMB2/ DIMMA1........................................................ 5

Jumpers, Headers, Connectors & Slots........................................................................ 6

DEUTSCH................................................................................................. 12

M7NCD Pro Merkmale.................................................................................................. 12

Verpackungsinhalt........................................................................................................ 13

Layout von M7NCD Pro................................................................................................ 14

Installation der CPU ..................................................................................................... 15

DDR-DIMM-Modules: DIMMB1/DIMMB2/ DIMMA1....................................................... 16

Jumper, Header, Anschlüsse & Slots.......................................................................... 17

WATCHDOG TECHNOLOGY................................................................... 22

TROUBLE SHOOTING............................................................................. 23

PROBLEMLÖSUNG................................................................................. 24

iip

iio

English

M7NCD Pro Features

CPU

- Supports the AMD® Socket 462 processor up to XP 3000+.

- Running at 200/266/333/400 MHz Front Side Bus.

Chipset

- North Bridge: nForce2 SPP.

- South Bridge: MCP.

High Speed 800Mb/s Hyper-Transport interface to the MCP.

Main Memory

- Supports up to 3 DDR devices.

- Supports 200/266/333/400MHz(without ECC) DDR devices.

- High performance 128-bit DDR400 Twin Bank Memory Architecture.

- The largest memory capacity is 3GB.

Slots

- Five 32-bit PCI bus master slots.

- One AGP slot: AGP3.0 8X interface at 533Mb/s.

Supports AGP 2X, 4X, 8X.

On Board IDE

- Supports four IDE disk drives.

- Supports PIO Mode 4, Master Mode and Ultra DMA 33/66/100/133 Bus

Master Mode.

Audio

- AC97 2.2 interface.

- PC99 complaint.

- Supports 6 channels.

On Board Peripherals

- Supports 360K, 720K, 1.2MB, 1.44MB and 2.88MB floppy disk drivers.

- Supports 2 serial ports.

- Supports 1 multi-mode parallel port. (SPP/EPP/ECP mode)

- Supports 1 LAN port. (optional)

- Supports PS/2 mouse and PS/2 keyboard.

- Supports 2 rear USB2.0 ports and 4 front USB2.0 ports.

BIOS

- AWARD legal Bios.

- Supports APM1.2.

- Supports ACPI.

iip

iio

- Supports USB Function.

Operating System

- Offers the highest performance for MS-DOS, Windows 98SE, Windows

2000, Windows Me, Windows XP, SCO UNIX etc.

Dimensions

- ATX Form Factor: 24.4cm X 30.5cm (W X L)

Package contents

- HDD Cable X 1

- FDD Cable X 1

- Fully Setup Driver CD X 1

- User’s Manual X 1

- USB Cable X 2 (Optional)

- Rear I/O Panel for ATX Case X 1 (Optional)

iip

iio

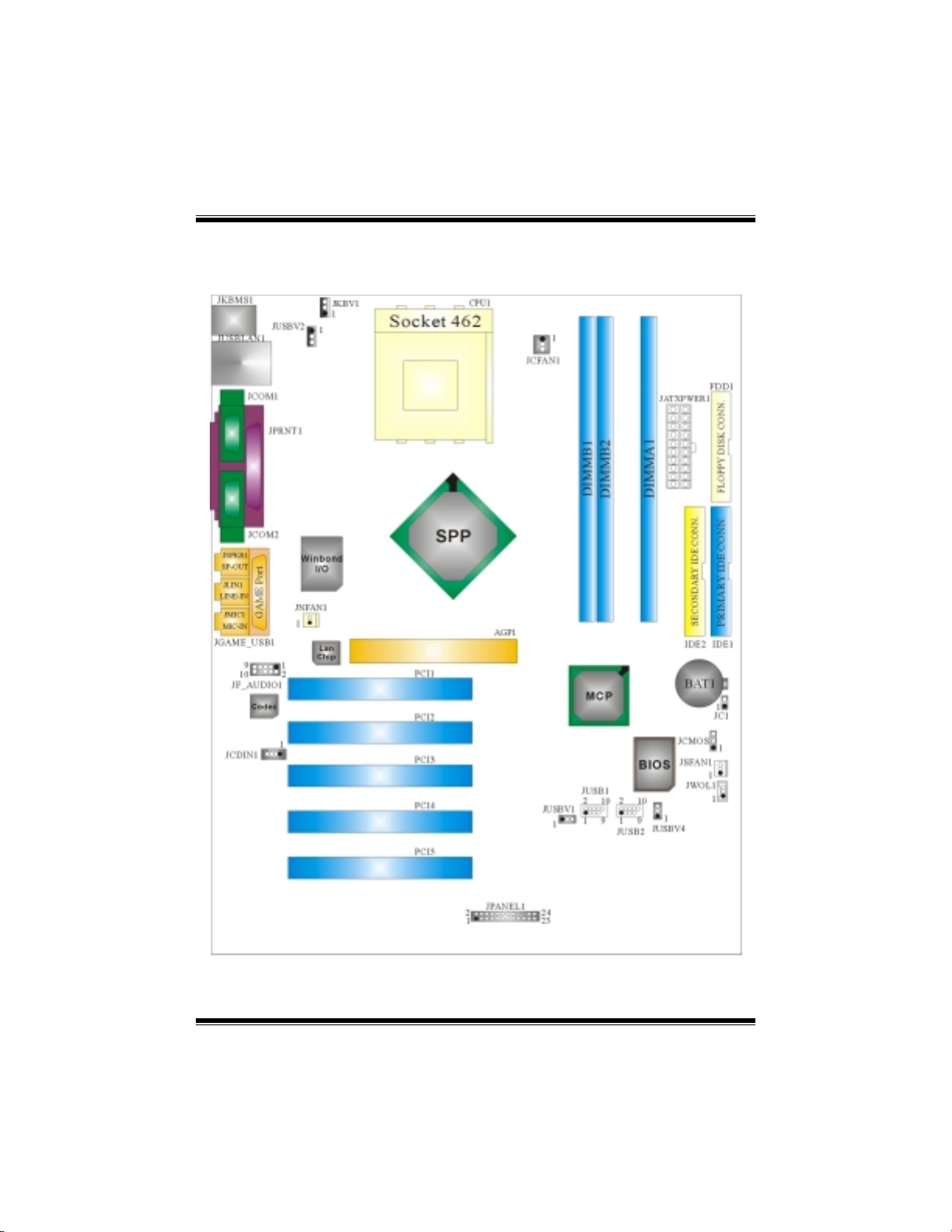

Layout of M7NCD Pro

iip

iio

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up to

90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in the CPU.

Match Pin A with the white dot/cut edge then insert the CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it and put the

fan’s power port into the JCFAN1, then to complete the installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1/ JNFAN1

CPU

JNFAN1

Ground

12V

JCFAN1

1Ground

12V

Sense

iip

iio

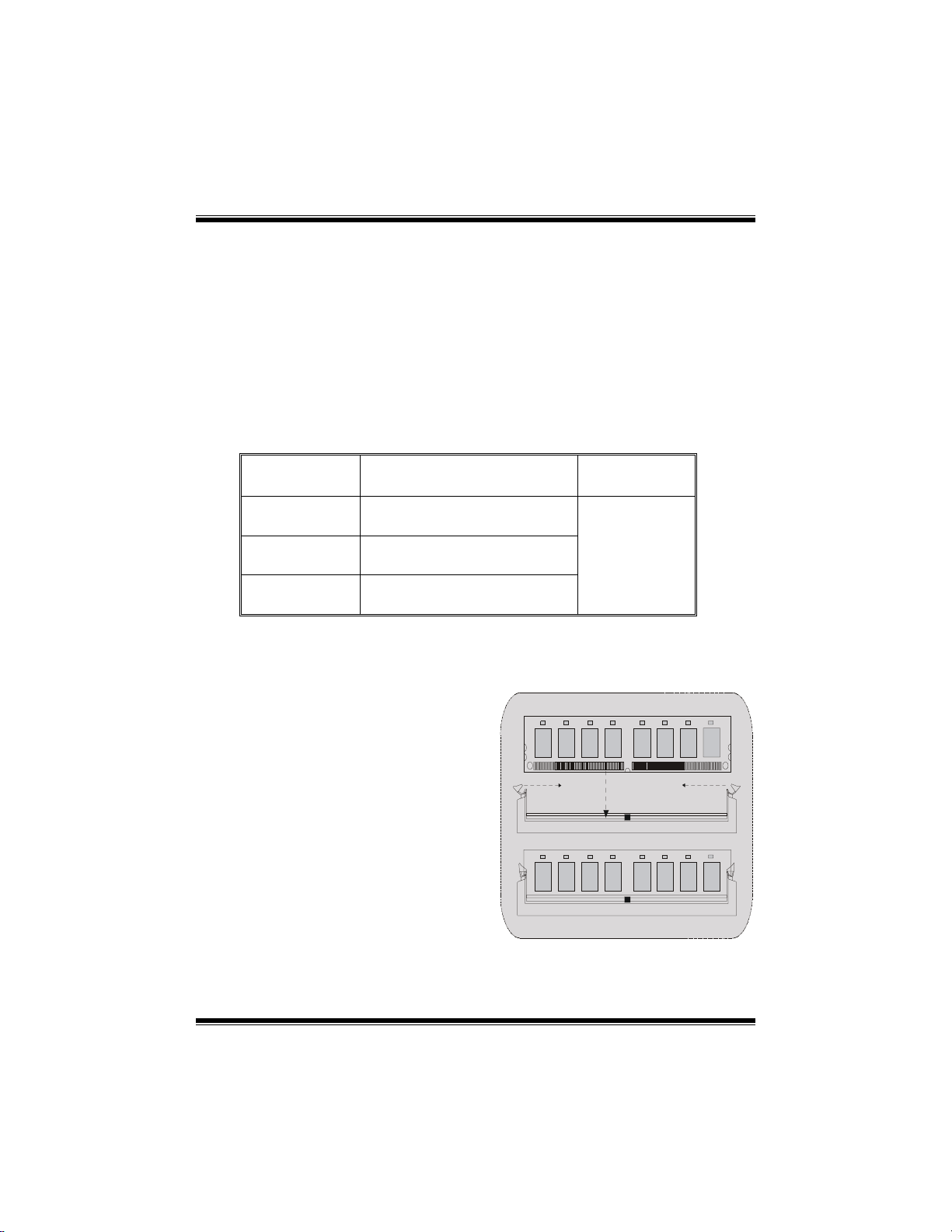

DDR DIMM Modules: DIMMB1/ DIMMB2/

DIMMA1

For Dual-channel DDR (128-bit) high performance, at least 2 or

more DIMM modules must be installed. (It has to be the

combination of DIMMA and DIMMB.) With only one DIMM installed,

the memory performs only at 64-bit.

DRAM Access Time: 2.5V Unbuffered DDR 200/266/333/400 MHz Type

required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DIMMB1 64MB/128MB/256MB/512MB/1GB

DIMMB2 64MB/128MB/256MB/512MB/1GB

DIMMA1 64MB/128MB/256MB/512MB/1GB

Max is

3GB

⌦The list shown above for DRAM configuration is only for reference.

How to install a DIMM Module

1. The DIMM socket has a “ Plastic

Safety Tab”, and the DIMM memory

module has an “Asymmetrical notch”, so

the DIMM memory module can only fit

into the slot in one direction.

2. Push the tabs out. Insert the DIMM

memory modules into the socket at a

90-degree angle, then push down

vertically so that it will fit into the place.

3. The Mounting Holes and plastic tabs

should fit over the edge and hold the

DIMM memory modules in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100/ 133 functionality. It has two

HDD connectors IDE1 (primary) and IDE2 (secondary).

The IDE connectors can connect a master and a slave drive, so you can connect

up to four hard disk drives. The first hard drive should always be connected to

IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for Peripheral

Component Interconnect, and it is a bus standard for expansion cards, which has,

supplanted the older ISA bus standard in most ports. This PCI slot is designated

as 32 bits.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard supports

video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port

(AGP). An AGP card will take advantage of AGP technology for improved video

efficiency and performance, especially with 3D graphics.

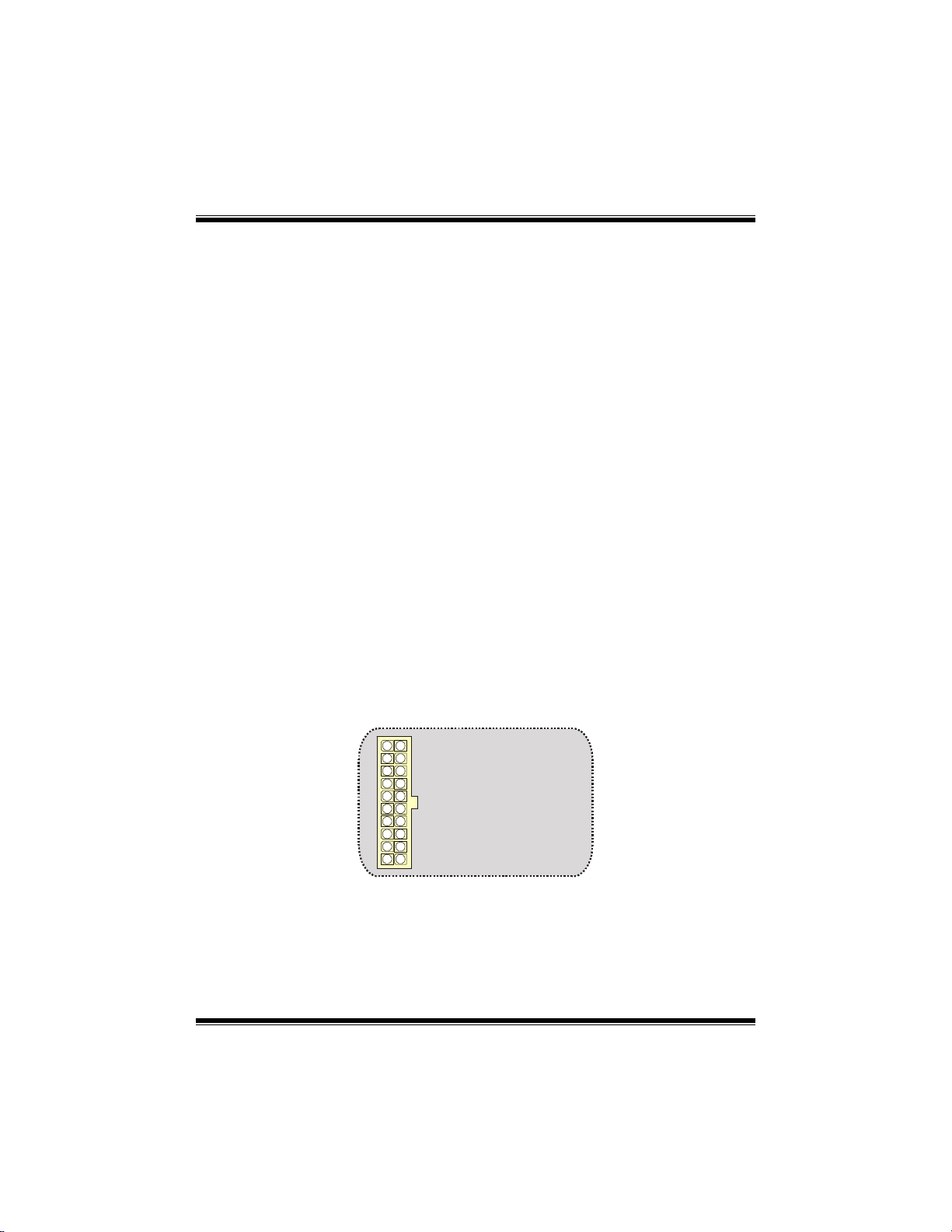

Power Connectors: JATXPWER1

JATXPWR1

(ATXMainPowerConn.)

JATXPWR1

(ATXPower Conn.)

iip

iio

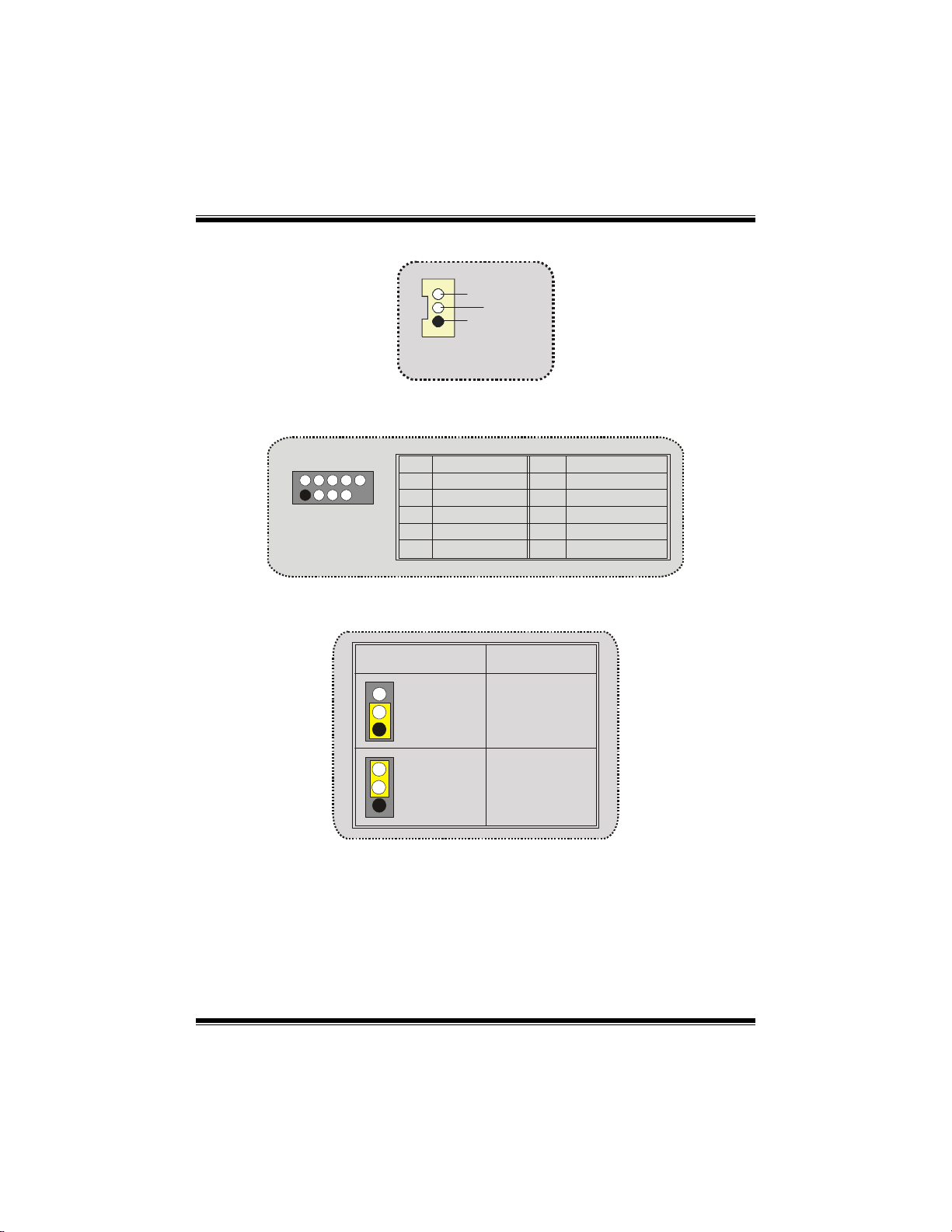

Wake On LAN Header: JWOL1

Front USB Header: JUSB1/ JUSB2

5V/ 5V_SB Selection for KB: JKBV1

JUSB1/2

Pin Assignment Pin Assignment

910

+5V +5V

Data (-)Data (-)

Data (+) Data (+)

Ground Ground

Key NA

JWOL1

15V_SB

Wakeup

Ground

JKBV1

5V_SB

Pin 1-2 on 5V

Assignment

Pin 2-3 on

iip

iio

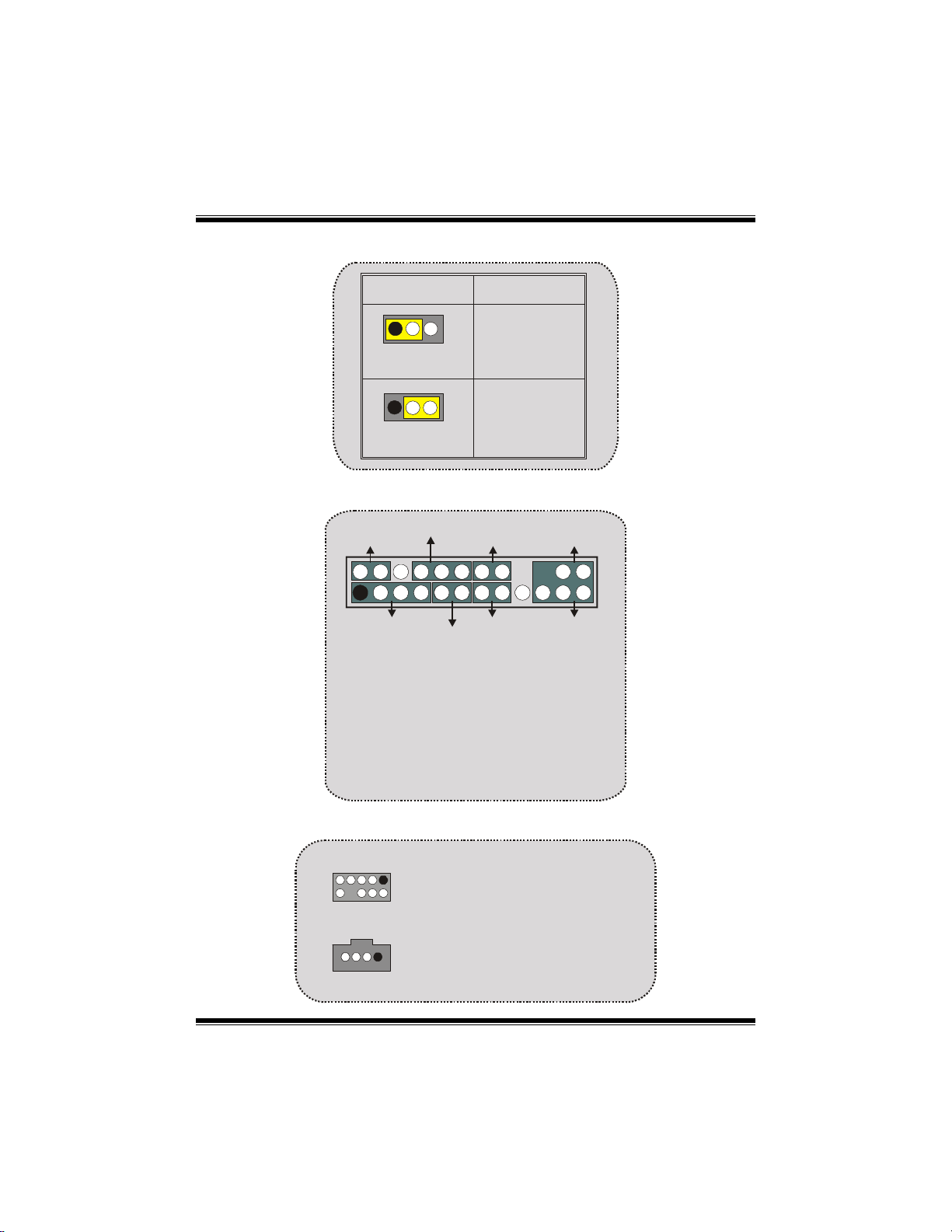

5V/ 5V_SB Selection for USB: JUSBV1/JUSBV2/JUSBV4

Front Panel Connector: JPANEL1

Audio Subsystem: JF_AUDIO1/ JCDIN1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

(+) (-)

(+) (-)(+)

JUSBV1/ 2/ 4

5V_SB

Pin 1-2 on 5V

Assignment

Pin 2-3 on

2JAUDIO1

(Front Audio Header)

1JCDIN1

(CD-ROMAudio-In Header)
