G31-M7G DVI BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power ofCMOS

RAM is supplied by abattery sothat it retains theSetup information when the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage of the booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports thePlug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management

(APM) speci fication. Power management features are implemented via the System

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel and Toshiba.

G31-M7G DVI BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus speci fication.

DRAM Support

DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings applyfor most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor yourreferenceonly. The actual

BIOS information andsettings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

G31-M7G DVI BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview ofthe basic system information.

BIOS SETU P UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

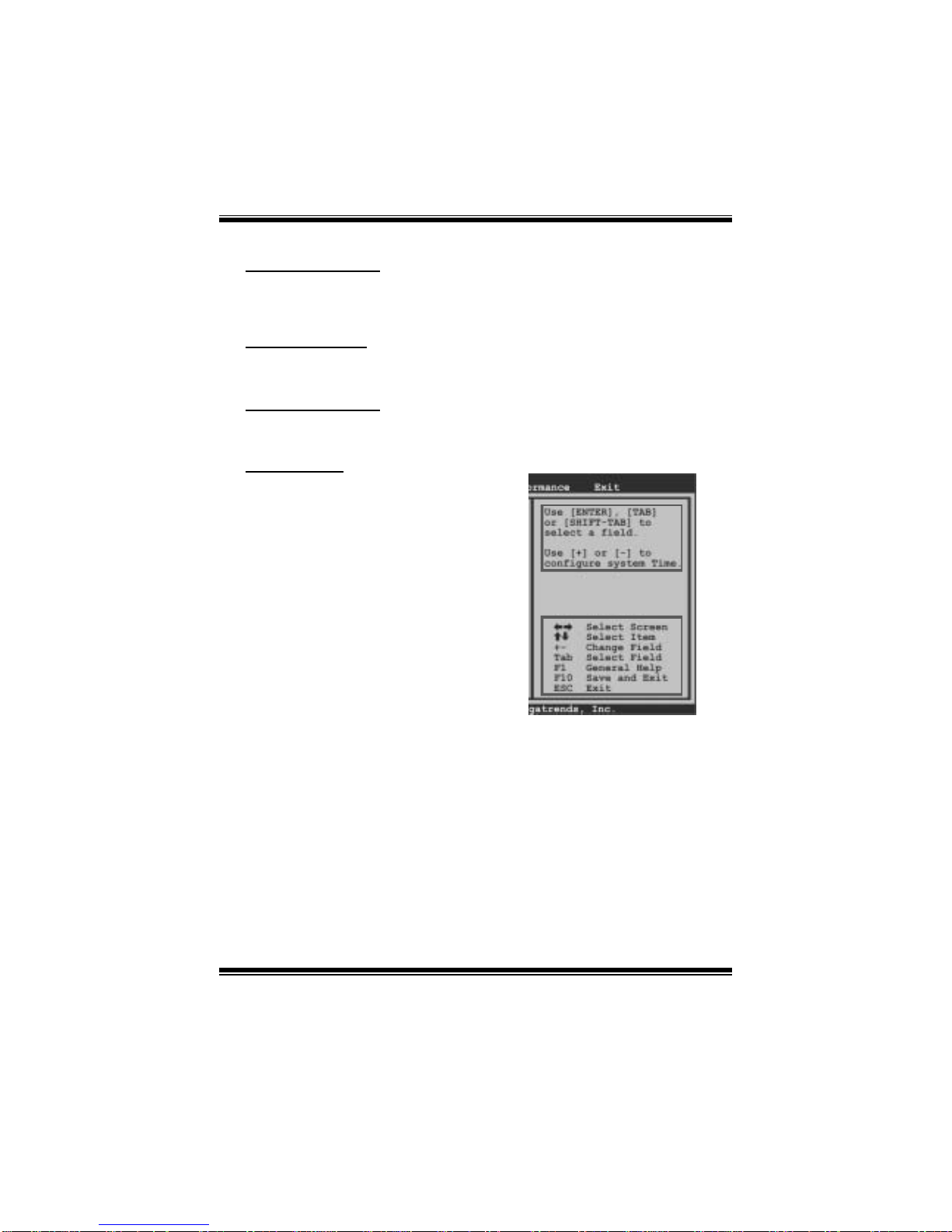

System Overview

AMI BIOS

System Memory

[ :00:00]

System Date [Tue 01/01/2008]

Floppy A

> IDE Configuration

Version :01.01.01

Build Date:01/01/08

Size :

System Time 00

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded..

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

G31-M7G DVI BIOS Manual

Floppy A

Select the typeof floppy disk drive installed in yoursystem.

Options: 360K, 5.25in / 1.2M, 5.25 in/ 720K, 3.5 in / 1.44M, 3.5 in /

2.88M, 3.5in / None

IDE Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu ofdetailed options.

BIOS SETU P UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE Confuguration

Configure SATA Channels [Before PATA]

Legacy IDE Channels [SATA Pri, PATA Sec]

> SATA1 DEVICE

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

> IDE Channel 1 Master

> IDE Channel 1 Slave

ATA/IDE Configuration [Enhanced]

Port2 SATA AHCI Speed: GEN 2 (3.0 Gb/sec)

SATA2 DEVICE

SATA3 DEVICE

SATA4 DEVICE

Options

Disabled

Compatible

Enhanced

ATA/IDE Configuration

Thisitem allows you to control theonboard IDE controller.

Options: Enhanced (Default) / Compatible/ Disabled

Configure SATA Channels

Thisitem allows you to control theSATA channel configuration sequence.

Options: Before PATA (Default) / Behind PATA

Legacy IDE Channels

Thisitem appears only when “ATA/IDE Configuration” is set to“Compatible”.

Options: SATA Pri, PATA Sec (Default) / SATA Only/ PATAPri, SATA Sec /

PATA Only

G31-M7G DVI BIOS Manual

SATA1/2/3/4 Device; IDE Channel 1Master/Slave

BIOS SETU P UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA1 Device

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown below to the name of thesub-menu.

Type

Select the typeofthe IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 /3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Disabled

G31-M7G DVI BIOS Manual

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

G31-M7G DVI BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and othersystem devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> USB Configuration

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> Power Configuration

> CPU Configuration

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enable or

disable the Enhanced

Halt State.

Configure advanced CPU settings

Module Version:xx.xx

Manufacturer:Intel

Frequency :

FSB Speed :

Cache L1 :

Cache L2 :

Ratio Status:

Ratio Actual Value:

C1E Support [Enabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Max CPUID Value Limit [Disabled]

Intel(R) Virtualization Tech [Enabled]

Execute-Disable Bit Capability[Enabled]

PECI [Disabled]

Core Multi-Processing [Enabled]

Intel(R) SpeedStep(tm) tech [Enabled]

G31-M7G DVI BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat by lowering CPU frequency while the processor is not working.

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches dat a and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent cache line prefetch mechanism that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cache latency by making the next cache line

immediately available ifthe processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Intel(R) Virtualization Tech

Virtualization Technology can virtually separate your system resource into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

Execute-Disable Bit Capability

Thisitem allows you to configure the Execute Disabled Bit function, whichprotects

yoursystem from buffer overflow attacks.

Options: Enabled (Default) / Disabled

G31-M7G DVI BIOS Manual

PECI

This item allows you to control the PECI function for the processor which supports

Platform Environment Control Interface for betterthermal management.

Options: Disabled (Default) / Enabled

Core Multi-Processing

Thisitem allows multi-processing function for multi-core processors.

Options: Enabled (Default) / Disabled

Intel(R) SpeedStep(tm) Tech

This item allows you to enable SpeedStep technology for better power saving.

SpeedStep is a technology built into some Intel processors that allows the clock

speed of the processor to be dynamically changed by software.

Options: Enabled (Default) / Disabled

Hyper Threading Technology

Thisoption allows youto enableor disable CPU Hyper-Threading. “Enabled”

for Windows XP and Linux 2.4.x (OS optimized for Hyper-Threading Technology.)

“Disabled” forother OS (OS not optimized for Hyper-Threading Technology.)

Options: Enabled (Default) / Disabled

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Enable

or Disable Floppy

Controller

Configure ITE8712 Super IO Chipset

Onboard Floppy Controller [Enabled]

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Keyboard PowerOn [Disabled]

Mouse PowerOn [Disabled]

Restore on AC Power Loss [Power Off]

Autres manuels pour G31-M7G DVI

Table des matières

Autres manuels Biostar Carte mère

Biostar

Biostar M6SBA Manuel utilisateur

Biostar

Biostar Hi-Fi B150Z3 Manuel utilisateur

Biostar

Biostar M7TDE Manuel utilisateur

Biostar

Biostar G41D3B Guide de l'utilisateur

Biostar

Biostar M6TCF Manuel utilisateur

Biostar

Biostar TA880GB - BIOS Manuel utilisateur

Biostar

Biostar M7VIG Pro D Manuel utilisateur

Biostar

Biostar A740G M2 PLUS SE - BIOS Guide de l'utilisateur

Biostar

Biostar M6TWL Manuel utilisateur

Biostar

Biostar A75MG Manuel utilisateur

Biostar

Biostar P4M800 Pro-M7 Guide de l'utilisateur

Biostar

Biostar M7VKA Manuel utilisateur

Biostar

Biostar P4TDH Guide de l'utilisateur

Biostar

Biostar M7VIT Pro Instructions d'utilisation et d'installation

Biostar

Biostar P4SDQ Instructions d'utilisation et d'installation

Biostar

Biostar TZ77XE4 Manuel utilisateur

Biostar

Biostar B650MT Manuel utilisateur

Biostar

Biostar Z790A-SILVER Manuel utilisateur

Biostar

Biostar N68S3B Manuel

Biostar

Biostar P4M900-M4 Guide de l'utilisateur

Biostar

Biostar NF3 250 AM2 Guide de l'utilisateur

Biostar

Biostar M6TWC Manuel utilisateur

Biostar

Biostar M7 VKG Manuel utilisateur

Biostar

Biostar TB85-BTC Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
