Biostar BI94GS-IA Guide de l'utilisateur

BI94GS-IA Setup Manual

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here and specially disclaims any implied warranties of merchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction ........................................ 3

1.1 Before You Start ................................................................................ 3

1.2 Package Checklist............................................................................. 3

1.3 Mainboard Specification................................................................... 4

1.4 Rear Panel.......................................................................................... 5

1.5 Mainboard Layout ............................................................................ 6

1.6 Mainboard Dimension ...................................................................... 7

Chapter 2: Installation .......................................... 7

2.1 CPU...................................................................................................... 8

2.2 Fan Header......................................................................................... 8

2.3 System Memory.................................................................................. 9

2.4 Power Supply ................................................................................... 10

2.5 Onboard Slot/Connector/Header/Jumper.................................... 12

Chapter 3: BIOS Setup ........................................ 23

3.1 Main Menu........................................................................................ 25

3.2 Advanced Menu............................................................................... 29

3.3 PCI/PnP Menu.................................................................................. 38

3.4 Boot Menu ........................................................................................ 41

3.5 Chipset Menu.................................................................................... 44

3.6 Exit Menu.......................................................................................... 50

Chapter 4: Useful Help ........................................ 53

4.1 Driver Installation Note.................................................................. 53

4.2 AMI BIOS Beep Code....................................................................... 54

4.3 Troubleshooting............................................................................... 55

BI94GS-IA

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

mainboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with

sufficient lighting.

Always disconnect the system from power outlet

before operation.

Before you take the mainboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

Avoid touching the components on mainboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

Keep the system from dangerous area, such as heat

source, humid air, and water.

Please switch on/off the machine normally. That is, DO

NOT pull out power cord directly from the mainboard

or the system may damage.

1.2 PACKAGE CHECKLIST

Mini-ITX Mainboard x 1

Fully Setup Driver CD x 1

I/O Bracket x 1

IDE Cable x 1 (Optional)

SATA Cable x 1 (Optional)

Mini-ITX Mainboard Manual

1.3 MAINBOARD SPECIFICATION

Specif icat ion

CPU Int el C PU On-bo ard

Intel Atom N270 @1.6GHz (Mobile)

FSB Supports up to 533 MHz

Chipset Northbridge: Intel 945GSE

Southbridge: ICH7M

Graphic Intel®Graphic Media Accelerator 950 Max Shared Video Memory is 224 MB

Supports DVI / LVDS (18bit/dual channel)

Super I/O

ITE IT8718F

Provides the most commonly used legacy

Super I/O functionality.

128pin type

Environment Co ntrol in itiat ives ,

H/W Monitor

Fan Speed Controller

Main

Memory

SO-DIMM (200pin) Slot x 1

Supports DDR2 533 / 667 MHz

DIMM supports 256MB / 512MB / 1GB

Max Memory Cap ic it y 1GB

Registered DIMM or ECC DIMM is not

supported

IDE ICH7 M

Ultra DMA 33/66/100 Bus Master Mode

Supports PIO Mode 0~4

Supports 2 IDE devices

SATA ICH7M SATAII Vers io n 1.0a specif icat ion compliant

Data transfer rates up to 3.0 Gbit/s

LAN Realtek RTL 8111DL x 2 10 / 100 / 1000 Mb/s auto negotiation

Ha lf / Fu ll dup lex cap abilit y

Sound

Codec

Realtek ALC662 5.1 channels audio out

High- Defin it ion A udio s upport

Slot PCI slot x1

IDE Connector x1

SATA2 Connector x2

Front Panel Header x1

Front Audio Header x1

Digital I/O Connector x1

System Fan Header x1

Clear C MOS Header x1

H/W Power Loss Recovery Header x1

Parallel Connector x1

On Board

Connectors

& Head ers

COM Port Header for Daughter Card x1 (2.0 Pitch for 4xCOM add-on card expansion)

BI94GS-IA

Specif icat ion

RS-232/422/485 Switch Header x2

USB 2.0 Header x1

VGA/DVI Compulsory Signal Output

Header x1

LVDS Connector x1

LCD Power Select Header x1

LCD Backlight Power ON/OFF Header x1

LCD Backlight Inverter Connector x1

Inverter Power Select Header x1

Backlight Brightness Adjust Header x1

Front Keyoard & Mouse Connector x1

Power Connector for DOM Card x1

Power Connector for SATA x1

Power Connector (20pin) x1

Back Panel

I/O

PS/2 (Keyboard) x1

Serial Port x2

VGA Port x1

DVI Port x1

LAN port x2

USB Port x6

Audio Jack x3

KB & Mouse are available through Y cable

1 x RS-232, 1 x RS-232/422/485 by jumper

Board Size

170 mm (W) x 170 mm (L) Mini-ITX

Support

Windows XP/XPE, Linux Biostar reserves the right to add or remove

support for any OS with or without notice.

1.4 REAR PANEL

PS/2

Keyboard LAN

JCOM1A (COM1)

Line In/

Surro und

Line Out

Mic In 1/

Bass/ Center

US B 2.0 x 2

JCOM1B (COM2)

USB 2.0 x 2USB 2.0 x 2

DVI-D Port

VGA Port

LAN

Mini-ITX Mainboard Manual

1.5 MAINBOARD LAYOUT

JUSBKB1 J KBM S1

JVGA_DVI1

JRJ45USB2

JRJ45USB3

JCOM 1

JAUDIO1

LVD S-CO NN1

JLV2

JLV1

JBL1

JBL2

JC1

JSEL2

JSEL1

JAUDIOF1

JDIO1

LPC1

JPRNT1

PCI1

JBAT1

JCMOS1

JAT 1

BIOS

JPANEL1

JDOM1

JHDD1

SATA2SATA1

JUSB4

IDE1

JATXPWR1

JSFAN1

DIMMA1

Intel

Atom

N270

CPU1

Intel

945GSE

ICH7M

JDSP1

Note: represents the 1■st pin.

BI94GS-IA

1.6 MAINBOARD DIMENSION

Mini-ITX Mainboard Manual

CHAPTER 2: INSTALLATION

2.1 CPU

The mainboard includes an embedded Intel Atom N270 processor, and a

heatsink has been installed to provide sufficient cooling.

2.2 FAN HEADER

The fan header supports cooling-fans built in the system. The fan cable

and connector may be different due to the fan manufacturer.

JSFAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

Note:

The System Fan Header supports 3-pin head connector. When connecting with wires

onto connectors, please note that the red wire is the positive and should be connected to

pin#2, and the black wire is Ground and should be connected to GND.

BI94GS-IA

2.3 SYSTEM MEMORY

DIMMA1: Memory Module (200pin SO-DIMM)

2 Align a DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

3 Insert the DIMM firmly into the slot until the retaining chip snap back in

place and the DIMM is properly seated.

Memory Capacity

DIMM Socket Location DDR2 Module Total Memory Size

DIMMA1 256MB/512MB/1GB Max is 1GB.

Mini-ITX Mainboard Manual

2.4 POWER SUPPLY

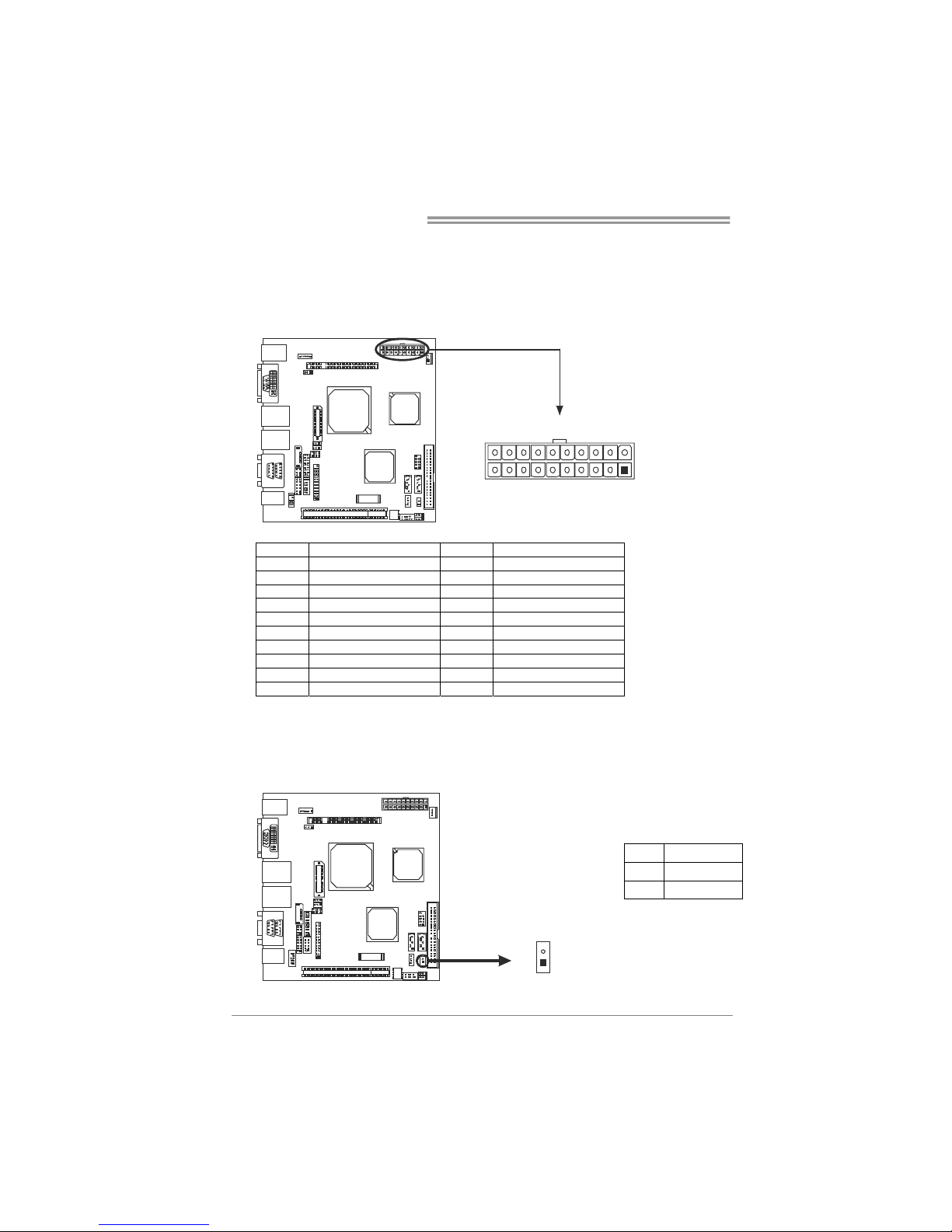

JATXPWR1: ATX Power Source Connector (20-pin)

This connector allows user to connect 20-pin power connector on the power

supply.

110

1120

Pin Assignment Pin Assignment

1 +3.3V 11 +3.3V

2 +3.3V 12 -12V

3 GND 13 GND

4 +5V 14 Power Supply On

5 GND 15 GND

6 +5V 16 GND

7 GND 17 GND

8 Power Good 18 NC

9 +5V Standby 19 +5V

10 +12V 20 +5V

JDOM1: DOM Card Power Connector

This connector provides power connection of a DOM card.

Pin Assignment

1 +5V

2 GND
