Billion BiPAC 7300G RA Manuel utilisateur

BiPAC 7300(G) RA

(802.11g) ADSL2+ Firewall Router

Quick Start Guide

Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router

-1-

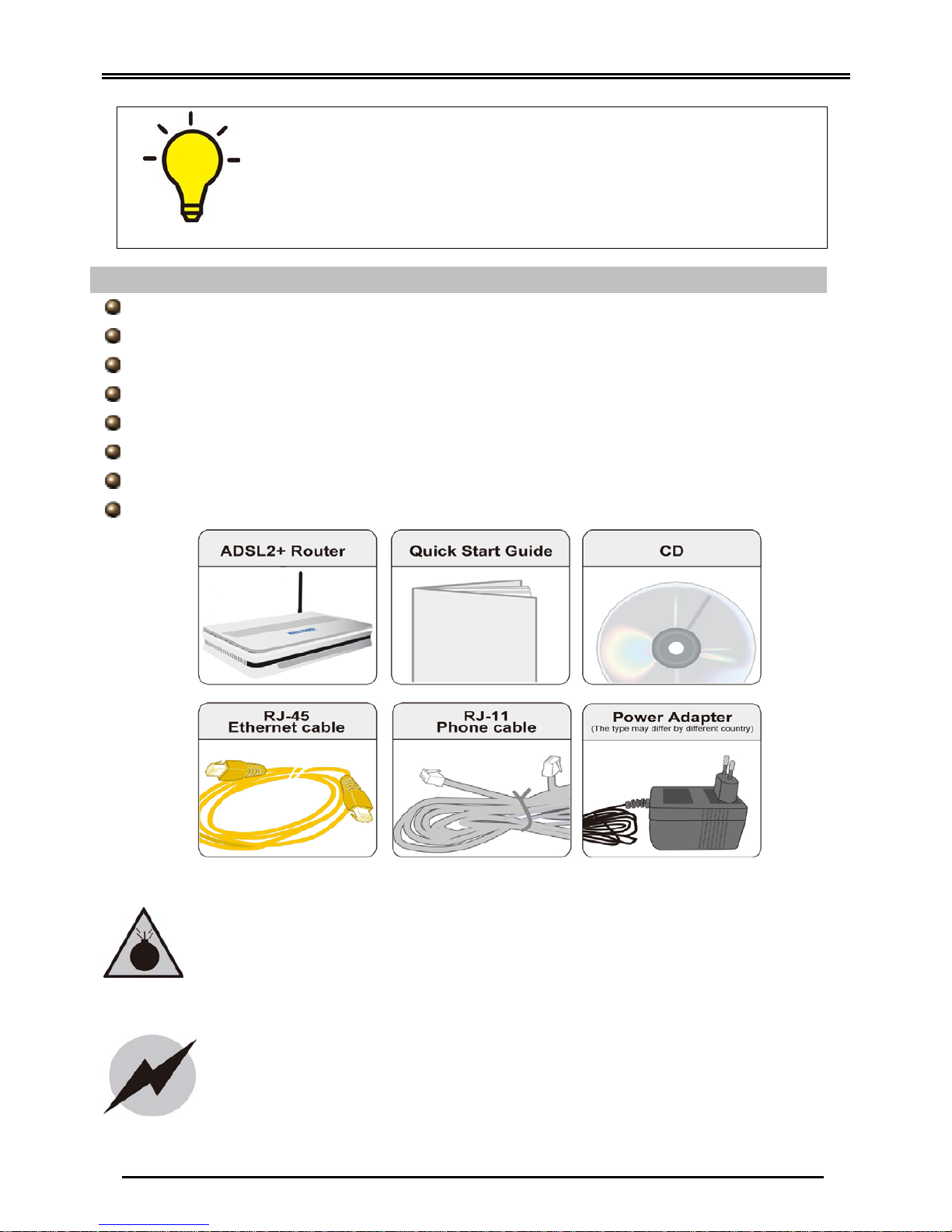

Package Contents

BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router

CD-ROM containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (RJ-45) cable

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

Splitter/ Micro-filter (Optional)

One 2dBi detachable antenna (7300G RA)

Attention

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON

THE CD-ROM.

Do not use the router in high humidity or high temperatures.

Do not use the same power source for the router as other

equipment.

Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.

Avoid usin

this

roduct and all accessories outdoors.

Place the router on a stable surface.

Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Warning

Quick Start Guide

-2-

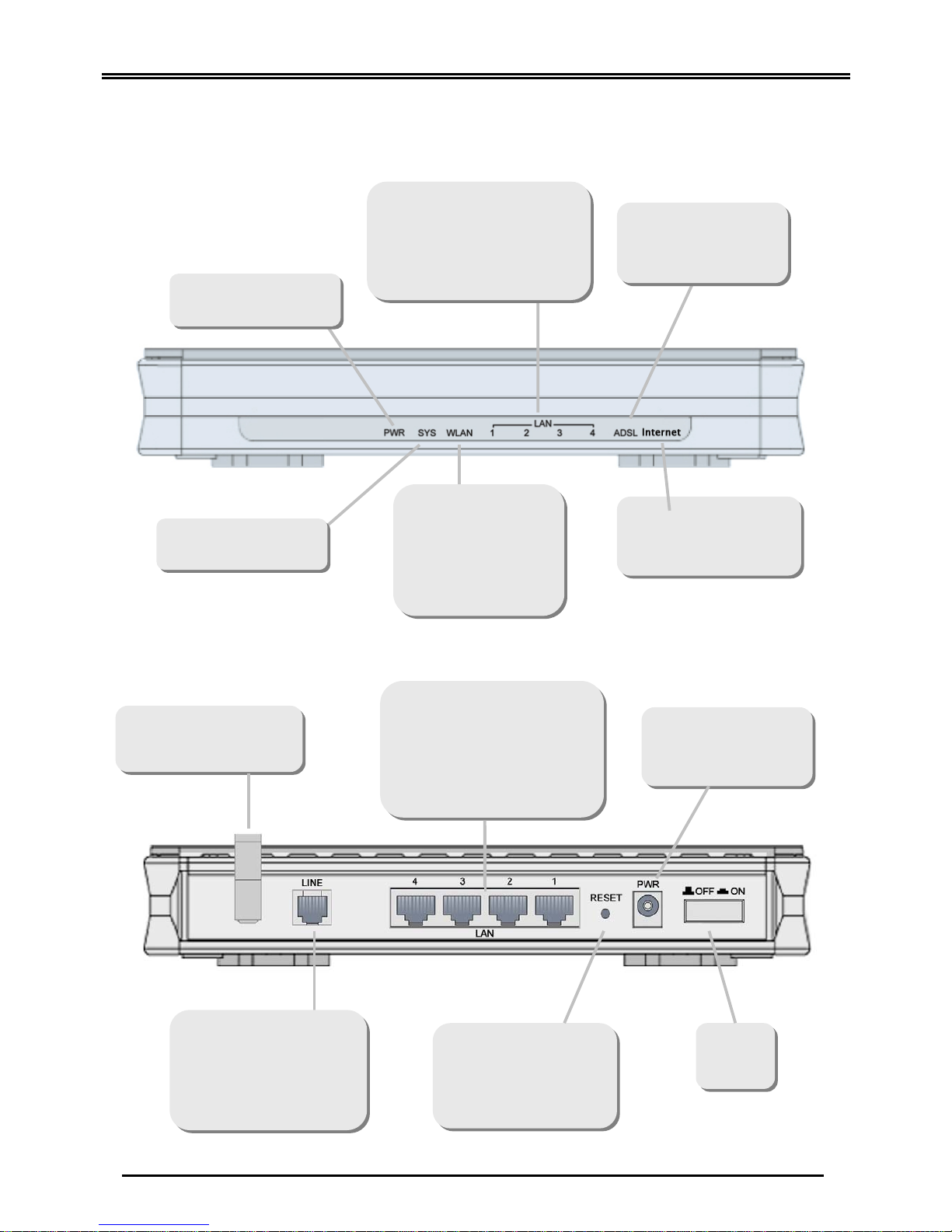

Hardware Overview

BiPAC 7300G RA

The Front LEDs

The Rear Ports

Connect the supplied

power adapter to this

jack.

Connect the supplied

RJ-11 cable to this port

when connecting to the

ADSL/telephone

network.

Press reset button for 5

seconds to reset the

device or restore to

factory default settings.

Power

ON/OFF

switch.

Connect a UTP Ethernet

cable cable(RJ-45)to one of

the four LAN ports when

connectiong to a PC or an

office/home network of

10Mbps or 100Mbps.

Lit when the

system is ready.

Lit steady when there

is a PPPoA / PPPoE

connection.

Lit when successfully

connected to an ADSL

DSLAM connection.

Connect the fixed

antenna.

Lit when power is ON.

Lit when connected to an

Ethernet device. Green for

100Mbps; Orange for 10Mbps.

Blinking when date is

Transmitted/Received.

Lit Green when the

wireless connection

is established.

Flashes when

sending/receiving

date.

Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router

-3-

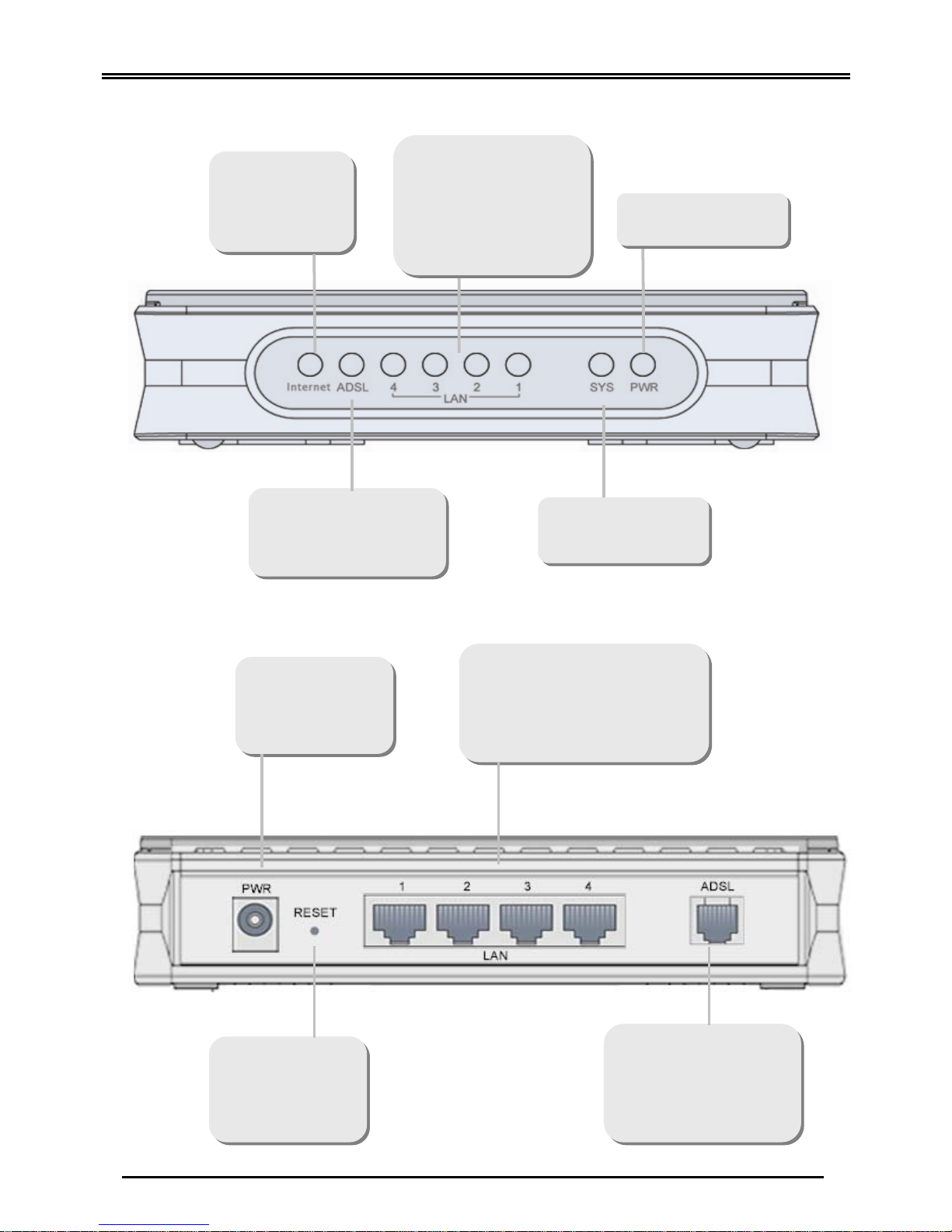

BiPAC 7300 RA

The Front LEDs

The Rear Ports

Lit when the

system is ready.

Connect a UTP Ethernet

cable(RJ-45) to one of the four

LAN ports when connectiong to

a PC or an Office/home network

of 10Mbps or 100MBps.

Lit steady when

there is a PPPoA /

PPPoE

connection.

Lit when successfully

connected to an ADSL

DSLAM connection.

Connect the supplied

RJ-11 cable to this

port when connecting

to the ADSL/telephone

network.

Lit when connected

to an Ethernet device.

Green for 100Mbps;

Orange for 10Mbps.

Blinking when data is

Transmitted/Received. Lit when power is ON.

Press it to reset

the device or

restore to factory

default settings.

Connect the

supplied power

adapter to this

jack.

Quick Start Guide

-4-

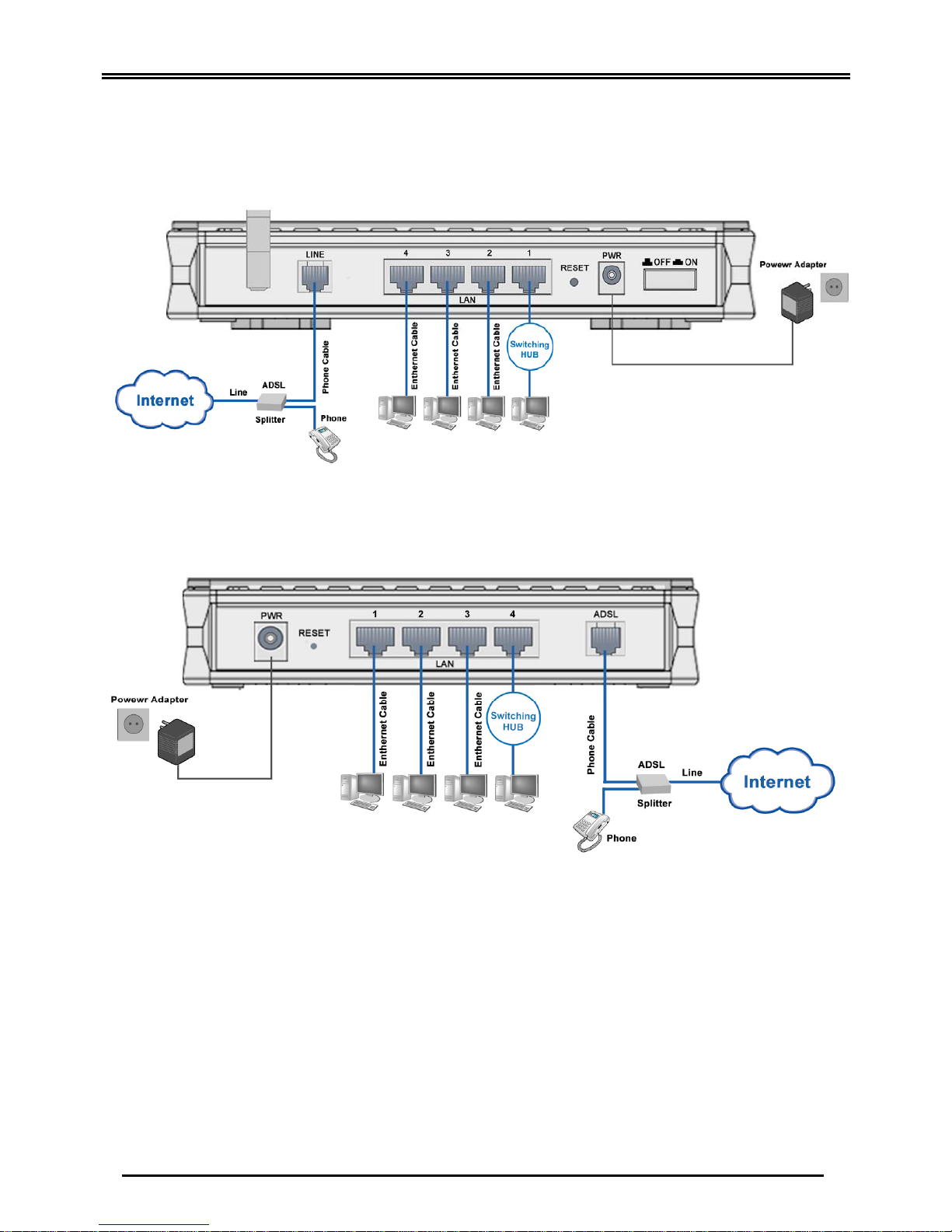

Hardware Connection

BiPAC 7300G RA

BiPAC 7300 RA

Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router

-5-

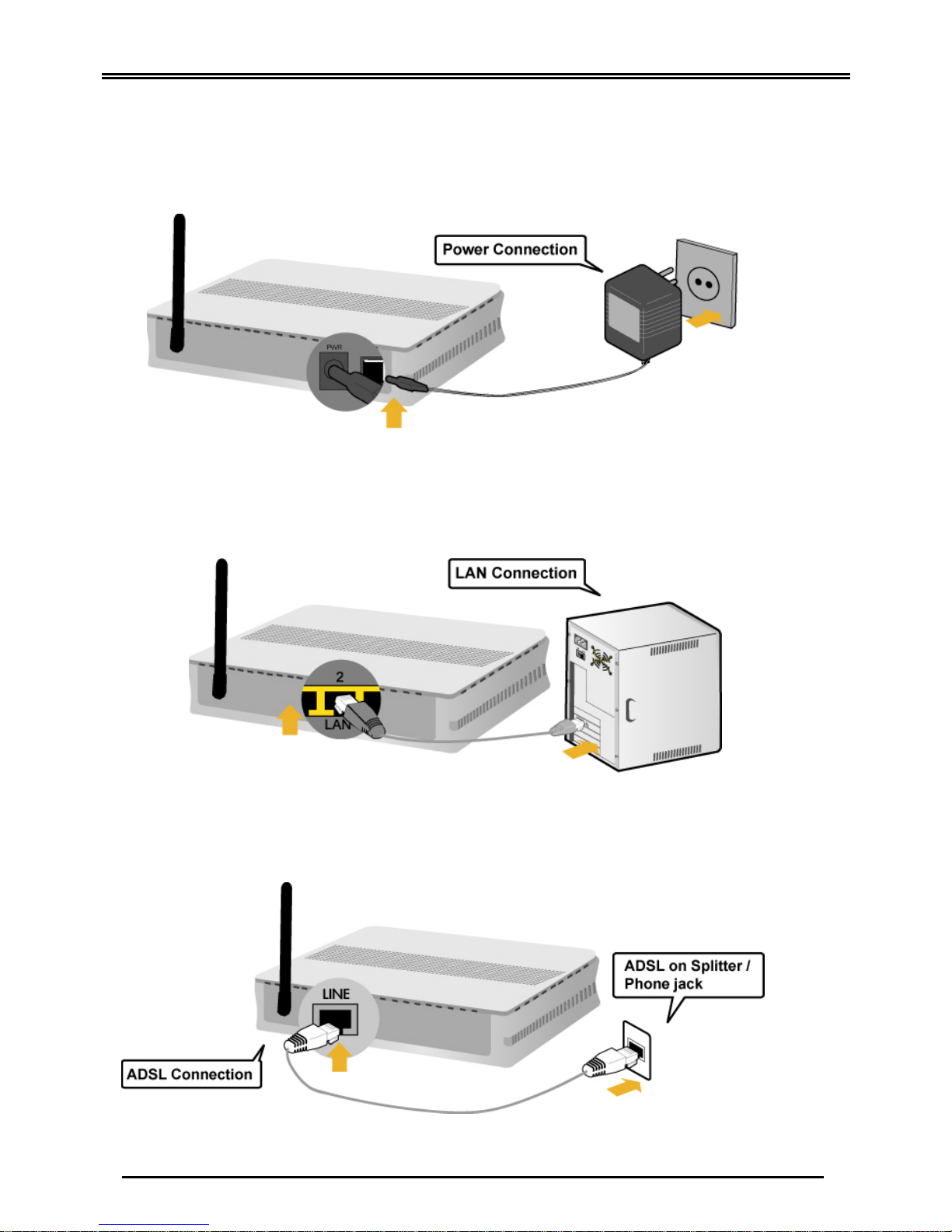

Hardware Installation BiPAC 7300(G) RA

1. Power Connection

Plug the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the

other side to the PC’s Ethernet interface.

3. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the

other side to the phone jack on the wall.

Quick Start Guide

-6-

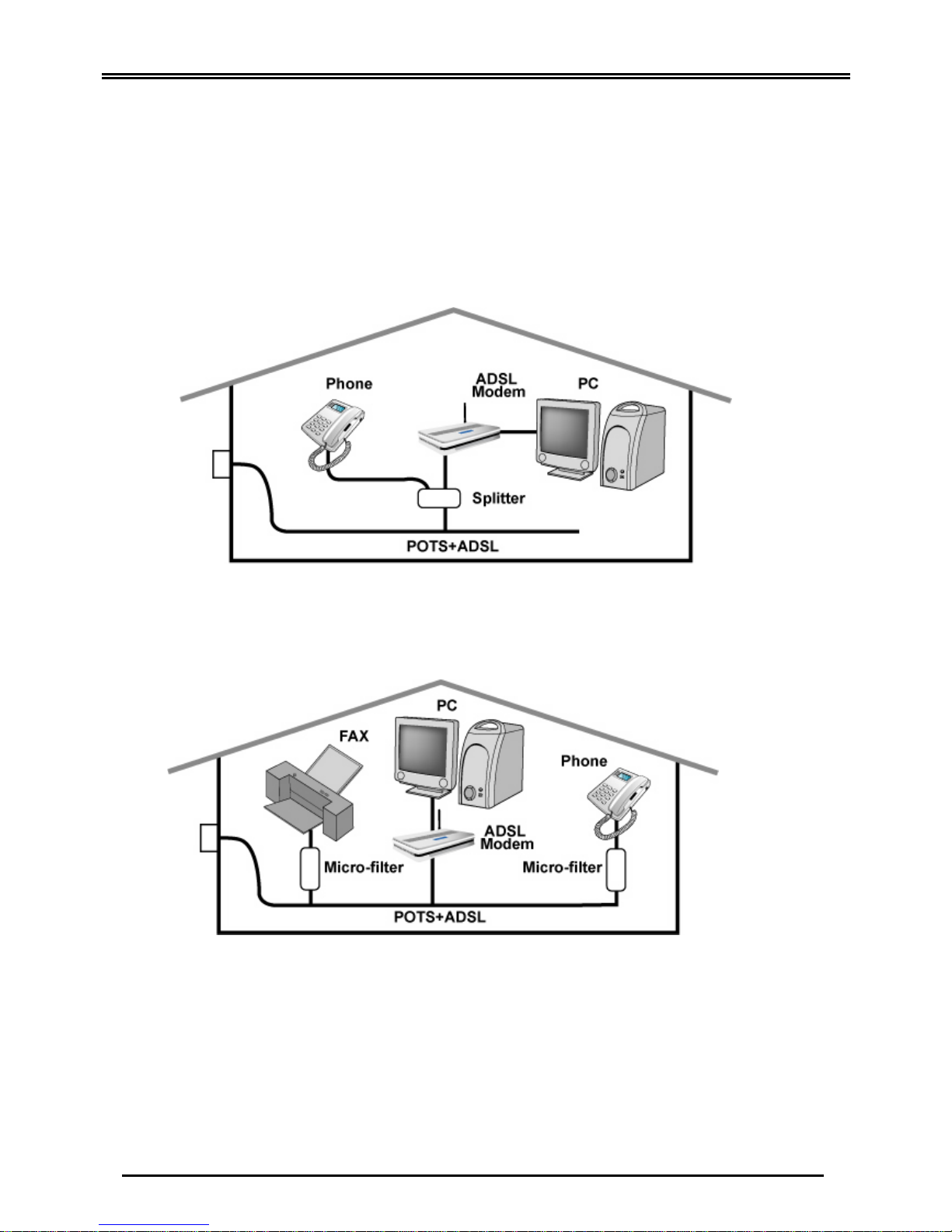

4. Splitter/ Micro-filter Connection

Splitter / Micro-filter are important for ADSL installation. High-frequency signals

are directed to the ADSL modem, and low-frequency signals are directed to the

telephone or other analog voice-channel device to prevent inter-modulation

distortion and also to get good speed and stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an

internal micro-filter can be employed at each analog device.

Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router

-7-

Easy Sign On

User just installs all of cables and uses the browser to surf Internet. At this time, the EZSO WEB

GUI will be popped up and request you to input some basic information you get from ISP.After

this, you can surf Internet right away.

Troubleshooting

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. You have forgotten your router login and/or password.

Try the default login and password, please refer to Chapter 3. If this fails, you can restore

your router to its factory settings by holding the Reset button on the back of your router for 6

seconds or more.

3. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

4. Frequent loss of ADSL linesync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Contact Billion

WORLDWIDE: http://www.billion.com

7300(G) RA:V1.01EN
