BiPAC 6404VP/VGP
VoIP/(802.11g) Broadband Firewall
Router
Quick Start Guide
VoIP/(802.11g) Broadband Firewall Router
1
F
or more detailed instructions on con
f
i
g
urin
g
and usin
g
th
e
VoIP/(802.11g) Broadband Firewall
R
outer, please re
f
er to the
on-line manual.
Package Contents
VoIP/(802.11g) Broadband Firewall Router
CD-ROM containing the online manual
Ethernet (CAT-5 LAN) Cable
Console Kit (RJ45-RS232)
AC-DC power adapter (BiPAC 6404VP - 12V DC, 1A) (BiPAC 6404VGP – 12V DC 1.2A)
This Quick Start Guide
Do not use this router in high humidity or high temperatures.
Do not use the same power source for this router as othe
r
equipment.
Do not open or repair the case yourself. If this router is too hot,
turn off the power immediately and have it repaired at a qualified
service center.
Warning Avoid using this product and all accessories outdoors.
Place this router on a stable surface.
Only use th
differ e power adapter that comes with the package. Using a
ent voltage rating power adaptor may damage this router.
A
ttention
Quick Start Guide

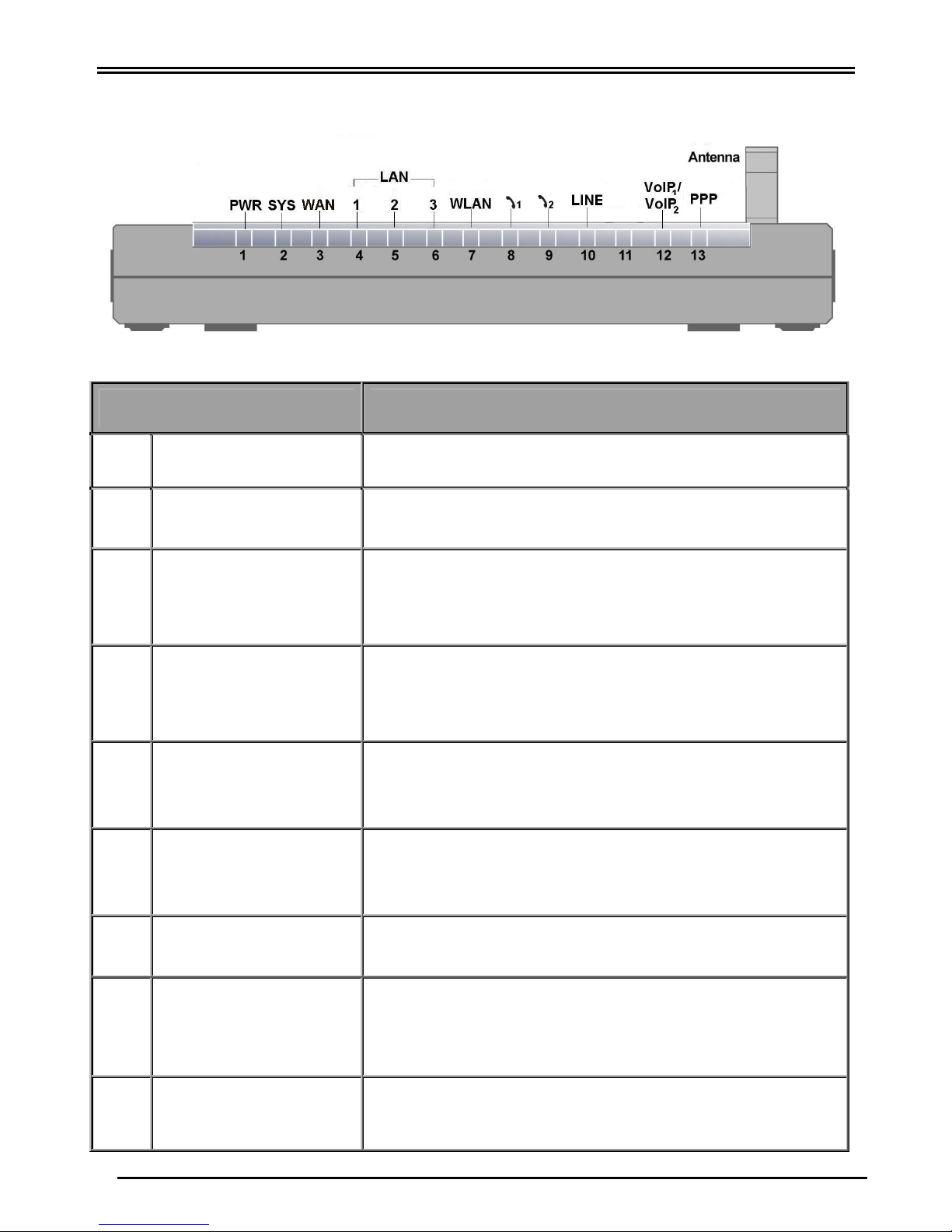

The Front LEDs
LED Meaning
1 PWR Lit when power is ON.
2 SYS Lit when the system is ready.
3 WAN Lit when connected to an ADSL modem or Cable modem's
Ethernet port well
4 – 6 Lit when connected to an Ethernet device.
Green for 100Mbps; Orange for 10Mbps.
LAN Port
1X — 3X
(RJ-45 connector) Blinking when data is Transmitted / Received.
7 WLAN Lit green when the wireless connection is established.
(Wireless Router only) Flashes when sending/receiving data.
8 – 9 Phone
1X — 2X
(RJ-11 connector) Lit green when the phone is off-hook.
10 LINE Lit when the inbound and outbound calls transmitted
through PSTN.
12
VoIP Port Lit when the SIP Registration is OK.
1X — 2X
(RJ-11 connector) Green for Phone 1; Orange for Phone 2.
13 PPP
Lit Green when there is a PPPoA / PPPoE connection.
2
VoIP/(802.11g) Broadband Firewall Router

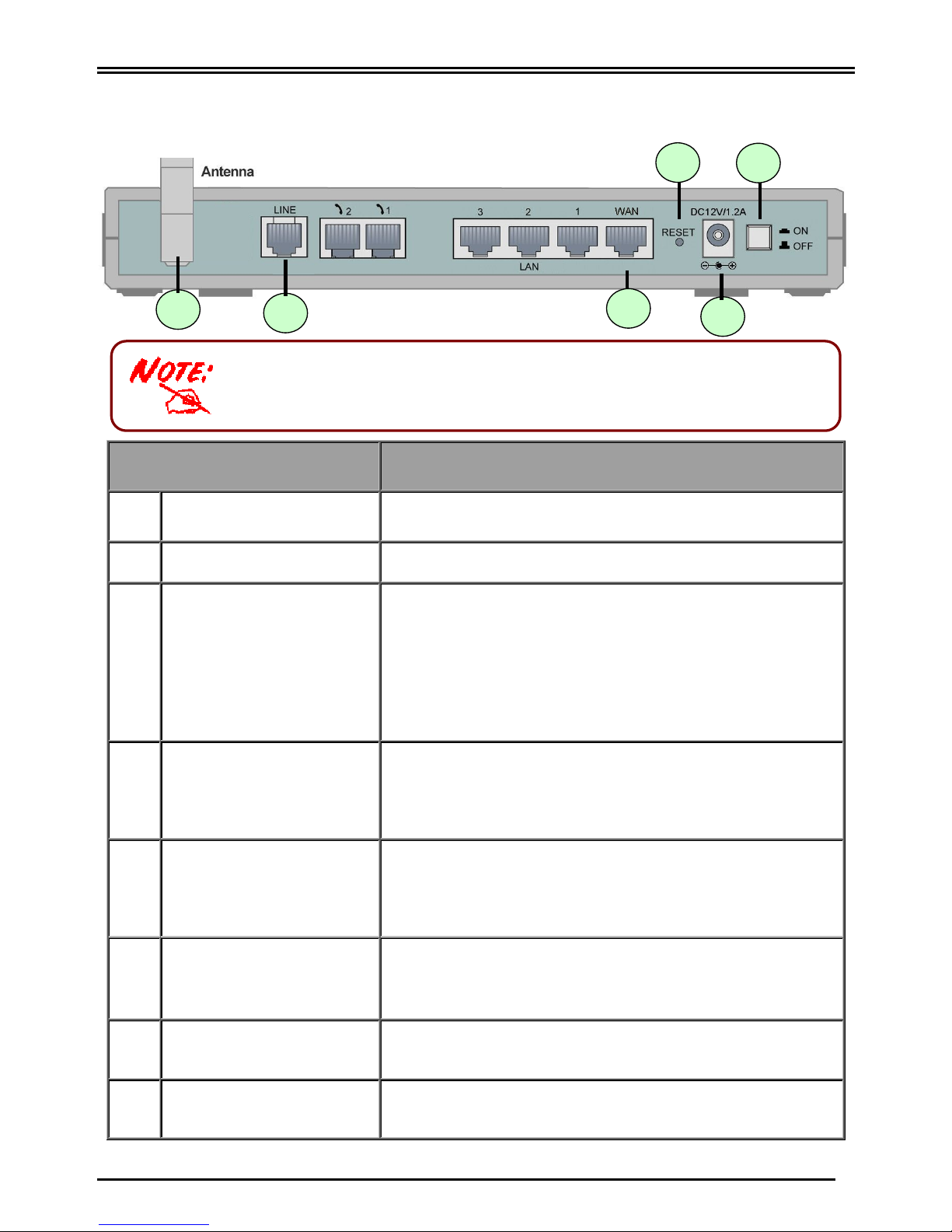

The Rear Ports
3 1
8 7 4
3
2
The LAN 3 can be connected to the computer and console cable. You need a special
console kit in this package to connect the LAN cable of Port 3 when connecting to a PC’s
RS-232 port (9-pin serial port).
Port Meaning
1 Power Switch Power ON/OFF switch
2 PWR Connect the supplied power adapter to this jack.
3 RESET
After the device is powered on, press it to reset the
device or restore to factory default settings.
1-3 seconds: reset the device
6 seconds above, and power off, power on the device:
restore to factory default settings (this is used when you
can not login to the router, e.g. forgot the password)
4 WAN WAN 10/100M Ethernet port (with auto crossover
support); connect xDSL/Cable modem here.
5 LAN
1X — 3X
(RJ-45 connector)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of
the three LAN ports when connecting to a PC or an
office/home network of 10Mbps or 100Mbps.
6
Phone
1X ─2X
(RJ-11 connector)
Connect RJ-11 cable to this port when connecting to an
analog phone set.
7 LINE Connect RJ-11 cable to this port when connecting to the
telephone wall jack.
Antenna Connect the detachable antenna to this port.
8 (Wireless Router only)
Quick Start Guide

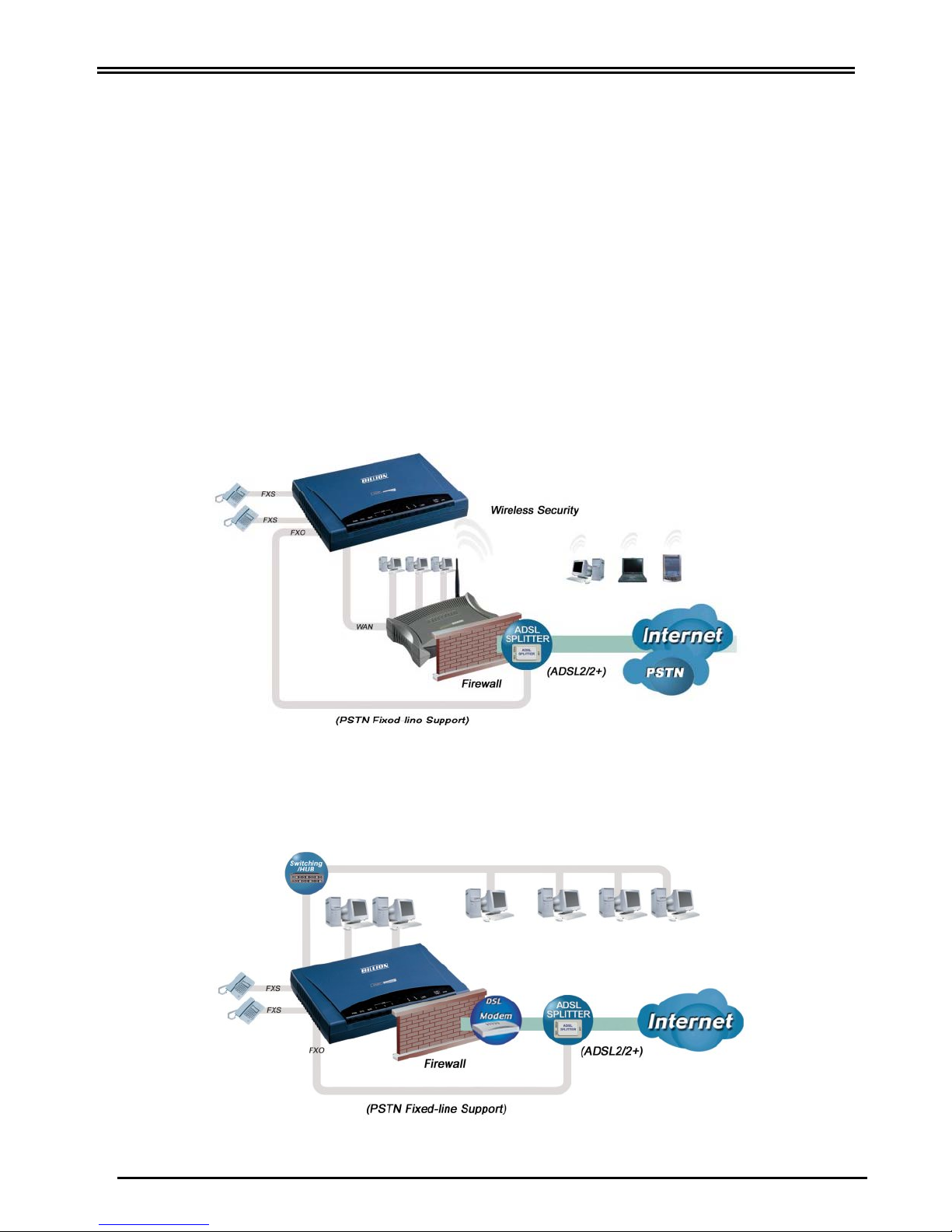

Connecting Your Broadband Router
1. (a) ATA Mode: Connect the ATA to a WAN (Connect to ADSL modem/router).
(b) Broadband Router Mode: Connect the Router to a LAN (Local Area Network) and WAN
(Connect to Cable or ADSL modem).
2. Power on the device.
3. Make sure the PWR and SYS LEDs are lit steadily and that the WAN and relevant LAN LED are lit.
4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.
5. Connect RJ-11 cable to LINE Port when connecting to the telephone wall jack
ATA Mode
Broadband Router Mode
4
VoIP/(802.11g) Broadband Firewall Router

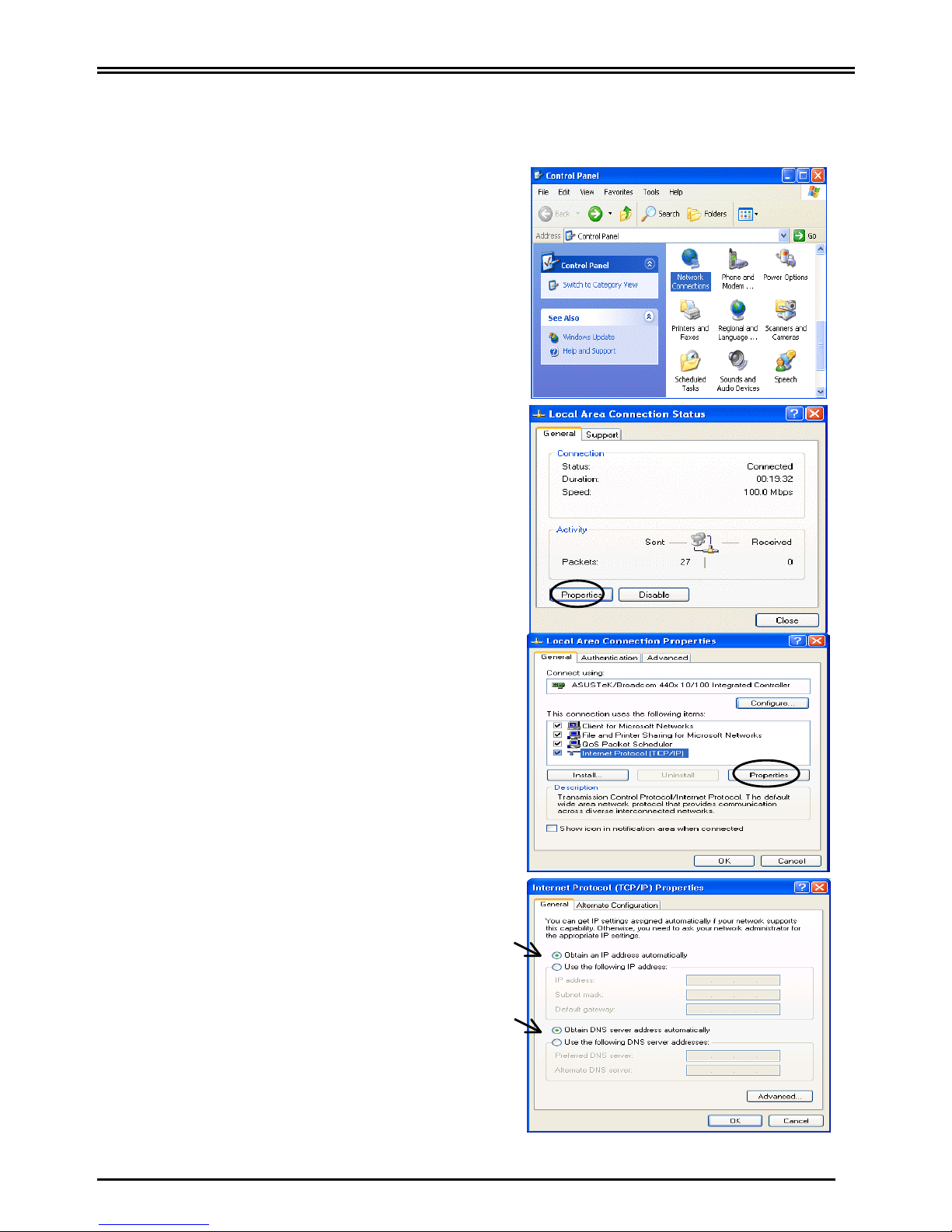

Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic
View). In the Control Panel, double-click on
Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
5
Quick Start Guide
Configuring PC in Windows 2000
1. Go to Start / Settings / Control Panel. In the
Control Panel, double-click on Network and
Dial-up Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
6
VoIP/(802.11g) Broadband Firewall Router
Configuring PC in Windows 98/Me
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Configuration tab.
2. Select TCP/IP ->
NE2000 Compatible, or the name of your
Network Interface Card (NIC) in your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS Configuration tab.
5. Select the Disable DNS radio button and
click OK to finish the configuration.
7
Quick Start Guide

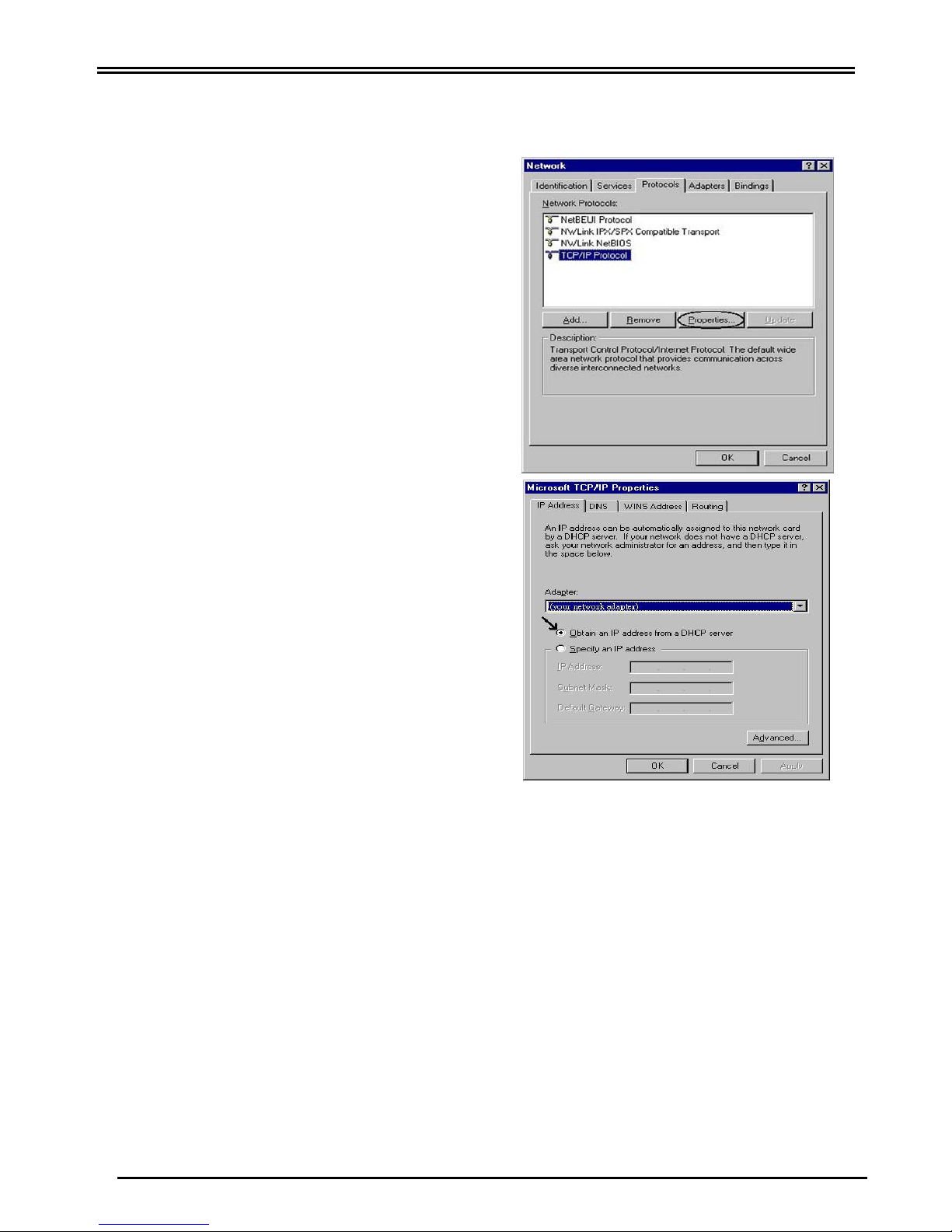

Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel. In the
Control Panel, double-click on Network and
choose the Protocols tab.
2. Select TCP/IP Protocol and click Properties.
3. Select the Obtain an IP address from a
DHCP server radio button and click OK.
8
