CPM110P
UM-CPM110P-20130408 ver A
User Manual
10"Two-way Full Range
Active Coaxial Speaker
CPM SERIES COAXIAL SPEAKERS
1
文件（图）名 版本 第㌯댠㌯눱ヒ³
英文说明书
产品名称
客户⿆럅옯型号
文件（图）号
专业音箱
䴱䴱刯β㌯䴱䴱䴱P
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Read the instruction first before using this product.
Pay attention to all warnings.
Obey all operating instructions.
Do not expose this product to rain or moisture.
Do not block any ventilation openings. Install according to instructions .
Do not install this product near any heat source, such as , heater, burner, or any other equipment with heat radiation .
Only use spare parts by manufacturer.
Pay attention to the safety symbol on the of the cover.
manual
Please keep this manual for future reference
Clean this equipment with a dry cloth.
manufacturer's
a
supplied the
outside
SAFETY INSTRUCTIONS
PLEASE READTHIS MANUAL FIRST
Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual
for future reference. g
WARNING:
Thisproduct mustbeinstalledbyprofessionals.Whenusing hangingbracketsorrigging other than those supplied with
theproduct,pleaseensuretheycomplywiththelocalsafetycodes.
Theexclamationpoint withinan equilateral triangleis intendedtoalertyou tothe presenceofimportant
operatingand servicinginstructions.
ATTENTION:Don'trefitthesystemorsparepartswithoutbeingauthorizedasthiswill .voidthewarranty
WARNING: Don't (suchas candles) theequipment.placenakedflames closeto
2
文件（图）名 版本 第㏒댠䴱눱ヒ³
英文说明书
产品名称
客户⿆럅옯型号
文件（图）号
专业音箱
䴱䴱刯β㌯䴱䴱䴱P
CPM110P
4
5
3
3
3
3
4
5
5
6
6
6
7
CONTENT
Features
Description
Applications
AMPLIFIER MODULE
INSTALLATION
Mounting Accessories
Installation Reference
INTRODUCTION
Technical Sheet
2D Dimension
TECHNICAL SPECIFICATION
Amplifier Module
CONTENT
CPM Series Coaxial Speakers
Product information is subject to change without
prior notification. Please visit www.elderaudio.com
for latest updates.
Frequency Response Curve & Distortion Curve
β3 CPM108p is a 10"Two-way Full Range Coaxial Speaker.
Strict quality control during the R&D, manufacturing,
materials inspection, procedure inspection and shipment
inspection make sure every unit meets the high standard
demand.
The cabinet is made of high intensity PLY board. Special
multilayer black painting with scratch-resistand and erode-
resistand feature protect the cabinet surface perfect.
Selected POLYESTER damping materials absorb cabinet
stand wave effectively. Built-in crossover circuit and
different voltage output give the user more options.
Aiming at this special cabinet, the transducers used are
optimized by our experienced engineers who focus on the
magnetic system and vibration system.To get the excellent
performance, the engineers take a lot of advanced
technology to decrease the magnetic impendence and
lower the magnetic leakage, and not increase the
transducer weight.
Description
3
CPM110P
CPM110P
CPM Series Coaxial Speakers
10"Two-way Full Range Active Coaxial Speaker
INTRODUCTION
Two transducers two way full range speaker with coaxial
horn, computerized stimulation design.
Features
Applications
Multifunctional hall
Small Auditorium
Church
Conference room
Small performance
HF horn is mounted on the LF axis.
Used for full range sound reinforcement and can be used
as ground monitor speaker.
Apply to monitor, conference system and small scale
performance.
Flexible installation according to actual application.
Performance enhanced with built-in DSP.
New generation Class D amplifier, durable and reliable.
4
LINE OUT A
MIC/LINE IN A
LINE OUT B
PWR SIG CLIP
MUSIC FLAT
LOWCUT
LINE MIC
MODE SYSTEM
MIX OUT
LINE IN B
VOLUME
0 dB
ON
OFF
POWER
AC INPUT
AC220-240V,100W,50Hz ,T2.5AL
CPM110P
1 2 3 4 5 6 7 8 9
15
11 1310 12 14 17
16
CPM110P
1、Line input signal indicator
2、Microphone input signal indicator
3、Music mode
4、Flat mode
5、Low cut mode
6、Power indicator
7、Signal indicator
8、Clip indicator
9、Power ON/OFF switch
10、Line input B
11、Line/microphone input A
12、Line output B
13、Line/microphone output A
14、MIX output
15、Volume control
16、Protection fuse. Use only fuse of the
correct amp rating.
17、Power supply input. Make sure that
the voltage is set for your country's
correct voltage.
AMPLIFIER MODULE
Rear Panel Amplifier Module
CPM Series Coaxial Speakers
5
CPM110P
CPM Series Coaxial Speakers
Warning:Make sure the mounting accessories
safety factor not less than 5:1 or meet the local
standard during installation .
INSTALLATION
Mounting Accessories(Optional)
M10 mounting points are very convenient and efficient for
the different application with special brackets.
Installation Reference
1.Reference A
2.Reference B
1. U-Bracket
6
200001000010001005020
180
108
90
100
110
120
130
Sensitivity (dB)
80
Frequency (Hz)
36
-36
-108
-180
CPM110P TECHNICAL SPECIFICATION
Specification
Frequency response(-3dB):
Max.SPL:
Transducer:
Input:
Connector:
Input impedance(line):
Input level:
Input overloading level:
Wire connection:
Heat radiation:
Power cable:
80Hz-20kHz
123dB/129dB(PEAK)
1 10"Woofer×
Channel one (Mic/Line) balanced input
XLR for input, XLR for output
20Kohm balanced input, 10Kohm unbalanced input
0 dBV (0.775V rms, 1.0V peak)Line-100Hz
Maximum input level 8V peak
pin 1: ground; pin2: signal +; pin3: signal -
Forced air-cooled drives
IEC 3 pin power connector
1 44mm×Compression Driver
Safety voltage range:
Cabinet:
Handle:
Painting:
Cabinet dimension(W x D x H):
Packing dimension(W x D x H)::
Net weight:
Gross weight:
AC 220V-240V~50/60Hz
Mounting accessories：
Rated impedance: 8 Ohms
CPM Series Coaxial Speakers

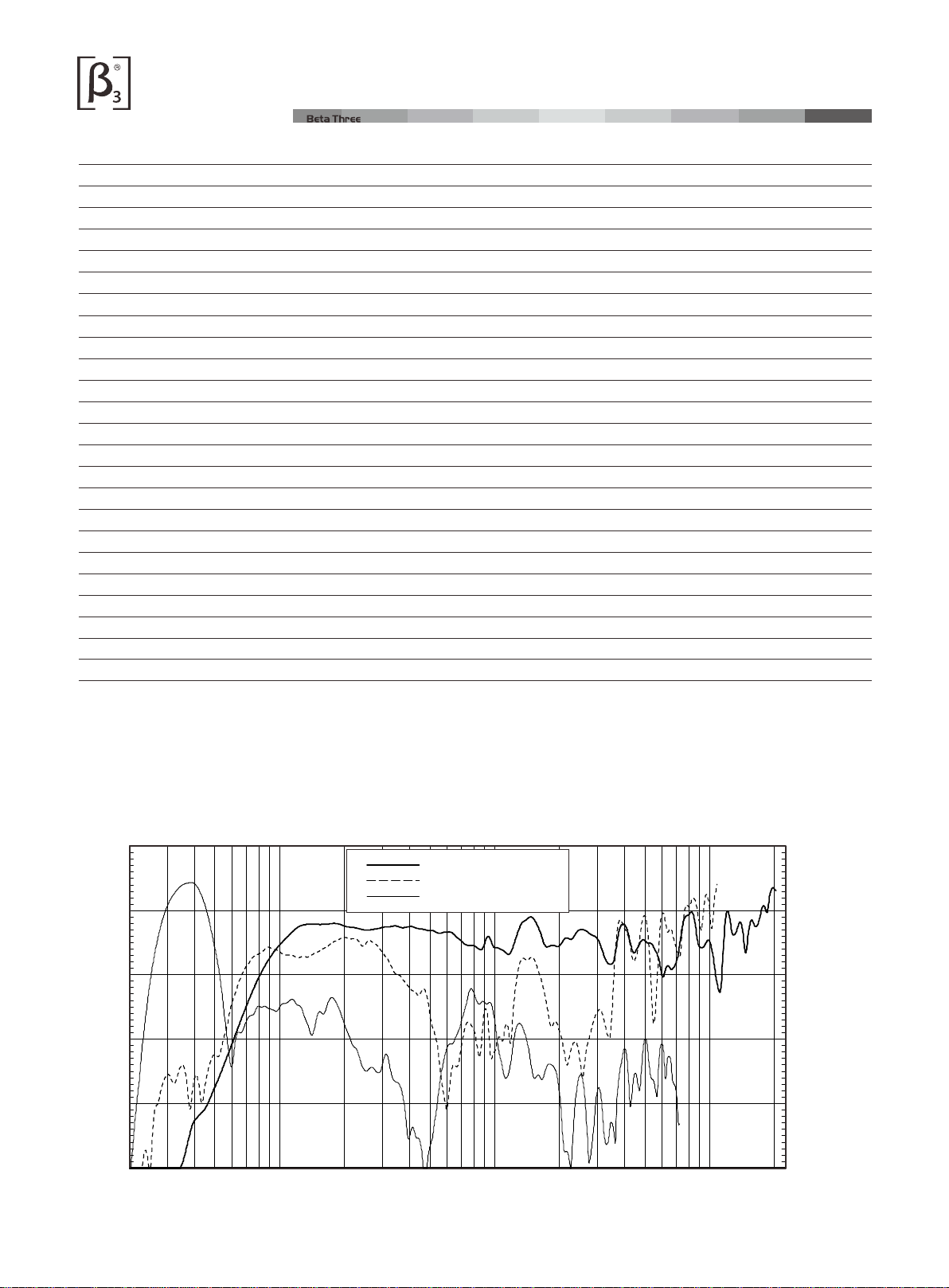

Frequency Response
2nd Distortion
3rd Distortion
Frequency response curve & Distortion curve
Power supply consumption power(static) :
Amplifier power output: 20W
100W
2 x M10 Mounting points
Plywood,wedge shaped
1 x Wooden handles
Cabinet coated by Polyurethane paint; grille is powder coated
13.5kg (29.7 lb)
15.5kg (34.1 lb)
385 x 406 x 317mm(15.2 x 16.0 x 12.5in)
495 x 395 x 485mm(19.5 x 15.6 x 19.1in)
385mm
[15.2in]
317mm
[12.5in]
7
406mm
[16.0in]
CPM110P
CPM Series Coaxial Speakers
TECHNICAL SPECIFICATION
2D Dimension
Side viewFront view
Back view
Bottom view
Notes:
www.beta3pro.com
