Beta Three CPM SERIES Manuel utilisateur

CPM110P

UM-CPM110P-20170228 ver B

User Manual

10" Two-way Full Range

Active Coaxial Speaker

CPM SERIES COAXIAL SPEAKER

10.

Read the instruction first before using this product.

Pay attention to all warnings.

Obey all operating instructions.

Do not expose this product to rain or moisture.

Do not block any ventilation openings. Install according to instructions .

Do not install this product near any heat source, such as , heater, burner, or any other equipment with heat radiation .

Only use spare parts by manufacturer.

Pay attention to the safety symbol on the of the cover.

manual

Please keep this manual for future reference

Clean this equipment with a dry cloth.

manufacturer's

supplied the

outside

SAFETY INSTRUCTIONS

PLEASE READ THIS MANUAL FIRST

Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual

for future reference.

WARNING:

This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with

the product, please ensure they comply with the local safety codes.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important

operating and servicing instructions.

ATTENTION: Don't refit the system or spare parts without being authorized as this will .void the warranty

WARNING: Don't (such as candles) the equipment.place naked flames close to

版本第2页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

CPM110P

CONTENT

Features

Description

Application

AMPLIFIER MODULE

INSTALLATION

Mounting Accessories

Installation Reference

INTRODUCTION

Technical Sheet

2D Dimension

TECHNICAL SPECIFICATION

Amplifier Module

CONTENT

CPM Series Coaxial Speakers

Product information is subject to change without

prior notification. Please visit www.elderaudio.com

for latest updates.

Frequency Response Curve & Distortion Curve

版本第3页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

CPM110P

CPM Series Coaxial Speakers

10" Two-way Full Range Active Coaxial Speaker

INTRODUCTION

Features

Applications

Multifunctional hall

Small Auditorium

Church

Conference room

Small performance

Description

CPM110P is 10" Two-way Full Range Active Coaxial

S p e a k e r . S t r i c t q u a l i t y c o n t r o l d u r i n g t h e R & D ,

m a n u f a c t u r i n g , m a t e r i a l s i n s p e c t i o n , p r o c e d u r e

inspection and shipment inspection make sure ever y

unit meet the high standard demand. .

The cabinet is made of high intensity PLY. Special

multilayer black painting with scratch-resistant and

e rod e - re s i s t a n t fe a t u re p ro te c t t h e c a b i n e t s u r f a ce

per fect. Selected POLYESTER damping material to

absorb cabinet stand waves. Built-in crossover circuit and

different voltage output gives the user more options.

This special cabinet, the transducers used are optimized

by our experienced engineers, whom focus on the

magnetic system and vibration system to get the best

p e r fo rma n ce. .

Two transducers two way full range speaker with coaxial

horn, computerized stimulation design.

New generation Class D amplifier, durable and reliable.

Performance enhanced with built-in DSP.

HF horn is mounted on the LF axis.

Used for full range sound reinforcement and can be used as

floor monitor speaker.

Applications monitor, conference system and small scale

performance.

Flexible installation.

版本第4页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

LINE OUT A

MIC/LINE IN A

LINE OUT B

PWR SIG CLIP

MUSIC FLAT

LOW CUT

LINE MIC

MODE SYSTEM

MIX OUT

LINE IN B

VOLUME

0 dB

OFF

POWER

AC INPUT

AC220-240V,100W,50Hz ,T2.5AL

CPM110P

1 2 3 4 5 6 7 8 9

11 13 10 12 14 17

CPM110P

1、Line input signal indicator

2、Microphone input signal indicator

3、Music mode

4、Flat mode

5、Low cut mode

6、Power indicator

7、Signal indicator

8、Clip indicator

9、 Power ON/OFF switch

10、Line input B

11、Line/microphone input A

12、Line output B

13、Line/microphone output A

14、MIX output

15、Volume control

16、Protection fuse. Use only fuse of the

correct amp rating.

17、Power supply input. Make sure that

the voltage is set for your country's

correct voltage.

AMPLIFIER MODULE

Rear Panel Amplifier Module

CPM Series Coaxial Speakers

版本第5页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

CPM110P

CPM Series Coaxial Speakers

Warning: Make sure the mounting accessories

safety factor not less than 5:1 or meet the local

standard during installation .

INSTALLATION

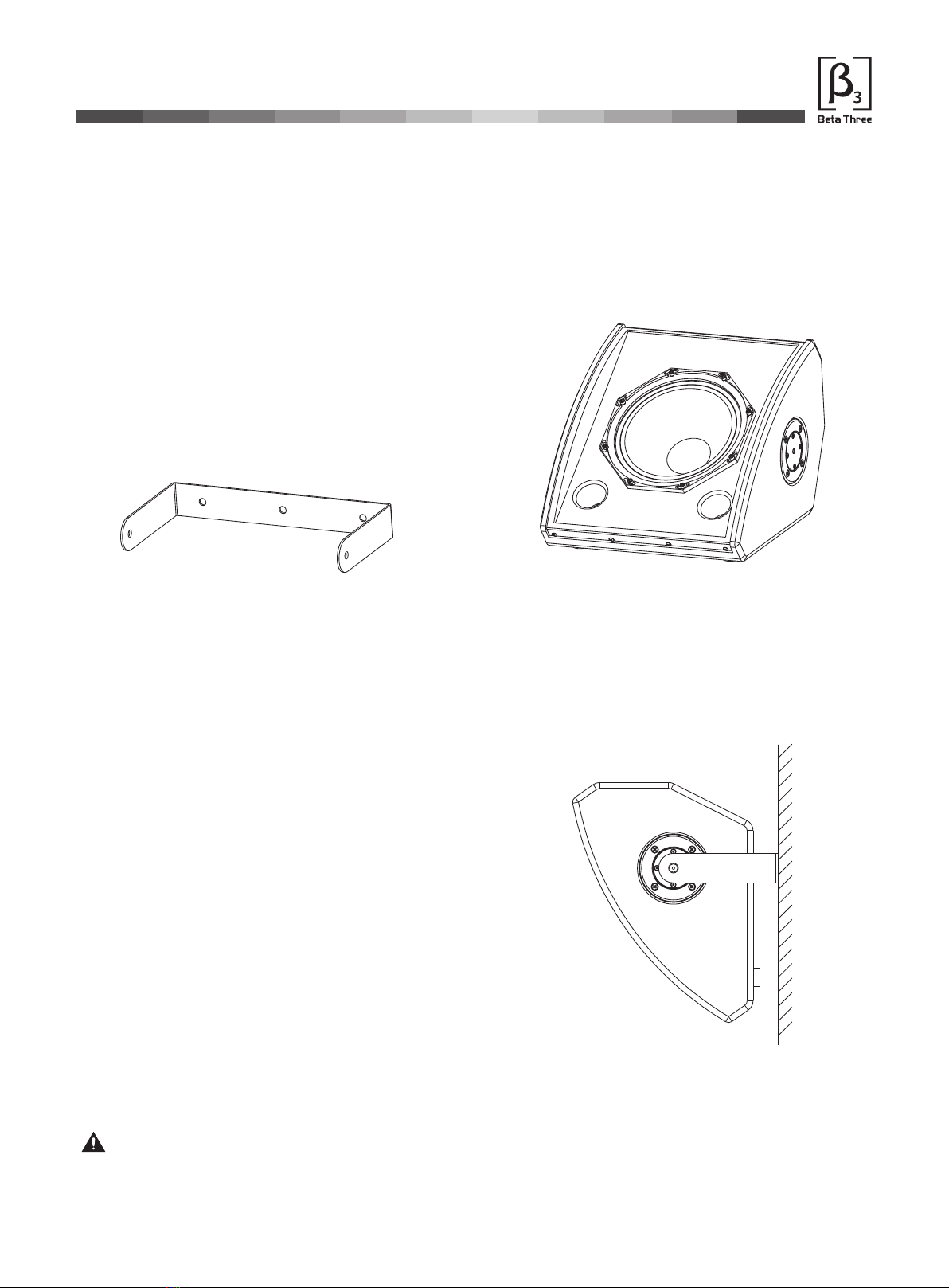

Mounting Accessories(Optional)

M10 mounting points are very convenient and efficient for

the different application with special brackets.

Installation Reference

1.Reference A

2.Reference B

1. U-Bracket

版本第6页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

200001000010001005020

180

108

100

110

120

130

Sensitivity (dB)

Frequency (Hz)

-36

-108

-180

CPM110P TECHNICAL SPECIFICATION

Specification

Frequency response(-3dB):

Max.SPL:

Transducer:

Input:

Connector:

Input impedance(line):

Input level:

Input overloading level:

Wire connection:

Heat radiation:

Power cable:

80Hz-20kHz

123dB/129dB(PEAK)

1 10" Woofer×

Channel one (Mic/Line) balanced input

XLR for input, XLR for output

20Kohm balanced input, 10Kohm unbalanced input

0 dBV (0.775V rms, 1.0 V peak)Line-100Hz

Maximum input level 8 V peak

pin 1: ground; pin2: signal +; pin3: signal -

Forced air-cooled drives

IEC 3 pin power connector

1 44mm× Compression Driver

Safety voltage range:

Cabinet:

Handle:

Painting:

Cabinet dimension(W D H): × ×

Packing dimension : (W×D×H)

Net weight:

Gross weight:

AC 220V-240V~50/60Hz

Mounting accessories：

Rated impedance: 8 Ohms

CPM Series Coaxial Speakers

Frequency Response

2nd Distortion

3rd Distortion

Frequency response curve & Distortion curve

Power supply consumption power(static) :

Power supply consumption power(rated) :

20W

100W

2×M10 Mounting points

Plywood,wedge shaped

1× Wooden handles

Cabinet coated by Polyurethane paint; grille is powder coated

13.5kg(29.7 lb)

15.5kg(34.1 lb)

385×406×317mm(15.2×16.0×12.5in)

495×395×485mm(19.5×15.6×19.1in)

版本第7页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

385mm

[15.2in]

317mm

[12.5in]

406mm

[16.0in]

CPM110P

CPM Series Coaxial Speakers

TECHNICAL SPECIFICATION

Dimensions

Side viewFront view

Back view

Bottom view

版本第8页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

Notes:

版本第9页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

版本第10页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

专业音箱

三基/β3/ C PM1 1 0P

101.05.0009.00195

www.beta3pro.com.
