Bernina ACTIVA 135 S Manuel utilisateur

See appendix for differences in the

activa 135 S Patchwork Edition

135_145_S_engl 14.3.2003 15:33 Uhr Seite U2

030529.52.04_0303_a135 a145_EN

In choosing BERNINA, you are assured of years of rewarding sewing. For over 100 years my family

has concentrated on providing complete satisfaction to our customers. And it is my personal wish to

continue this tradition of offering you Swiss precision engineering combined with state of the art

technology and an after sales service second to none.

The new BERNINA activa 135 S and 145 S are characterized by a youthful appeal which is combined

with a range of added value features to give you, dear Customer, more sewing pleasure than ever

before.

Enjoy modern, creative sewing with BERNINA: our wide range of accessories as well as

our sewing publications brimming with imaginative ideas and practical tips all add to the joy of

sewing BERNINA style.

Any questions you have will be dealt with courteously and efficiently by our highly

trained BERNINA dealers, who will also be glad to service your sewing computer for you.

Fritz Gegauf Ltd. •BERNINA Sewing Machines •CH-8266 Steckborn/Switzerland

”Welcome to

the BERNINA

family”

H.P. Ueltschi

Owner BERNINA

Sewing Machine Company

135_145_S_engl 14.3.2003 15:33 Uhr Seite 1

030529.52.04_0303_a135 a145_EN

WARNING

To reduce the risk of burns, fire, electric shock or injury

to persons:

1. Do not allow to be used as a toy.

Close attention is necessary when the sewing computer is

used by or near children and infirm persons.

2. Use this sewing computer only for its intended use as

described in this manual. Use only attachments recommended

by the manufacturer as contained in this manual.

3. Never operate this sewing computer if

•it has a damaged cord or plug

•it is not working properly

•it has been dropped or damaged

•it has fallen into water

Return the sewing computer to the nearest authorized

BERNINA dealer or service center for examination, repair,

electrical or mechanical adjustment.

4. Never operate the computer with any air openings blocked.

Keep ventilation openings of the sewing computer and foot

control free from accumulation of lint, dust and loose cloth.

5. Keep fingers away from all moving parts. Special care is

required around the sewing needle.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical machine, basic safety precautions should

always be followed, including the following.

Read all instructions before using this sewing computer.

When the sewing computer is not in use, it should be

disconnected from the electricity supply by removing the plug

from the outlet.

DANGER

To reduce the risk of electric shock:

1. A sewing computer should never be left unattended when

plugged in.

2. Always unplug the sewing computer from the electric outlet

immediately after using and before cleaning.

3. Always unplug before replacing light bulb. Replace the bulb

with the same type rated 12 volts/5 watts.

135_145_S_engl 10.04.2003 9:50 Uhr Seite 2

030529.52.04_0303_a135 a145_EN

3Safety instructions

16. No responsibility will be taken for any possible damage as the

result of misuse of the sewing computer.

17. This sewing computer is provided with double insulation.

Use only identical replacement parts. See instructions for

Servicing of double-insulated machines.

SERVICING DOUBLE-

INSULATED PRODUCTS

In a double-insulated product, two systems of insulation are provi-

ded instead of grounding. No grounding means is provided on a

double-insulated product nor should a means for grounding be

added to the product. Servicing a double-insulated product requi-

res extreme care and knowledge of the system and should only be

done by qualified service personnel. Replacement parts for a

double-insulated product must be identical to those parts in the

product. A double insulated product is marked with the words

«DOUBLE INSULATION» or «DOUBLE INSULATED».

The symbol may also be marked on the product.

This sewing computer is intended for household use only.

SAVE THESE INSTRUCTIONS!

6. Always use the BERNINA original needle plate. The wrong plate

can cause the needle to break.

7. Do not use bent needles.

8. Do not pull or push fabric while stitching. It may deflect the

needle causing it to break.

9. Turn power switch to «0» when making any adjustments

in the needle area, such as threading or changing the needle,

threading the bobbin or changing the presser foot.

10. Always unplug the sewing computer from the electrical outlet

when removing covers, lubricating or when making any other

user servicing adjustments mentioned in this instruction manual.

11. Never drop or insert any object into any opening.

12. Do not use outdoors.

13. Do not operate where aerosol (spray) products are being used or

where oxygen is being administered.

14. Before disconnecting, turn all controls to the off («0») position

then remove the plug from the outlet.

15. Do not unplug by pulling on the cord but grasp the plug.

135_145_S_engl 10.04.2003 9:50 Uhr Seite 3

030529.52.04_0303_a135 a145_EN

18 19 20 21

25 26

Details4

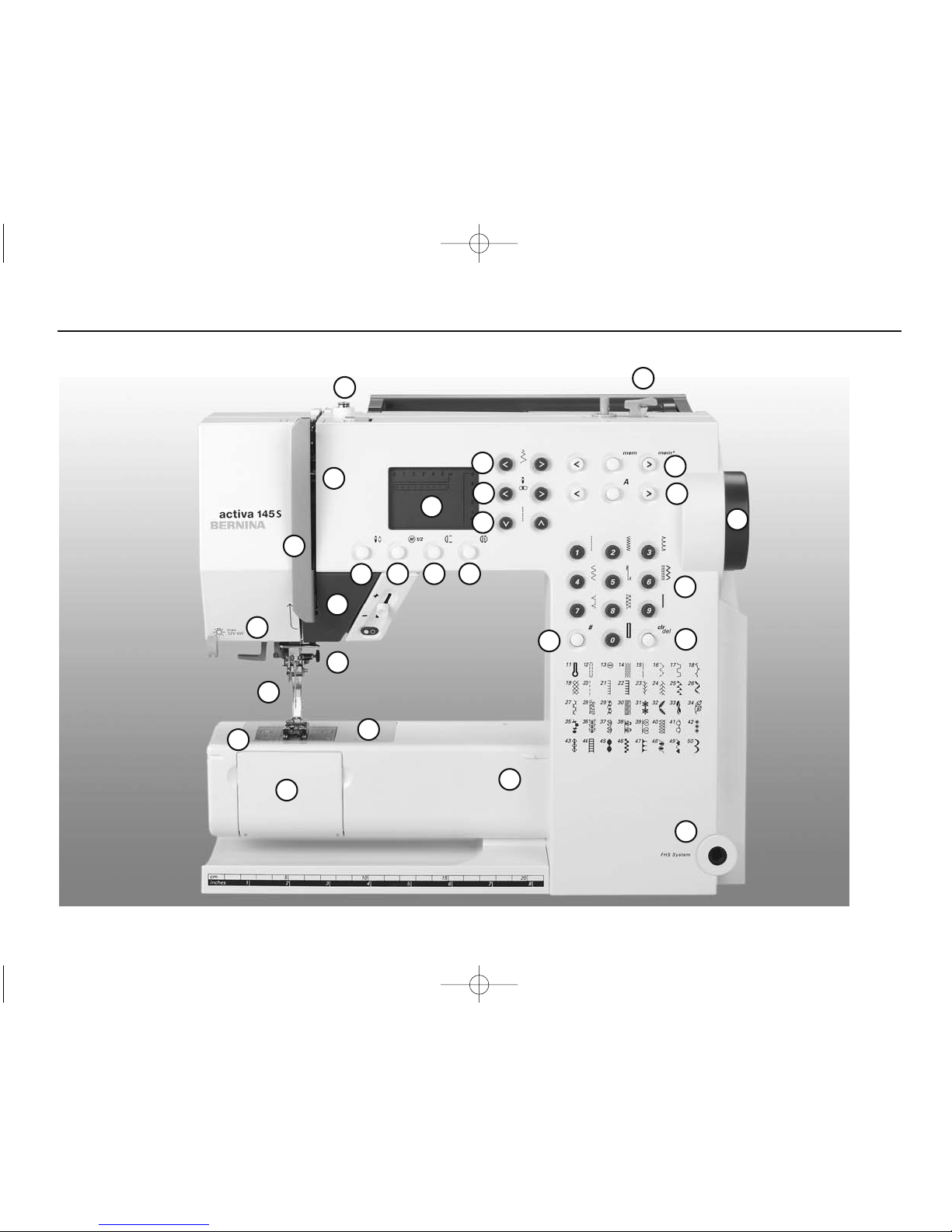

Details of the sewing computer

Front view

135_145_S_engl 14.3.2003 15:33 Uhr Seite 4

030529.52.04_0303_a135 a145_EN

10 14

Details

1 Bobbin cover

2 Stitch plate

3 Attachment base for

special accessories

4 Sewing table socket

5 Presser foot

6 Needle clamp with

fixation screw

7 Thread guide

8 Thread take up cover

9 Thread path

10 Thread tension

adjustment

11 Bobbin pre-tension

12 Reverse button/quick and

continuous

13 Screen

14 Bobbin winder with

on/off switch and thread

cutter

15 Stitch width button

16 Needle position button

17 Stitch length button

18 Needle stop up/down

19 1/2 speed

20 Pattern end

21 Mirror image

22 mem (memory) button

23 Alphabet buttons

24 Stitch selection buttons

25 #-button

26 clr/del-button

27 Handwheel

28 FHS connection

29 Balance adjustment knob

30 Power switch on/off

31 Power plug socket

32 Drop feed-dog

33 Foot control socket

34 Spool pin (vertical,

collapsible)

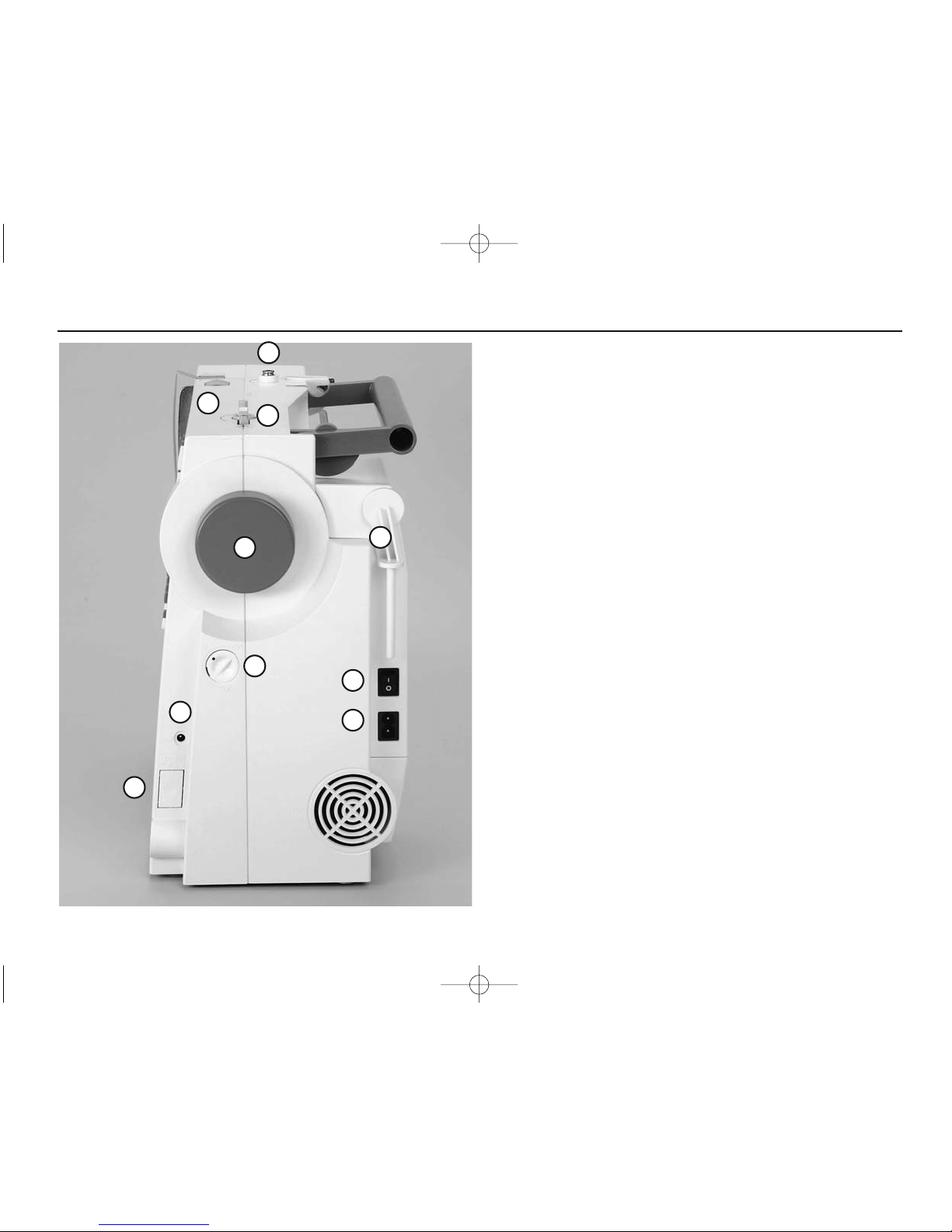

Right end

135_145_S_engl 14.3.2003 15:33 Uhr Seite 5

030529.52.04_0303_a135 a145_EN

Details6

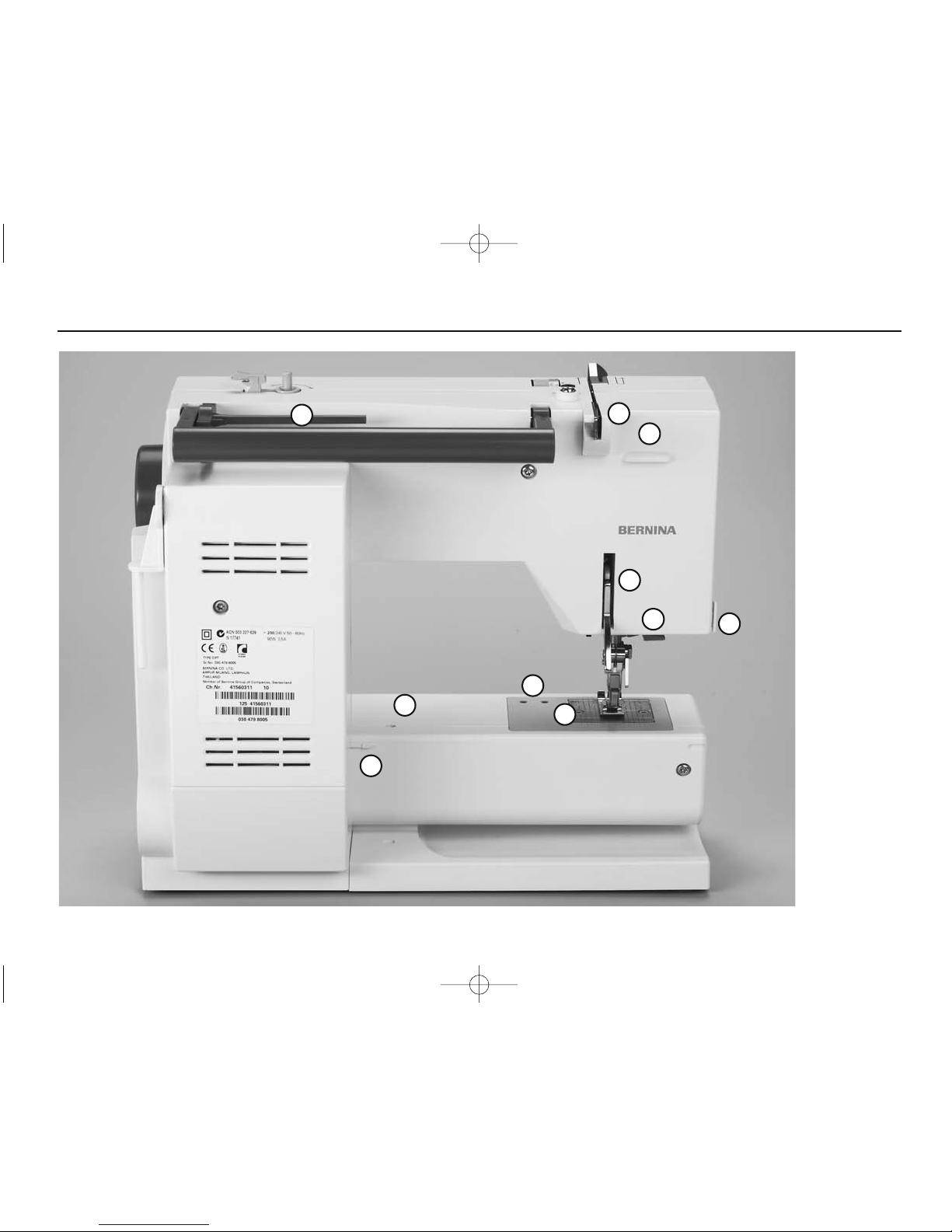

Back view

135_145_S_engl 14.3.2003 15:33 Uhr Seite 6

030529.52.04_0303_a135 a145_EN

Details

35 Carrying handle

36 Presser foot lifter

(manual)

37 Thread cutter

38 Thread take up

39 Darning ring connection

40 Accessory box connection

41 Thread tension disc

42 Rear thread guide

43 Horizontal spool pin

44 Accessory box catch

45 Needle Threader

46 Lens holder

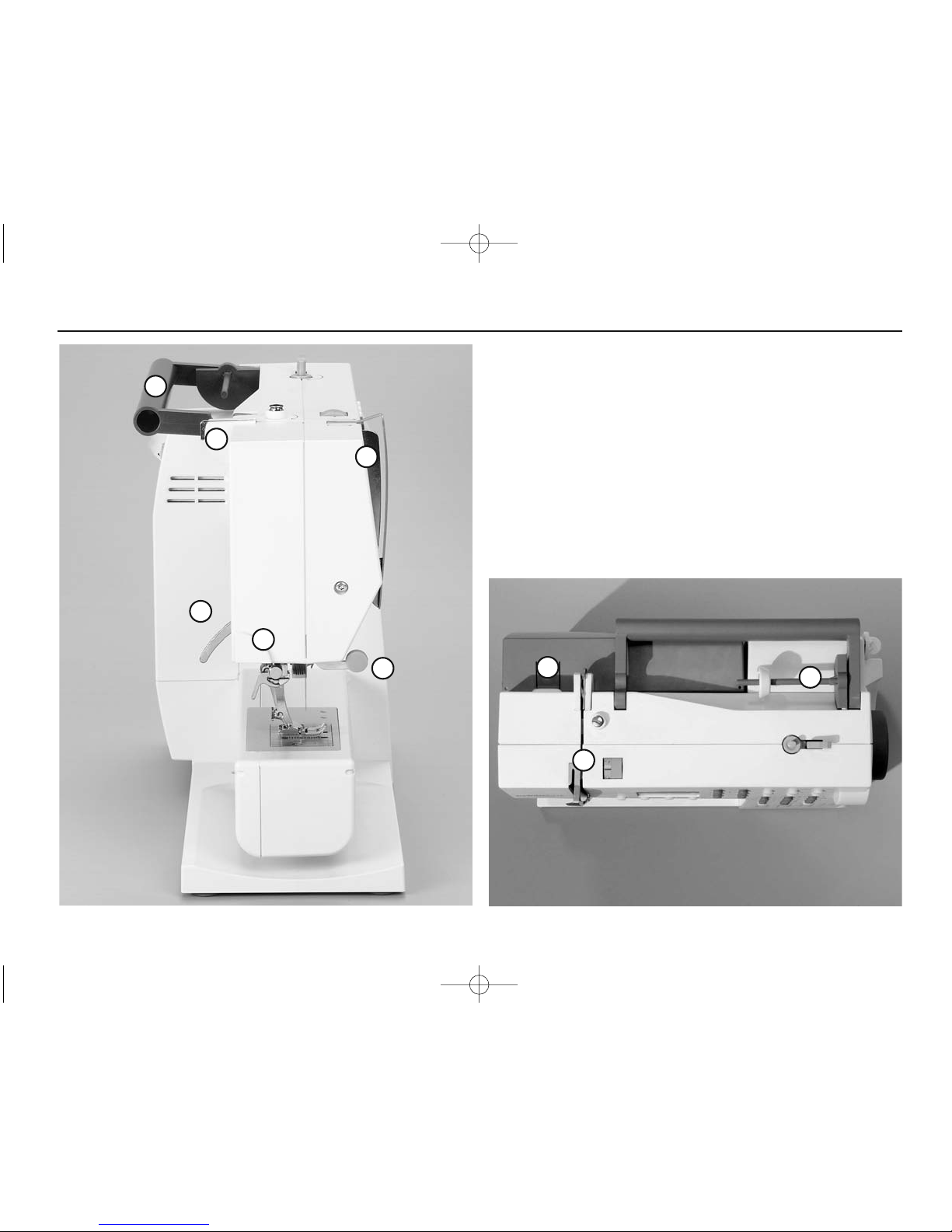

Left end Accessory box

Sewing computer with Accessory box

135_145_S_engl 14.3.2003 15:33 Uhr Seite 7

030529.52.04_0303_a135 a145_EN

8 Setting up the sewing computer

•foot control

•instruction manual

•power cable

•warranty card

•Accessory box

•presser foot lifter

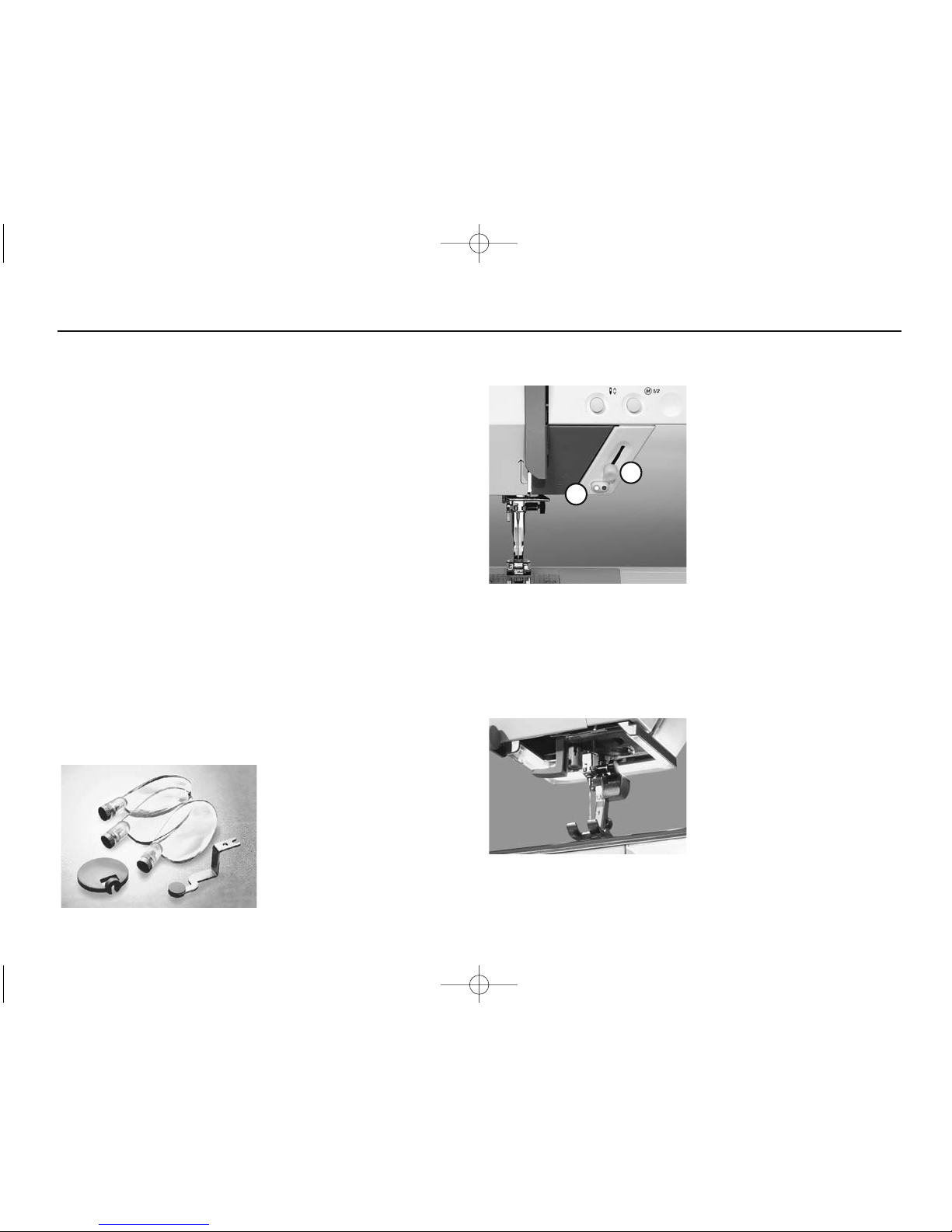

Accessories Start-stop-unit**

With the Start-stop-unit (SSU)

the start-stop-function can be

controlled by hand.

•press start-stop-button A=

stitching starts

•with the speed regulator B

the sewing speed can be

regulated by hand

•to interrupt or stop sewing =

press start-stop-button A

again

Note:

If the foot control is connec-

ted with the sewing machine,

the Start-stop-unit is out

functions.

Standard accessories*:

4 bobbins (+ 1 in the capsule

in the sewing computer)

Selection of 130/705H needles

Seam ripper

Screwdriver

Angle key Torx

Screwdriver Torx

Lint brush

Seam guide

Compensating plate

3 spool discs

Foam pad

Oiler

Fabric cover

•protects from dust and dirt

•compartment for accessories

Lens Set: **

We recommend the use of the

BERNINA Lens Set for more

comfort when sewing.

Caution!

To avoid injury always attach

the protective cover of the

magnifying glass holder

when the magnifying glass is

not in use.

* can vary from country to country;

see presser foot selection p. 33

** available as a special accessory

Please refer to the safety

instructions!

CFL **

Contrary to an ordinary bulb, the CFL

sewing light has a better illumination

and a longer life.

Caution:

Please note that a defective CFL

sewing light must ONLY be replaced

by an authorized technician. The

sewing computer must be brought

to an authorized BERNINA dealer!

135_145_S_engl 14.3.2003 15:33 Uhr Seite 8

030529.52.04_0303_a135 a145_EN

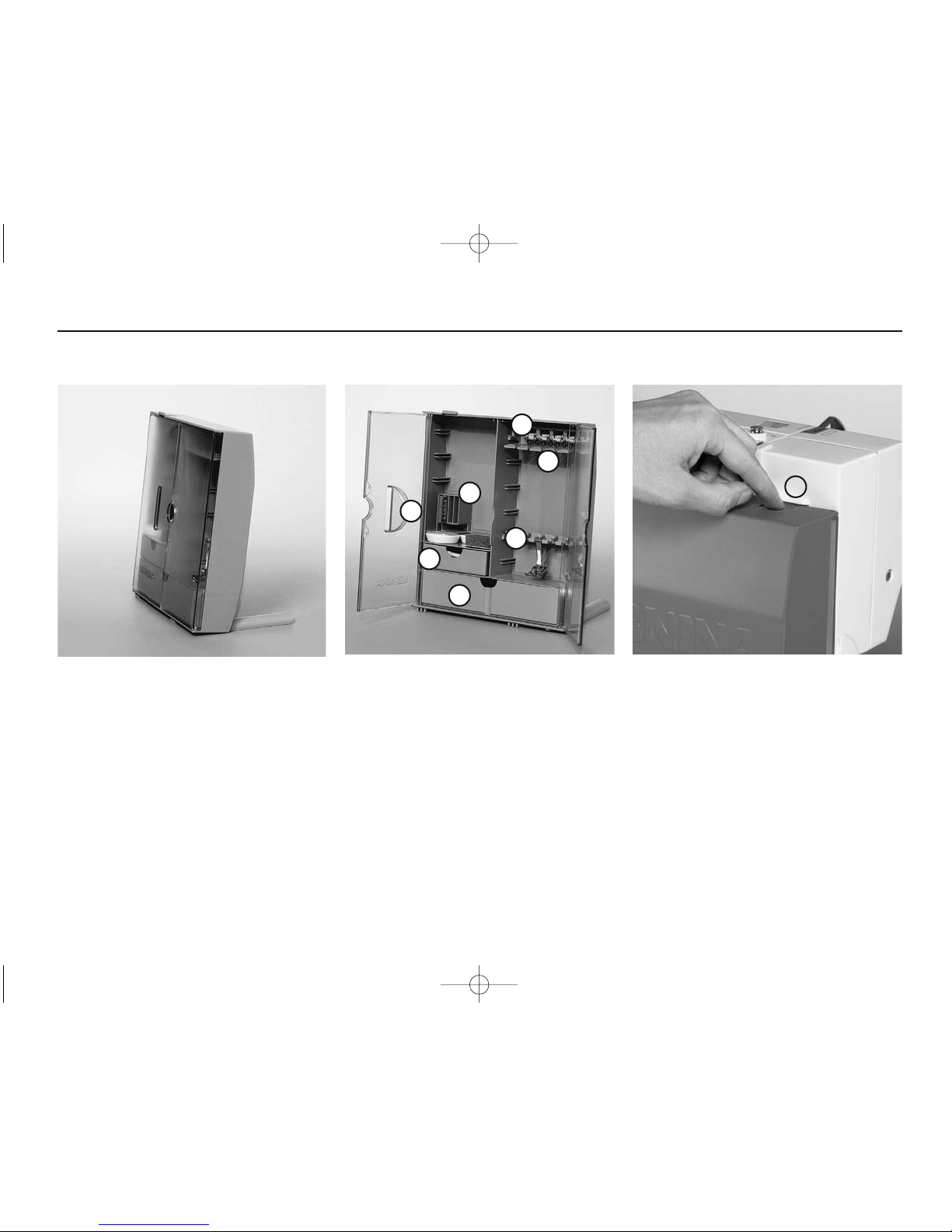

Setting up the sewing computer 9

•attach the box to the sewing computer

(catch Amust engage); inserting

the presser foot lifter into the opening H

Note: first lower the presser foot lifter!

Removing the accessory box

•press catch Aon the top of the box

•remove box to the rear

Free standing accessory box

•pull both feet out until they click into

place

•stand box in chosen position

Storing accessories

Standard accessories are supplied in a

plastic bag.

The box is equipped with one small and

one large drawer (Band C) as well as com-

partments for bobbin holders Dand presser

feet E. (Additional compartments and

drawers are available as optional extras.)

•push the bobbins into the compartments

provided

•to remove a bobbin, press the compart-

ment holder Flightly

•insert the presser feet into the slot E

•the needle selection box can be stored in

compartment G

Attaching the accessory box to the

sewing computer

•close the doors

•push feet back into position

Accessory box

Available as a special accessory

he CFL

nation

placed

ught

ler!

135_145_S_engl 14.3.2003 15:33 Uhr Seite 9

030529.52.04_0303_a135 a145_EN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bernina Machine à coudre

Bernina

Bernina 830LE Manuel utilisateur

Bernina

Bernina 740 Favorite Manuel utilisateur

Bernina

Bernina Bernette 12 Manuel utilisateur

Bernina

Bernina BERNETTE 55 Manuel utilisateur

Bernina

Bernina classic 1008 Manuel utilisateur

Bernina

Bernina Overlocker Plus Instructions de fonctionnement

Bernina

Bernina BERNINA 560 Manuel utilisateur

Bernina

Bernina Q Series Manuel utilisateur

Bernina

Bernina Serger 700D Manuel utilisateur

Bernina

Bernina 1200DA Manuel utilisateur

Bernina

Bernina 720 Manuel utilisateur

Bernina

Bernina 790 PLUS Manuel utilisateur

Bernina

Bernina 1230 Manuel utilisateur

Bernina

Bernina Serger 700D Manuel utilisateur

Bernina

Bernina 950 Industrial Manuel utilisateur

Bernina

Bernina 590 Manuel utilisateur

Bernina

Bernina 1100 Series Manuel utilisateur

Bernina

Bernina 790 PLUS Manuel utilisateur

Bernina

Bernina Record 930 Electronic Manuel utilisateur

Bernina

Bernina Funlock 009DCC Manuel utilisateur

Bernina

Bernina COLLEGE 455 Manuel utilisateur

Bernina

Bernina 7 Series Manuel utilisateur

Bernina

Bernina Artista 200 s Manuel utilisateur

Bernina

Bernina 720 Manuel utilisateur

Manuels Machine à coudre populaires d'autres marques

Riccar

Riccar RL634DE Manuel utilisateur

Singer

Singer 2517 Manuel utilisateur

Pfaff

Pfaff 3307-1 SERIES Manuel utilisateur

Janome

Janome Quilt Maker Pro 18 VERSA Manuel utilisateur

Siruba

Siruba C007JP Manuel utilisateur

Husqvarna Viking

Husqvarna Viking Designer SE Manuel utilisateur

Singer

Singer 148-5 Manuel utilisateur

IKEA

IKEA SY Manuel utilisateur

Pfaff

Pfaff 571 Manuel utilisateur

Singer

Singer 15-91 Manuel utilisateur

Brother

Brother BB370 Manuel utilisateur

Pegasus

Pegasus WT100 Series Manuel utilisateur

Reliable

Reliable 7100DB Manuel utilisateur

Pfaff

Pfaff 937 Manuel utilisateur

Singer

Singer 6038 Manuel utilisateur

Singer

Singer 413K Manuel utilisateur

Pfaff

Pfaff 1471 E1 Manuel utilisateur

Kenmore

Kenmore 16677 - Serger Sewing Machine Manuel utilisateur
