Service Manual

SERVICE PARTS & DIAGRAMS

This guide is a troubleshooting reference used for maintaining and

servicing your Bend Pak product. It provides comprehensive information

on identifying serviceable parts and components and assists in

troubleshooting problems and performing assembly /disassembly

procedures.

BENDPAK

HDS-18EA

PRODUCT SKU

5175969

DRAWING Nº

5260605

CATEGORY

Four Post Li

REV

Version J

DATE

08.29.2022

DIMENSIONS ARE IN MM

☺

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5245089

HDS-18EA LIFT SUPERSTRUCTURE

2 5250286

HDS-18EA PARTS BOX

3 5700236

ALUMINUM DELUXE ALIGNMENT TURNPLATE

ASSEMBLY, SET OF TWO

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

01/11/2022

01378

UPDATED BOM REVISION

05/25/2022

01414

WAS 107.3 NOW 108.7, UPDATED BOM REVISION

08/08/2022

01436

SHEET 1 OF 3

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5260605

HDS-18EA PRODUCTION

LIFT VER D (CE CERT)

12/16/2019

DO NOT SCALE DRAWING

1:50

SCALE:

THIRD ANGLE PROJECTION

08/16/2022

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

SEE COLORS & GRAPHICS FOR LABEL PLACEMENT

3.980in MAX

101.1mm MAX

91.260in

2318.0mm

71.693in

1821.0mm

30.558in

776.2mm

4.026in

102.3mm

10.315in

262.0mm

61.378in

1559.0mm

153.504in

3899.0mm

133.504in

3391.0mm

257.008in

6528.0mm

257.377in

6537.4mm

[40.04 MIN - 45.315in MAX]

1017 MIN - 1151mm MAX

20.976in

532.8mm

22.047in

560.0mm

312.674in

7941.9mm

58.134in

1476.6mm

DRIVE THRU

FRONT VIEW

5.000in

127.0mm

DETAIL A

SCALE 1 : 10

4.279in

108.7mm

DETAIL B

SCALE 1 : 10

SHEET 2 OF 3

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5260605

HDS-18EA PRODUCTION

LIFT VER D (CE CERT)

1:45

SCALE:

71.693in

1821.0mm

RAISED

69.748in

1771.6mm

TOP LOCK

11.693in

297.0mm

LOWERED

22.504in

571.6mm

LOWEST LOCK

SHEET 3 OF 3

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5260605

HDS-18EA PRODUCTION

LIFT VER D (CE CERT)

1:40

SCALE:

DIMENSIONS ARE WITH THE LOCK LADDER ADJUSTED ALL THE WAY UP

DIMENSIONS ARE IN MM

☺

DETAIL A

SCALE 1 : 6

DETAIL B

SCALE 1 : 20

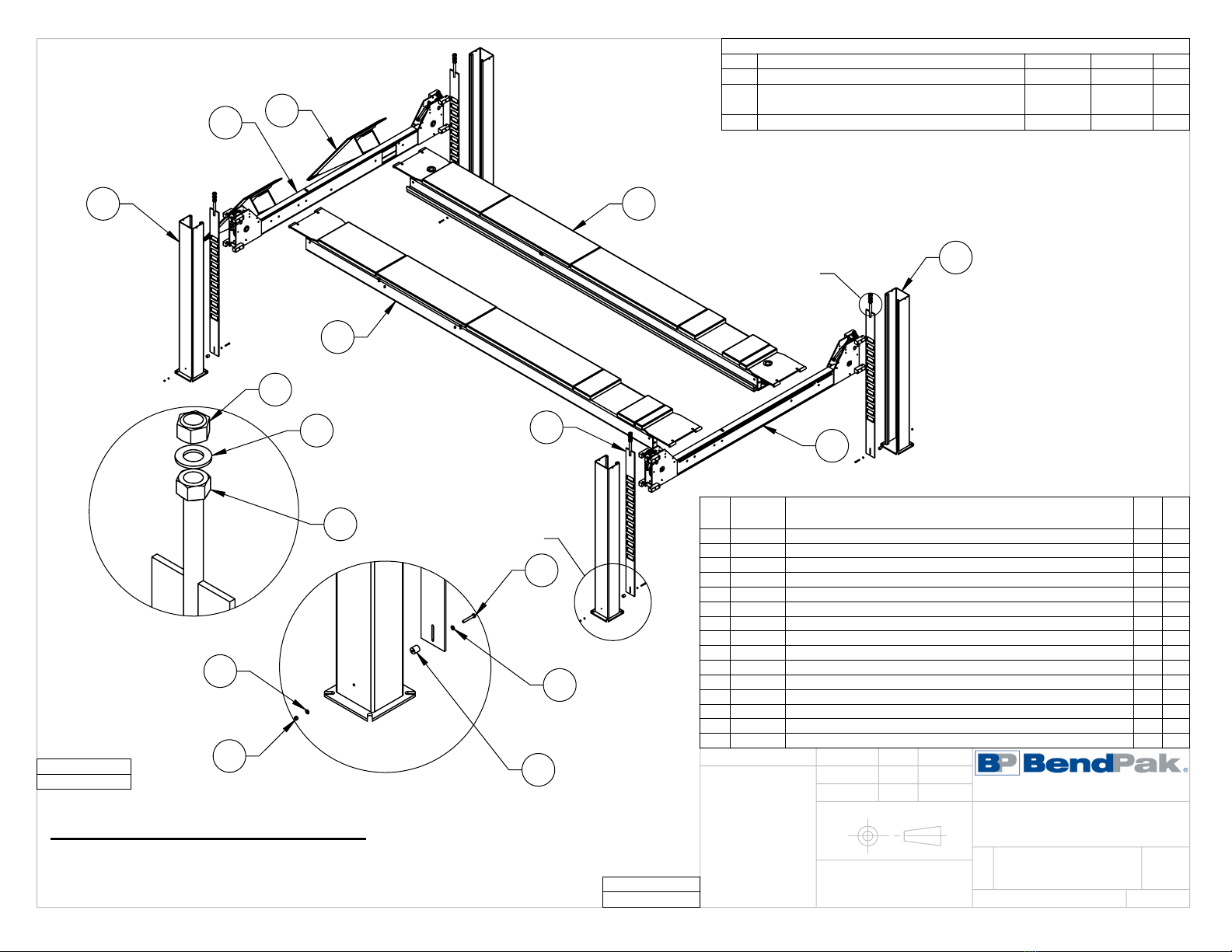

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5601143

HDS-18/27/40 POWER POST WELDMENT

2 5601141

HDS-18/27/40 POST WELDMENT

3 5216168

HDS-18/27 CROSSTUBE ASSEMBLY, LARGE WINDOW

4 5216167

HDS-18/27 CROSSTUBE ASSEMBLY, SMALL WINDOW

5 5215657

HDS-18EA POWER SIDE RAMP ASSEMBLY

6 5215889

HDS-18EA OFF SIDE RAMP ASSEMBLY

7 5600875

HDS-18/27 SAFETY LADDER WELDMENT

8 5215161

HDS-18/27 EXTENDED DRIVE UP RAMP ASSEMBLY

9 5535211

NUT M27 x 3.0 NL

10 5535210

NUT M27 x 3.0

11 5545103

WASHER M27 x 50mm

12 5545341

WASHER M10 x Ø20 FLAT

13 5535013

NUT M10 x 1.5 NL

14 5530046

HHB M10 x 1.5 x 65mm

15 5746088

HDS-18/27 SPACER, SAFETY LADDER, 31mm LG

NEXT ASSEMBLY

5260605

WHERE USED

HDS-18EA

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

01/11/2022

01378

REPLACED 5215891 WITH 5216168, 5215890

WITH 5216167

05/23/2022

01414

UPDATED BOM REVISION

08/08/2022

01436

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

5245089

HDS-18EA LIFT

SUPERSTRUCTURE

12/16/2019

DO NOT SCALE DRAWING

1:55

SCALE:

THIRD ANGLE PROJECTION

08/16/2022

REFER TO MODEL FOR ADDITIONAL INFORMATION

FASTEN NUTS AND WASHERS TO SAFETY LADDERS IN

ORDER SHOWN FOR SHIPMENT

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

NOTE: UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

11/05/2020

01227

REPLACED (1) 5620197 WITH 5620242,

UPDATED BOM REVISION

08/26/2021

01322

UPDATED BOM REVISION

01/11/2022

01378

NEXT ASSEMBLY

5245089

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5600857

HDS-18EA POWER SIDE RAMP WELDMENT

2 5620242

HDS-18E/27 SHEAVE PIN WELDMENT

3 5505335

HAIR PIN 3/32” x 1 5/8”

4 5746089

HDS-18/27/40 SERIES SHEAVE SHAFT PIN

5 5215160

HDS-18E/27 SERIES RAMP SHEAVE ROLLER ASSEMBLY

6 5716016

HDS-18E/27 SERIES SHEAVE SPACER

7 5502161

PULL CYLINDER ASSEMBLY Ø5.0 x 60

8 5215159

HDS-18/27 SERIES CYLINDER FLANGE ARM ASSEMBLY

9 5731025

HDS-18/27 SERIES CABLE RETAINER PLATE

10 5620222

HDS-18EA SLIP PLATE WELDMENT

11 5700239

HDS-18AE FILLER PLATE

WHERE USED

HDS-18EA

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215657

HDS-18EA POWER SIDE

RAMP ASSEMBLY

05/27/2009

DO NOT SCALE DRAWING

1:35

SCALE:

THIRD ANGLE PROJECTION

01/11/2022

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

VERIFY CYLINDER PORTS ARE CAPPED OFF WITH 3/8" NPT STEEL PLUG

25.472in

647.0mm

265.236in

6737.0mm

PORTS MUST BE

ON THIS SIDE

11.732in

298.0mm

SHEET 2 OF 2

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5215657

HDS-18EA POWER SIDE

RAMP ASSEMBLY

1:20

SCALE:

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

NEXT ASSEMBLY

5245089

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601442

HDS-18EA OFF SIDE RAMP WELDMENT

2 5620222

HDS-18EA SLIP PLATE WELDMENT

3 5700239

HDS-18AE FILLER PLATE

WHERE USED

HDS-18EA

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5215658

12/16/2019

01120

UPDATED BOM REVISION

01/11/2022

01378

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215889

HDS-18EA OFF SIDE

RAMP ASSEMBLY

12/16/2019

DO NOT SCALE DRAWING

1:30

SCALE:

THIRD ANGLE PROJECTION

01/11/2022

REFER TO MODEL FOR ADDITIONAL INFORMATION

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

DETAIL A

SCALE 1 : 10

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5601832

HDS-18/27 CROSSTUBE WELDMENT, SMALL WINDOW

2 5215166

HDS-18/27 CROSSTUBE SHEAVE ASSEMBLY

3 5215169

HDS-18/27 SAFETY ROLLER ASSEMBLY

4 5505124

HDS-18/27/40 CROSSTUBE SHEAVE SHAFT WELDMENT

5 5505125

HDS-18/27/40 SAFETY PIN

6 5716152

HDS-18/27 POLYETHYLENE SLIDE BLOCK

7 5210359

HDS-18/27/40 SAFETY WELDMENT #1

8 5210358

HDS-18/27/40 SAFETY WELDMENT #2

9 5502335

AIR CYLINDER, Ø.75 x 4.0" STROKE

10 5505030

PUSH-ON CLIP Ø10mm SS

11 5505031

ROTOR CLIP Ø12mm SS

12 5505033

PUSH-ON CLIP Ø16mm SS

13 5540002

E RING Ø1.375" OD TRUARC X5133-137

14 5540060

SPRING Ø29 x 178mm, SLACK SAFETY

15 5540112

SNAP RING; TRUARC 5103-175

16 5550087

FTG ELB -04 COMP x -02 NPT

17 5535101

3/8-16 HEX NUT JAM

18 5550376

HDS-18/27/40 ADAPTER, 1" AIR CYLINDER

19 5545108

WASHER M45 x 80 FLAT

20 5530317

HHB M6 x 1 x 136

21 5535357

NUT M6 x 1.0 NL

22 5755158

HD-18/27/40 CROSSTUBE SPACER Ø16 x Ø10 x 102

WHERE USED

HDS-18 SERIES

HDS-27 SERIES

NEXT ASSEMBLY

5245086

5245087

5245088

5245089

5245090

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5215890

05/02/2022

01414

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5216167

HDS-18/27 CROSSTUBE

ASSEMBLY, SMALL WINDOW

05/02/2022

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

20 21

DETAIL A

SCALE 1 : 10

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5601831

HDS-18/27 CROSSTUBE WELDMENT, LARGE WINDOW

2 5215166

HDS-18/27 SERIES CROSSTUBE SHEAVE ASSEMBLY

3 5215169

HDS-18/27 SAFETY ROLLER ASSEMBLY

4 5505124

HDS-18/27/40 CROSSTUBE SHEAVE SHAFT WELDMENT

5 5505125

HDS-18/27/40 SAFETY PIN

6 5716152

HDS-18/27 POLYETHYLENE SLIDE BLOCK

7 5210359

HDS-18/27/40 SAFETY WELDMENT #1

8 5210358

HDS-18/27/40 SAFETY WELDMENT #2

9 5502335

AIR CYLINDER, Ø.75 x 4.0" STROKE

10 5505030

PUSH-ON CLIP Ø10mm SS

11 5505031

ROTOR CLIP Ø12mm SS

12 5505033

PUSH-ON CLIP Ø16mm SS

13 5540002

E RING Ø1.375" OD TRUARC X5133-137

14 5540060

SPRING Ø29 x 178mm, SLACK SAFETY

15 5540112

SNAP RING; TRUARC 5103-175

16 5550087

FTG ELB -04 COMP x -02 NPT

17 5535101

3/8-16 HEX NUT JAM

18 5550376

HDS-18/27/40 ADAPTER, 1" AIR CYLINDER

19 5545108

WASHER M45 x 80 FLAT

20 5530317

HHB M6 x 1 x 136

21 5535357

NUT M6 x 1.0 NL

22 5755158

HD-18/27/40 CROSSTUBE SPACER Ø16 x Ø10 x 102

NEXT ASSEMBLY

5245086

5245087

5245088

5245089

5245090

WHERE USED

HDS-18 SERIES

HDS-27 SERIES

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5215891

05/02/2022

01414

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

5216168

HDS-18/27 CROSSTUBE

ASSEMBLY, LARGE WINDOW

05/02/2022

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

NOTE: UNLESS OTHERWISE SPECIFIED

Autres manuels pour HDS-18EA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bend-Pak Système de levage

Bend-Pak

Bend-Pak HD-9 Manuel utilisateur

Bend-Pak

Bend-Pak xpR-10C-168 Manuel utilisateur

Bend-Pak

Bend-Pak XP-10CX Manuel utilisateur

Bend-Pak

Bend-Pak EXCEL Series Manuel utilisateur

Bend-Pak

Bend-Pak PL-6KDT Manuel utilisateur

Bend-Pak

Bend-Pak HD-9AE Manuel utilisateur

Bend-Pak

Bend-Pak LR-60P Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9S Manuel utilisateur

Bend-Pak

Bend-Pak Quatra XR-12000L Manuel utilisateur

Bend-Pak

Bend-Pak MD-6XP Manuel utilisateur

Bend-Pak

Bend-Pak Clearfloor 10AP-168 Manuel utilisateur

Bend-Pak

Bend-Pak HD-973P Manuel utilisateur

Bend-Pak

Bend-Pak P-9000LTF Manuel utilisateur

Bend-Pak

Bend-Pak HDS-40 Manuel utilisateur

Bend-Pak

Bend-Pak XP Series Manuel utilisateur

Bend-Pak

Bend-Pak P-9000LT Manuel utilisateur

Bend-Pak

Bend-Pak HD-9STX Manuel utilisateur

Bend-Pak

Bend-Pak PCL-18B Manuel utilisateur

Bend-Pak

Bend-Pak HD-9XL Manuel utilisateur

Bend-Pak

Bend-Pak HD-14SS Manuel utilisateur

Bend-Pak

Bend-Pak HDSO-14P Manuel utilisateur

Bend-Pak

Bend-Pak HDS-40X Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10AS-168 Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9F Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
