Service Manual

SERVICE PARTS & DIAGRAMS

This guide is a troubleshooting reference used for maintaining and

servicing your Bend Pak product. It provides comprehensive information

on identifying serviceable parts and components and assists in

troubleshooting problems and performing assembly /disassembly

procedures.

BENDPAK

10APX

PRODUCT SKU

5175306

DRAWING Nº

5260700

CATEGORY

Two Post Lift

VER. C

Rev. B

DATE

06.07.2023

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

ITEM

PART NUMBER

DESCRIPTION

QTY

REV

1 5245249

10APX LIFT SUPERSTRUCTURE

2 5250346

10APX PARTS BOX

3 5216216

10AP TRIPLE TELESCOPING ARM ASSEMBLY, LONG

4 5216217

10AP TRIPLE TELESCOPING ASYMMETRIC ARM

ASSEMBLY, LEFT

5 5216218

10AP TRIPLE TELESCOPING ASYMMETRIC ARM

ASSEMBLY, RIGHT

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5260679

04/25/2023

01488

UPDATED BOM REVISIONS

06/01/2023

01492

SHEET 1 OF 3

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5260700

10APX PRODUCTION

LIFT VER C

04/25/2023

DO NOT SCALE DRAWING

1:30

SCALE:

THIRD ANGLE PROJECTION

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE COLORS & GRAPHICS FOR LABEL PLACEMENT

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

NEXT ASSEMBLY

5260700

5260701

WHERE USED

10APX

10APX-181

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5216182

10AP TOP TROUGH ASSEMBLY

2 5216130

10APX POWER SIDE POST ASSEMBLY

3 5216131

10APX OFF SIDE POST ASSEMBLY

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

12/12/2022

01460

UPDATED BOM REVISION

01/31/2023

01467

UPDATED BOM REVISION

04/20/2023

01488

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5245249

10APX LIFT

SUPERSTRUCTURE

04/05/2022

DO NOT SCALE DRAWING

1:30

SCALE:

THIRD ANGLE PROJECTION

04/28/2023

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

DETAIL A

SCALE 1 : 3

NEXT ASSEMBLY

5245249

WHERE USED

10APX

10APX-181

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601812

10APX POWER SIDE POST WELDMENT

2 5216181

10APX LIFT HEAD ASSEMBLY

3 5502725

CYLINDER ASSEMBLY Ø2.0 x 75 - SLOW

4 5701242

CYLINDER CLAMP ASSY

5 5530366

FHSS M6 x 1.0 x 8

6 5575068

10AP 100mm SHEAVE ASSEMBLY

7 5620143

D2-10, 10AP CABLE SHEAVE PIN WELDMENT

8 5575074

10/12AP SAFETY CABLE ROLLER

9 5530756

HHB M6 x 1.0 x 25mm

10 5535357

NUT M6 x 1.0, NL CL8

11 5565350

10/12AP/D2/GP/PCL/XPR/ PL-7000 SAFETY

SHEAVE SPACER

12 5601516

10AP POWER SIDE SAFETY WELDMENT

13 5746494

10/12AP SAFETY PIVOT PIN

14 5530414

BHSK M8 x 1.25 x 25 CL10.9

15 5545202

WASHER M8 x Ø15 SL

16 5540047

EXTENSION SPRING Ø6.35 x 38mm

17 5530045

BHPS M5 x 0.8 x 10

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

12/12/2022

01460

UPDATED BOM REVISION

01/31/2023

01467

UPDATED BOM REVISION

04/20/2023

01488

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5216130

10APX POWER SIDE

POST ASSEMBLY

04/05/2022

DO NOT SCALE DRAWING

1:25

SCALE:

THIRD ANGLE PROJECTION

04/28/2023

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

DETAIL A

SCALE 1 : 3

NEXT ASSEMBLY

5245249

WHERE USED

10APX

10APX-181

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601851

10APX OFF SIDE POST WELDMENT

2 5216181

10APX LIFT HEAD ASSEMBLY

3 5502725

CYLINDER ASSEMBLY Ø2.0 x 75 - SLOW

4 5701242

CYLINDER CLAMP ASSY

5 5530366

FHSS M6 x 1.0 x 8

6 5575068

10AP 100mm SHEAVE ASSEMBLY

7 5620143

D2-10, 10AP CABLE SHEAVE PIN WELDMENT

8 5575074

10/12AP SAFETY CABLE ROLLER

9 5530756

HHB M6 x 1.0 x 25mm

10 5535357

NUT M6 x 1.0, NL CL8

11 5565350

10/12AP/D2/GP/PCL/XPR/ PL-7000 SAFETY

SHEAVE SPACER

12 5737177

10AP OFF SIDE SAFETY BLOCK

13 5746494

10/12AP SAFETY PIVOT PIN

14 5530414

BHSK M8 x 1.25 x 25 CL10.9

15 5545202

WASHER M8 x Ø15 SL

16 5540047

EXTENSION SPRING Ø6.35 x 38mm

17 5530045

BHPS M5 x 0.8 x 10

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

12/12/2022

01460

UPDATED BOM REVISIONS

01/31/2023

01467

UPDATED BOM REVISION

04/20/2023

01488

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5216131

10APX OFF SIDE

POST ASSEMBLY

04/05/2022

DO NOT SCALE DRAWING

1:25

SCALE:

THIRD ANGLE PROJECTION

04/28/2023

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

DETAIL A

SCALE 1 : 4

DETAIL B

SCALE 1 : 5

DETAIL C

SCALE 1 : 6

NEXT ASSEMBLY

5245246

5245249

WHERE USED

10AP SERIES

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601854

10AP OUTER TOP TROUGH WELDMENT

2 5601855

10AP INNER TOP TROUGH WELDMENT

3 5535013

NUT M10 x 1.5 NL

4 5530738

HHB M10 x 1.5 x 25

5 5545341

WASHER M10 x Ø20 FLAT

6 5600501

XPR-10/10A MICROSWITCH STOP BAR WELDMENT

7 5620445

XPR TRIP STOP BAR SLIDER WELDMENT

8 5300815

10AP/D2/XPR STOP BAR CUSHION

9 5530055

SSS M6x1x10

10 5575074

10AP SAFETY CABLE ROLLER

11 5535357

NUT M6 x 1.0, NL CL8

12 5530756

HHB M6 x 1.0 x 25mm

13 5575068

10AP 100mm SHEAVE ASSEMBLY

14 5505020

HAIR PIN 1/8” x 2 7/8”

15 5545343

WASHER, M20 FLAT

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5215953

06/07/2022

01417

ADDED 5545343, MOVED 5746496 TO

SUBWELDMENTS, UPDATED BOM REVISIONS

10/03/2022

01449

UPDATED BOM REVISIONS

01/31/2023

01467

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5216182

10AP TOP TROUGH

ASSEMBLY

06/07/2022

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

02/03/2023

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

NOTE ORIENTATION OF HARDWARE

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

NEXT ASSEMBLY

5260698

5260699

5260700

5260701

WHERE USED

10AP SERIES

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601937

10AP LONG ARM WELDMENT, OUTER SECTION

2 5601936

10AP LONG ARM WELDMENT, MIDDLE SECTION

3 5601512

10AP LONG ARM WELDMENT, INNER SECTION

4 5737188

10/12AP MIDDLE ARM SECTION SLIDE STOP

5 5530382

FHSS M8 x 1.25 x 12 CL10.9

6 5530479

BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O.

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5215957

04/20/2023

01488

REPLACED 5530346 WITH 5530479, UPDATED

BOM REVISIONS

05/24/2023

01492

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

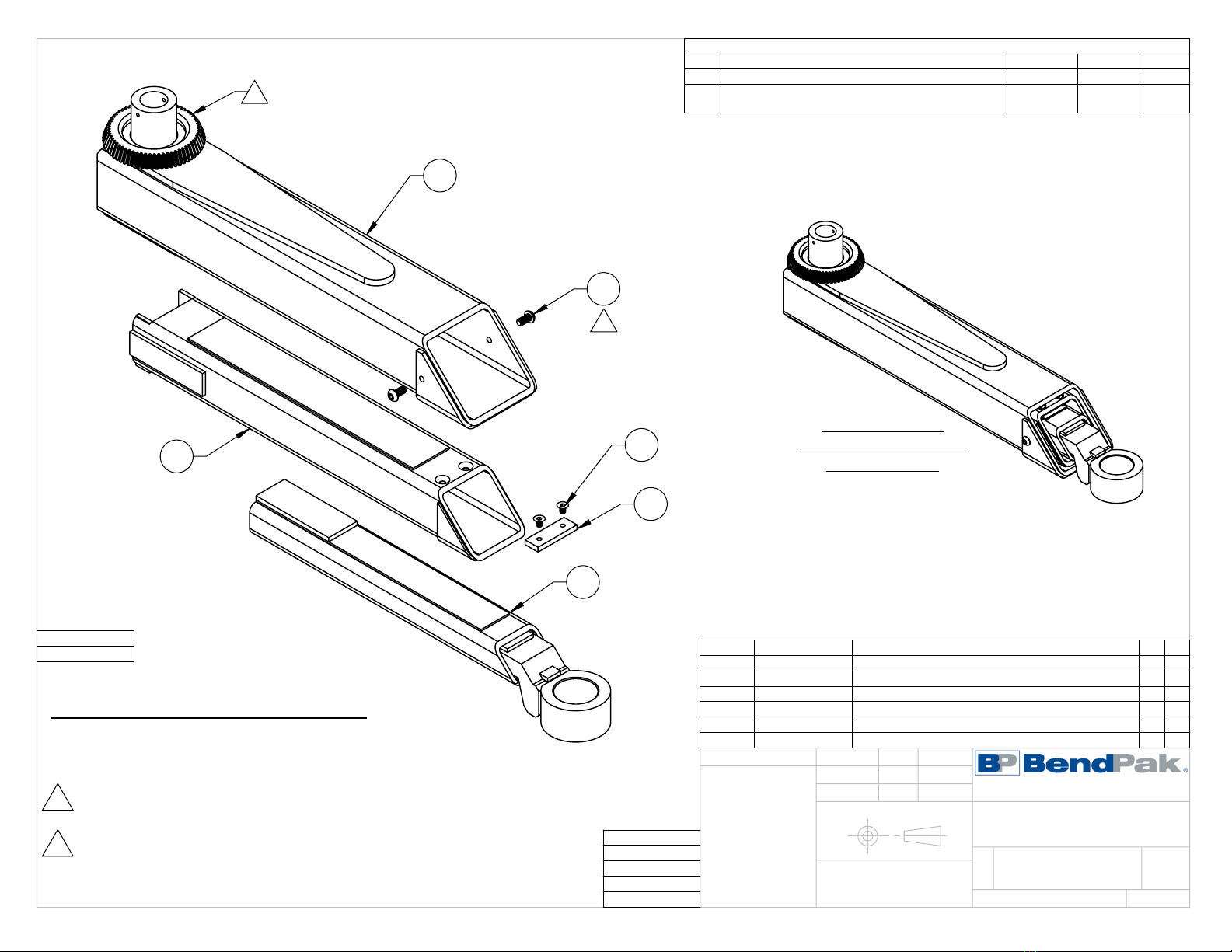

5216216

10AP TRIPLE TELESCOPING

ARM ASSEMBLY, LONG

04/20/2023

DO NOT SCALE DRAWING

1:6

SCALE:

THIRD ANGLE PROJECTION

REFER TO MODEL FOR ADDITIONAL INFORMATION

REMOVE WELD SPLATTER

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

MASK TEETH BEFORE PAINTING

MASK BORE AND ALL THREADS BEFORE PAINTING

APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE

SPECIFICATION

DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING

PAINT YELLOW (RAL-1018) 20% GLOSS

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

WHERE USED

10AP SERIES

NEXT ASSEMBLY

5260698

5260699

5260700

5260701

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5216088

04/21/2023

01488

REPLACED 5530346 WITH 5530 479, UPDATED

BOM REVISIONS

06/01/2023

01492

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5601938

10AP ASYMMETRIC ARM WELDMENT, OUTER SECTION, LEFT

2 5601753

10AP ASYMMETRIC ARM WELDMENT, MIDDLE SECTION

3 5601752

10AP ASYMMETRIC ARM WELDMENT, INNER SECTION

4 5737188

10/12AP MIDDLE ARM SECTION SLIDE STOP

5 5530382

FHSS M8 x 1.25 x 12 CL10.9

6 5530479

BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O.

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5216217

10AP TRIPLE TELESCOPING

ASYMMETRIC ARM

ASSEMBLY, LEFT

04/21/2023

DO NOT SCALE DRAWING

1:5

SCALE:

THIRD ANGLE PROJECTION

REFER TO MODEL FOR ADDITIONAL INFORMATION

REMOVE WELD SPLATTER

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

MASK TEETH BEFORE PAINTING

MASK BORE AND ALL THREADS BEFORE PAINTING

DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING

PAINT YELLOW (RAL-1018) 20% GLOSS

APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE

SPECIFICATION

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

WHERE USED

10AP SERIES

NEXT ASSEMBLY

5260698

5260699

5260700

5260701

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5601939

10AP ASYMMETRIC ARM WELDMENT, OUTER SECTION, RIGHT

2 5601753

10AP ASYMMETRIC ARM WELDMENT, MIDDLE SECTION

3 5601752

10AP ASYMMETRIC ARM WELDMENT, INNER SECTION

4 5737188

10/12AP MIDDLE ARM SECTION SLIDE STOP

5 5530382

FHSS M8 x 1.25 x 12 CL10.9

6 5530479

BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O.

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

PRODUCTION RELEASE, DERIVED FROM 5216089

04/24/2023

01488

REPLACED 5530346 WITH 5530 479, UPDATED

BOM REVISIONS

06/01/2023

01492

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5216218

10AP TRIPLE TELESCOPING

ASYMMETRIC ARM

ASSEMBLY, RIGHT

04/24/2023

DO NOT SCALE DRAWING

1:5

SCALE:

THIRD ANGLE PROJECTION

REFER TO MODEL FOR ADDITIONAL INFORMATION

REMOVE WELD SPLATTER

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

MASK TEETH BEFORE PAINTING

MASK BORE AND ALL THREADS BEFORE PAINTING

DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING

PAINT YELLOW (RAL-1018) 20% GLOSS

APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE

SPECIFICATION

DIMENSIONS ARE IN MM

☺

NEXT ASSEMBLY

5260700

WHERE USED

10APX

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5174047

10AP SERIES PARTS BAG

2 5595754

CABLE ASSEMBLY Ø10 x 10790mm DBST

3 5570278

HYDRAULIC HOSE ASSEMBLY Ø10 x 2522mm SB

4 5570023

HOSE ASSEMBLY Ø6.4 x 3588mm SB

5 5570293

HYDRAULIC HOSE ASSEMBLY Ø6.35 x 7264mm SB

6 5570174

HYDRAULIC HOSE ASSEMBLY Ø6.35 x 285mm SB

7 5595832

SAFETY CABLE Ø1.8 x 8103mm

8 5520116

14-4 SJO UL 62 CABLE 300vac

3843mm*

9 5700404

10/12AP SAFETY PIVOT HOLDER

10 5761017

10AP SAFETY HANDLE

11 5715003

POWER UNIT VIBRATION DAMPENER

12 5215704

ROUND ADJUSTABLE LIFT PAD ASSEMBLY

13 5530337

AB 3/4" x 6.3"

14 5701698

10AP FOOT GUARD

15 5715196

10/12AP, D2, XPR POLYETHYLENE COVER BLOCK

105 x 80

16 5900265

10AP INSTALLATION MANUAL

17 5716072

10AP POWER SIDE PLASTIC SAFETY COVER

18 5601505

10AP ARM LOCK PIN WELDMENT, Ø38

19 5746167

DOUBLE THREADED ROD M10 x 1.5 x 275

20 5550095

FTG NPL -04 JIC x -04 JIC

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

REPLACED 5595733 WITH 5595754

02/01/2023

01467

REPLACED 5570256 WITH 5570174

04/18/2023

01487

REMOVED 5746007, 5746192, 5701660,

UPDATED BOM REVISION AND NEXT ASSEMBLY

04/20/2023

01488

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5250346

10APX PARTS BOX

03/29/2022

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

04/28/2023

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT

HOSES AND CABLES SHOWN REPRESENTATIONAL FORM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bend-Pak Système de levage

Bend-Pak

Bend-Pak EXCEL Series Manuel utilisateur

Bend-Pak

Bend-Pak HDS-18E Manuel utilisateur

Bend-Pak

Bend-Pak HD-973P Manuel utilisateur

Bend-Pak

Bend-Pak xpR-10C Manuel utilisateur

Bend-Pak

Bend-Pak PCL-18B Manuel utilisateur

Bend-Pak

Bend-Pak HDS-18 Manuel utilisateur

Bend-Pak

Bend-Pak SP-7XF Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9D Series Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10XLS-LP Manuel utilisateur

Bend-Pak

Bend-Pak MDS-6EXT Manuel utilisateur

Bend-Pak

Bend-Pak HD-7PXW Manuel utilisateur

Bend-Pak

Bend-Pak HDS-14LSXE Manuel utilisateur

Bend-Pak

Bend-Pak PL-6000DC Manuel de référence

Bend-Pak

Bend-Pak HD-9ST Manuel utilisateur

Bend-Pak

Bend-Pak Quatra XR-12000L Manuel utilisateur

Bend-Pak

Bend-Pak PL-6000DC Manuel utilisateur

Bend-Pak

Bend-Pak HD-12LS Manuel utilisateur

Bend-Pak

Bend-Pak HDS-27 Manuel utilisateur

Bend-Pak

Bend-Pak HD-7MZ Manuel utilisateur

Bend-Pak

Bend-Pak HD-7P Manuel utilisateur

Bend-Pak

Bend-Pak SP-7X Manuel utilisateur

Bend-Pak

Bend-Pak HD-973P Manuel utilisateur

Bend-Pak

Bend-Pak HDSO-14AX Manuel utilisateur

Bend-Pak

Bend-Pak HD-9XW Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
