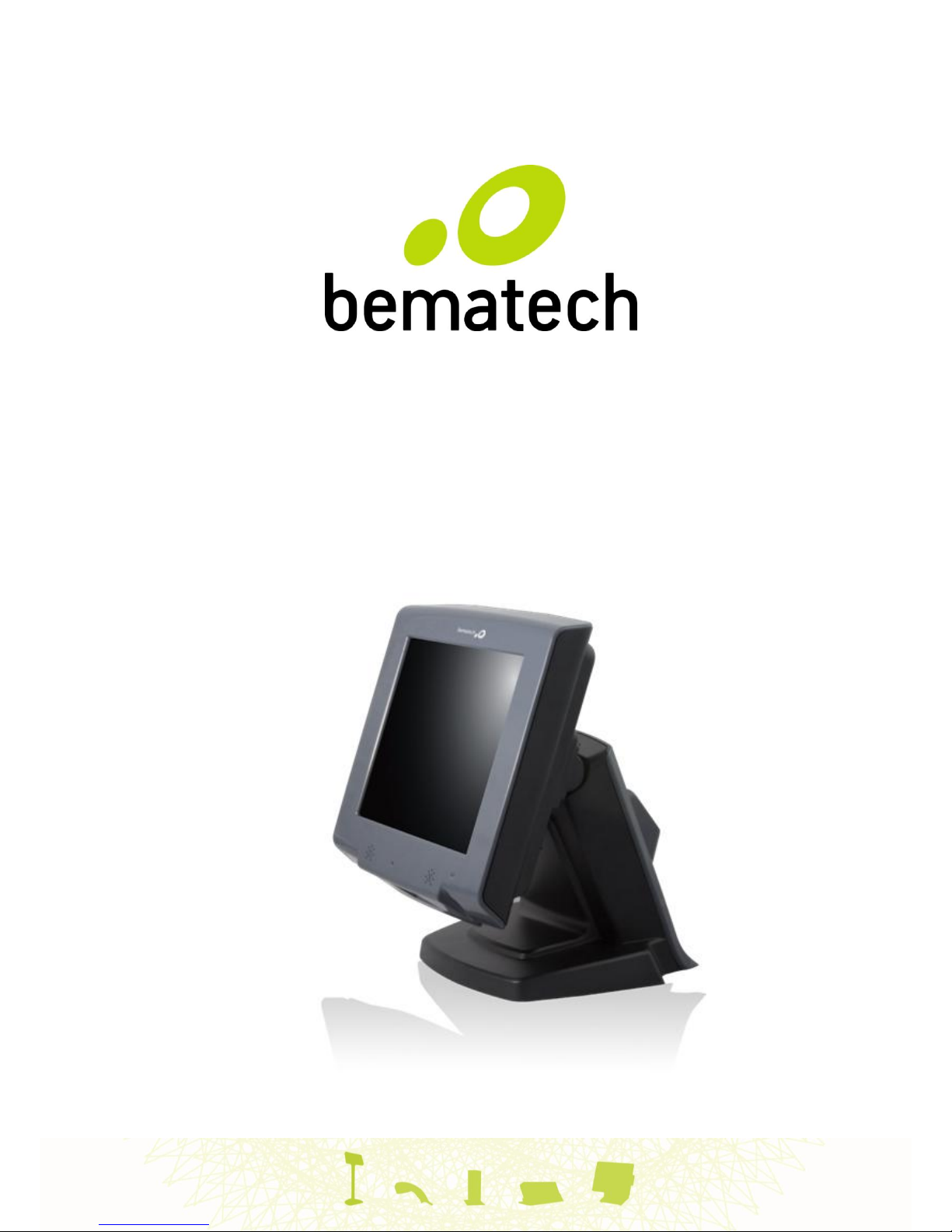

Bematech SB 8010A Manuel utilisateur

SB 8010A

Android POS Terminal

User’s Manual

1

Table of Contents

1 Overview 2

2 Standard Package Contents 3

3 Touch Screen Calibration 4

4 System View 5

5 Accessories 6

6 Change your language and Input Keyboard 7

7 How to install an Application 8

8 Motherboard Information 12

9 Specifications 13

2

1 Overview

The SB8010A is a cost effective all-in-one POS terminal with compact footprint

and fanless design. With the capability to run Android, costly operating systems

are not required, keeping cost of the POS solution to a minimum. Integration of

VFD customer display, magnetic stripe reader and barcode scanner eliminates

issues with device connectivity, mounting, compatibility and cable management.

Compact size and cost effective

Low power consumption, less than 10 watts

Fanless operation

Customer display, magnetic stripe reader and barcode scanner integration

9.7" 5-wire resistive touch monitor

Android operating system

3

2 Standard Package Contents

a. SB8010A POS terminal

b. Power adaptor and cable c. Drivers and User manual

NOTICE:

SB8010A Input Power Voltage is from 19v~24v, only use Included Power Adaptor to

avoid any Voltage problem.

4

3 Touch Screen Calibration

1. First time boot up will need to calibrate 9 points.

2. Click Application Icon

In Application list; click “Calibration”

Follow the steps from there and click 9 points on each corner. And Save the

calibration change.

5

4 System View

1. I/O ports

2. Power switch button

The button is below I/O ports.

6

5 Accessories

1. Magnetic Card Reader and barcode scanner.

2. Customer Display

7

6 Change your language and Input Keyboard

1. Click Application Icon 2. Click Setting Icon

3. Click Language & Input

Choose Language and Select the language you need.

8

7 How to install an Application

1. Save your application program in a USB flash drive and plug into one of SB8010A

USB port. In the application list, click “OI File Manager”.

2. Click on the “home” icon.

9

3. Scroll down to search for "udisk" folder and then click on “udisk”.
