Beltone ACS 85 Manuel utilisateur
Instructions for use
Digital Behind-the-Ear
hearing instrument
ACCESS
ACS 85 and ACS 85D Power BTE
ACS 75 and ACS 75D BTE
ACS 75 Open and ACS 75D Open BTE
Anew Beltone hearing instrument
Congratulations on your choice of a Beltone hearing instrument.
This is an important step towards clearer hearing and better
understanding. We have used all our experience with hearing
instruments to help you communicate, lead an enjoyable social
life and listen to the world around you.
Your hearing instrument is a very advanced device. Your hearing
care practitioner has tuned it to your individual needs. With a little
devotion and patience you will become familiar with it.
This booklet is a short guide to assist you in getting acquainted
with your hearing instrument. Read it carefully and use it as a
guideline.
We wish you happiness and pleasant listening with your new
instrument.
Beltone
This booklet & your instrument
In this booklet you will find instructions for inserting and
controlling your new hearing instrument. You will find
explanations on controlling your instrument, on daily handling
and on its use. Furthermore, you can read what to do if things do
not live up to your expectations. We will give a few practical steps
towards better hearing.
Contents
Switching on and off 3
Changing batteries 4-5
Inserting and removing the instrument 6-7
Recognising left and right instrument 8-9
Setting the volume 10
Program button 11-12
Directional microphone 12
T-program 13-14
Audio input 15-16
Maintenance and cleaning 17-20
General warnings 21
Solving small problems 22-23
Eight steps towards better hearing 24-27
Hearing Instrument identification 28
International warranty and service 29
General Precautions 29
Warning to hearing are practitioners 30
Technical Specifications 30
1
2
plastic tube
earmould
ACS 85 / ACS 85D
tone tube microphone behind cover
volume wheel
program button
battery door
plastic tube
earmould
ACS 75 / ACS 75D
tone tube microphone behind cover
volume wheel
program button
battery door
Switching on and off
Switch your hearing instrument on by closing the
battery door. Switch your instrument off by a small
movement of the battery door till you feel a click.
After switching on, your hearing instrument will
always start in program 1. Read more on this subject
on page 11.
On page 13 you will read more on the T-program.
• Switch your instrument off if you are not using it. This will
increase the battery life.
• Atnight, switch off your instrument and open the battery door
completely. Itallows moisture in your instrument to evaporate
and will increase the instrument’s life span.
3
off
plastic tube
mini dome
ACS 75 open/ ACS 75D open
tone tube microphone behind cover
volume wheel
program button
battery door
Changing batteries
When the hearing instrument generates a warning signal it's
advisable to change your battery as soon as possible. The signal
will continue as long as the battery is not changed or unless it does
not run out of power, and therefore it is advisable to keep an extra
battery at hand.

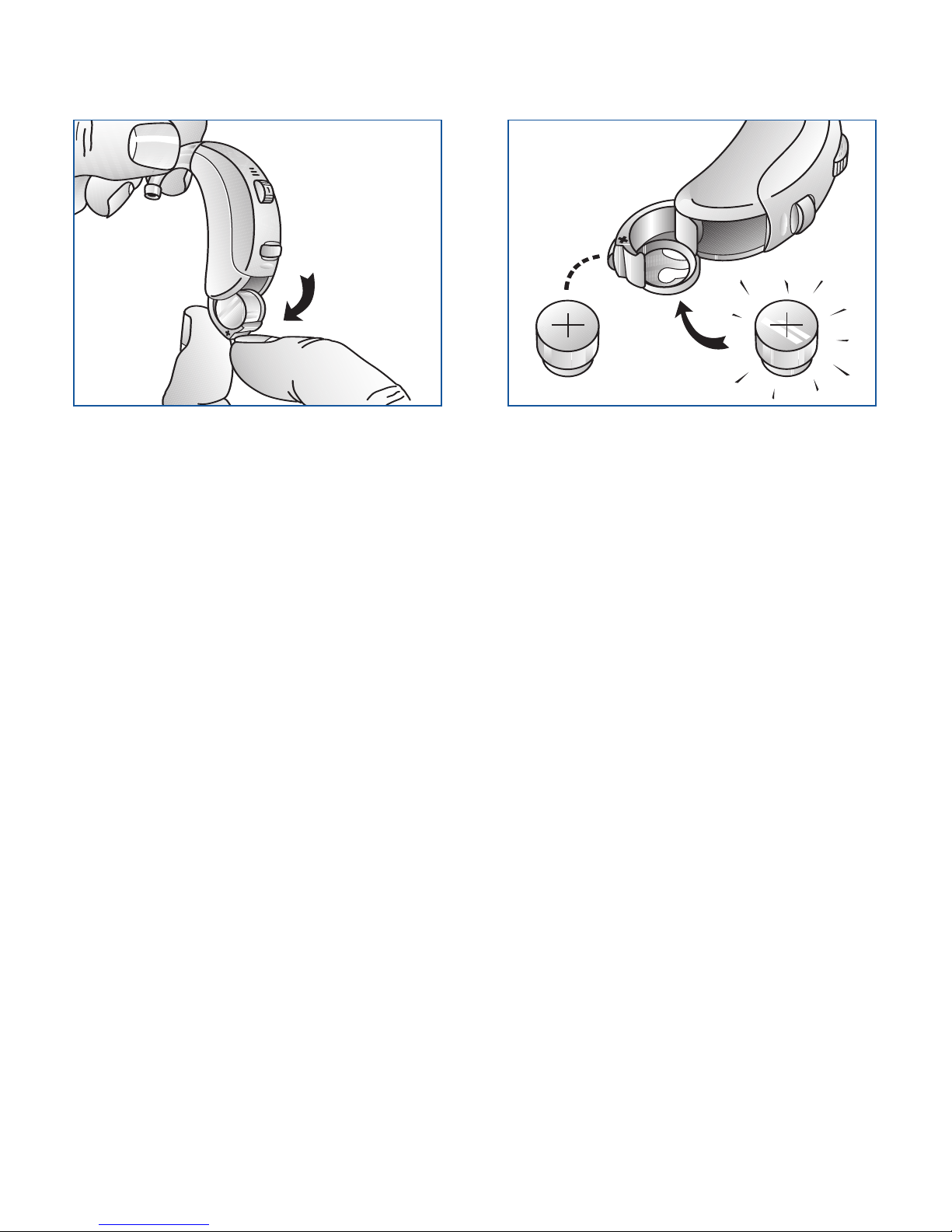

Remove ‘dead’ battery
Open the battery door by placing your fingernail or a pencil on
the edge of the battery door and gently pull it down. When
opened, remove the dead battery by sliding it out as shown in the
drawing.
The replacement batteryhas to be of type: 13 zinc-air. Remove
the protectiveseal from the fresh batteryand insert it in the battery
door, with the plus side facing down. You will recognize the plus
side of the batterybecause marked with a +. Check whether the +
symbols on the battery and on the battery door are on the same
side. Close the batterydoor. This should go smoothly, so never
force it as this could damage your instrument.
ACS 85 / 85D
4
ACS 75 / 75D / ACS 75 Open / 75D Open
Warnings
• Keep batteries away from children and mentally challenged
persons.
•Batteries can be harmful if swallowed. If you do, seek medical
attention immediately.
• Donot attempt to recharge the batteries, as they could explode.
• Do not burn the batteries, as they could explode.
• Replace spent batteries and do not leave them in the instrument
for a prolonged period.
• Used batteries areharmful to the environment. Please dispose
of them according to local regulations or return them to your
hearing carepractitioner.
5
Inserting and removing the instrument
Inserting the instrument
• With the battery door opened in
the off position take the earmould
between thumb and index finger
and position its ‘point’ in your ear
canal. Now, slide the earmould all
the way into your ear with a
gentle, twisting movement.
Insertion can be easier if you
gently pull your auricle backwards
with your other hand.
•Turn the top-part of the earmould
gently backwards and forwards so
that it fits behind the fold of skin
above your ear canal.
• Place the hearing instrument
behind your ear. Move the
earmould up and down and press
gently to ensure it is positioned
correctly in the ear. Opening and
closing your mouth can ease
insertion. You will feel when the
earmould is positioned correctly.
• When correctly positioned switch
on your instrument by closing the battery door.
6
• You can as well insert the hearing instrument while in the on
position. However you might experience some feedback
(whistling) during the operation.
Removing your instrument
• Switch off the instrument by pressing the battery door in the
‘off’ position.
• Lift the hearing instrument from behind the ear. For a
moment, let it hang beside your ear.
• Using your thumb and index finger, gently pull the earmould
(not the instrument or the tubing) loose from the ear.
• Remove the earmould completely by gently twisting it.
7
Recognising left and right instrument
If you have two hearing instruments, they may be tuned differently.
One for your left ear, the other for your right. Do not swap them.
Please pay attention to this when cleaning, storing and inserting
the instruments.
8
left right
left right
ACS 85 / 85D
ACS 75 / 75D
