INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE
USING THE UNIT.
www.belling.com.au
www.belling.co.nz
BDO9608BK
90x60cm 8 Function Built-In Oven with LED Program Timer
BDO9611BK
90x60cm 11 Function Built-In Oven with Full-Touch LED Display
2
CONTENTS
General Warnings.......................................................................................................3
Disposal.........................................................................................................................6
INSTALLATION
Installation warnings...................................................................................................7
Electrical connection..................................................................................................8
Dimensions...................................................................................................................9
Oven installation.........................................................................................................10
DESCRIPTION
Oven description.....................................................................................................................
12
Accessories...............................................................................................................................
13
First use.....................................................................................................................................14
8 FUNCTION MODEL
Description.......................................................................................................................15
Cooking functions...........................................................................................................15
Using the timer................................................................................................................17
11 FUNCTION MODEL
Description...................................................................................................................
Cooking functions.......................................................................................................
Operation.....................................................................................................................
Error codes..................................................................................................................
Programmable options..............................................................................................
CLEANING AND MAINTENANCE
Cleaning inside the oven........................................................................................................
Removing the oven door.......................................................................................................
Cooling fan................................................................................................................................32
WARRANTY.............................................................................................................................33
20
21
23
27
28
29
30
3
INTRODUCTION
Dear Customer,
We thank you and congratulate you on your choice to purchase one of
our products. We are confident that this new appliance, built with quality
materials, will fully satisfy your requirements.
Use of this new equipment is easy, however we invite you to read this
manual carefully before installing and using the appliance.
The manual provides correct information on installation, use and
maintenance as well as providing useful advice.
GENERAL WARNINGS
Please read this instruction manual before installing and using the equipment.
The manual must be kept together with the appliance for any future
consultation. If the appliance should be sold or transferred to another person,
ensure that the manual accompanies it, so that the new user will be informed
of the operation and of the relevant warnings.
The product label, with the serial number, is glued to the front of the oven.
All operations relating to installation, adjustment and adaptation
to the power supply available must be carried out by qualified
personnel according to the regulations in force.
The specific instructions are described in the part of the manual
reserved for the installer.
Declaration of Conformity:
we declare that our products comply with the European directives,
orders and regulations as well as with the requirements indicated in the
reference standards.
The manufacturer declines all responsibility in the event of damage to property
or to persons resulting from improper installation or from improper, incorrect or
unreasonable use of the appliance.
4
WARNINGS
Premise
This user manual is an integral part of
the appliance and must be kept intact
and within reach of the user
throughout the life of the appliance.
In case of lost the instruction manual,
it is available in electronic format
upon request from the manifacturer.
Before using the appliance read this user
manual carefully.
Product label
The identification plate shows the
technical data, the serial number and
the power rating.
The identification plate must never be
removed.
Responsibility of the manufacturer
The manufacturer declines all
responsibility for damage to persons
and property caused by:
•Use of the appliance other than that
intended.
•Failure to comply with the
instructions in the user manual .
•Tampering with even a single part of
the appliance .
•The use of non-original spare parts .
Precautions
•WARNING: Ensure that the
appliance is switched off before
replacing the lamp,to avoid the
possibility of electric shock.
•Do not lean or sit on the open door.
•Check that objects are not trapped
in the doors.
Appliance purpose
•This appliance is intended for
the cooking of food in a domestic
environment. Any other use is
improper.
•This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
•Children should be supervised to
ensure that they do not play with the
appliance.
•The appliance is not designed to
work with external timers or remote
control systems.
•Racks and trays have to be inserted
into the side guides until they come
to a complete stop.The mechanical
safety locks that prevent the rack
from being taken out accidentally
must face downwards and towards
the back of the oven .
5
WARNINGS
Damage to persons
•WARNING:This appliance and its
accessible parts become very hot
during use.
•Do not touch the heating elements
during use.
•Keep children away if they are not
being continuously supervised.
•Children shall not play with the
appliance.
•During use, do not place metal
objects such as knives, forks, spoons
and lids on the appliances.
•Switch off the appliance after use.
•Never try to extinguish a flame/fire
with water: switch off the appliance
and smother the flame with a lid or a
fireproof blanket.
•Cleaning and user maintenance
shall not be made by children without
supervision.
•Have the installation and servicing
performed by qualified personnel in
compliance with the regulations in
force.
•Do not modify the appliance.
•Do not insert sharp metallic objects
(cutlery or utensils) into the slots.
•Never attempt to repair the appliance
yourself or without the intervention of
a qualified technician.
Damage to the appliance
•Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass, since they scratch
the surface, which may result in
shattering of the glass.
•Use wooden or plastic utensils if
necessary.
•Do not sit on the appliance.
•Do not use steam jets to clean the
appliance.
•Do not obstruct the openings,
ventilation and heat dissipation slots.
•Do not leave the appliance
unattended during cooking that can
release fats and oils.
•Do not leave objects on the cooking
surfaces.
•If the door glass breaks, turn off the
oven to avoid electric shock .
•Never use the appliance to heat the
room.
•If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order to
avoid a hazard.
6
WARNINGS
To dispose of the appliance
•Cut the power supply cable and remove the cable together with the
plug. Electrical voltage
Danger of
electrocution
• Turn off the power supply from the electrical system.
•Disconnect the power supply cable from the electrical system.
• Take the appliance to the appropriate waste collection centres for electrical
and electronic waste, or return the appliance to the retailer at the time of
purchase of equivalent equipment, on a like-for-like exchange.
•It should be noted that non-polluting and recyclable materials are used for
packaging of the appliance.
•Give the packaging materials to the appropriate recycling centres.
Plastic packaging
Danger of
suffocation
•Do not leave the packaging or parts of it unattended.
•Do not allow children to play with the plastic packaging
bags.
Disposal
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate
waste handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city
council office.
7
INSTALLATION
INSTALLATION WARNINGS
Built-in under worktop
Make sure that cabinet in the rear/bottom areas has
proper opening, of approx 90mm,to allow the oven to
vent properly once fully installed.
Column installation
Make sure that cabinet in the rear/bottom areas has proper opening, of approx 90mm
and 50mm at the top areas,to allow the oven vent properly once fully installed.
• The dimensions and materials of the cabinet in which the built-in oven will be
installed must be correct and must be resistant to temperature increases.
•Please install as shown in figure 3
• Wall panels must be 100°C resistant.
•Plastic panels or adhesives that are not resistant to this heat can deform and sustain
damage.
•The appliance must not be installed behind a decorative door in order to avoid
overheating .
•For safety reasons it is necessary to avoid direct contact with the electrical parts of
the oven.
• The insulation and protection parts must be installed such as to prevent them from
being removed by any instrument.
• The oven must be installed as shown in figure 3 in order to provide a more effective
air flow.
•It is advisable to leave a space of at least 90 mm on the back for the kitchen unit in
which the oven is installed.
• The rear panel of the cabinet unit must be removed to provide better
airflow.
•The rear surface of oven, can be placed against the wall .
•It is not recommended to install the device near refrigerators or freezers, otherwise
their performance may be affected by radiated heat.
•For stationary appliances permanently connected to the fixed wiring, compliance
with this requirement is considered to be met if the instruction concerning
disconnection incorporated in the fixed wiring is in accordance with
AS/NZS 3000.
This requirement is valid only for Australia and New Zealand
Oven technical specification
The oven has been designed to work with single phase 220-240V AC 50/60
electricity.
Carefully read the label of the data plate placed on the oven before installation.
8
INSTALLATION

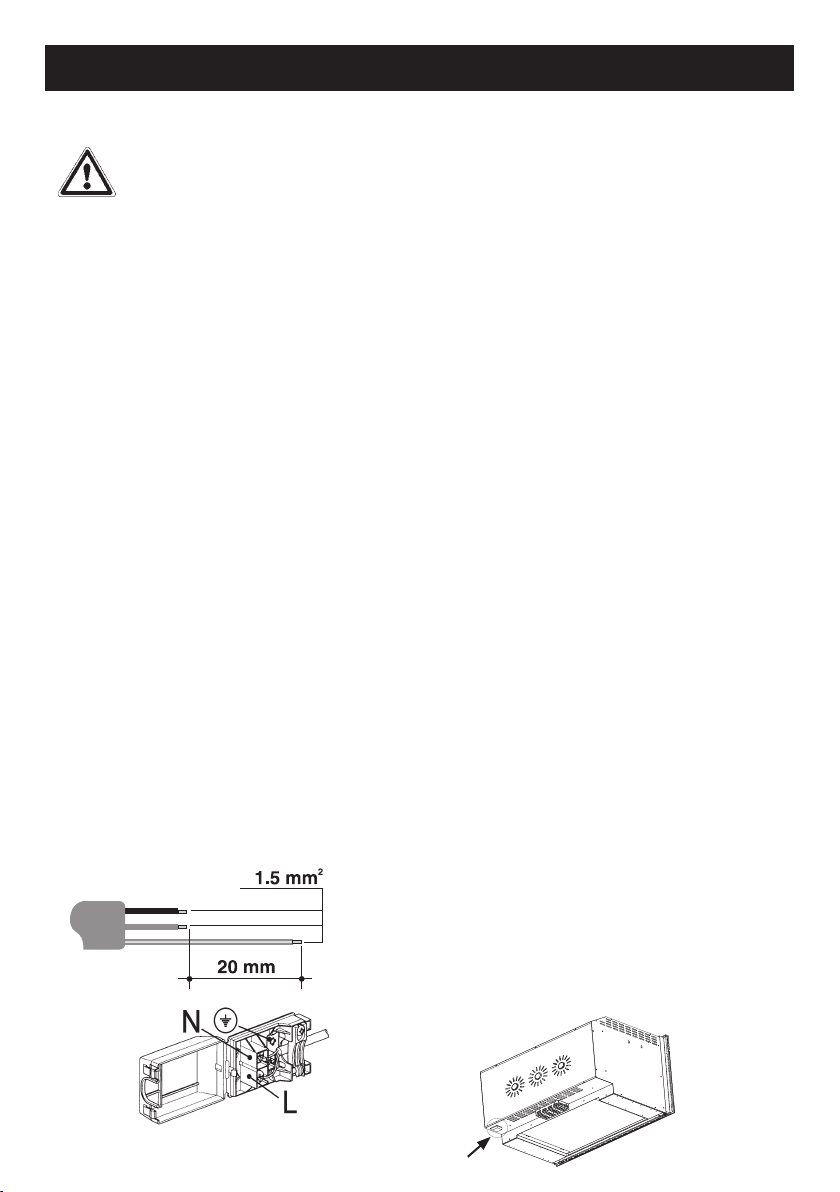

Electrical connection
Danger of electrocution
Electrical voltage
•Have the electrical connection
carried out by qualified technical
personnel.
• The earth connection is obligatory
according to the methods foreseen
by the safety regulations of the
electrical system.
• Turn off the general power supply.
General information
•Check that the characteristics of the
electrical network are suitable for the
data shown on the plate.
• The identification plate, with technical
data, serial number and marking is
visibly positioned on the appliance.
• The plate must never be removed.
• The appliance works with
•Use a three-pole cable (3x1.5mm2
cable, referring to the internal
conductor section).
•Provide for the earth connection with a
cable longer than the others by at least
20mm.
Fixed connection
If a stationary appliance is not fitted
with a supply cord and plug, or with
other means for disconnection from
the supply mains having a contact
separation in all poles that provide full
disconnection under overvoltage
category III conditions, a means for
disconnection must be incorporated in
the fixed wiring in accordance with the
wiring rules.
The interruption device must be located
in an easily accessible position and
near the appliance.
Connection with plug and socket
Check that the plug and socket are of
the same type.
Avoid using reductions, adapters or
shunts as they could cause heating or
burning.
For the installer
•The plug must remain accessible after
installation. Do not bend or trap the
connection cable to the mains.
•The appliance must be installed
according to the installation
diagrams.
•If the appliance does not function
properly after having carried out all the
checks, refer to Glen Dimplex
customer care
•When the appliance is correctly
installed, please instruct the user on
the correct method of operation.
9
fig. 3
INSTALLATION
Dimensions
• The oven can be installed under a hob or in a column.
• The dimensions of the housing for the oven are given in figure 3.
•Make sure that surrounding materials are heat-resistant.
• Align the oven centrally inside the cabinet then fix it with screws.
•All measurements are in mm .
90
592
470
560
50
90
470
560
592
8
8
5
5
10
INSTALLATION
Oven installation
•The oven can be installed under a hob or in a column.
•The dimensions of the housing for the oven are given in figure 3.
•Make sure that surrounding materials are heat-resistant.
•Align the oven centrally with respect to the side walls of the units
surrounding it and fix it in a place the 4 screws with a screwdriver .
•After fixing the screws, fit the plugs that are in the bag with the screws .
Note: for instructional purposes only. Exact model may not be shown.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Belling Four
Belling
Belling Mastercook 135 Instructions de montage
Belling
Belling XOU177SS Mode d’emploi
Belling
Belling BI903MFC Manuel utilisateur
Belling
Belling FSDF 60 DO Manuel utilisateur
Belling
Belling GAS B Manuel utilisateur
Belling
Belling BI 60 FP Mise à jour du firmware
Belling
Belling Mini Richmond BMR60DOINDB Manuel utilisateur
Belling
Belling BI602MFPY Manuel utilisateur
Belling
Belling BFS54SCDF Manuel utilisateur
Belling
Belling BI 60 LPG Manuel utilisateur
Belling
Belling SCBI60FP Mise à jour du firmware
Belling
Belling BEL FS50ET SIL Manuel utilisateur
Belling
Belling BFS54DODF Manuel utilisateur
Belling
Belling Touchtronic XOU174 Mode d’emploi
Belling
Belling BFS54DOGG Manuel utilisateur
Belling
Belling BFS60DODF Manuel utilisateur
Belling
Belling IB608FPYP Manuel utilisateur
Belling
Belling E654 Mode d’emploi
Belling
Belling FSE 60 I Manuel utilisateur
Belling
Belling Built-in Electric Induction Mise à jour du firmware
