Parental Control

Web Content Filter

Parental Control

Web Content Filter

Manual for Belkin Routers equipped

with Parental Control

• FREE 6 months

• Parental Control

• Blocks Offensive

Web Pages

Note to Parent/Manager

If someone else is setting up your Belkin Router,

see page 13 to determine when to name yourself

as the Parental Control Manager for setup of

Parental Control. The Parental Control Manager

is the individual who is setup as the authority/

decision-maker over each computer’s Internet

access and/or restriction.

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 Setting Up Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Automatic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Manual Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Using Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Manging Parental Control Settings . . . . . . . . . . . . . . . . . . . . . . . . 7

Accessing the Parental Control Page . . . . . . . . . . . . . . . . . . . . . . 8

4 Modifying your Parental Control Policies . . . . . . . . . . . . . . . . . . . . 10

5 Using Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

6 Subscription Renewal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7 Note to Parental Control Manager . . . . . . . . . . . . . . . . . . . . . . . . . 13

8 Third Party Software Service Release and Disclaimer . . . . . . . . 14

Table of Contents

Introduction

section

Parental Control—Web Content Filtering

Your Belkin Router ships with this powerful feature, unique in the

marketplace, which gives you the ability to restrict and monitor

web surfing from all PCs connected to it. Unlike other products,

Belkin Parental Control—Web Content Filtering, requires no software

installation on your PCs; everything is internal to the Router. This

feature is provided FREE for six months with every Belkin Router

purchase. After that, a nominal subscription fee goes into effect,

renewable once per year. Unlike other products, Parental Control

allows your subscription to cover your entire network with no “per

PC” charges.

How Belkin Parental Control Works

Once Belkin Parental Control is enabled, every web request, or “get”,

results in two requests from the Router, one for the site itself, and the

second for an approval (Yes or No) from Belkin. The rating is retrieved

from our database of over 4 million sites. If the response is “Yes”,

then the website is passed to the computer, usually with zero delay.

If the response is “No”, then the website will not be displayed and

the computer will be shown a Policy Violation screen stating why the

website was denied.

If the requested website is within the web filter database, the answer

will be instantaneous, and usually will cause no delay. However, if

the site requested is not in the database, the web filter will instantly

rate the site (give it a real-time rating) and add it to the database.

Sites that require real-time ratings sometimes take between 1 and

5 seconds to complete. In most cases, the user will not perceive a

delay. Sites that are not in the database represent a small percentage

of total sites. Real-time rating is extremely useful for stopping new

pornography sites as they appear.

2 3

Introduction

The Parental Control Manager

Belkin Parental Control allows for a parent or manager if used in an

office, to be designated as the Parental Control Manager. This is a

role completely separate from that of the Router Administrator, which

is established separately when you set up your Router. It is ideal

in situations where a child in the household, or an employee in an

office, can act as the Router Administrator, but should be restricted in

terms of website access. Once Parental Control is set up,

e-mail notifications will automatically be sent to the Parental Control

Manager whenever the service is disabled, overridden, or when

passwords or e-mail addresses are changed.

Other powerful features of Parental Control are the Parental Control

Manager’s override and filter-customizing capabilities (explained in

detail in the section entitled “Using Parental Control” beginning on

page 6.)

Note: For an additional subscription fee, reporting is available to

show all website usage, allowed or denied, by your network.

2 3

section

Introduction

Setting up Parental Control

Automatic Setup

The Router must be connected to the Internet before setting up

Parental Control. If you have not set up the Router to connect to the

Internet, follow the steps in your Quick Installation Guide to set up

the Router before attempting to set up Parental Control.

Automatic setup is the easiest way to get Parental Control up

and running.

After setting up the Router to connect to the Internet for the first

time, a setup page will automatically be displayed when you open

your browser. Follow the steps below.

1. Open a browser on any computer on the network. A page will

be displayed prompting you to sign up for Parental Control

for six months FREE. If this page does not display, follow the

instructions for Manual Setup in the next section of this guide.

2. Select the option that lets you enable Parental Control. If you

click “No Thanks”, you will not be asked to sign up again.

You can manually enable Parental Control at any time later by

following the Manual Setup instructions.

3. You will be prompted to ceate a password and provide an e-mail

address to which change notifications should be sent. Enter the

e-mail address you wish to use, and enter a password to be used

to manage the Parental Control function. Note: This password

is different than the password used to manage the Router and

should be unique to keep unauthorized users from changing the

Parental Control settings.

4. Once you have entered this information, the Parental Control

feature is activated. To view or change the settings, follow

the directions in the section called “Managing Parental

Control Settings.”

section

Setting up Parental Control

Manual Setup

The Router must be connected to the Internet before setting up the

Parental Control feature. Follow the steps in the Quick Installation

Guide to set up the Router before attempting to set up the Parental

Control feature.

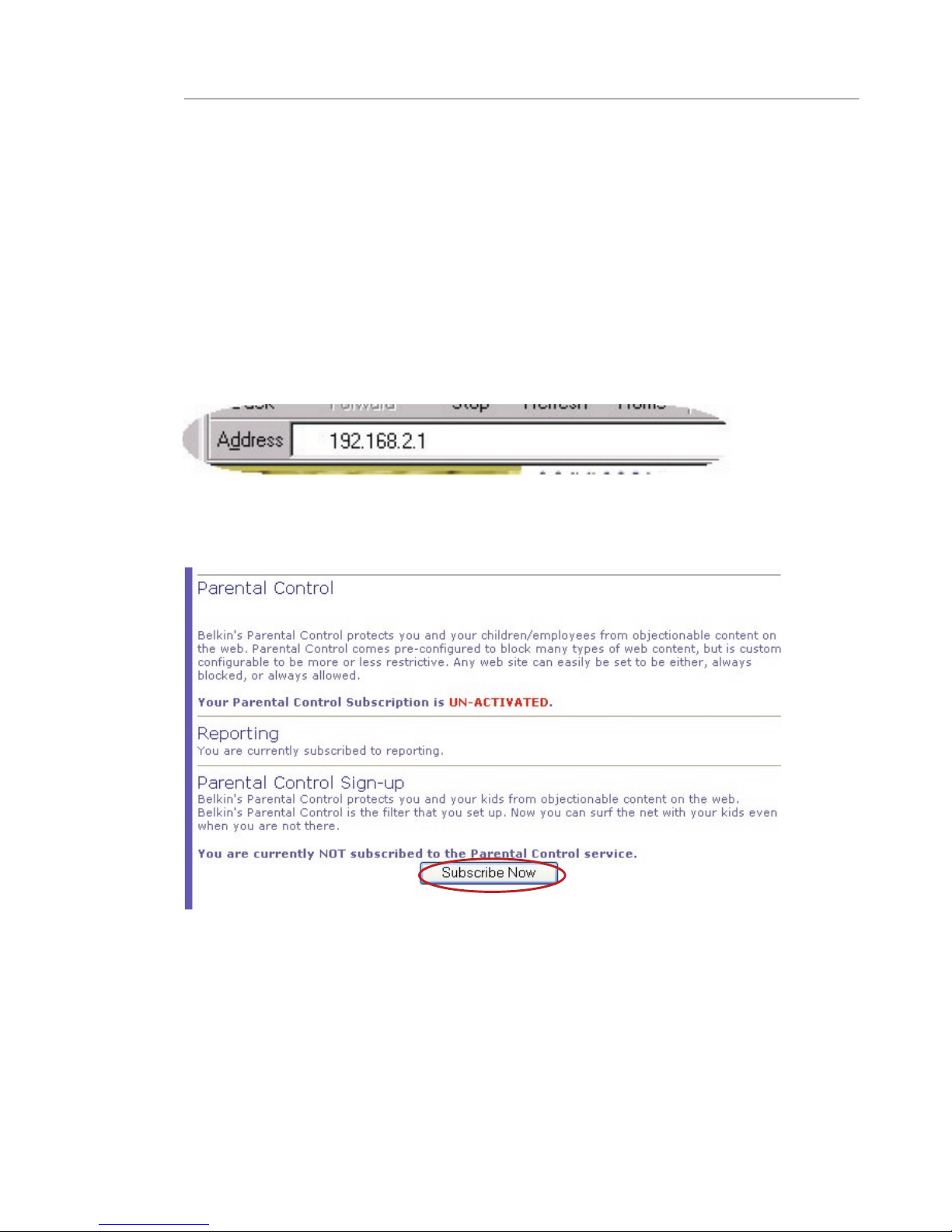

1. In your browser, type “192.168.2.1” (do not type in anything else

such as “http://” or “www”). Then press the “Enter” key.

2. Click “Parental Control” on the “Utilities” tab. You will now see

the Parental Control page.

3. Click “Subscribe Now”.

section

Setting up Parental Control

4. You will be prompted to create a password and provide an e-mail

address to which change notifications should be sent. Enter the

e-mail address you wish to use, and enter a password to be used

by the Parental Control Manager to monitor the Parental

Control function.

Note: This password is different than the password used to

manage the Router and should be unique to keep unauthorized

users from changing the Parental Control settings.

5. Once you have entered this information, the Parental Control

feature is now activated. To view or change the settings, follow

the directions in the section called “Managing Parental

Control Settings.”

Now that Parental Control is activated, objectionable websites will

now be blocked by the Parental Control feature. If a computer

on the network attempts to access a blocked website, a screen will

appear in the web browser stating that that page has been “Blocked

by Parental Control”. Also, the reason for the block will be

stated—for example, “This site was blocked because it is categorized

as pornography.”

There are options on the page that will allow you to do one of

the following:

• Disagree: If you believe that the site has been incorrectly rated,

you can click the “Disagree” button. This will cause the site to be

re-evaluated within 48 hours.

Note: If a particular site continues to be blocked and you do

not agree or want it blocked, you can add the site to a list of

“Overrides” which will permit access to the site regardless of the

rating. See “Change”.

• Change: By clicking the “Change” button, you can modify your

policy to allow the category or to create an override for the

particular site that is blocked. For example, you may decide

to allow a particular category of websites that was previously

blocked. The Parental Control password is required to make

any changes to the policies. For more information on this, see

“Modifying your Parental Control Policies” on page 9 in this

guide.

• Override: You can click the “Override” button and enter the

Parental Control password to override the Parental Control

feature for a period of one hour. This bypasses all Parental

Control features on the computer you are working on, allowing

free surfing to any site on the Internet. Parental Control settings

will remain in effect on all other computers on your network.

CAUTION: The computer on which you entered the override

is now NOT managed by the Parental Control, and will not be

restricted for a period of one hour. That means that anyone who

uses the Internet from this computer will not be protected by

Parental Control until the one-hour period has expired. However,

all other PCs will still be filtered.

Using Parental Control

section

Using Parental Control

Managing Parental Control Settings

You can perform the following tasks from the Parental Control page.

• View the number of days remaining on your subscription

• Find links to Reporting and Policy Modification (if subscribed)

• Modify your Parental Control categories

• Change notification e-mail

• Change your Parental Control password

• Disable filtering/enable filtering

• Select whether or not to be notified when someone

overrides filtering

• Refresh account settings

• Sign up for and renew your subscription (only when applicable)

Note: Changing most of these settings will generate an e-mail to

the Parental Control Manager that the change has occurred.

Autres manuels pour F6D3230-4

Table des matières

Autres manuels Belkin Routeur sans fil

Belkin

Belkin F5D7230-4 Manuel utilisateur

Belkin

Belkin F5D9231-4 - G+ MIMO Wireless Router Manuel utilisateur

Belkin

Belkin F5D7230-4 Manuel utilisateur

Belkin

Belkin F5D92304 - Wireless G Plus MIMO Router Manuel utilisateur

Belkin

Belkin F9K1116V1 Manuel utilisateur

Belkin

Belkin 8820AU00398 Manuel utilisateur

Belkin

Belkin 8820AU00376 Manuel utilisateur

Belkin

Belkin PM01218ea Manuel utilisateur

Belkin

Belkin SURF 8820AU00390 Manuel utilisateur

Belkin

Belkin F5D8231-4 - N1 Wireless Router Manuel utilisateur

Belkin

Belkin F5D8636-4 Manuel utilisateur

Belkin

Belkin F5D7230FR4 Manuel utilisateur

Belkin

Belkin F7D1401 Manuel utilisateur

Belkin

Belkin N1 MIMO Manuel utilisateur

Belkin

Belkin F7D4302 Manuel utilisateur

Belkin

Belkin F5D8636 Manuel utilisateur

Belkin

Belkin F5D7230-4 Manuel utilisateur

Belkin

Belkin F5D6231-4 - Wireless Cable/DSL Gateway... Manuel utilisateur

Belkin

Belkin AC1900 DB Manuel utilisateur

Belkin

Belkin SURF N300 Manuel utilisateur

Belkin

Belkin Surf + 8820ed00372_F7D2301_v1 Manuel utilisateur

Belkin

Belkin Enhanced Wireless Modem Router Manuel utilisateur

Belkin

Belkin PM01116ea F5D9231-4 Manuel utilisateur

Belkin

Belkin VISION N1 Manuel utilisateur

Manuels Routeur sans fil populaires d'autres marques

Milesight

Milesight UG67 Manuel utilisateur

Airlogic

Airlogic AirSync Class 1 Manuel du propriétaire

Samsung

Samsung WCH730B Manuel utilisateur

TELEFONICA

TELEFONICA USB Adapter Manuel utilisateur

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuel utilisateur

Askey

Askey RAC2V1K Manuel utilisateur

Alloy

Alloy WLF2454AP-S Manuel utilisateur

TP-Link

TP-Link TL-WR542G Manuel utilisateur

NETGEAR

NETGEAR WNR2000v4 Manuel utilisateur

Hama

Hama 53120 Manuel utilisateur

Intellinet

Intellinet 524582 Manuel utilisateur

Asus

Asus RT-N10P Manuel utilisateur

D-Link

D-Link DIR-506L Manuel utilisateur

Sapido

Sapido GR297n Manuel utilisateur

Asus

Asus DSL-N55U Manuel utilisateur

AMTC

AMTC WR7502 Manuel utilisateur

Compaq

Compaq CP-2W - iPAQ Connection Point Manuel utilisateur

SMC Networks

SMC Networks WBR14-N2 FICHE Manuel utilisateur
