Belkin 54g Manuel utilisateur

User Manual

F5D7230-4

Wireless Router

Share your broadband Internet connection

without running cables

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Easy Install Wizard Software System Requirements . . . . . . . . . . . . . . . . .5

Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Placement of your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connecting and Configuring your Router . . . . . . . . . . . . . . . . . . . . . . . . .11

Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Using the Web-Based Advanced User Interface . . . . . . . . . . . . . . . . . . . . .40

Manually Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . .79

Recommended Web Browser Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

INTRODUCTION

Thank you for purchasing the Belkin Cable/DSL Gateway Router (the Router). In

minutes you will be able to share your Internet connection and network your

computers. The following is a list of features that make your new Router an ideal

solution for your home or small office network.

Key Features

Easy Install Wizard

The Easy Install Wizard takes the guesswork out of setting up your Router. This

automatic software determines your network settings for you and sets up the

Router for connection to your Internet Service Provider (ISP). In a matter of

minutes, your Router will be up and running on the Internet.

NOTE: Easy Install Wizard software is compatible with Windows 98, Me, 2000, and

XP. If you are using another operating system, the Router can be set up using the

Alternative Method described in this manual.

Integrated 802.11g Wireless Access Point

802.11g is an exciting new wireless technology that achieves data rates up to

54Mbps, nearly five times faster than 802.11b.

Integrated Parental Control Web Content Filter

Belkin has teamed with Cerberian, a leading content-filtering company, to bring

you this unique feature. Your Router is the first home networking solution with

an integrated web content filter that allows you to block unwanted or offensive

web content before it makes it to your network. Unlike other Parental Control

solutions, Parental Control is built into the Belkin Router, so there is no software

to install on any computer and you will never be charged a per-computer fee for

the service, ever. Your Router comes with a six-month free trial of this feature so

you can take advantage of the capabilities right away. No credit card is needed

to use the trial. You have control: Belkin Parental Control can be modified to

meet your needs. You can set up your own policies and block any website you

want. There is also an optional reporting feature (fee-based) that allows you to

get a report showing you every website that was visited from your network.

INTRODUCTION

Works with Both PCs and Mac® Computers

The Router supports a variety of networking environments including Mac® OS 8.x,

9.x, X v10.x, AppleTalk®, Linux®, Windows® 95, 98, Me, NT®, 2000, and XP, and

others. All that is needed is an Internet browser and a network adapter that

supports TCP/IP (the standard language of the Internet).

Front-Panel Connected LED Display

Lighted LEDs on the front of the Router indicate which functions are in

operation. You’ll know at-a-glance whether your Router is connected to the

Internet. This feature eliminates the need for advanced software and status-

monitoring procedures.

Vertical or Horizontal Desktop Application

Your Router can stand vertically on the desktop to save space, or lay down flat

on a shelf or under your modem. The included vertical mounting base lets you

decide how to position the Router.

Web-Based Advanced User Interface

You can set up the Router’s advanced functions easily through your web browser,

without having to install additional software onto the computer. There are no

disks to install or keep track of and, best of all, you can make changes and

perform setup functions from any computer on the network quickly and easily.

NAT IP Address Sharing

Your Router employs Network Address Translation (NAT) to share the single IP

address assigned to you by your Internet Service Provider while saving the cost

of adding additional IP addresses to your Internet service account.

INTRODUCTION

SPI Firewall

Your Router is equipped with a firewall that will protect your network from a

wide array of common hacker attacks including IP Spoofing, Land Attack, Ping of

Death (PoD), Denial of Service (DoS), IP with zero length, Smurf Attack, TCP Null

Scan, SYN flood, UDP flooding, Tear Drop Attack, ICMP defect, RIP defect, and

fragment flooding.

Integrated 10/100 4-Port Switch

The Router has a built-in, 4-port network switch to allow your wired computers

to share printers, data and MP3 files, digital photos, and much more. The switch

features automatic detection so it will adjust to the speed of connected devices.

The switch will transfer data between computers and the Internet simultaneously

without interrupting or consuming resources.

Universal Plug-and-Play (UPnP) Compatibility

UPnP (Universal Plug-and-Play) is a technology that offers seamless operation

of voice messaging, video messaging, games, and other applications that are

UPnP-compliant.

Support for VPN Pass-Through

If you connect to your office network from home using a VPN connection, your

Router will allow your VPN-equipped computer to pass through the Router and to

your office network.

Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for the

easiest possible connection of a network. The DHCP server will assign IP

addresses to each computer automatically so there is no need for a complicated

networking setup.

INTRODUCTION

MAC Address Filtering

For added security, you can set up a list of MAC addresses (unique client

identifiers) that are allowed access to your network. Every computer has its own

MAC address. Simply enter these MAC addresses into a list using the web-based

user interface and you can control access to your network.

Applications and Advantages

•Economically connect multiple computers to a single Internet connection

•SOHO (Small Office/Home Office) networking needs

•Provides the easy and quick small network installation SOHO users need.

Package Contents

•Belkin 54g Wireless Cable/DSL Gateway Router

•Vertical Mounting Base (optional use)

•Category 5 Networking cable

•Power Supply

•Belkin Easy Install Wizard Software CD

•User Manual

•Warranty Card

INTRODUCTION

System Requirements

•Broadband Internet connection such as a cable or DSL modem with RJ45

(Ethernet) connection

•At least one computer with an installed network interface adapter

•TCP/IP networking protocol installed on each computer

•CAT5 networking cable (or better)

•Microsoft® Internet Explorer 4.0 or later, or Netscape® 4.0 or later

Easy Install Wizard Software System Requirements

•APC running Windows 98, Me, 2000, or XP or a Mac® running OS 9.x or OS X

•Minimum 64MB RAM

•Internet Browser

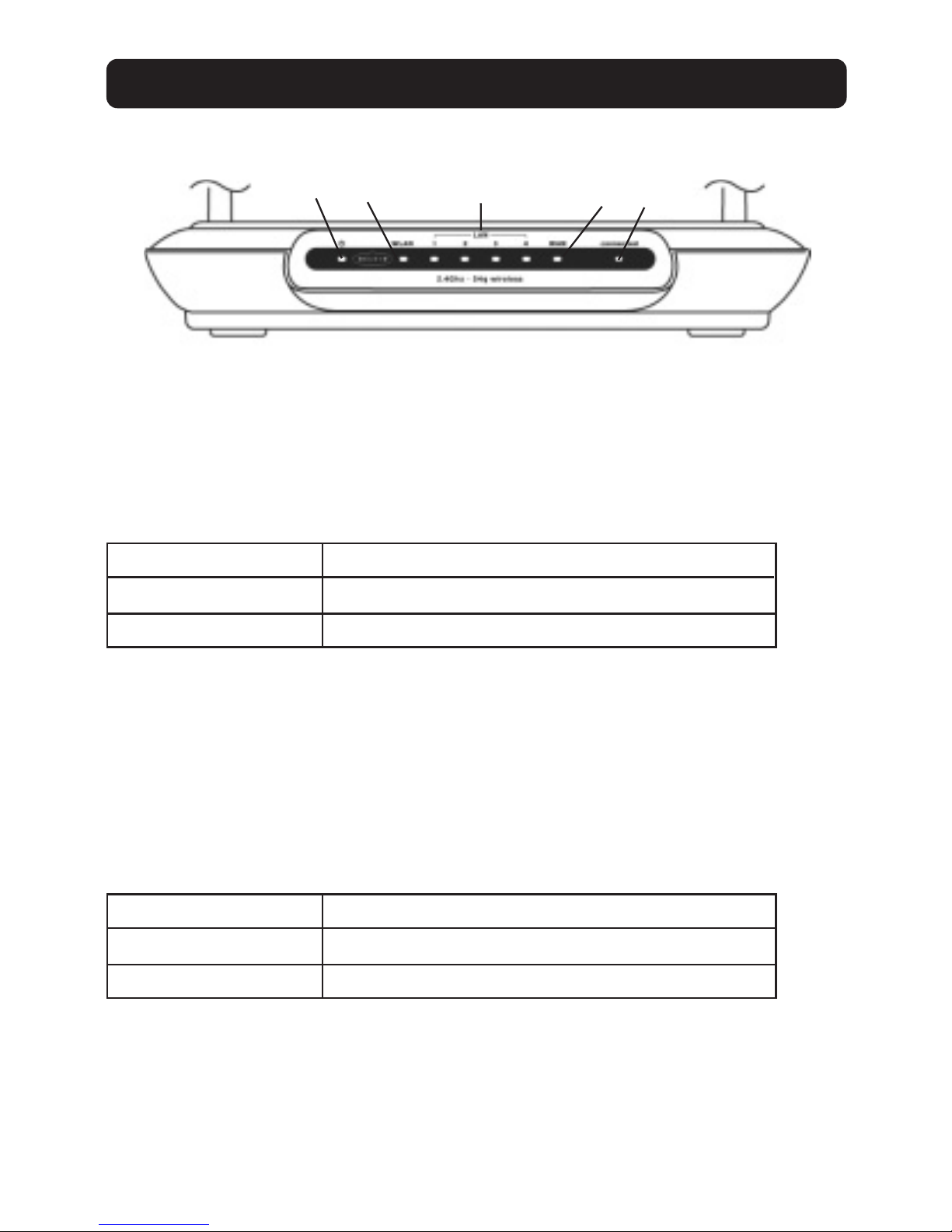

KNOWING YOUR ROUTER

The Router has been designed to be placed on a desktop vertically or

horizontally, or it may be mounted to a wall. The slim design minimizes the

desktop space required when placed vertically. All of the cables exit from the rear

of the Router for better organization and utility. The LED indicators are easily

visible on the front of the Router to provide you with information about network

activity and status.

1. Power/Ready LED

When you apply power to the Router or restart it, a short period of time elapses

while the Router boots up. During this time, the “Power/Ready” LED blinks.

When the Router has completely booted up, the Power/Ready LED becomes a

SOLID light, indicating the Router is ready for use.

OFF Router is OFF

Blinking Green Router is Booting Up

Solid Green Router is Ready

2. Wireless Network LED

OFF Wireless Network is OFF

Green Wireless Network is Ready

Blinking Indicates Wireless Activity

3. LAN Port-Status LEDs

These LEDs are labeled 1–4 and correspond to the numbered ports on the rear of

the Router. When a computer is properly connected to one of the LAN ports on

the rear of the Router, the LED will light. GREEN means a 10Base-T device is

connected, AMBER means a 100Base-Tx device is connected. When information is

being sent over the port, the LED blinks rapidly.

OFF No Device is Linked to the Port

Green 10Base-T Device Connected

Orange 100Base-Tx Device Connected

Blinking (Orange or Green) Port Activity

KNOWING YOUR ROUTER

4. WAN Status LED

This LED lights in GREEN to indicate that your modem is connected properly to

the Router. It blinks rapidly when information is being sent over the port

between the Router and the modem.

OFF No WAN Link

Solid Green Good WAN Link

Blinking Green WAN Activity

5. Connected LED

This unique LED shows you when the Router is connected to the Internet. When

the light is OFF, the Router is NOT connected to the Internet. When the light is

blinking, the Router is attempting to connect to the Internet. When the light is

solid GREEN, the Router is connected to the Internet. When using the

“Disconnect after x minutes” feature, this LED becomes extremely useful in

monitoring the status of your Router’s connection.

OFF Router is not Connected to the Internet

Blinking Green Router is Attempting to Connect to the Internet

Solid Green Router is Connected to the Internet

(1) (2) (3) (4) (5)

KNOWING YOUR ROUTER

6. Power Jack

Connect the included 5V DC power supply to this jack.

7. LAN Ports

The LAN ports are RJ45, 10/100 auto-negotiation, auto-uplinking ports for

standard UTP category 5 or 6 Ethernet cable. The ports are labeled 1 through 4.

These ports correspond to the numbered LEDs on the front of the Router.

8. Internet/WAN Port

This port is for connection to your cable or DSL modem. Use the cable that was

provided with the modem to connect the modem to this port. Use of a cable

other than the cable supplied with the cable modem may not work properly.

(6) (7) (8) (9)
