Belkin AC 1200 Manuel utilisateur

User Manual

F9J1106v4 8820ed01140uk_RevB00

WIRELESS AC+ GIGAbIt modEm RoutER

TABLE OF CONTENTS

Getting Started ...........................................1

What’s in the Box.............................................1

Initial Setup..................................................1

Connect Your Wireless Devices................................21

Adding USB Devices.........................................23

Optional Software ...........................................26

Getting to Know Your Router ..............................34

Modem Router ..............................................34

Front Panel .................................................34

Back Panel .................................................35

Technical Details ........................................36

Technical Features ..........................................36

System Requirements........................................37

USING YOUR ROUTER....................................38

Auto Update on Your Belkin Router.............................38

Updating the Router’s Firmware via the Web Interface ............39

Resetting the Router .........................................43

Restoring Your Router to Factory Defaults.......................43

Restoring the Router to Default Settings Using the Web Interface...44

Troubleshooting, Support, and Warranty ...................47

Troubleshooting.............................................47

Technical Support ...........................................56

Belkin International, Inc., Limited 2-Year Product Warranty.........57

Regulatory Information ...................................58

Declaration of Conformity with electromagnetic compatibility and

electromagnetic interference ..................................58

Europe – EU Declaration of Conformity .........................59

General Safety Information: ...................................59

What’s in the Box

AC1200 DB Wireless AC+ Gigabit Router

Ethernet cable (attached to router)

Power supply (attached to router)

Network information card (attached to router)

Quick Setup Guide

Initial Setup

Where to Place Your Router

For the best results, place the Router next to your modem in

an open location away from large metal objects and magnets

such as those found in speakers. Raising the Router above

floor level can improve the strength of your wireless signal.

GETTING STARTED

Connect Power modem to ADSL jack using

suppliedtelephone/RJ11 cable (note: filter may be

required), then plug power modem into mains socket

http://router

Connect to Wi-Fi® network

GETTING STARTED

Type http://router to finish setup

or try http://192.168.2.1

GETTING STARTED

Connect to Your Modem Router

Retrieve the network ID card from the foot of

your new Belkin Modem Router.

Can’t find the card? The default network name and password

are also printed on the foot of the Modem Router.

Use your computer, tablet, or smartphone to connect to

the wireless network shown on the network ID card.

For information on how to connect your wireless devices, please

see the “Connect Your Wireless Devices” section on page 21.

When requested, please enter the password

(security key) provided on the card.

When your device has connected to the Modem

Router, use a browser to visit http://Modem Router/.

The Modem Router homepage will appear.

GETTING STARTED

If the page does not load, then try visiting http://192.168.2.1 to see the

Modem Router homepage.

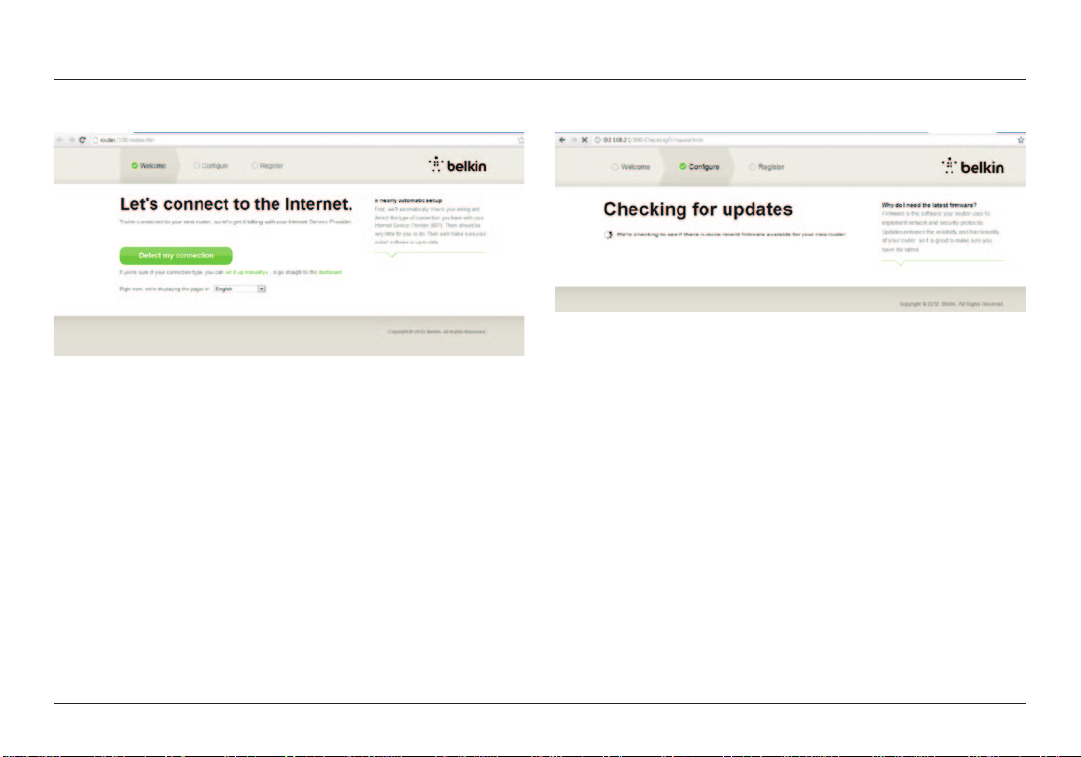

Click the “Detect my connection” button in green. (If you would rather

set up the Modem Router manually, click the “set it up manually” link

and proceed to page 11.)

After several moments, your Modem Router should automatically de-

tect your Internet connection and restart. This can take anywhere from

30 seconds to 3 minutes depending on your connection type.

If your Modem Router is unable to establish an Internet connection

on its own, you may be asked to restart your modem or provide a

username and password if your connection requires one. Follow the

on-screen instructions provided.

GETTING STARTED

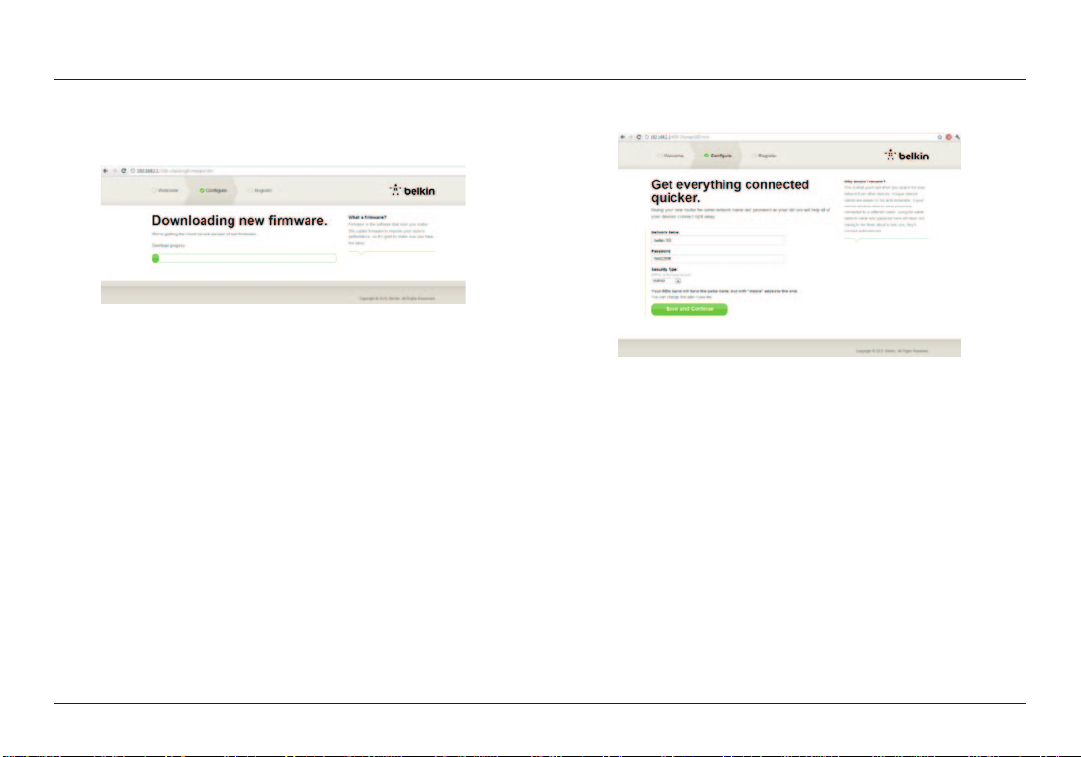

Once your Modem Router is online, it will determine if there is a

firmware update available and offer to install it. Please allow up to 5

minutes for the firmware to update.

If there are no updates available, then setup will proceed.

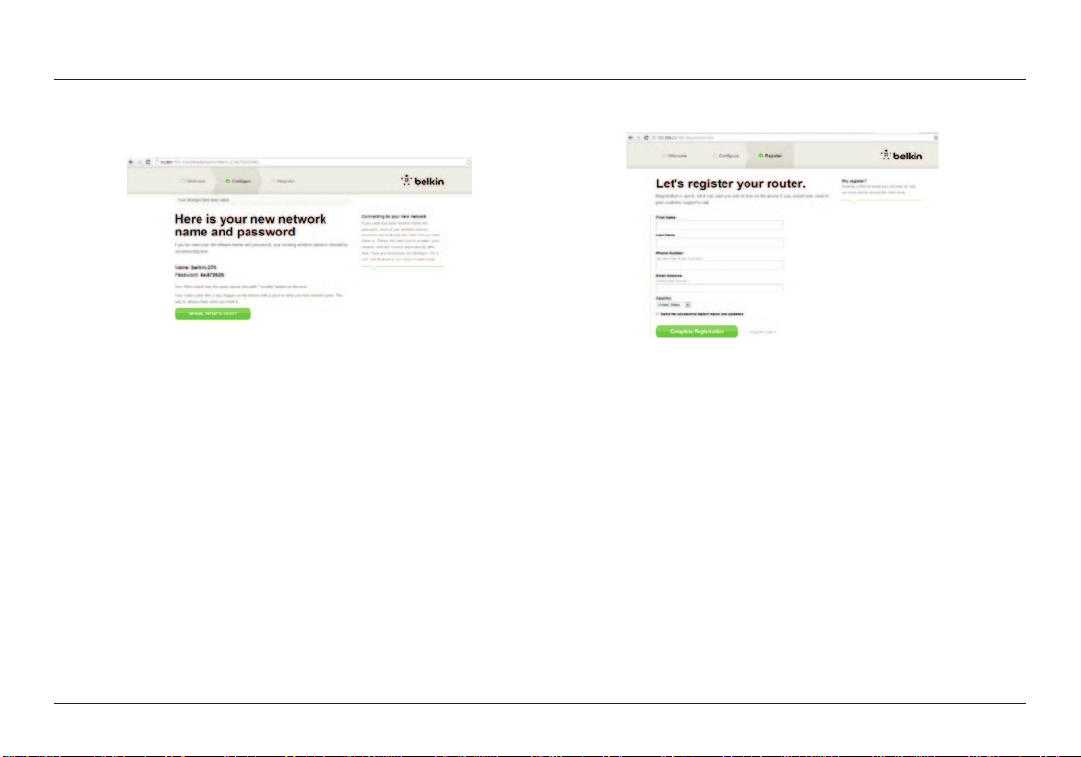

At the next screen you will be invited to change your network name

and password. Re-using your previous network name (SSID) and

password makes connecting your existing devices to the new Modem

Router much easier.

GETTING STARTED

If you decide to change these settings, then enter the new values and

click “Save and Continue.” (Note: The password must be at least 8

characters long.)

If you changed your network name and password, make note of it on

the service card located on the foot of the Modem Router. You will then

have to connect to the new network.

Please take this opportunity to register your Modem Router. This will

help technical support if there is a problem with your Modem Router.

Simply complete each of the required fields and click “Complete

Registration.” If you don’t want to register right now, click “Register

Later” to proceed.

GETTING STARTED

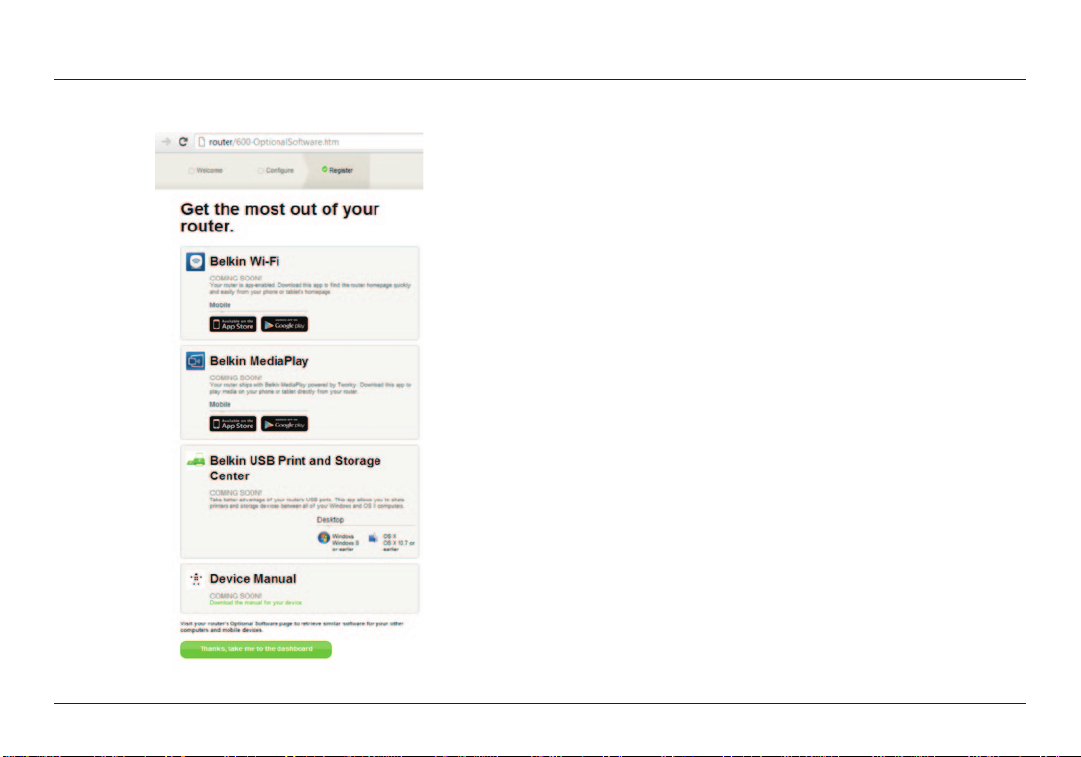

At the next screen you can download optional software that was

bundled with your Modem Router.

This screen shows you optional software that is available for your

Modem Router, such as the USB software to allow you to print through

the Modem Router’s USB port. If you wish to download and install any

of these software programs, simply click on the button appropriate for

your device.
