Belkin F5L009UK Manuel utilisateur

2 Knowing your Network USB Hub

USB-port

Power LED

Ethernet-port

Reset button

USB-port

Knowing your Network USB Hub

Power Port

Preparing for Setup 3

1.1 Plug the AC adapter into the Network USB Hub.

1.2 Check the Power LED. It should be illuminated.

1.3 Plug the Ethernet cable into the Network USB Hub.

1.4 Plug the other end of the Ethernet cable into your network router.

NOTE: If you are connected to a network router that uses Dynamic

Host Configuration Protocol (DHCP), which most networks do,

you do not need to set up your Network USB Hub.

1. Preparing for Setup

2.1 Insert the setup CD into your CD-ROM drive.

You will see the Network USB

Hub Setup CD screen. Click

“Install Control Center”.

Install Control Center

4 Installing the Software

2. Installing the Software

IMPORTANT: If you do not install the software on your

PC, the Network USB Hub will not work.

2.2 You will see the “Welcome” screen.

Click “Next”.

2.3 Choose a destination folder in which to

install the software, or simply click “Next”.

Installing the Software 5

2.4 Choose the program group for the

software, or simply click “Next”.

2.5 Start the installation. Click “Start”.

Start

Finish

6 Installing the Software

2.6 Installation is complete. Click “Finish”

Setting and Configuring the Connection Settings

for Automatic Connection to a Device

You can connect to a device by double-clicking the device on the list,

or by selecting it on the list, and then clicking “Connect”, on the bottom

of the screen. To disconnect a device, just double-click it on the list, or

select it and then click “Disconnect”, on the bottom of the screen

WARNING: If there is more than one computer on the network sharing the

Network USB Hub, it is not recommended to automatically connect to a

device because only one computer can connect to a device at a time.

You can set your computer to automatically connect to a device on the Network USB Hub.

NOTE: This only works if the device is not already connected to

another computer.

Connected to this computer

– Currently being used

Unavailable – Removed

from the device

Not Connected – Available

Not Connected – Not available

Using the Network USB Hub Control Center 7

3. Using the Network USB Hub Control Center

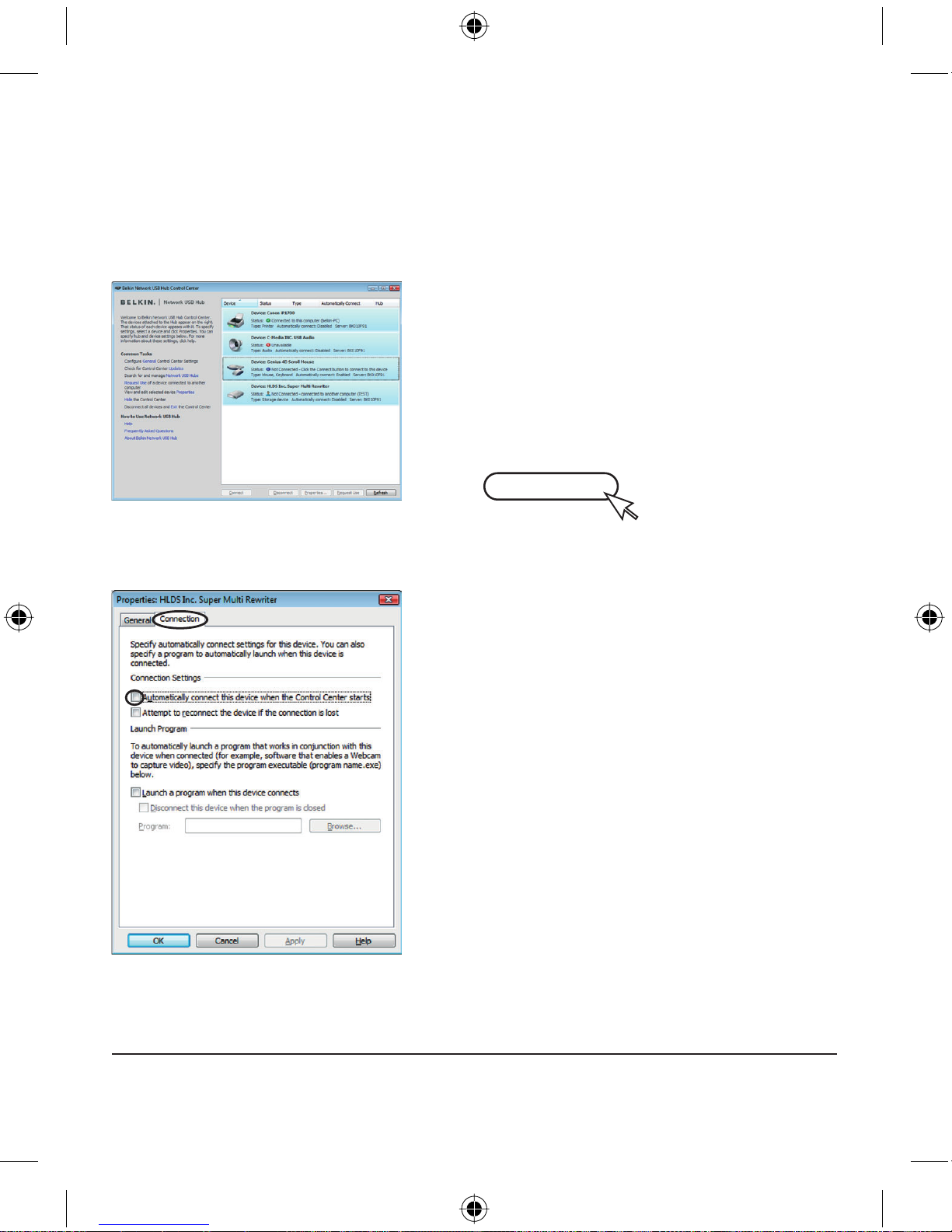

3.1 Select a device to which you want to

automatically connect. Click “Properties”.

8 Using the Network USB Hub Control Center

3.2 Click to select the “Connection” tab.

Click “Automatically connect this

device when the Control Center starts”.

The next time the software starts, the

computer will automatically connect

to the device for your convenience.

Properties

4.1 Install the printer software and

driver first.

4.2 Select the printer from the list and

click “Connect”. It will install the

printer driver for the first time.

4.3 Select the printer and click “Properties”.

4.4 If you want to share a printer among

computers on the network, select “This

is a shared printer, automatically connect

and disconnect only when printing”.

4.5 Select the printer from the printer list.

4.6 Click “Apply” to apply the changes made.

4.7 This setting has to be set on all the

computers on the network to enable

the sharing feature correctly.

Configuring Printer Sharing 9

4. Conﬁguring Printer Sharing

10 Appendix – Operation/Compatibility Notes

Certain USB devices may not be compatible with the Hub.

Since the Network USB Hub uses virtual network technology, some USB

devices (e.g., TV tuners, webcams, USB audio devices) may not be compatible

with it. You may see a warning message like the one illustrated below.

WLAN connection

The Network USB Hub’s virtual network technology may not work properly if the WLAN

connection is interrupted. If you have problems with the Network USB Hub or connected

USB devices, please make sure that your WLAN connection is strong and stable.

The Network USB Hub can support up to 15 connections

Virtual network technology limits the number of devices

the Hub can support to 16 total connections.

(IMPORTANT: One connection does not equal one device; some devices

involve more than one connection. For instance, a multifunction

printer is typically comprised of four connections.)

Appendix – Operation/Compatibility Notes
