Belkin AC1000 DB Manuel utilisateur
User Manual
F9J1104 V1 8820nt01137uk Rev. A00
WiFi® DUALBAND AC+ MODEM ROUTER
AC 1000 DB
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESPAÑOL
ITALIANO
PORTUGUÊS
POLSKI
TÜRKÇE
TABLE OF CONTENTS
Getting Started ........................................... 1
What’s in the Box ............................................. 1
Initial Setup.................................................. 1
How to Set It Up ............................................. 2
Run the Installer Software ..................................... 4
Advanced Tools & Settings..................................... 7
The Belkin Router Manager .................................... 8
Adding Computers to Your Network ............................. 9
Connect Your Wireless Devices................................ 17
Adding USB Devices ......................................... 20
..............................30
Router .....................................................30
Front Panel .................................................30
Back Panel ................................................. 31
.............................. 32
Power Modem .............................................. 32
Technical Details ........................................33
Technical Features ..........................................33
System Requirements........................................ 34
....................................35
Enabling Auto Update on Your Belkin Router.....................35
Updating Your Router via Your System Tray (Windows) or Menu Bar
(Mac) ...................................................... 37
Updating the Router’s Firmware via the Web Interface ............38
Resetting the Router ......................................... 42
Restoring Your Router to Factory Defaults....................... 42
Restoring the Router to Default Settings Using the Web Interface ...43
Resetting the Power Modem .................................. 46
Restoring Your Power Modem to Factory Defaults ................ 46
................... 47
Troubleshooting ............................................. 47
Technical Support ...........................................56
Belkin International, Inc., Limited 2-Year Product Warranty......... 57
.........................60
Declaration of Conformity with electromagnetic compatibility and
electromagnetic interference ..................................60
Europe – EU Declaration of Conformity ......................... 61
General Safety Information: ................................... 61
1
What’s in the Box
AC1000 DB Wi-Fi Dual-Band AC+ Modem Router
Power Modem --- Combined power supply and ADSL Modem with
built-in bundled power and Ethernet cable (attached to router)
RJ11 telephone cable (attached to router)
Network information card (attached to router)
Belkin Setup CD with User Manual
Quick Setup Guide
Initial Setup
Where to Place Your Modem Router
For the best results, place the Router next to the master phone
socket (the first one where the phone line comes into the dwelling
from outside) in an open location away from large metal objects
and magnets such as those found in speakers. Raising the Router
above floor level can improve the strength of your wireless signal.
GETTING STARTED
2
GETTING STARTED
How to Set It Up
Connect Your AC1000 DB Modem Router
1. Take the Router out of the box before removing
the Power Modem.
1
2
2. Plug the Power Modem into a socket
near your ADSL telephone line.
3
GETTING STARTED
3. Unravel the bundle and connect the
ADSL telephone cable. (ADSL filter may be required)
4. Insert CD to run the installer software.
If CD does not launch automatically,
find the setup program and open it.
The setup software will configure your
Internet connection and let you know
when things are working
3
4
4
GETTING STARTED
1. Click the Setup icon on the CD menu.
Run the Installer Software
If you have DSL, you may need a
username and password from your Internet provider
5
GETTING STARTED
2. After a brief installation, the setup software will ask you for the
network name and password from the network information card that
is stored in the foot of your new Belkin Router. Store the card under
the base of your Router for future reference.
6
GETTING STARTED
3. A progress screen will appear while additional software is
installed. This may take a few minutes to complete. Once
finished, a “Success” message will appear indicating that you
are connected to the Internet via your new Belkin Router.
During setup you may be asked for additional information.
You may need to enter a username and password provided by your ISP.
This username and password is likely to be found on materials that
came from your ISP when you signed up for service. If necessary, you
may need to contact your ISP to retrieve your username and password.
If you have a static IP address, you may need to enter
additional information also provided by your ISP.
If your computer doesn’t have a wireless adapter, or the setup
software is unable to control it, you may be asked to connect
your computer to the Router with a network cable.
7
GETTING STARTED
Advanced Tools & Settings
After the initial setup is complete, you have the option to change settings
like your network name, security type, and password. To make these
changes and others, click on the Advanced Tools icon at the CD Setup menu
and select one of the following settings that you would like to change:
Network Name & Security – Personalize your network name
(SSID), password, and strength of wireless security.
Internet Service Provider & Login Settings – Have you moved or
changed Internet Service Providers? If you’d like to change these settings
without running through the setup process again, this is the place.
8
GETTING STARTED
The Belkin Router Manager
The Belkin Router Manager appears in your system tray (Windows) or
menu bar (Mac). Its icon indicates the current status of your Router and
also allows you to access your Router’s settings to make changes. It also
provides quick access to software that came bundled with your Router.

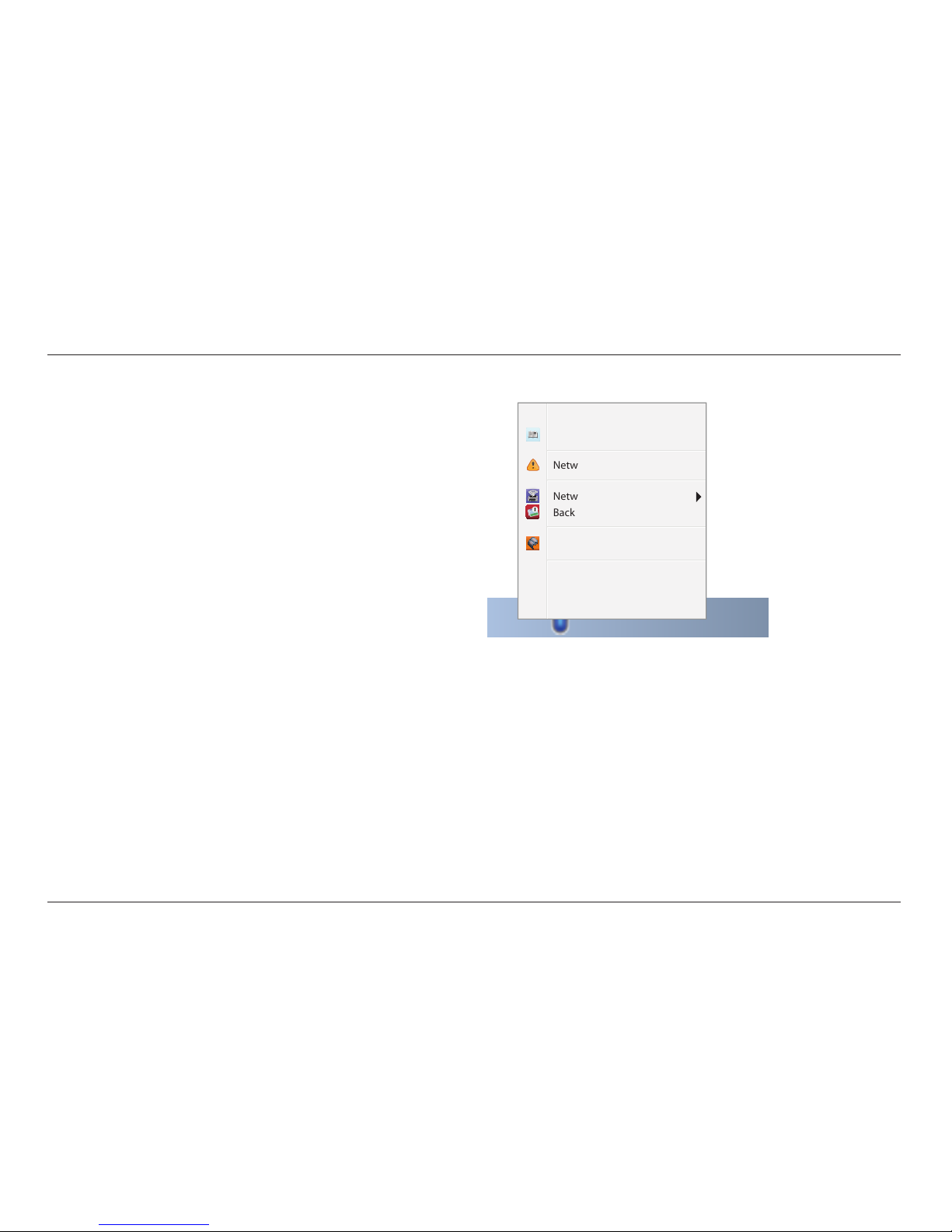

To access the Router settings, click on the icon
and select from the menu that appears.
The status of your Router is shown by the Belkin Router Manager
icon, which closely mimics the light on the front of the Router.
Blue: You are connected to your Belkin Router
and it is connected to the Internet.
Amber: You are connected to your Belkin Router,
but it is not connected to the Internet.
Router Settings
User Manual
Network problem detected…
Networked USB Devices
Backup your les and folders
Video Mover
Check for Updates
Options
Exit
