P73476 F5U208

USB VideoBus II™

User Guide

F5U208 user's manual 12/12/00 11:21 AM Page 1

Capture video and sound on your computer via the USB port!

Thank you for purchasing the Belkin Components

VideoBus II™ Adapter. With the VideoBus II, you can connect

your TV, VCR, or camcorder to your computer and capture

images, or even make full-motion movies! The VideoBus II

will accept any NTSC composite, PAL video input, or SECAM

video input and low level audio signal and convert it into a

PC-compatible digital video image and audio format. The

Belkin Components VideoBus II is the ideal device to bring

video and still images into your computer from various

standard video sources via the USB port. The VideoBus II

enables unparalleled throughput of up to 30 frames per

second for CIF size color images by using Belkin’s advanced

compression technology. This gives you superior live video

performance while using minimal USB and CPU resources,

leaving them available for other applications. Live audio and

video captured using the VideoBus II, originating from a

video camera, camcorder, VCR, or TV tuner, fully complies

with Video for Windows®standards and is compatible with

most video and imaging applications for Microsoft Win98®,

Win98®SE, Win2000®, and Millennium Edition (Me). Video

clips can be incorporated into programs such as Microsoft

PowerPoint. You can also stay in touch using software

packages such as Microsoft NetMeeting to hold video

conferencing sessions with your relatives, friends, customers,

or co-workers across the continent or across the ocean. The

VideoBus II also gives you the ability to create video e-mail

messages. Best yet, you can be a creative webmaster and

incorporate still images or video clips of family events and

business meetings that you captured on your camcorder onto

your website. Installation is a true Plug-and-Play experience.

Plug the VideoBus II cable into your PC and attach your

Introduction

F5U208 user's manual 12/12/00 11:21 AM Page 2

Features

Introduction (continued)

camcorder or any other video source to the VideoBus II yellow

RCA input jack and left and right audio jacks. Now you are ready

to begin capturing live video or creating amazing images!

• Make your own movies using Windows®Movie Maker,

or most any video imaging application.

• Includes award-winning video and photo-editing

software from MGI®.

• Capture audio and video in the fastest and most

convenient way.

• Connect your camcorder, VCR, digital camera, or any

standard video device directly to your PC and save the

playback in still-image format or full-motion video.

• E-mail pictures or video clips to friends, relatives, and

business associates.

• Set up your own live web cam with included

TeVeo™ software.

• Video conference around the world using your

camcorder.

• Easy-to-use Plug-and-Play operation.

• Easy-to-install USB device doesn’t require opening

your computer.

F5U208 user's manual 12/12/00 11:21 AM Page 2

System Requirements

Specifications

• Full-motion video–30 fps at CIF resolution video capture

via USB.

• Motion video up to 15 fps at VGA resolution (progressive

video source) video capture via USB.

• VGA (640 X 80) resolution still-image capture.

• Audio input up to Stereo 16KHz/ 16-bit audio capture

via USB.

• Software-controlled digital PAN and ZOOM.

• Any Standard NTSC/PAL/SECAM video source is supported.

• Any Standard low-level (RCA) audio source is supported.

• Easy plug-and-play operation.

• Fully compatible with Microsoft DirectShow®.

• Compatible with popular video applications for Windows®.

• Compatible with TWAIN applications for still image

capture.

• Compatible with Microsoft Windows®98, 98 SE, 2000, and

Windows®Me.

Minimum Recommended System

• 350 MHz Pentium II (or equivalent)

• 1 Free USB Port

• 64 MB of RAM

• 45 MB of free hard drive space for program

• 3 GB of free hard drive space for video editing (Ultra

DMA, SCSI-2 sub-system recommended)

• Video card with 4 MB of video RAM, minimum 800 x

600 resolution at 16-bit hi-color (65,000 colors); Direct

Draw Drivers recommended

• 16-bit stereo sound card and speakers for audio playback

• CD-ROM or DVD-ROM drive

Operating System Requirements

• Windows®98

• Windows®98 SE

• Windows®2000

• Windows®Me

F5U208 user's manual 12/12/00 11:21 AM Page 4

Software Installation

Getting Started

Please read this manual thoroughly before starting the

installation of the VideoBus II.

The recommended sequence for setting up the VideoBus II and

the software is as follows:

1. Install the MGI software packages.

2. Install the VideoBus II hardware.

3. Connect the VideoBus II to your camcorder, VCR, etc.

4. Begin using the VideoBus II.

Make sure to close all Windows programs before installing

the video and editing software. DO NOT PLUG IN THE

VideoBus II AT THIS POINT.

Open your CD-ROM drive and place the VideoBus II CD on

the tray. Close the tray by pressing the eject button. The

following screen will appear automatically. If you want to quit

the installation, click on EXIT.

If this screen does not appear, click the “Start” button found

on the bottom left corner of your screen. Scroll up and click on

"Run". In the "Run" window, type "d:\autorun.exe" and then

click "OK", where "d:" is the drive letter of your CD-ROM drive.

1. Once the first screen appears, select the software that

you wish to install.

F5U208 user's manual 12/12/00 11:21 AM Page 6

Hardware Installation

Windows

Software Installation (continued)

IMPORTANT: Browse through this manual and find the section

that covers the hardware installation for the operating system

that you are using, and follow the installation instructions for

your operating system.

F5U208 VideoBus II Hardware Installation

Instructions for Windows®Me

1. Plug the USB VideoBus II into a free USB port on the

computer or a hub.

2. A message box will appear telling you that the system is

updating the hardware information database.

3. The Add New Hardware Wizard will then appear, prompting

the user that Windows has found new hardware, which is a

"USB Device". Leave the line "Automatic search for a better

driver selected (Recommended)" selected. Click “Next”.

The Manual for VideoWave III SE is located on the CD-ROM in

the following directory: d:\mgi\vw\docs where “d:” is the drive

letter of your CD-ROM drive.

The manuals are saved as PDF files. If you do not have Adobe

Acrobat Reader installed on your computer, you must install the

viewer. Click the “Start” button found on the bottom left corner

of your screen. Scroll up and click on "Run". In the "Run"

window, type "d:\mgi\vw\docs\pdf_view" and then click "OK",

where "d:" is the drive letter of your CD-ROM drive. Double-

click on the folder that contains the language that you prefer.

Next, double-click on the self-extracting file in the folder. This

will set up Acrobat Reader for you.

F5U208 user's manual 12/12/00 11:21 AM Page 8

Hardware Installation (continued)

Windows

Hardware Installation (continued)

4. Windows will automatically search for the driver on the

floppy disk.

5. After Windows has found the video driver, you will get a

prompt that Windows has finished installing the new

hardware device: "Belkin USB Video Cable". Click “Finish”.

6. Steps 3 and 4 will be repeated to install the video driver.

7. After Windows has found the audio driver, you will be

prompted that Windows has finished installing the new

hardware device: "Belkin USB Video Cable, Audio".

Click “Finish”.

8. The installation is now complete. To capture video and

audio, follow the tutorial on your video editing program

(e.g., Windows Movie Maker or MGI VideoWave III).

F5U208 user's manual 12/12/00 11:21 AM Page 10

Windows

Hardware Installation (continued)Hardware Installation (continued)

F5U208 VideoBus II Hardware Installation

Instructions for Windows®98

1. Connect the Belkin USB VideoBus II into an available USB

port on the computer.

2. Windows will detect a "USB Composite Device". Click

“Next”.

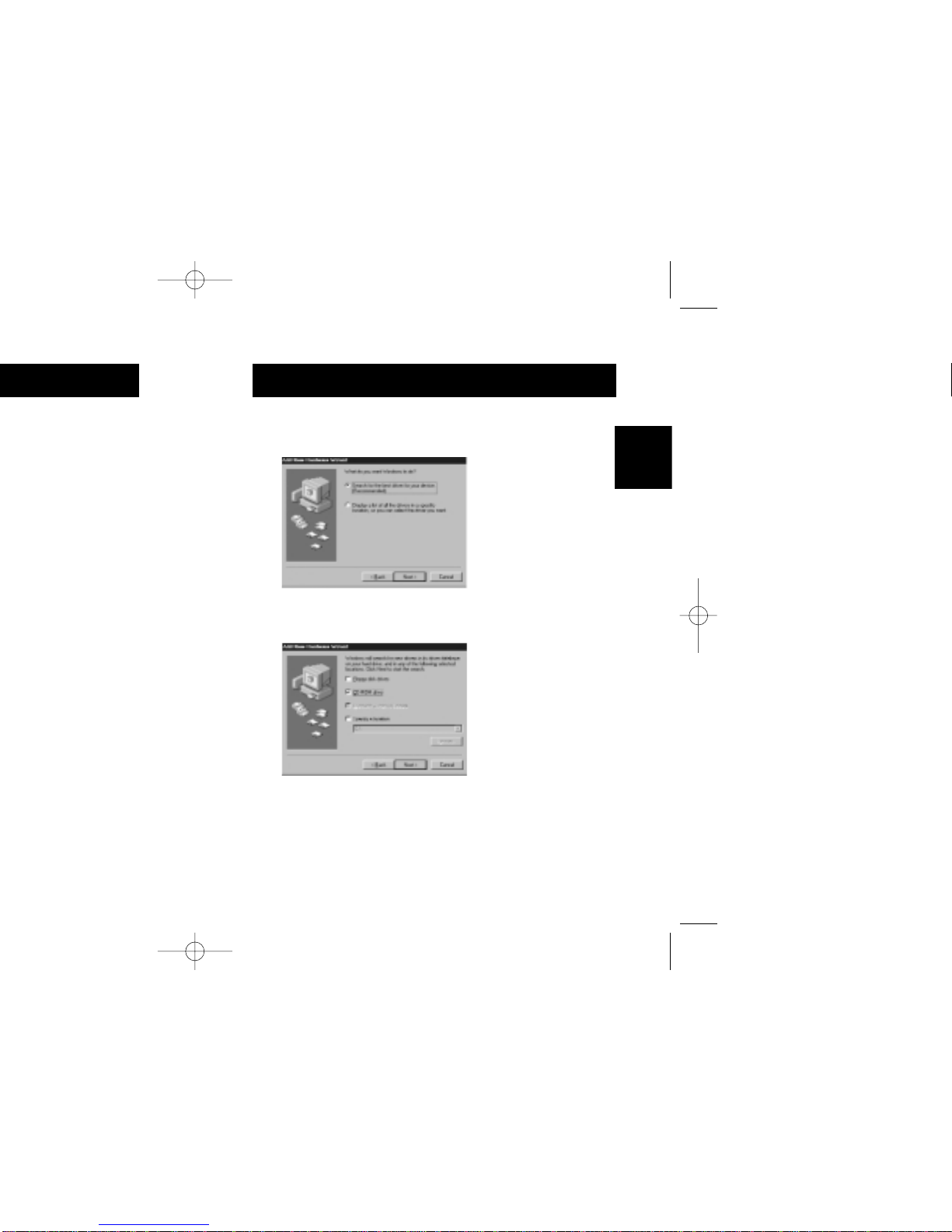

3. On the next screen that appears, select "Search for the

best driver for your device (Recommended)" and click “Next”.

4. The following screen that appears will ask you where

to search for the drivers. Leave all boxes unchecked

and click “Next”.

5. Windows will find the built-in drivers for "USB Composite

Device". Click “Next”.

F5U208 user's manual 12/12/00 11:21 AM Page 12

Hardware Installation (continued)

Windows

Hardware Installation (continued)

6. After Windows copies the necessary files, installation of

the "USB Composite Device" is complete. Click “Finish”.

7. Next, Windows will detect the Belkin VideoBus II Audio

Capture as "Unknown Device". Click “Next”.

8. Select "Search for the best driver for your device

(Recommended)" and click “Next”.

9. Insert the Belkin VideoBus II Driver CD into the CD-ROM

drive. Check the "CD-ROM drive" and click “Next”.

F5U208 user's manual 12/12/00 11:21 AM Page 14

Hardware Installation (continued)

Windows

Hardware Installation (continued)

10. Windows will find the drivers for the "Belkin USB

VideoBus II, Audio". Click “Next”.

11. Windows will copy the necessary files. At this time,

Windows may ask for the Windows 98 SE CD. If asked,

insert the Windows 98 SE CD into the CD-ROM drive and

follow the directions on the screen.

12. After the files are copied, the installation of the VideoBus II

Audio Capture drivers is finished. Click “Finish”.

13. Next, Windows will detect the Belkin VideoBus II Audio

Capture as "Composite USB Device". Click “Next”.

14. Select "Search for the best driver for your device

(Recommended)" and click “Next”.

F5U208 user's manual 12/12/00 11:21 AM Page 16
