BELGACOM Forum 700 Manuel utilisateur

First

Belgacom IDS 210

Belgacom ForumTM 700

User guide

FR-2-couverture.fm Page 1 Lundi, 11. août 2003 5:05 17

All manuals and user guides at all-guides.com

all-guides.com

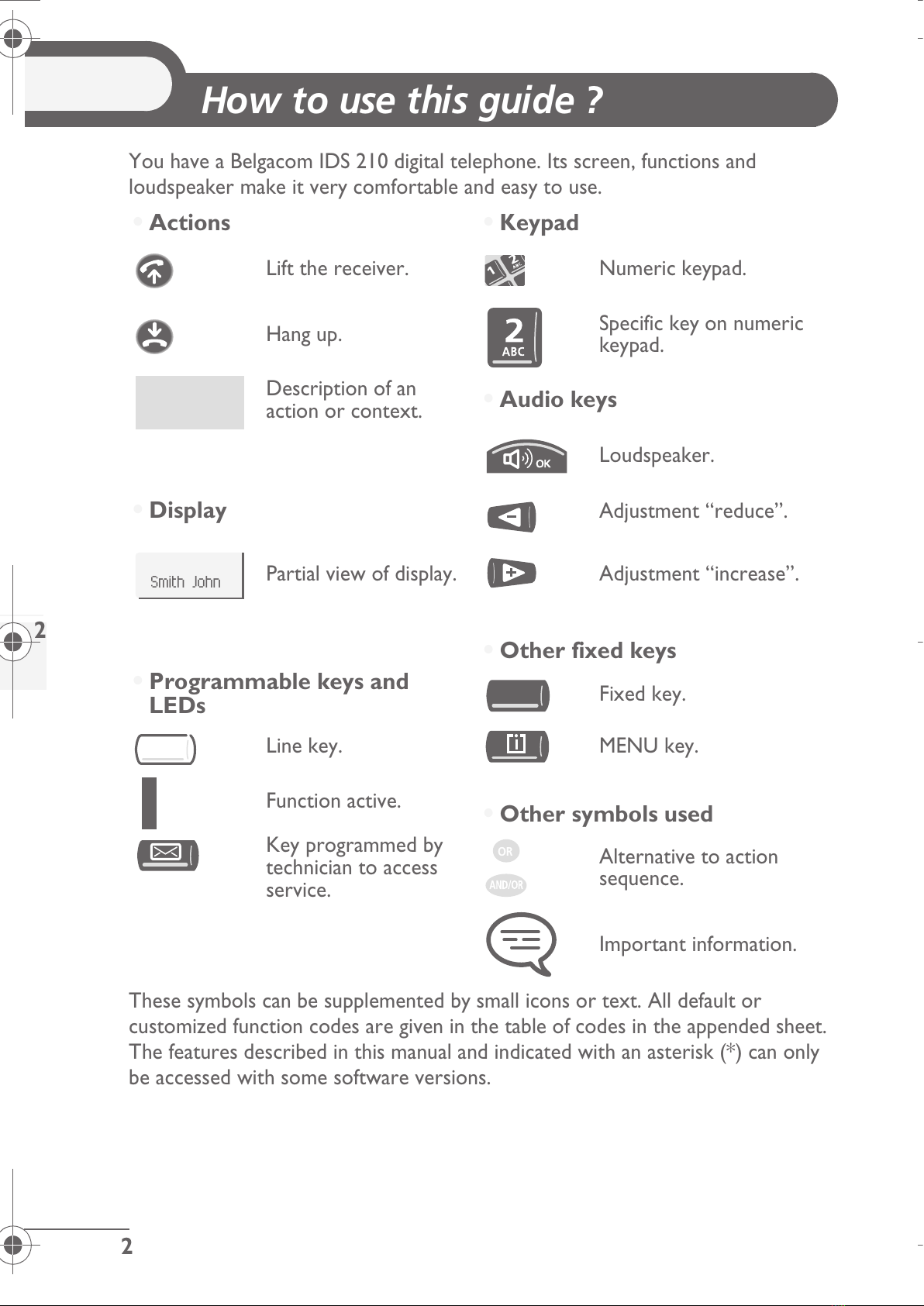

How to use this guide ?

How

You have a BelgacomIDS 210 digital telephone. Its screen, functions and

loudspeaker make it very comfortable and easy to use.

These symbols can be supplemented by small icons or text. All default or

customized function codes are given in the table of codes in the appended sheet.

The features described in this manual and indicated with an asterisk (*) can only

be accessed with some software versions.

•Actions •Keypad

Lift the receiver. Numeric keypad.

Hang up. Specific key on numeric

keypad.

Description of an

action or context. •Audio keys

Loudspeaker.

•Display Adjustment “reduce”.

Partial view of display. Adjustment “increase”.

•Other fixed keys

•Programmable keys and

LEDs Fixed key.

Line key. MENU key.

Function active. •Other symbols used

Key programmed by

technician to access

service.

Alternative to action

sequence.

Important information.

Smith John

AEAGR000-005

3eh21003.fm Page 2 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

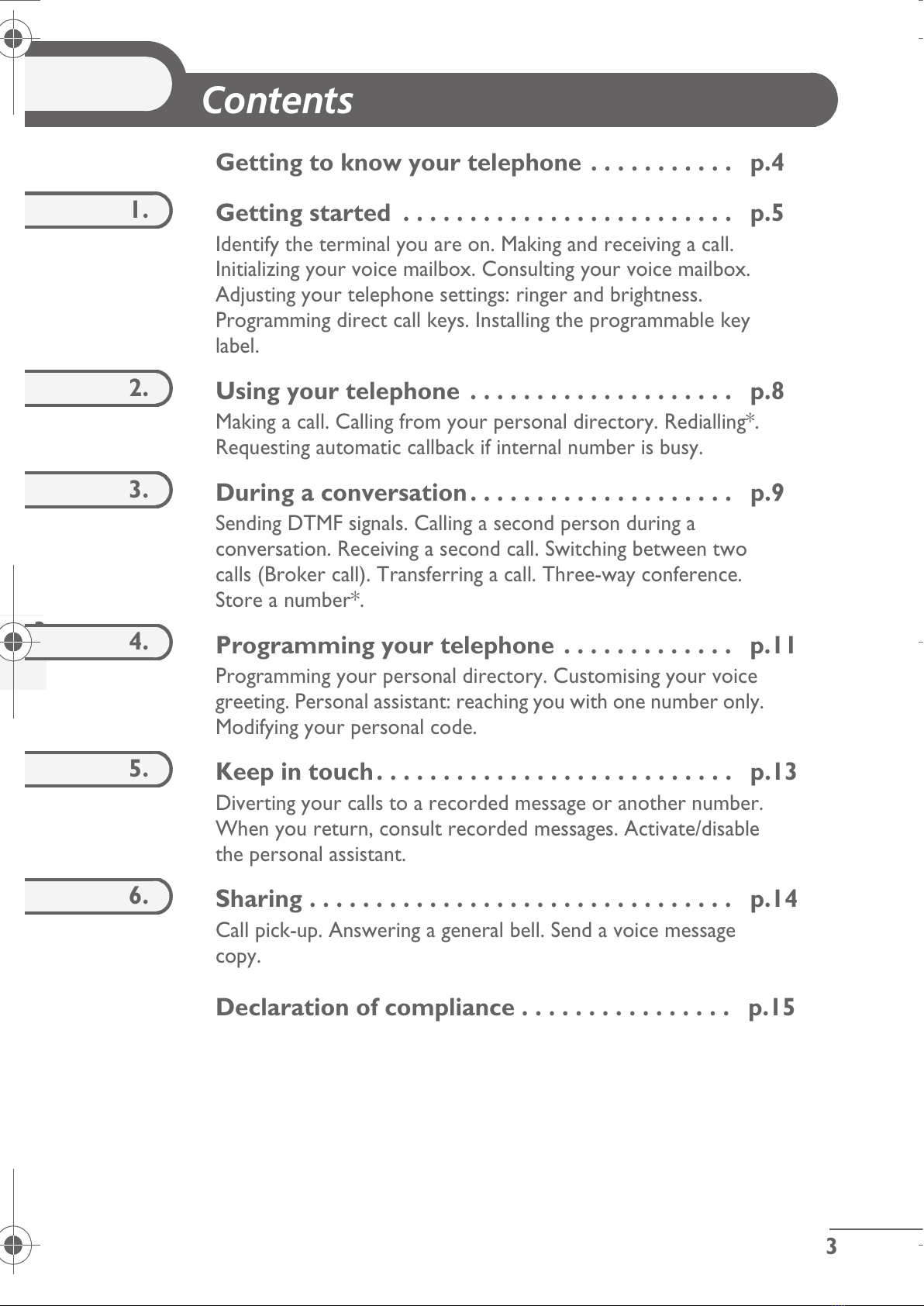

Contents

Toc

Getting to know your telephone . . . . . . . . . . . p.4

1. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . p.5

Identify the terminal you are on. Making and receiving a call.

Initializing your voice mailbox. Consulting your voice mailbox.

Adjusting your telephone settings: ringer and brightness.

Programming direct call keys. Installing the programmable key

label.

2. Using your telephone . . . . . . . . . . . . . . . . . . . . p.8

Making a call. Calling from your personal directory. Redialling*.

Requesting automatic callback if internal number is busy.

3. During a conversation . . . . . . . . . . . . . . . . . . . . p.9

Sending DTMF signals. Calling a second person during a

conversation. Receiving a second call. Switching between two

calls (Broker call). Transferring a call. Three-way conference.

Store a number*.

4. Programming your telephone . . . . . . . . . . . . . p.11

Programming your personal directory. Customising your voice

greeting. Personal assistant: reaching you with one number only.

Modifying your personal code.

5. Keep in touch . . . . . . . . . . . . . . . . . . . . . . . . . . . p.13

Diverting your calls to a recorded message or another number.

When you return, consult recorded messages. Activate/disable

the personal assistant.

6. Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p.14

Call pick-up. Answering a general bell. Send a voice message

copy.

Declaration of compliance . . . . . . . . . . . . . . . . p.15

generated

3eh21003.fm Page 3 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

Getting to know your telephone

Telephone

Audio keys

Loudspeaker:

to share a conversation

to reduce loudspeaker or

receiver volume

to increase loudspeaker or

receiver volume

Programmable keys and LEDs

The keys are divided into line keys,

corresponding to the line LEDs, and function

keys.

Line LEDs:

Call in progress.

Incoming call (flashing).

Callback (flashing).

Call on hold (flashing).

Function LEDs:

Function active.

Some function keys are

preprogrammed:

Divert your calls to another terminal.

Access the various mail services.

Access your personal directory.

Automatically redial the last number

dialled.

Display new page.

Transfer call to another terminal.

Light

indicating voice messages received or

callback requests.

Hang-up key

To terminate a call or

programming.

Display

Comprises several pages giving

information on the current call.

AEAGR000-010

3eh21003.fm Page 4 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

Getting started

Other

1.1 Identify the terminal you are on

1.2 Making and receiving a call

•To make a call:

•To answer:

1.3 Initializing your voice mailbox

Press this key twice.

lift the

receiver

for an

outside line

dial the number for

your call

lift the

receiver

light flashes

enter your personal code then record

your name according to voice guide

instructions

Your personal code is used to access your oice mailbox

and to lock your telephone.

AEAGR010-010

AEAGR010-020

AEAGR010-030

3eh21003.fm Page 5 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

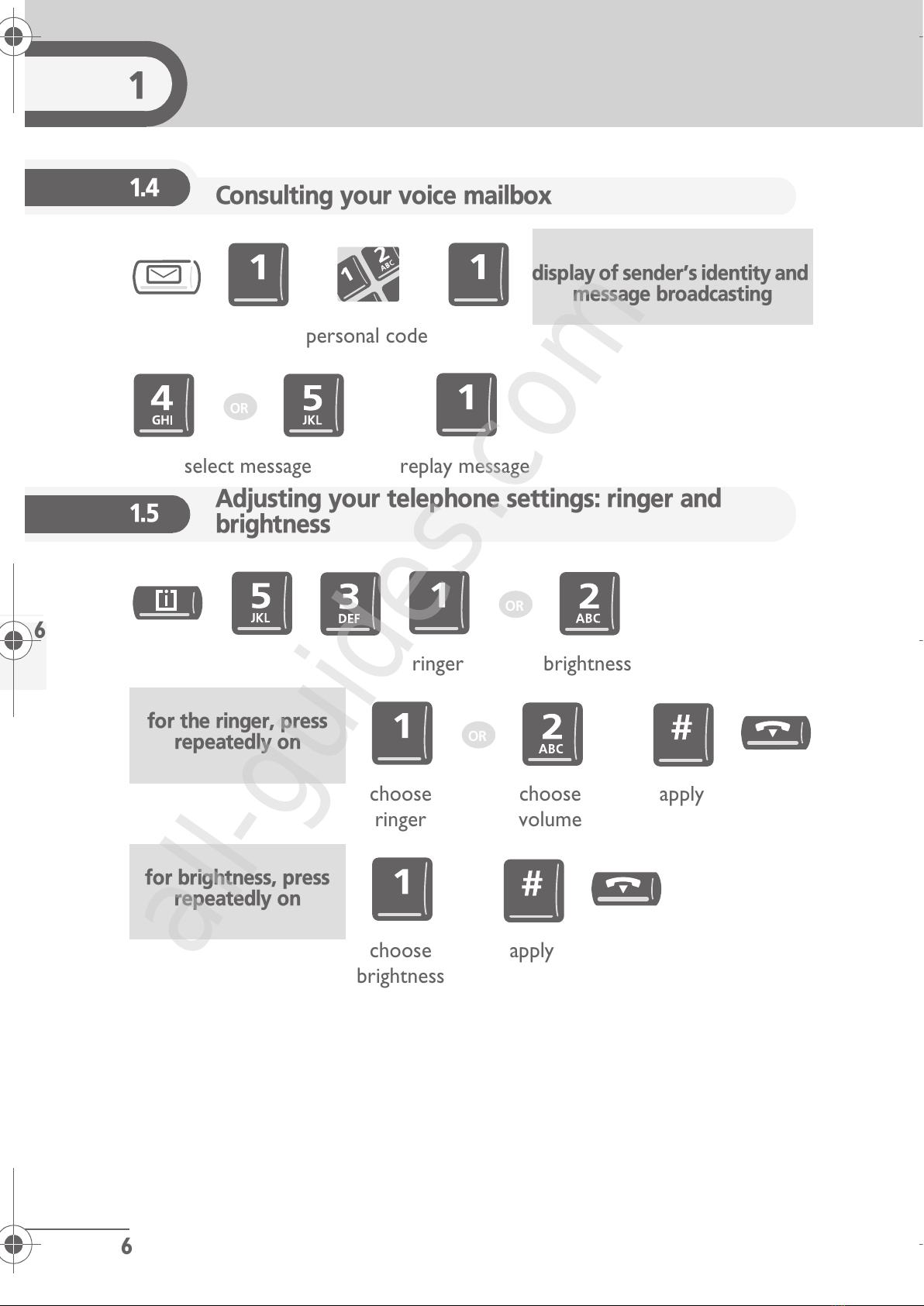

1.4 onsulting your voice mailbox

1.5 Adjusting your telephone settings: ringer and

brightness

display of sender’s identity and

message broadcasting

personal code

select message replay message

ringer brightness

for the ringer, press

repeatedly on

choose

ringer

choose

volume

apply

for brightness, press

repeatedly on

choose

brightness

apply

AEAGR010-040

AEAGR010-050

3eh21003.fm Page 6 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

all-guides.com

Getting started

Get

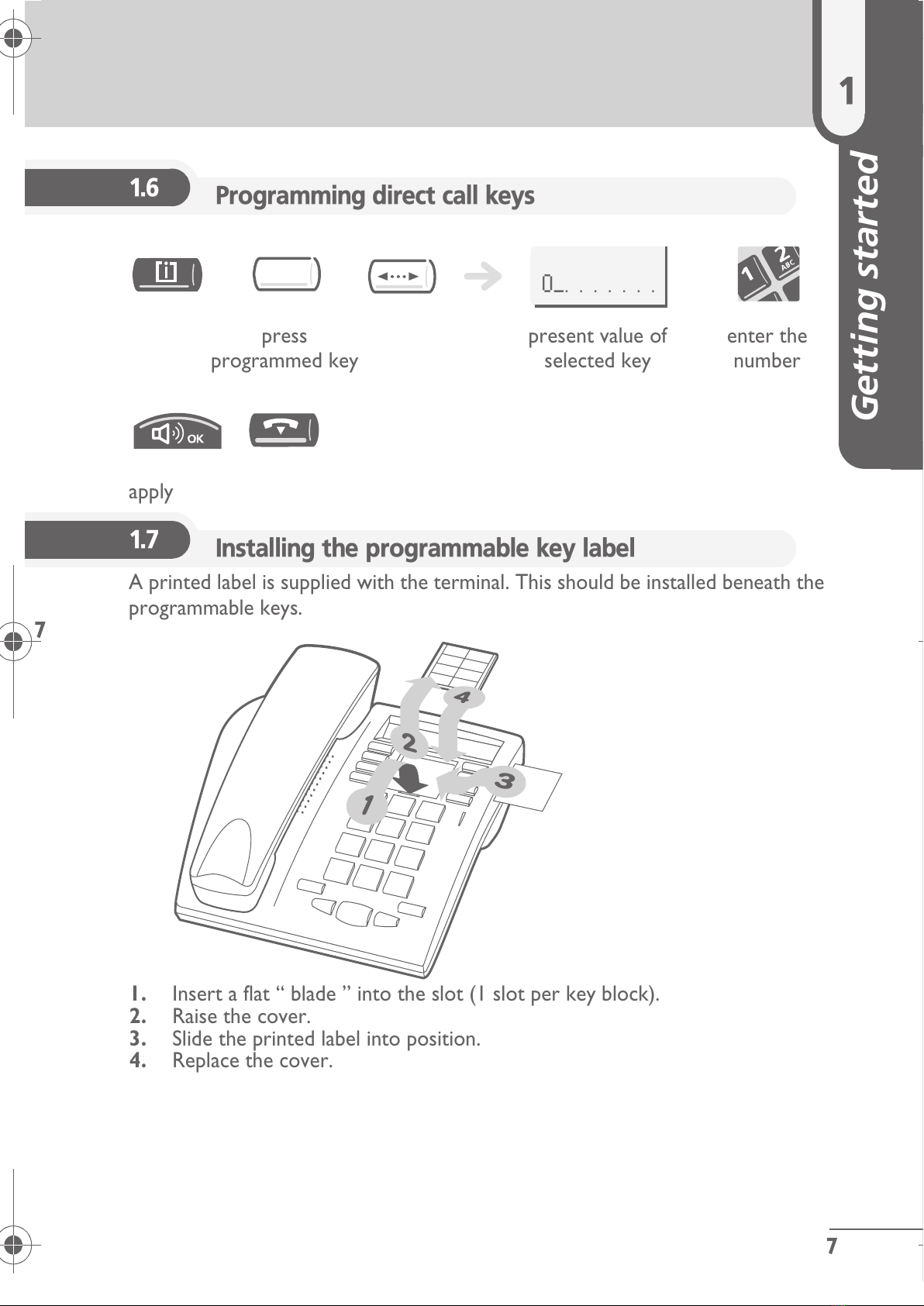

1.6 Programming direct call keys

1.7 Installing the programmable key label

A printed label is supplied with the terminal. This should be installed beneath the

programmable keys.

press

programmed key

present value of

selected key

enter the

number

apply

0_. . . . . . .

1. Insert a flat “ blade ” into the slot (1 slot per key block).

2. Raise the cover.

3. Slide the printed label into position.

4. Replace the cover.

AEAGR010-060

AEAGR010-070

3eh21003.fm Page 7 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

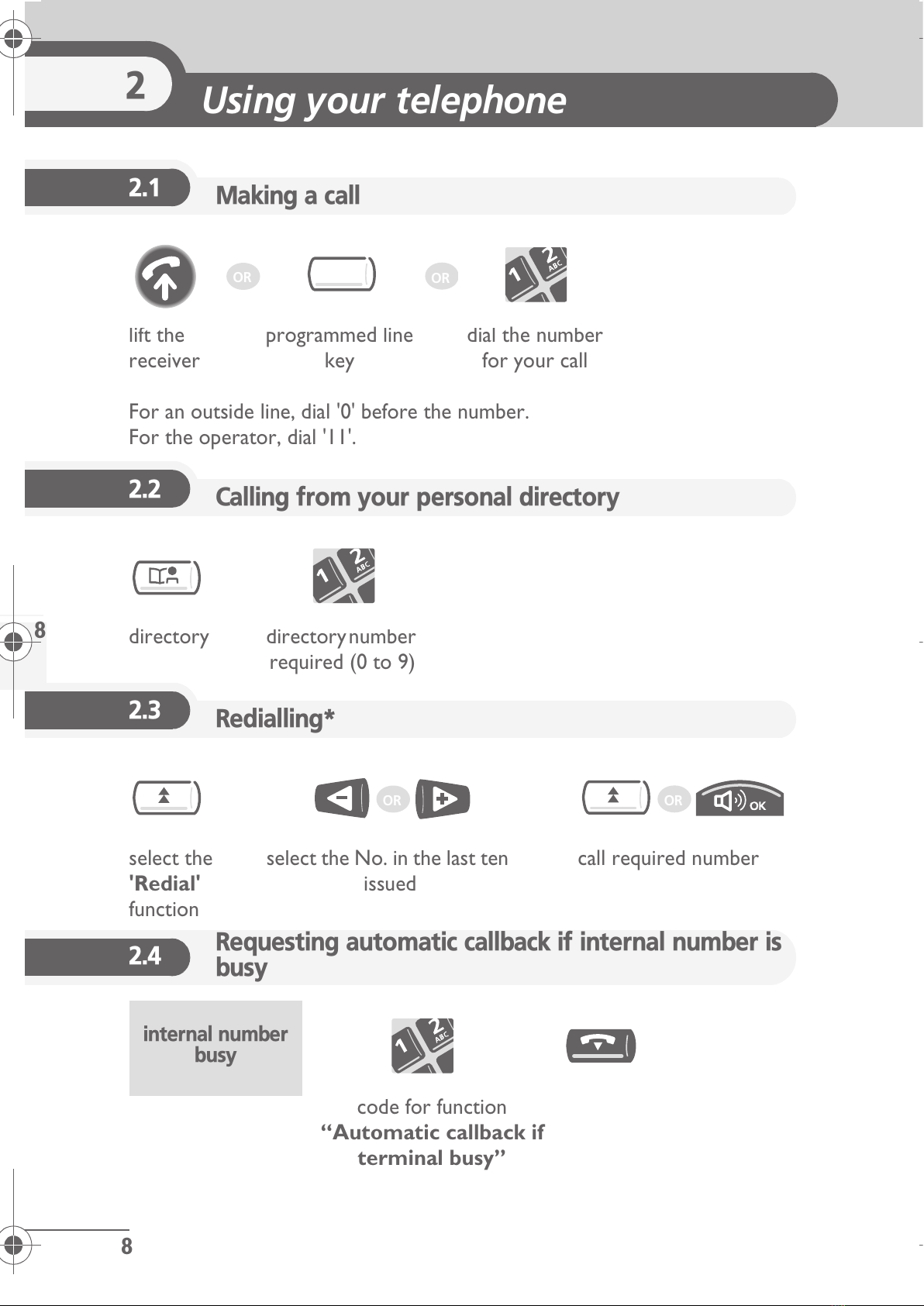

Using your telephone

Other

2.1 Making a call

For an outside line, dial '0' before the number.

For the operator, dial '11'.

2.2 alling from your personal directory

2.3 Redialling*

2.4 Requesting automatic callback if internal number is

busy

lift the

receiver

programmed line

key

dial the number

for your call

OR OR

directory directorynumber

required (0 to 9)

select the

'Redial'

function

select the No. in the last ten

issued

call required number

internal number

busy

code for function

“Automatic callback if

terminal busy”

AEAGR020-010

AEAGR020-020

AEAGR020-030

AEAGR020-040

3eh21003.fm Page 8 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

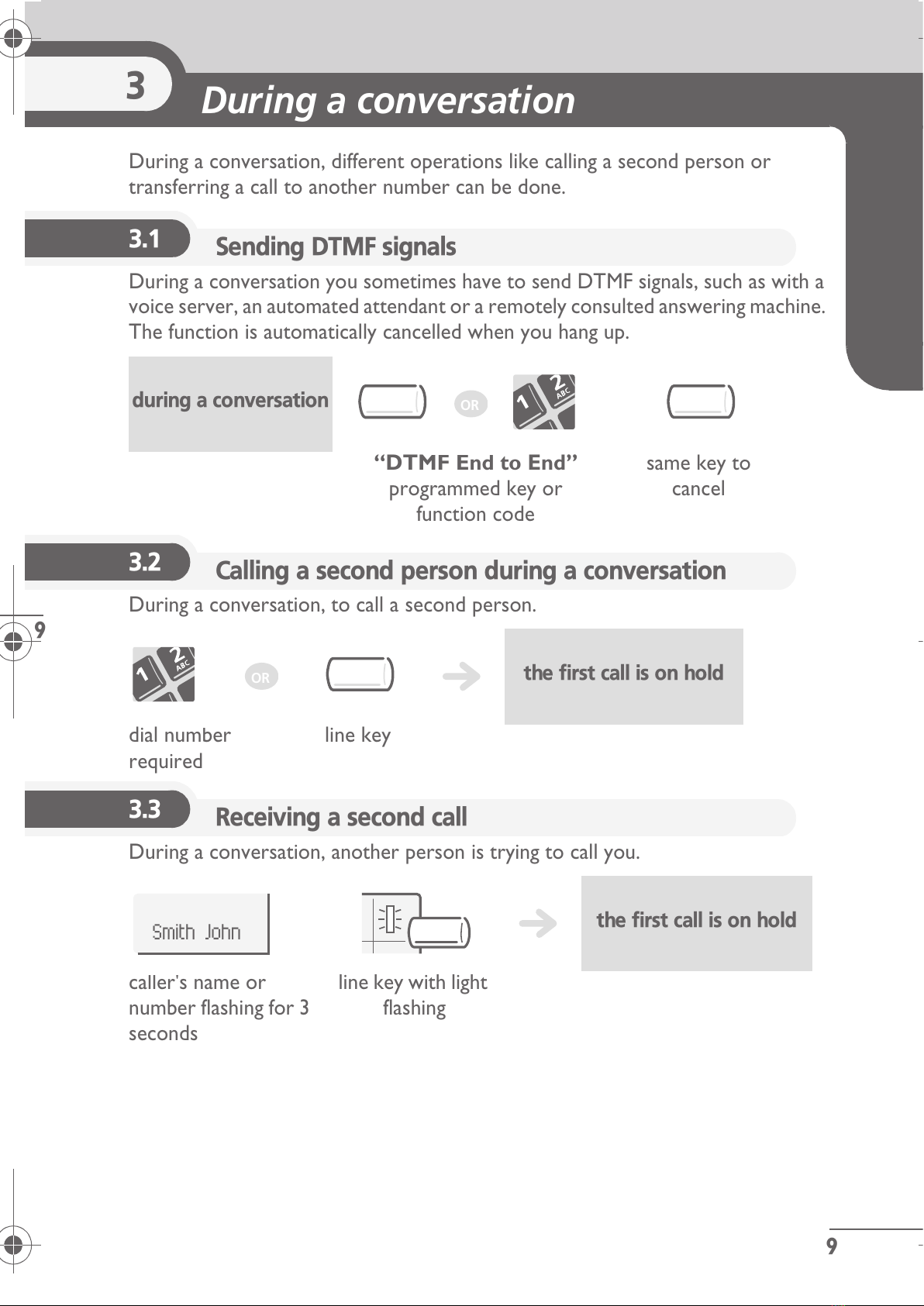

During a con ersation

Other

During a conversation, different operations like calling a second person or

transferring a call to another number can be done.

3.1 Sending DTMF signals

During a conversation you sometimes have to send DTMF signals, such as with a

voice server, an automated attendant or a remotely consulted answering machine.

The function is automatically cancelled when you hang up.

3.2 alling a second person during a conversation

During a conversation, to call a second person.

3.3 Receiving a second call

During a conversation, another person is trying to call you.

during a conversation

“DTMF End to End”

programmed key or

function code

same key to

cancel

the first call is on hold

dial number

required

line key

the first call is on hold

caller's name or

number flashing for 3

seconds

line key with light

flashing

Smith John

AEAGR030-005

AEAGR030-010

AEAGR030-020

AEAGR030-030

3eh21003.fm Page 9 Mardi, 8. octobre 2002 10:09 10

All manuals and user guides at all-guides.com

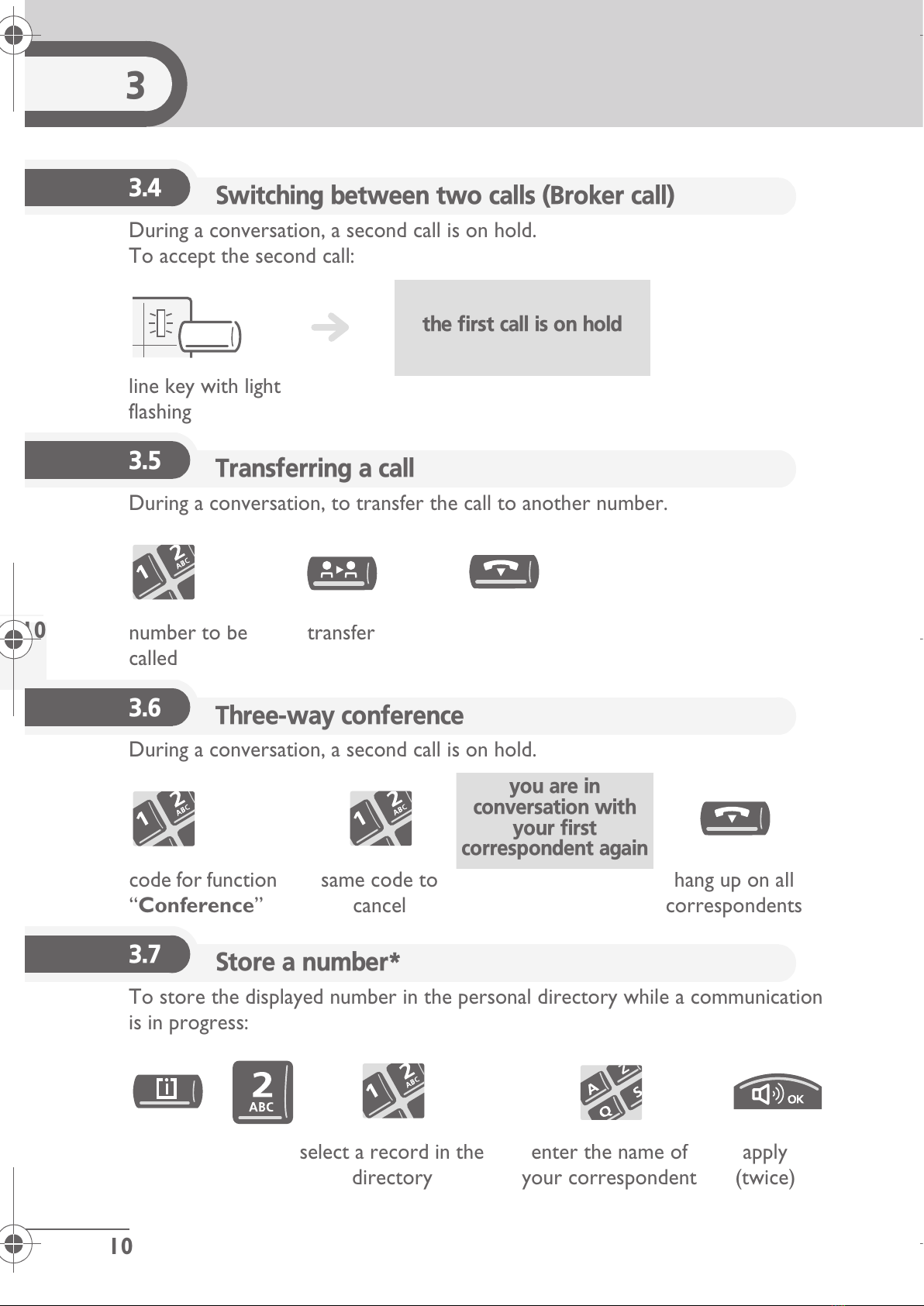

3.4 Switching between two calls (Broker call)

During a conversation, a second call is on hold.

To accept the second call:

3.5 Transferring a call

During a conversation, to transfer the call to another number.

3.6 Three-way conference

During a conversation, a second call is on hold.

3.7 Store a number*

To store the displayed number in the personal directory while a communication

is in progress:

the first call is on hold

line key with light

flashing

number to be

called

transfer

you are in

conversation with

your first

correspondent again

code for function

“Conference”

same code to

cancel

hang up on all

correspondents

select a record in the
