Beko C7 Series Manuel utilisateur

Operating Instructions

COLOUR TELEVISIONS

NICAM STEREO

24”, 25”, 26”, 28”, 29”, 32”

C7 SERIES

List of contents

Special features

Safety instructions

Electrical connections

Getting started

Aerial connection

Switching on

Battery fitting

Control unit

Front and rear panel

External connections table

Remote control

Using the TV

Manual tuning

Automatic tuning

Child lock

Program table

TV controls

TV setup

Sound menu

Picture menu

Features menu

Picture format

Using teletext

Connecting external equipment

Help and service tips

Technical specifications table

Transmitter stations

Guarantee

Service

12-14

17-18

19-23

Television

Thank you for buying this television which is designed to give you many years of

satisfactory service.

You may already be familiar with using a television but do please take time to read these

instructions. They are designed to familiarise you with the unit’s many new features and

to ensure you get the very best out of your purchase.

Special features

• Your TV can receive stereo channels directly (NICAM optional).

• Automatic tuning system with country selection.

• 100 Programme Memory

• Available for Cable Channels (A decoder maybe required)

• Manual Fine Tuning

• Child Lock

• Return to the last channel viewed (SWAP)

• Spatial Sound effect

• 16:9 picture format

• S-Video connection (Model Dependant)

• Audio/Video PHONO sockets (Model Dependant).

• Back Audio Out (Model Dependant)

• Normalisation system to recall the setting in memory after the colour,contrast,

brightness setting have been changed.

• Picture adjustment using one button (Smart control).

• Sound adjustment using one button (Smart control).

• Equalizer Sound Setup

• Automatic Volume Limiting

• Your TV set is equipped with an On-Screen Display system. This system

enables the user to see the function on-screen and to control them efficiently.

• Infrared Remote Control

• Virtual Dolby Surround (Dependant on Model)

• Multi language menu system (ONLY FOR O.S.D.)

• On Timer

• Off Timer

• Stereo headphone socket (Dependant on Model)

• Second Scart Sockets (Dependant on Model)

• One scart socket

• Zoom, Letterbox, Subtitle picture formats ( for Widescreen TV sets)

• Naming the channels

• Teletext reception

• Auto recognition of the broadcasting format (4:3, 16-9 or Letterbox) via WSS feature.

Safety is Important

Your safety and the safety of others is important. Please, therefore, ensure you read

the Safetyinstructions before you operate this television.

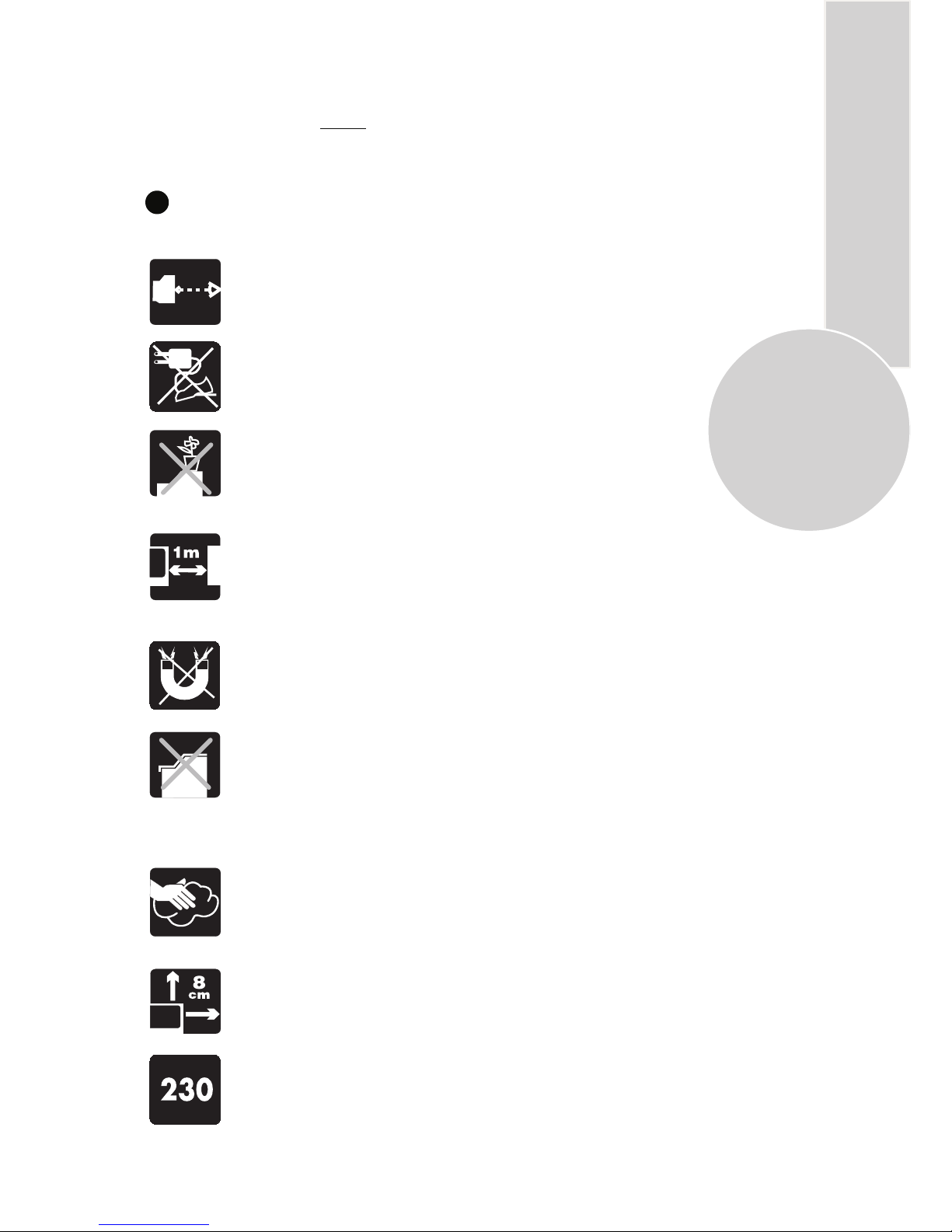

Safety instructions

Read all the safety instructions before first use of your TV.

• Position the television so that direct light does not fall on

the screen. Excessive light will cause a washed out effect.

• Position the power supply lead and other leads so that

they are not likely to be walked on or pinched by things

placed on or against them.

• Do not use the appliance in humid or damp conditions.

Do not allow the appliance to get wet, i.e. dripping or

splashing, as this may be dangerous. Do not place water

filled objects, such as vases and flower top on top of the

appliance.

• Make sure that no naked flame sources, such as lighted

candles, are placed on top of the appliance.

• Do not use the television near any apparatus that produces

a magnetic field such as HI-FI speakers or electric motors

otherwise colour purity may be affected.

• The heat built up in the set escapes through ventilation

holes, so do not cover the set by drapes, clothes etc. that may

block air circulation. Do not place the television on carpet

or soft furnishings.

• Clean the TV Screen using a slightly damp cloth or chamois

leather. Never use abrasive cleaning agents like liquid or

aerosol cleaners.

• If you wish to place the television on a shelf or in a wall

unit always ensure there is a minimum air gap of 8 cm

around the top, sides and rear of the television, to assist

ventilation.

• Your TV set is designed to operate with mains voltages

230V AC; 50Hz. Do not connect your TV set to power sources

other than the mains supply.

• Do not place the television near heat sources such as

radiators, ovens, stoves, etc.

• NEVER let children push anything into the holes or slots

on the case.

• Remove the mains plug from the socket outlet while cleaning.

Caution: - Under no circumstances should the discarded plug be inserted into a mains socket.

To prevent shock hazard carefully dispose of the discarded plug into your dustbin, do not leave

the plug lying around where children might see it.

1.SECTION: INSTALLATION AND

PRECAUTIONS

ELECTRICAL CONNECTIONS

For your own safety read the following

instructions carefully before attempting

to connect this unit to the mains supply.

For your convenience a mains plug with a

fuse has been fitted to this appliance. For

your safety please observe the following

information.

The moulded plug on this appliance

incorporates a 5A fuse. Should the fuse need

to be replaced an ASTA approved BS 1362

fuse of the same rating must be used. Do

not forget to refit the fuse cover. In the event

of losing the fuse cover the plug must not

be used until a replacement fuse cover

which must be the same colour as that visible

on the pin face of the plug has been fitted.

Fuse covers are available from any good

electrical store.

If the fitted moulded plug is not suitable

for your socket, then the plug should be cut

off and an appropriate plug fitted.

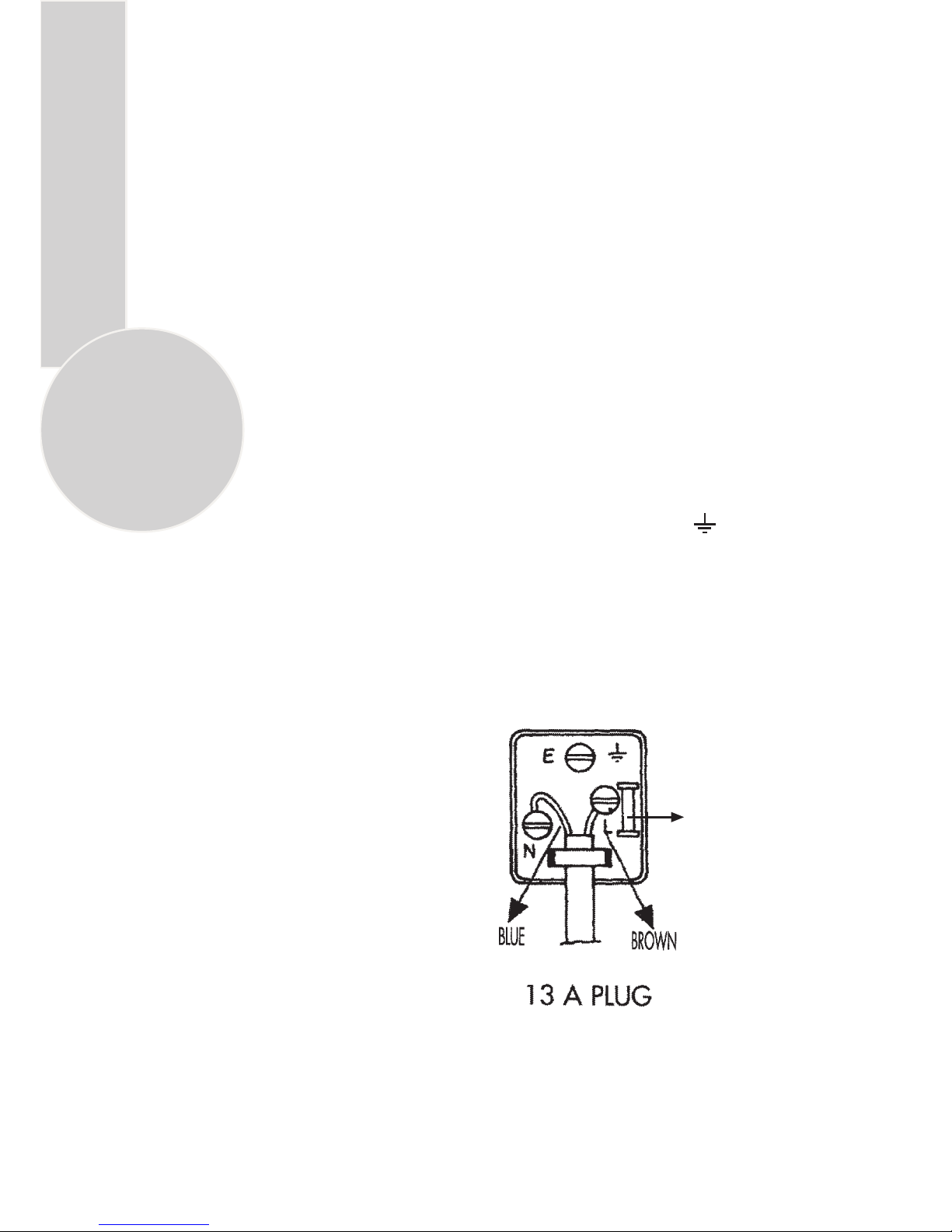

IMPORTANT! FITTING A

DIFFERENT PLUG.

If the mains plug is cut off from the mains

cable rewire the replacement plug in

accordance with these instructions.

IMPORTANT

The wires in this mains lead are coloured

in accordance with the following code:

Blue - Neutral

Brown - Live

As the colours in the mains lead may

not correspond with the coloured markings

identifying the terminals in your plug

proceed as follows:

The wire coloured BLUE must be connected

to the terminal marked with the letter N or

coloured

BLACK.

The wire coloured BROWN must be

connected to the terminal marked with the

letter L or coloured

RED.

Do not make any connection to the

terminal marked E or OR COLOURED

GREEN,

GREEN /YELLOW.

The television receiver must be protected by

a 5A fuse if a fused plug is fitted.

For any other plug fit a 5A fuse at the

distribution board.

Electrical connections

5 A fuse

Getting started

Remove your Television carefully

from the box. You may wish to

You can use an outdoor or indoor aerial.

However, if you use an indoor aerial the

quality of the reception may be reduced

and adjustment of the aerial may be

required when changing programs.

• Do not plug in any scart leads until

you have tuned the TV in.

Please note

If you live in a poor reception area or use an

indoor aerial you may experience loss or

corruption of teletext transmissions.

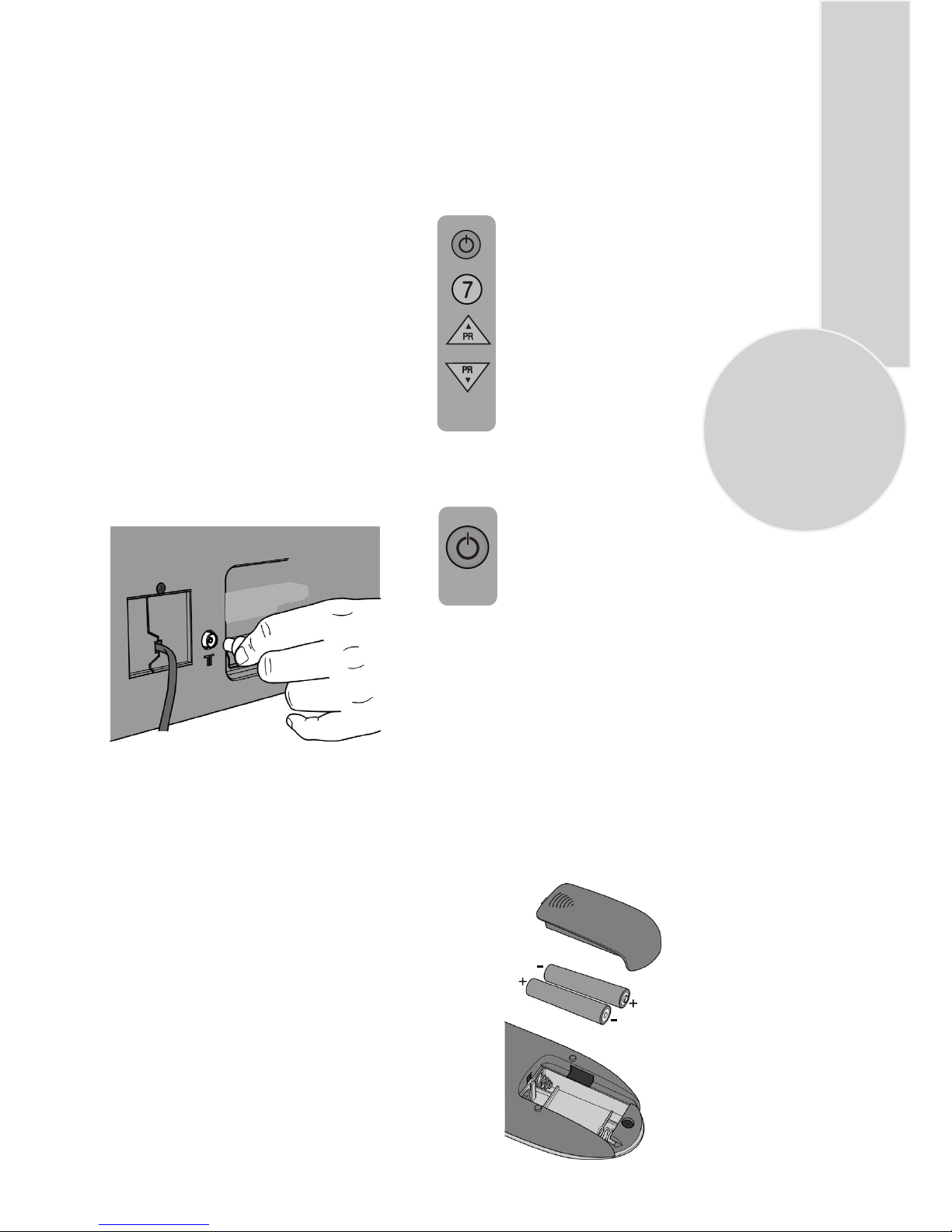

Switching on

Mains power

Connect the TV mains plug into your domestic

mains socket outlet (230 V 50 Hz AC).

And switch on.

Please Note

When not in use disconnect the plug

from the mains power supply.

Switching the TV on for the first time

To install your TV, please read the sections

“TV controls” and “ Tuning the television”.

Press the Standby

button on the

remote control to switch

the

TV to standby. The standby

indicator will brighten.

Please Note

Do not leave the television on standby

unattended or overnight.

Battery fitting

Insert the 2 AAA Batteries supplied into

the compartment on the rear of the remote

control, ensure you follow the polarity

diagram inside the compartment.

Press the Power button on

the front of the TV. The

standby indicator will

illuminate.

Press a Numeric button or the

Program up or Program down

button on the remote handset or

Program up or Program down

button on the front panel to

switch the TV on.

The standby indicator will dim.

The TV will come on after a few

seconds.

Read these instructions before use.

Aerial connection

To connect an aerial, plug the aerial lead

into the aerial socket on the rear of the

TV.

store the packaging for future use.

In the box

Inside this package you should have:

• Television

• Remote control

• User guide

• AAA batteries x 2

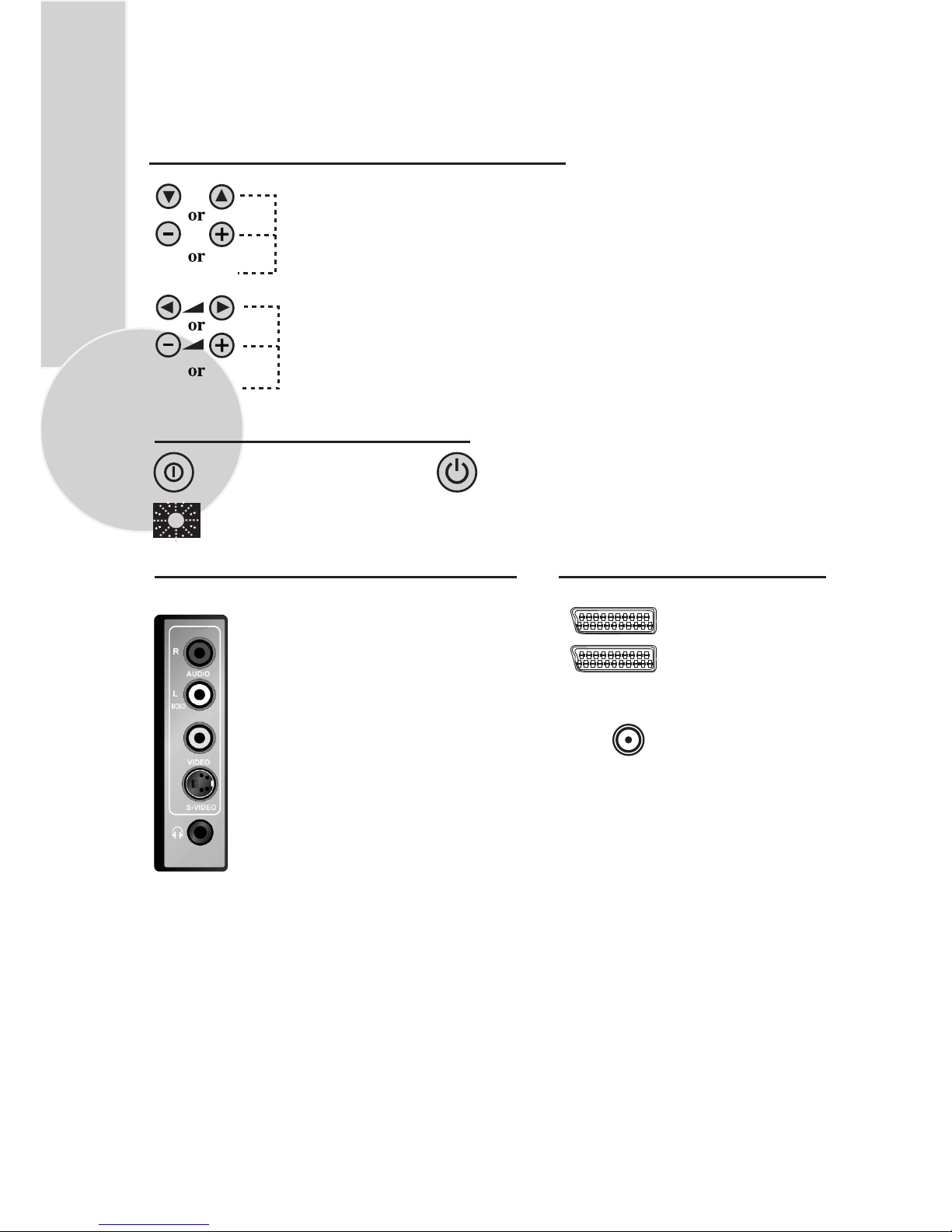

Control Unit

Front Panel

Program Down/Up button

Volume Down/Up button.

General

ON/OFF switch Stand by (Dependant on model)

Stand by indicator

External Connections: (Front or side)

Right audio PHONO (Red)

Left audio PHONO/Mono PHONO (White)

Video PHONO (Yellow)

S-Video connection

Headphone socket

Please note

• See the external connections table on next page for available connections depending the

size and model of your TV set.

• Do not use Video PHONO and S-Video connections at the same time, otherwise they will

interfer with each other.

AV1 scart

(External connections: (Rear)

AV2 scart

(Dependant on model)

Aerial socket

P- P+

V- V+

Dependant on model

External connections table

STD

: STANDARD

: DEPENDANT ON MODEL

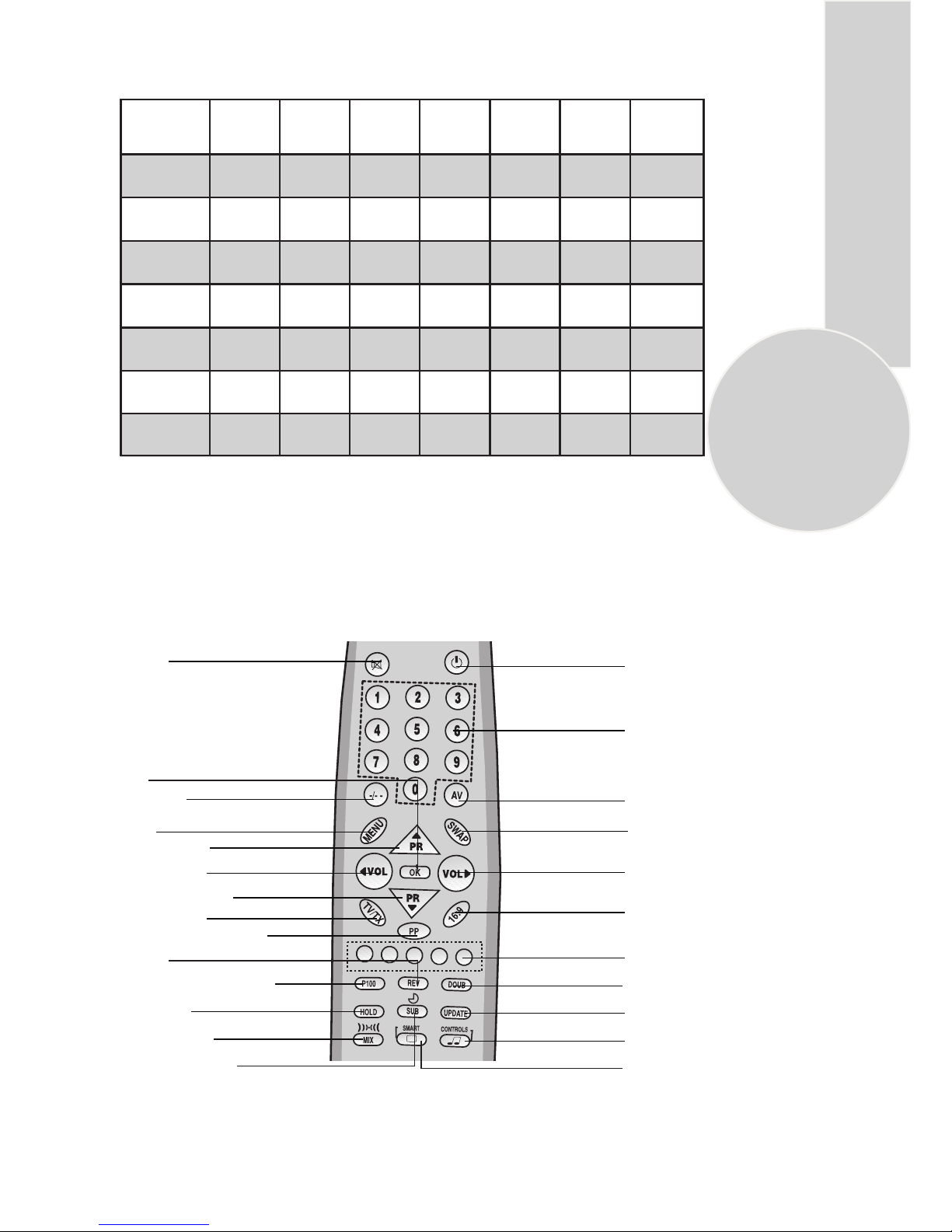

Remote control

Standby

Numeric

Swap

Volume up

Program down

Picture format

Menu/Fast text

Double height text

Update

Sound smart control

Mute

Volume down

Program up

TV/Teletext

Info/Index page (text)

Reveal

Page hold

TV/Text mix

Sub page/Clock Picture smart control

Personal preference

Two digit

28”

4:3

Picture tube

size/typee

25”

4:3

28”

16:9

29”

4:3

32”

16:9

AV1 Scart

AV2 Scart

Headphone

socket

Audio/Video

PHONO

S-Video

socket

Back Audio

Out

STD. STD. STD. STD. STD.

XX STD. STD. STD.

XXXXX

AV3 Scart

26”

16:9

STD.

PAT

XXXXXX

24”

16:9

STD.

Tuning the television

There are two ways of tuning your television:

Manual, where you control the tuning process

Autoprogram where the television does it all

automatically.

Please Note

If the TV is set to a channel with no signal the

TV will return to standby after 5 minutes.

The time remaining is displayed on the screen

the last 60 second will be displayed.

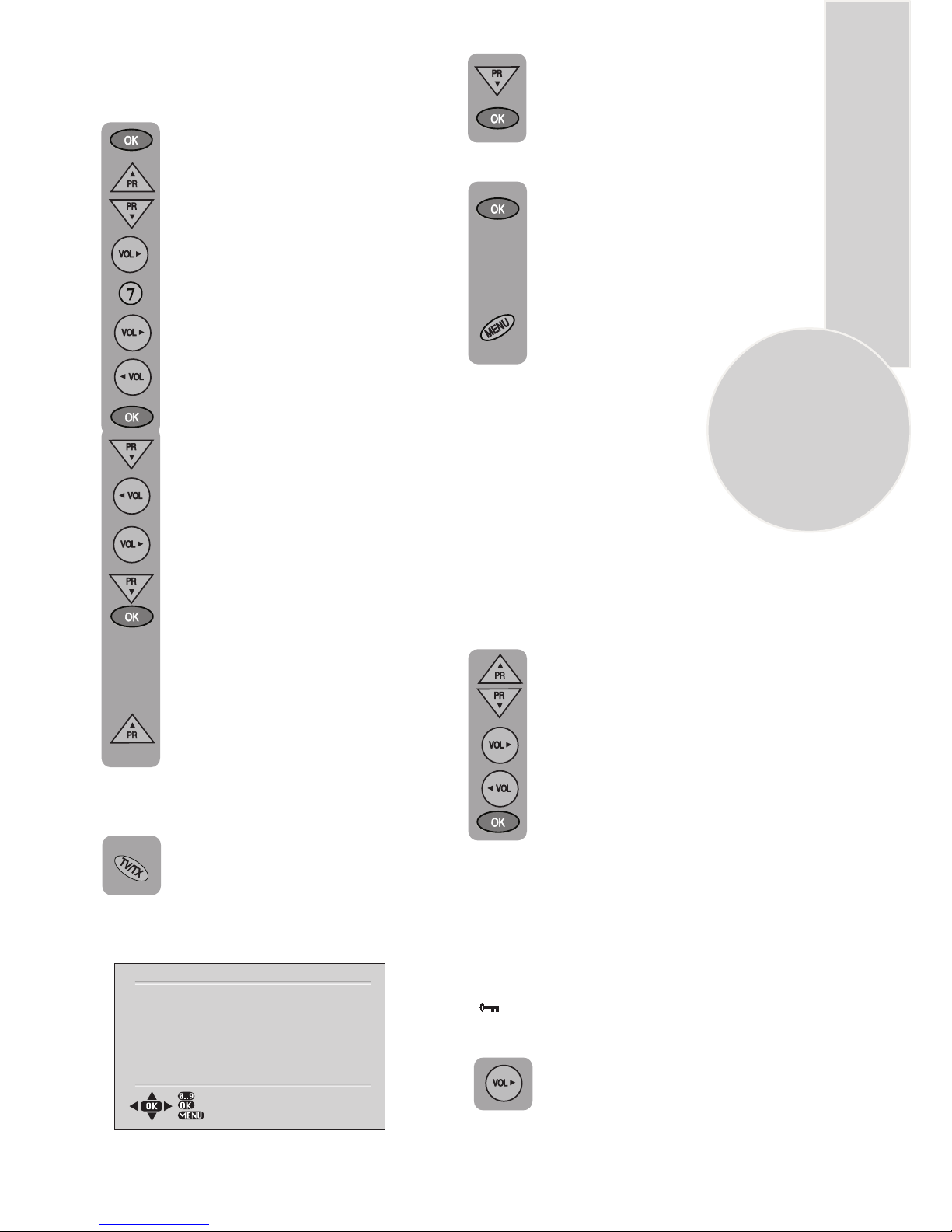

Manual tuning

Tuning the TV is accessed through the

SETUP menu.

There are two ways to access the SETUP

menu:

Press the blue FASTEXT button.

Press the Menu button and use the

Program down button to select

SETUP. Press the OK button to

enter the SETUP menu.

Press the power button on the front of the TV.

The Stand-by indicator will illuminate.

Press a numeric button or Program up or

Program down on the remote control or TV

to switch the TV on from Stand-by?

The Stand-by indicator will dim and the

TV will come on after a few seconds.

Please note

The system I will be displayed automatically

on SYSTEM row.

the TV will exit the menu system.

Please note

If you do not press any buttons for 15 seconds

CHANNEL

SYSTEM

FINE TUNE

AUTOPROGRAM

CHILD LOCK

PROGRAM NO

STORE

BACK

SETUP

S 07

< >

OFF

C/S

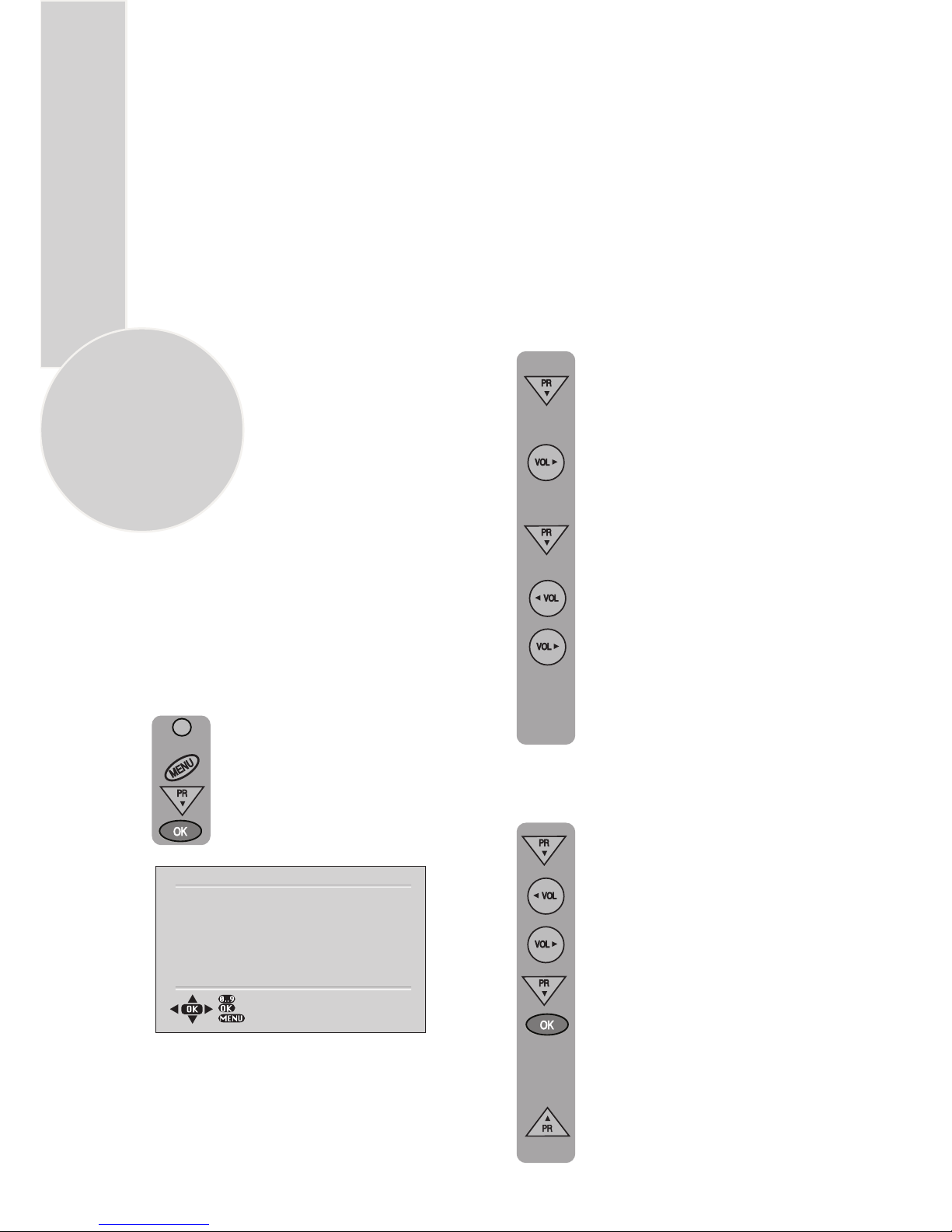

Using the TV

Note:

1. The TV is controlled by a menu system.

2. EACH menu has a use full prompt chart

diagram attached.

3. Use the Program up/down buttons

to scroll throuh the menu headings.

4. Use the Volume +/- buttons to make

any changes you want when the menu

heading is highlighted in white.

5. A fuller explanation of each menu is

given in this instruction book.

Use the Program down

button to

select PROGRAM NO.

Use the

Volume up/down

buttons

to select the program number.

Use the Program down button to

select Store. Press theOKbutton

and STORED will appear on the

STORE line.

You have now stored the first

channel.

Use the Program up button to

select again SEARCH and

continue the tuning procedure

until you have tuned in all the

programmes you want or the

television can receive.

In the Setup menu select PROG

NO and change to P1 using

the Program down button to

select it and the Volume up

button to change it.

Starting with Program 1, tune

in the first channel as follows:

Use the Program down button

to select SEARCH.

Press the Volume up or Volume

down button to start the tuning

search.

When the search finds a strong

channel signal it will stop

searching. The picture will appear.

Identify which channel you are

watching (BBC 1, ITV 1 etc.) and

decide which program number you

want it to be. (e.g. BBCI = PI

BBC2 = P2 etc).

Tuning with channel numbers

Enter the SETUP menu by pressing

the blue button.

Press the OK button to enter the

CHANNEL row.

Use the OK button to select

“S” for cable channels and

“C” for terrestrial broadcast.

Use Volume up button to select

the channel number buttons.

(See page 26).

Enter the channel number using

the Numeric buttons.

To exit the SETUP menu press the

TV/TX button.

Automatic tuning (Autoprogram)

Enter the SETUP menu as before.

Use the Program down button to

select PROGRAM NO.

Use the Volume up/down buttons

to select the program number.

(i.e. BBCI = PI etc).

Use the Program down button to

select STORE. Press theOKbutton

and STORED will appear on the

STORE line.

You have now stored the first

channel.

Use the Program up button to

select again SEARCH and continue

the tuning procedure until you

have tuned in all the programmes

you want or the television can

receive.

Use the Program down button to

select AUTOPROGRAM and

the OK button. A list of

countries will appear. Select UK

using Program and Volume

buttons.

press

Press the Program down/up

buttons to exit the channel row.

Child lock

Childlock switches off the programme you

are watching when you select it. In the

Set-Up Menu all other programmes are

unaffected. If you go back to the

programme with childlock on you will see

a black screen with the OSD showing

“”. You can lock as many programs

as you want.

In the Set-Up Menu.

Press the Volume up button to

switch the Child lock on or off.

Fine tuning

Although the search and Autoprogram

will automatically try and tune to the

best reception, in areas of poor reception

a bit of fine tuning may be required.

Please note:

If auto sort fails to arrange the programmes

in the required sequence please refer to

programme table.

In the SETUP menu use the

Program up/down buttons to

select FINE TUNE. Use the

Volume up and Volume down

buttons to fine tune.

When you have finished use the

Program down button to select

STORE and press the OK button.

Stored will be displayed.

Your TV is now tuned and ready to use.

CHANNEL

SYSTEM

FINE TUNE

AUTOPROGRAM

CHILD LOCK

PROGRAM NO

STORE

BACK

SETUP

S 07

< >

OFF

C/S

When you are sure the aerial is

connected properly press the OK

button. Autoprogam will start.

To cancel Autoprogram whilst it

isworking press the Menu button.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Beko TV

Beko

Beko E1 CHASSIS Manuel utilisateur

Beko

Beko 32WLA530HID Manuel utilisateur

Beko

Beko K1 CHASSIS Manuel utilisateur

Beko

Beko B55 D 986 S Manuel utilisateur

Beko

Beko B50 A 800 B Manuel utilisateur

Beko

Beko 15WLP530HID Manuel utilisateur

Beko

Beko B24L 5845 4B Manuel utilisateur

Beko

Beko tr7854070200 Manuel utilisateur

Beko

Beko 37WLU530HID Manuel utilisateur

Beko

Beko B32 D 560 B Guide de référence

Beko

Beko B43L 5845 4B Manuel utilisateur

Beko

Beko 42BLE5520BN Manuel utilisateur

Beko

Beko 32WLA530HID Manuel utilisateur

Beko

Beko DPM 28 C7 Manuel utilisateur

Beko

Beko B40K 580 Guide de référence

Beko

Beko 42WLU530HID Manuel utilisateur

Beko

Beko B40L 5845 4B Manuel utilisateur

Beko

Beko L6B PDP TV Manuel utilisateur

Beko

Beko B40 D 560 B Manuel utilisateur

Beko

Beko A40L 5845 4B Manuel utilisateur

Beko

Beko B65 Q 990 A Manuel utilisateur

Beko

Beko B75 D 986 S Manuel utilisateur

Beko

Beko 26WLA500S Manuel utilisateur

Beko

Beko E1 CHASSIS Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
