Beko E1 CHASSIS Manuel utilisateur

E1 SERIES

COLOUR TELEVISIONS

Operating Instructions

List of contents

Special features ........................................................................2

Safety instructions .....................................................................3

Electrical Connections .........................................................................4

Getting started .........................................................................5

Aerial connection ..............................................................5

Switching on......................................................................5

Battery fitting ...................................................................5

Control unit ...............................................................................6

Front and rear panel .........................................................6

Remote control..................................................................6

Using the TV .............................................................................7

TV controls........................................................................7-8

Tuning the television.........................................................9

Manual tuning...................................................................9

Automatic tuning...............................................................9

Fine tuning........................................................................9

Childlock............................................................................10

Program organising......................................................................10

TV setup ...................................................................................11

Picture menu.................................................................11

Features menu.................................................................11

Sleep timer......................................................................11

On timer..........................................................................11

AVL..................................................................................12

Language........................................................................ 12

Picture format..................................................................12

Normalization..................................................................12

Using teletext ....................................................................13-14

Connecting external equipment ..........................................14-15

Help and service tips ...............................................................16

Technical specifications table .........................................................17

Main UK Transmitter Station ...........................................................18

Guarantee ..........................................................................................19

How to obtain service.................................................................................20

Television

Thank you for buying this television which is designed to give you many years of

satisfactory service.

You may already be familiar with using a television but do please take time to read

these instructions. They are designed to familiarise you with the unit’s many new

features and to ensure you get the very best out of your purchase.

Special features

• Automatic Programming

• 100 Programme Memory

• Available for Cable Channels (A decoder may be required)

• Manual Fine Tuning

• 16:9 picture format

• Scart Socket

• Normalization system to recall the setting in memory after the colour,contrast,

brightness setting have been changed.

• Automatic Volume Limiting.

• Infrared Remote Control.

• Your TV will automatically switch to standby if it’s been programmed from 15 to 120

minutes.

• Automatically switch to Standby five minutes after a channel ceases to transmit.

• Multi language menu system. On screen display only not teletext.

• Naming the channels (Automatic with ATS).

• NTSC playback. Via scart.

• S-VHS via Scart.

• ATS: Automatic Tuning System with country selection (*).

• Audio/Video phono sockets (*).

• Headphone socket (*).

• Teletext (*).

• On Timer (*).

• Childlock (*).

(*) : These features are not available in all models.

Safety is Important

Your safety and the safety of others is important. Please, therefore, ensure you read

the Safety instructions before you operate this television.

Safety instructions

Read all the safety instructions before first use of your TV.

• Position the television so that direct light does not fall on the screen.

Excessive light will cause a washed out effect.

• Position the power supply lead and other leads so that they are not likely

to be walked on or pinched by things placed on or against them.

• Do not use the TV in humid or damp conditions.

Do not allow the TV to get wet, i.e. dripping or splashing, as this may be

dangerous. Do not place water filled objects, such as vases and flowers

top on top of the TV.

• Make sure that no naked flame sources, such as lighted candles, are

placed on top of the appliance.

• Do not place the television near heat sources such as radiators, ovens,

stoves, etc.

• Do not use the television near any apparatus that produces a magnetic

field such as HI-FI speakers or electric motors otherwise colour purity may

be affected.

• The heat built up in the set escapes through ventilation holes, so do not

cover the set by drapes, clothes etc. that may block air circulation. Do not

place the television on carpet or soft furnishings.

• NEVER let children push anything into the holes or slots on the case.

• Clean the TV Screen using a slightly damp cloth or chamois leather. Never

use abrasive cleaning agents like liquid or aerosol cleaners.

• Remove the mains plug from the socket outlet while cleaning.

• If you wish to place the television on a shelf or in a wall unit always ensure

there is a minimum air gap of 8 cm around the top, sides and rear of the

television, to assist ventilation.

• Your TV set is designed to operate with mains voltages 230V AC; 50Hz.

Do not connect your TV set to power sources other than the mains supply.

• Do not push, hit or screw into the screen or the cabinet. 3

ELECTRICAL CONNECTIONS

Caution: - Under no circumstances should the discarded plug be inserted

into a mains socket. To prevent shock hazard carefully dispose of the discarded

plug into your dustbin, do not leave the plug lying around where children

might see it.

1.SECTION: INSTALLATION AND

PRECAUTIONS

ELECTRICAL CONNECTIONS

For your own safety read the following

instructions carefully before

attempting to connect this unit to the

mains supply.

For your convenience a mains plug with

a fuse has been fitted to this appliance.

For your safety please observe the

following information.

The moulded plug on this appliance

incorporates a 5A fuse. Should the fuse

need to be replaced an ASTA approved

BS 1362 fuse of the same rating must

be used. Do not forget to refit the fuse

cover. In the event of losing the fuse

cover the plug must not be used until a

replacement fuse cover which must be

the same colour as that visible on the

pin face of the plug has been fitted. Fuse

covers are available from any good

electrical store.

If the fitted moulded plug is not suitable

for your socket, then the plug should be

cut off and an appropriate plug fitted.

IMPORTANT! FITTING A DIFFERENT

PLUG.

If the mains plug is cut off from the mains

cable rewire the replacement plug in

accordance with these instructions.

IMPORTANT

The wires in this mains lead are

coloured in accordance with the following

code:

Blue - Neutral

Brown - Live

As the colours in the mains lead

may not correspond with the coloured

markings identifying the terminals in your

plug proceed as follows:

The wire coloured BLUE must be

connected to the terminal marked with

the letter N or coloured

BLACK.

The wire coloured BROWN must be

connected to the terminal marked with

the letter L or coloured

RED.

Do not make any connection to the

terminal marked E or OR

COLOURED GREEN,

GREEN /YELLOW.

The television receiver must be protected

by a 5A fuse if a fused plug is fitted.

For any other plug fit a 5A fuse at the

distribution board.

5 AMP

FUSE

Getting started

Remove your Television carefully from the

box. You may wish to store the packaging

for future use.

In the box

Inside your this package you should have:

• Television

• Remote control

• User guide

• AAA batteries x 2

Read these instructions before use.

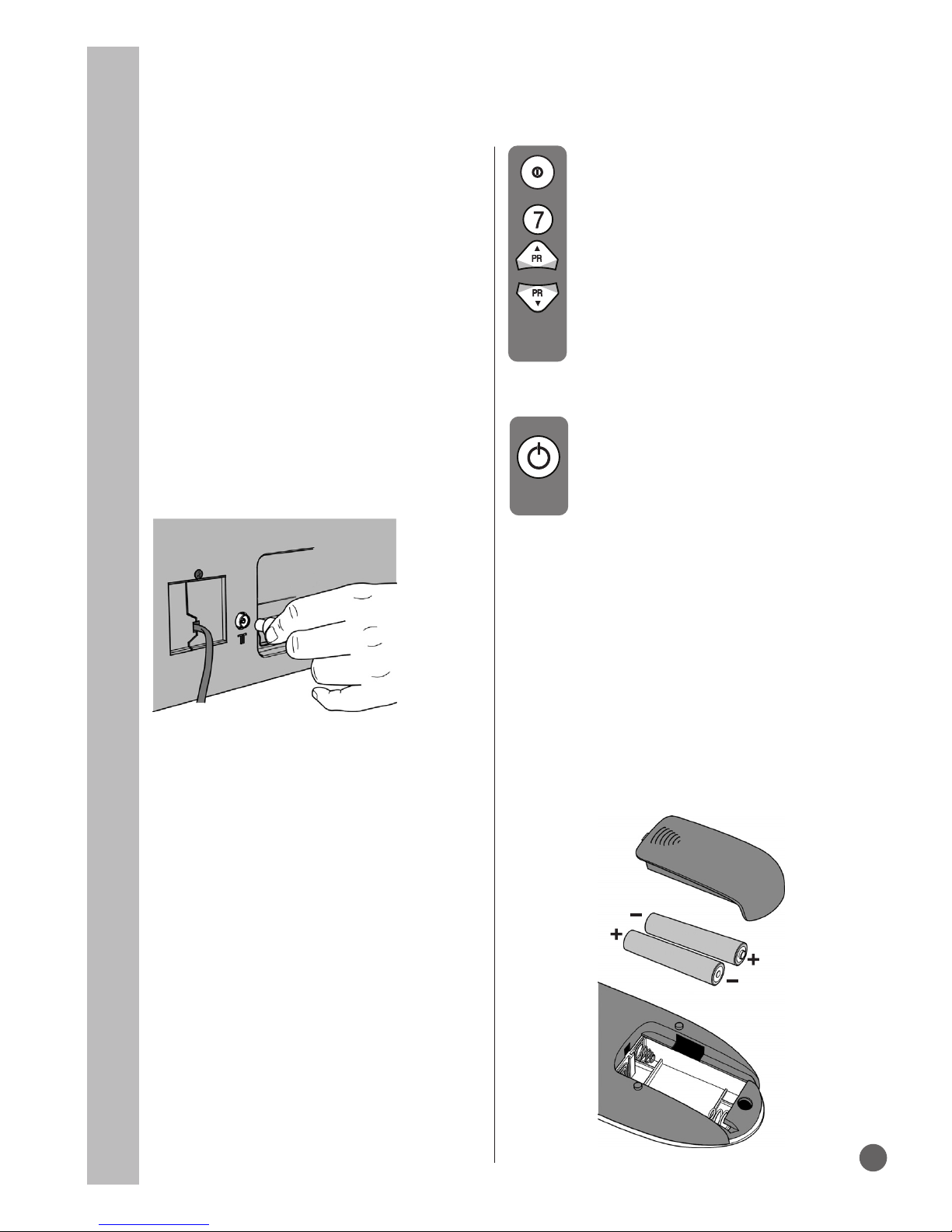

Aerial connection

Plug the aerial lead into the aerial socket

on the rear of the TV.

You can use an outdoor or indoor aerial.

However, if you use an indoor aerial the

quality of the reception may be reduced

and adjustment of the aerial may be

required when changing programs.

Please note

If you live in a poor reception area or use

an indoor aerial you may experience loss

or corruption of teletext transmissions.

Switching on

Mains power

Connect the TV mains plug into your

domestic mains socket outlet (230 V 50

Hz AC) and switch on.

Please Note

When your TV is not in use disconnect

the plug from the mains power supply.

Press the Standby

button to switch

the TV to standby. The standby

indicator will brighten.

Please Note

Do not leave the television on standby

unattended or overnight.

Switching the TV on for the first time

To install your TV, please read the sections

“Tuning the television”.

Battery fitting

Insert the 2 AAA Batteries supplied into

the compartment on the rear of the remote

control, ensure you follow the polarity

diagram inside the compartment.

Press the Power button on the

front of the TV. The standby

indicator will illuminate.

Press the Program up, Program

down button or Numeric Buttons

on the remote handset to switch

the TV on.

The standby indicator will dim.

The picture will appear after a few

seconds.

Switch to stand-by

Control Unit

14” (37 cm), 15” (38 cm) 20” (51 cm) and 21” (55 cm) TV s:

Program/Volume selection button:

This button allows you to select

program or volume mode on the

front panel.

Program/Volume increase button

Program/Volume decrease button

General

Power ON/OFF switch

Stand by indicator

20” (51 cm), 21” PF (55 cm) TV s:

Volume increase button

Volume decrease button

External Connections: (Front or side)

AV1 scart

External connections: (Rear)

Aerial socket

Power cable

Front

Side

Left audio PHONO

Mono PHONO (White)

Video PHONO (Yellow)

Headphone socket

MUTE

Numeric

Two digit program (-/--)

Program up

Volume decrease

Return to selected programme (SWAP)

Information (i)

STAND-BY

AV-TV selection

Volume increase

Program down

16:9 picture format

Sleep timer

Normalization

10.

11.

12.

13.

14.

15.

16.

Yellow fastext

Blue fastext

Teletext/TV select

Enlarge

UPDATE

MIX

Green fastext

Red fastext

STOP

SUB-PAGE

REVEAL

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

For Teletext Function (Opt.)

Program increase button

Program decrease button

Please note:

The Audio/Video PHONO and Headphone socket

can be placed on the front panel or on the right-

hand side of the cabinet depanding to the model of

your TV.

Remote control

Front and rear panel

Model dependant

Using the TV

TV controls

Program selection

Press the Program up or

Program down buttons on the

TV or remote control or press a

Numeric button to select a

programme.

To select a programme whose

number is greater than 9 using

the numeric buttons, press the

-/-- button first and then press the

two Numeric buttons. For

example, to select programme 12,

press the -/-- button followed by

1and then 2.

You can also select a program by

pressing in the OK button (by ATS

included models only).

Press the OK button and program

list will appear on the screen with

programme numbers on it.

Press the Mute button again to

restore the sound. The symbol

will disappear.

Pressing Volume down buttons

will decrease the volume without

restoring .

But pressing the Volume up

button will increase the volume

and cancel mute.

Info

For use when you are connecting an

external source to your TV (Video

recorder, DVD player etc.) via the SCART

sockets or PHONO sockets.

See ‘Connecting external equipment’.

Mute

To mute the sound press the Mute

button on the remote control.

A loudspeaker symbol will appear

on the screen.

Volume

Press the Volume up or

Volume down button on the front

panel of the TV or press the “ Vol“

or “Vol “ button on the remote

control. A sound level bar will

appear on the screen.

Use the Program up and

Program down buttons to scroll

through the program list.

Press the MENU button to exit the

program list.

By pressing the “WHITE (i)” button

the programme number and

programme name (if it is exist) will

appear on the screen. This will

disappear automatically after a few

seconds.

SORTING

P 00 TRT1

P 01 ATV

P 02

P 03

P 04

P 05

P 06

P 07

P 08

P 09

SKIP

MOVE

DELETE

NAME

Tuning the television

There are two ways of tuning your

television:

• Manual, where you control the tuning

process or Autoprogram where the

television does it all automatically.

• TV sets equipped with ATS (Automatic

Tuning System) sorts the channels.

Please Note

If the TV is set to a channel with no signal

the TV will return to standby after 5

minutes. The time remaining is displayed

on the screen. For the last 60 seconds.

Manual Tuning

Tuning the TV is accessed through the

SETUP menu.

To access the SETUP menu:

Press the MENU button twice. SETUP

Menu will appear.

Press the AV/TV button to select

your input as follows:

1 AV1 when using SCART socket 1.

2 AV1 S-VHS for S-Video equipment to

scart 1 (S-VHS / Scart adapter is needed).

3 AV2 when using the PHONO sockets

of the TV. (Optional)

Press the AV/TV button again to

return to TV.

In the SETUP Menu select

PROGRAM NO and change to P1

using

the Program down button to

select it and the Volume up or

Volume down button to change it.

Starting with Program P1, tune in

the first channel as follows:

Use the Program up button to

select SEARCH.

Press the Volume up or Volume

down button to start the tuning

search.

The search arrow will appear.

Use the Program down

button

select PROGRAM NO.

Use the

Volume up/down

buttons

to select the program

number.

Use the Program down button to

select STORE. Press the OK

button and STORED will appear

on the STORE line.

You have now stored the first

channel.

Use the Program up button to

select again SEARCH and

continue the tuning procedure

until you have tuned in all the

programmes you want or the

television can receive.

When the search finds a channel signal it

will stop.

Identify which channel you are

watching

(BBC 1, ITV 1 etc.) and

decide which

program number you

want it to be.

Or press

Volume up

again to carry on

searching.

b) If you know the channel number.

(Tuning with channel numbers) See

page 18

Enter the SETUP menu by pressing MENU

button twice.

Press the OK button to select “S”

for cable channels and “C” for

terrestrial broadcast.

Use Volume up/down button to

select the channel number or enter

the channel number using the

Numeric buttons.

Use the Program down button

to select PROGRAM NO.

a) If you don’t know the channel

number (Tuning with SEARCH

function).

CHANNEL

SYSTEM

FINE TUNE

AUTOPROGRAM

CHILD LOCK

PROGRAM NO

STORE

SETUP

NEXT MENU

C 26

OFF

0 9

C/S

Enter the SETUP Menu by pressing the

MENU button twice.

Enter the desired program number

by using the numeric buttons

Use the Volume up/down buttons

to select the program number.

Use the Program down button

to select STORE. Press the OK

button and STORED will appear

on the STORE line. The channel

will be stored with the program

number you desired.

You have now stored the first

channel.

Use the Program up button to

select again CHANNEL and

continue the tuning procedure until

you have tuned in all the

programmes you want or the

television can receive.

To exit the SETUP menu press

the TXT button.

Automatic Tuning (Autoprogram)

Enter the SETUP menu as before.

Please Note:

a) TV’s equipped with ATS a COUNTRY

SELECTION menu will appear.

Use the Program down button to

select AUTOPROGRAM and

press the OK button.

When you are sure the aerial is

connected properly press the OK

button and to confirm it press

OK button again.

To cancel Autoprogram whilst it is

working press the Menu button.

As Autoprogram stores a channel

it will appear briefly on the screen.

Fine Tuning

Although the search and Autoprogram

will automatically try and tune to the

best reception, in areas of poor reception

a bit of fine tuning may be required.

Select UK using Program and Volume

buttons.

Press the OK button to select the country

and press the OK button again.

b) TV’s without ATS pressing the OK

button twice starts AUTOPROGRAM.

In the SETUP menu use the

Program down button to select

FINE TUNING. Use the Volume

up and Volume down buttons to

fine tune.

When you have finished use the

Program down button to select

STORE and press the OK button.

Please note

The system I will displayed automatically

on SYSTEM row.

Please note

If you do not press any buttons for 20

seconds the TV will exit the menu system.

SETUP

CHANNEL

SYSTEM

FINE TUNE

AUTOPROGRAM

CHILD LOCK

PROGRAM NO

STORE

SETUP

NEXT MENU

C 26

OFF

0 9

C/S

Your TV is now tuned and ready to use.

Please note:

If auto sort fails to arrange the programmes

in the required sequence please refer to

Program Organising. (Page 10)

Autres manuels pour E1 CHASSIS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Beko TV

Beko

Beko 22WLP530HID Manuel utilisateur

Beko

Beko B49L 8840 Manuel utilisateur

Beko

Beko B50 D 986 S Manuel utilisateur

Beko

Beko DPM 28 C7 Manuel utilisateur

Beko

Beko 19WLP530HID Manuel utilisateur

Beko

Beko B32 D 560 B Guide de référence

Beko

Beko INTEGRATED DIGITAL HD READY COLOUR TELEVISIONS... Manuel utilisateur

Beko

Beko B43L 5740 4B Manuel utilisateur

Beko

Beko V30 Manuel de référence

Beko

Beko B32K 580 Manuel utilisateur

Beko

Beko B32L 5745 4B Manuel utilisateur

Beko

Beko 32WLA530HID Manuel utilisateur

Beko

Beko 37WLU530HID Manuel utilisateur

Beko

Beko 42WLU530HID Manuel utilisateur

Beko

Beko 26WLA500S Manuel utilisateur

Beko

Beko 32WLA520HD Manuel utilisateur

Beko

Beko 28C723IDW Manuel utilisateur

Beko

Beko 23WLB450S Manuel utilisateur

Beko

Beko B40L 5845 4B Manuel utilisateur

Beko

Beko B40 D 560 B Manuel utilisateur

Beko

Beko tr7854070200 Manuel utilisateur

Beko

Beko 20231ND Manuel utilisateur

Beko

Beko K1 CHASSIS Manuel utilisateur

Beko

Beko 26WLK530HID Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
