BEGA 77 911 Manuel

Installation and Technical Information

BEGA

Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2023

Overview:

LED Watts: 23.6W

System Watts: 28.0W

Controllability: 0-10V dimmable

Weight: 27.6 lbs.

Protection Class: IP65

Tools Required:

• 4mm hex head screwdriver

Pole top luminaire - asymmetric wide beam 77 911

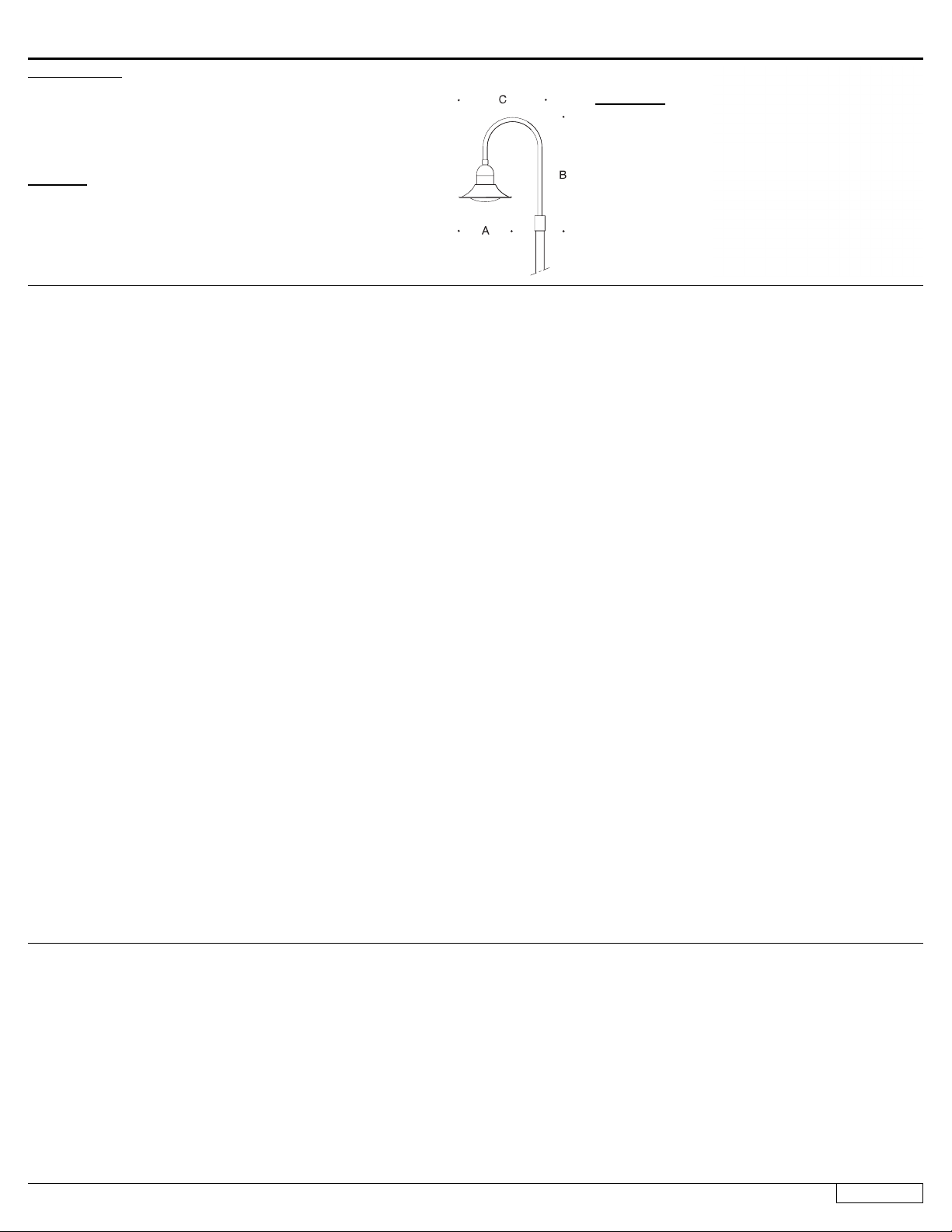

Dimensions

A: 26-5/8

B: 46-1/4

C: 40-1/8

Maintenance:

Clean regularly with solvent-free cleaner

removing dirt and debris. Do not use high

pressure cleaners.

Replacement Parts

See label inside of xture for LED replacement

part number.

Consult factory for all other replacement

components.

Accessories

Please refer to the appropriate accessory installation

sheet for further instruction when applicable.

Updated: 01/20/23

77 911 1 of 2

Notice to Installer:

1. For pole top applications only.

2. Slip ts 3” OD poles or tenons only. Requires a minimum 4” length of straight dia.

pole/tenon for proper installation.

3. Pole top luminaire is provided with a 25’ wire bundle to route through the pole for

suppy wiring connections.

Installation: Luminaire

1. Route the luminaire wiring through the pole to the base and slip t the luminaire over

the top of the pole.

2. Aim luminaire in desired direction. Secure luminaire into place by tightening the (6)

4mm set screws on the pole tter evenly. Set screws must be tightened to 12Nm.

3. Make supply wiring connections in base of pole:

MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE

NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE

GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE

0-10V Dimming (if applicable):

DIMMING CONTROL (+) TO POSITIVE LUMINAIRE DIM CONTROL WIRE

DIMMING CONTROL (-) TO NEGATIVE LUMINAIRE DIM CONTROL WIRE

Installation and Technical Information

BEGA

Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2023

Product Safety Warnings:

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION

CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT

AND THE HAZARDS INVOLVED.

SUITABLE FOR WET LOCATIONS.

MIN 60°C SUPPLY CONDUCTORS.

CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION PERTINENT, PAR UNE

PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES

INHÉRENTS.

CONVIENT AUX EMPLACEMENTS MOUILLÉS.

LES FILS D’ALIMENTATION 60°C MIN.

Updated: 01/20/23

2 of 2

77 911

Pole top luminaire - asymmetric wide beam 77 911
