Befaco 1U OUT Manuel utilisateur

1U OUT

U S E R M A N U A L

1 U O U T P O W E R & I N T R O

P O W E R I N G T H E

M O D U L E

U S E R M A N U A L

T H A N K S F O R P U R C H A S I N G A M O D U L E F R O M B E FA C O !

B E F O R E Y O U P L U G T H I S M O D U L E I N . . .

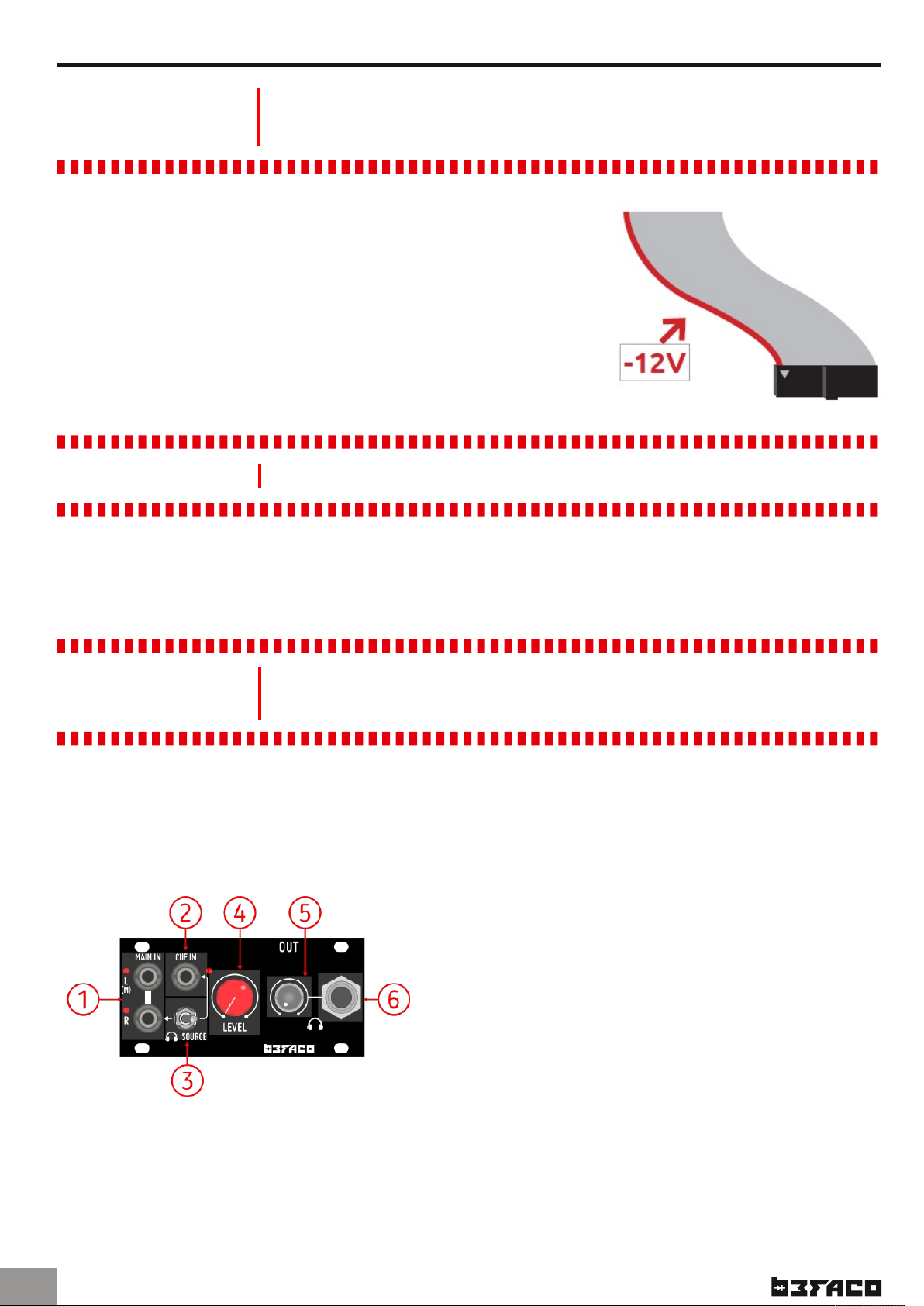

1. Disconnect your cabinet from the mains.

2. Triple check the power cord polarity. The coloured line on the cable

(pin number one) is the -12V rail.

3. If you plug the module backwards you might burn it out and

unfortunately this is not covered by the warranty.

4. If you have any questions about this product please send them to:

support@befaco.org

I N T R O D U C T I O N O U T 1 U

Out is a 1U stereo output module designed to convert audio signals from your modular to line levels. The

module is designed to be used on cases with onboard Jack connectors like the Befaco 7U Case or Intellijel 7U

and Palette series, as it uses the same pinout. The module also includes a high quality Headphone ampliﬁer

with an auxiliar monitoring CUE input.

M O D U L E

R E F E R E N C E PA N E L O V E R V I E W

1. Stereo Inputs

Main audio inputs for both channels L and R with

dedicated clipping LEDs. The signal present at this

inputs is sent through the OUT connector located

at the back of the module. AC Coupled.

2. CUE Input

Auxiliar monitoring input. This input is present

only at the Headphones output if it is selected

with the Headphone Source Switch.

3. Headphone Source Switch

Selects which source will be monitored at the

Headphones output: Main or Cue Input.

4. Level Pot

Manual control of the output volume.

5. Headphones Pot

Manual control of the Headphones output

volume.

6. Headphones Output

Output of the Headphones ampliﬁer circuit.

1 U O U T F E A T U R E S

F E AT U R E S

U S E R M A N U A L

C O N N E C T I N G T H E U N I T T O A C A S E

Out 1U output can be linked to the rear Jack connectors found in cases like the Befaco 7U Case or

Intellijel 7U and Palette series. To do that, connect both ends of the provided 2x3 ribbon cable to

both the "OUT" socket placed at the back of the module and the socket of your case (please refer to

the User Manual of your case to identify the socket linked to the rear jacks).

M I S C E L A N E A S P E C S & C R E D I T S

* Size: 16HP

* Depth: 30mm

* +12v: 30mA

* -12v: 30mA

* Design: Pascual Rocher

1U Out Output Pinout
