BE&SCO Beta 900 Tortilla Oven Manuel utilisateur

WARNINGS

10/15/13

Shown with the optional

Dough Trolley Loader

Shown as a Right Exit

also available as a

Straight Exit or Left Exit.

POWER FAILURE WARNING

IN CASE OF POWER FAILURE, TURN OFF GAS AND FOLLOW

SHUT DOWN PROCEDURES FOR OVEN.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS

OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

WARNING

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR

MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.

READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS

THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.

THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.

INSTRUCTIONS AND WARNING CONTAINED IN THIS MANUAL MUST

BE READ, UNDERSTOOD AND FOLLOWED.

POST IN A PROMINENT LOCATION INSTRUCTIONS TO BE FOLLOWED IN THE

EVENT USER SMELLS GAS. THIS INFORMATION SHALL BE OBTAINED BY

CONSULTING YOUR LOCAL GAS SUPPLIER. AT A MINIMUM:

• TURN OFF GAS

• EXTINGUISH ANY EXISTING FLAMES

• CONTACT YOUR GAS SUPPLIER

• IF YOUR GAS SUPPLIER CAN’T BE REACHED, CONTACT

LOCAL FIRE DEPARTMENT

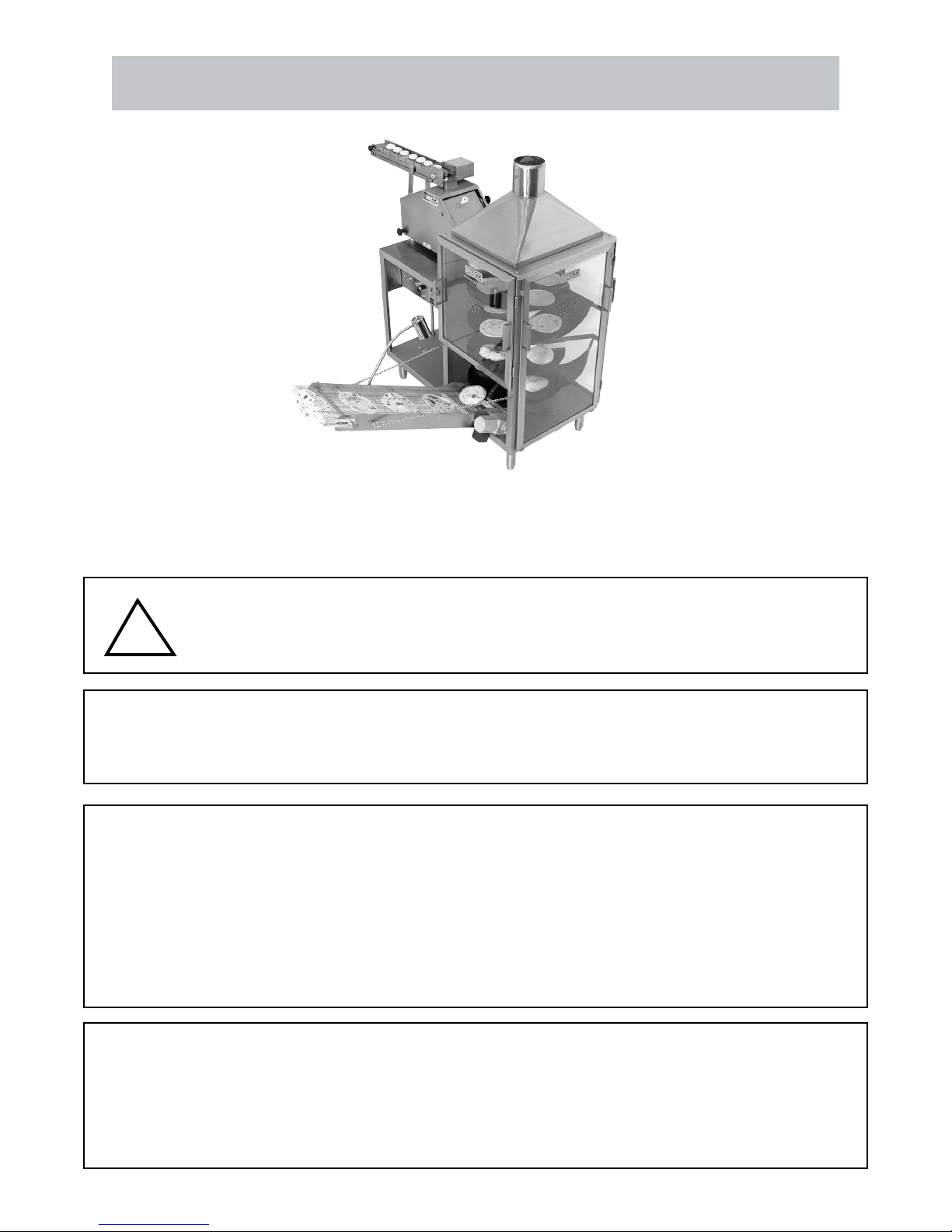

Beta 900 Tortilla Oven

Shown with Exit Conveyor and

Midwedge Tortilla Press.

Precautions

1623 N. San Marcos

San Antonio, Texas 78201







www.bescomfg.com

KEEP THE BETA 900 FREE AND CLEAR FROM COMBUSTIBLES.

DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR.

DISCONNECT ELECTRICAL POWER PRIOR TO MAINTENANCE AND

CLEANING.

ALL MAINTENANCE AND CLEANING MUST BE PERFORMED ACCORDING

TO THIS MANUAL.

NEVER USE ANY SHARP OBJECTS, CAUSTIC OVEN CLEANER, OR

DEGREASER TO CLEAN MACHINE OR PRESS PLATES.

FOR EMERGENCY SHUT DOWN, PUSH MASTER SWITCH.

READ AND FOLLOW ALL THE DIRECTIONS IN THIS MANUAL. DO NOT

LOSE OR THROW THIS MANUAL AWAY. DO NOT USE BETA 900 UNLESS

YOU READ THE MANUAL.

DO NOT CONNECT TO A CIRCUIT OPERATING AT MORE THAN 150 VOLTS

TO GROUND.

Warnings ..................................................................................................................................................... 1

Precautions.................................................................................................................................................. 2

Table of Contents......................................................................................................................................... 3

Policy & Procedure for Returning BE&SCO Parts....................................................................................... 

Storyboards, Delivery & Damage, Beta 900 Manual, Training DVD............................................................ 5

Installation Requirements............................................................................................................................ 6

Location & Placement of Machine............................................................................................................... 7

..............................................................................................................................11

..................................................................................................................................... 12

Gas Piping................................................................................................................................................. 13

Ventilation .................................................................................................................................................. 

Initial Adjustments...................................................................................................................................... 

Assembly Instructions................................................................................................................................ 15

General Guidelines.................................................................................................................................... 17

Midwedge Installation................................................................................................................................ 18

Oven Control Panel ................................................................................................................................... 19

 ............................................................................................................................... 21

 ....................................................................................................................... 22

Shutdown Operation.................................................................................................................................. 23

Dough Making ........................................................................................................................................... 

Tortilla Making............................................................................................................................................ 27

Recipes...................................................................................................................................................... 32

Cleaning Supplies...................................................................................................................................... 

Cleaning the Beta 900............................................................................................................................... 35

Troubleshoot Guide ................................................................................................................................... 

Maintenance Press & Oven ...................................................................................................................... 

Closing Statement ..................................................................................................................................... 

Parts & Pictures Warning .......................................................................................................................... 

Decal Locator Assembly ............................................................................................................................ 79

Warranty .................................................................................................................................................... 

Table of Contents

Neither this manual nor any part may be reproduced or transmitted in any form or by any means, electronic or mechanical,



writing from Bakery Equipment & Service Co., Inc.



Procedure for Returning BE&SCO Parts:

  

may request a repair and return, advance replacement or a credit of the component. The Parts Department



an RA number. You have 10 working days to return the old part for full credit or you will be invoiced for the

new part.

2. Package the component and a detailed description of what is wrong with the component. Write the RA



BE&SCO - Parts Department

RA#

1623-27 N. San Marcos

San Antonio, TX 78201

To obtain warranty on return parts the customer or the end user will be responsible for that particular item to be

shipped back to BE&SCO. Freight is not covered under warranty, going or coming. BE&SCO recommends

that you insure any parts that are being returned to BE&SCO, as BE&SCO Inc. is not responsible for any

damage or loss that occurs during shipping. If the part is damaged or lost during shipping, BE&SCO will not

be responsible for repair or replacement of the parts.

Returning BE&SCO Parts:

To return any BE&SCO parts you must follow BE&SCO’s procedure for returning. No returns will be accepted



credit. This does not include wear and tear items as stated in our manual.

This warranty does not cover any defect due to or resulting from handling, abuse, misuse, improper

maintenance and cleaning, or harsh chemical action, nor shall it extend to any unit from which the serial

number has been removed or altered, or acts of God. Adjustments such as calibrations, leveling, tightening

of fasteners or plumbing connections normally associated with original installation are the responsibility of

the dealer or installer and not of BAKERY EQUIPMENT & SERVICE CO., INC.

Policy & Procedure for Returning BE&SCO Parts

We tightly pack all our equipment and strap them on heavy wooden skids before giving

them to the shipping company. After we give the merchandise to the shipping company, they are

responsible for delivering your purchase; therefore, BE&SCO will not be responsible for the loss or

damage of your shipment. If you nd your purchase damaged call the shipping company.

Delivery & Damage

The Beta 900 manual covers installation, operation, maintenance, cleaning, troubleshooting

and parts. It is very important to always have a copy of the Beta 900 Manual as reference. If you

loose your Beta 900 manual or need an extra copy of the Beta 900 Manual, call the BE&SCO



Manual

Every Beta 900 comes with a Operation & Cleaning DVD in English and Spanish. This

DVD will help with training on the Beta 900. If you need additional training for the Beta 900 contact



Operation & Cleaning DVD or VHS

Storyboards

The laminated poster included in your shipment is called a Storyboard. A Storyboard

describes how to operate or care for the machine in an easy, quick format. It should be posted on

a wall close by the machine. Both front and back have the same information but in two different



Installation Requirements

(ForaQualiedServicePerson)

              

below. Anyone else doing so could easily damage the Beta Max, hurt him or himself, and void

the warranty.

1. 

2. Gas Pipings

3. Ventilation

 Initial Adjustments

5. Assembly Instructions

A QualiedServicePerson

1. 

also obey the state or local authorities having jurisdiction in reference to the National Fuel Gas

Code, NFPA 54-1984 and ANSI z223.1-1984, Section 1.4.

2. 



person must also obey safety rules and requirements of the state or local authorities having

jurisdiction in reference to the National Electrical Code, ANSI/NFPA 70

3. Canadian installations should agree with “Installation Codes for Gas Burning Appliances and





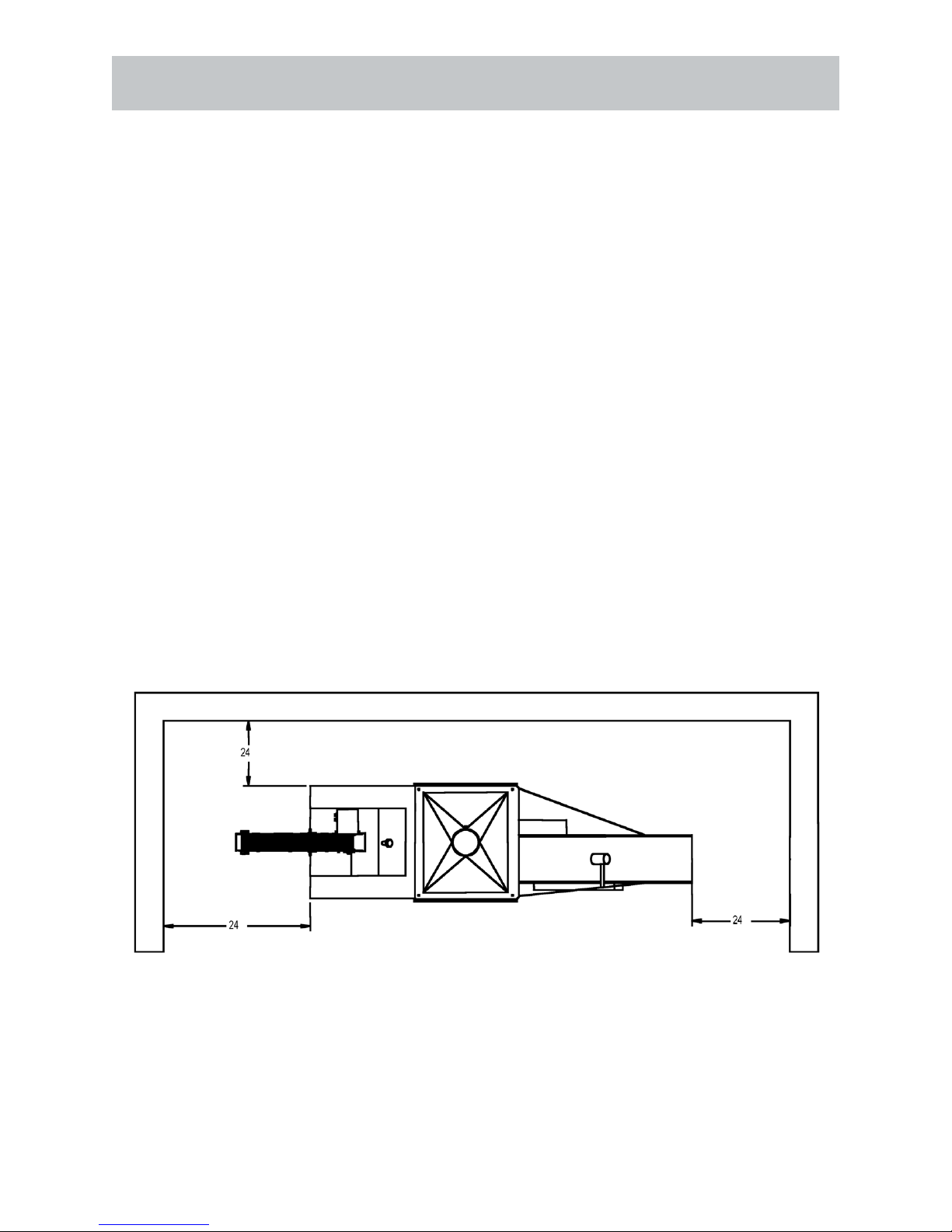

 In an open work area. This way anyone can access the Beta 900 easily, especially for

maintenance.

 

compartment will be restricted and stop proper ventilation.

 On level ground and on a curb base.

 Make sure it is far from any strong air currents.

 

 

 Finally, before making any connections to the BETA 900, check the rating plate on the



A good spot would be the one where you meet all the above suggestions. See the



Location and Placement of Machine



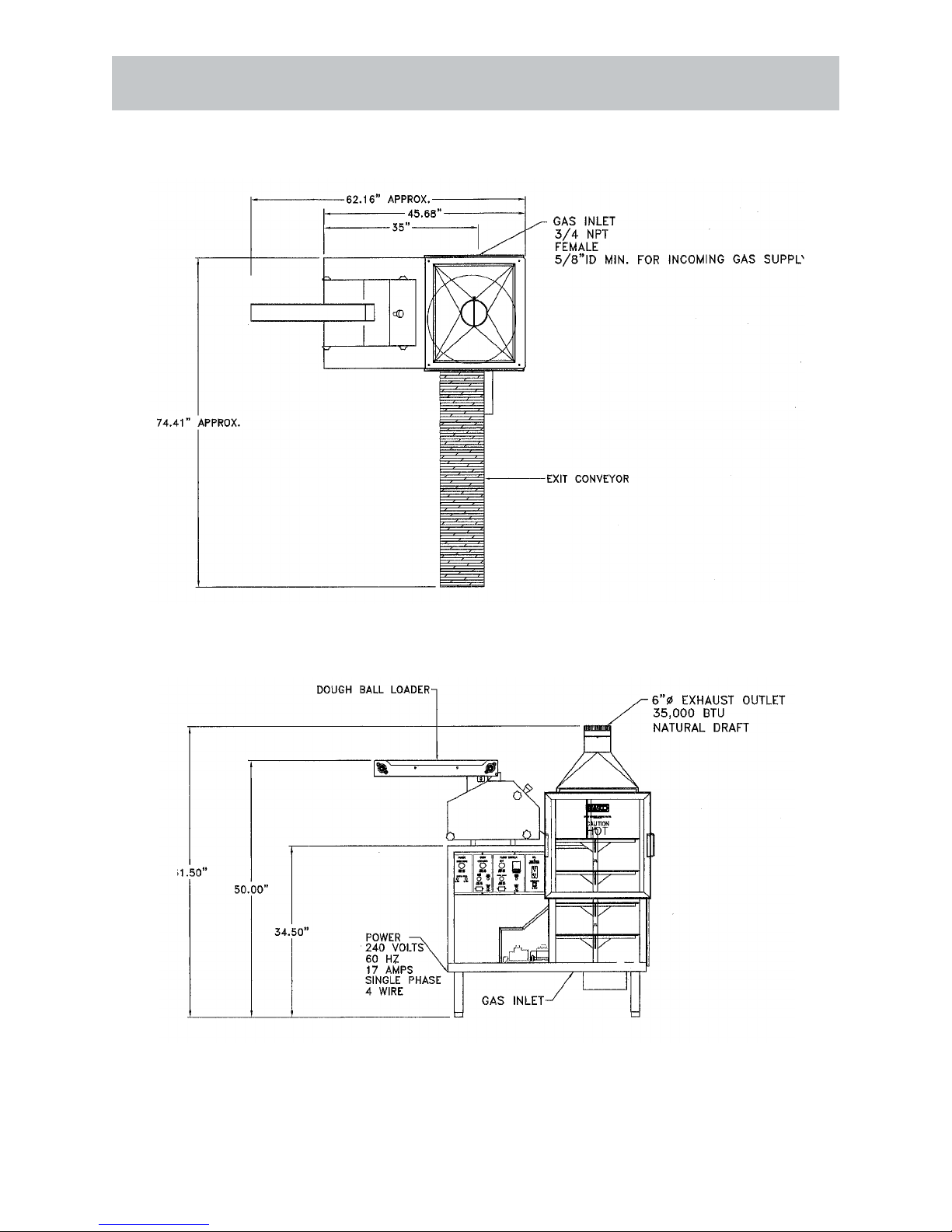

Beta 900 with Straight Exit with optional Dough Trolley Loader

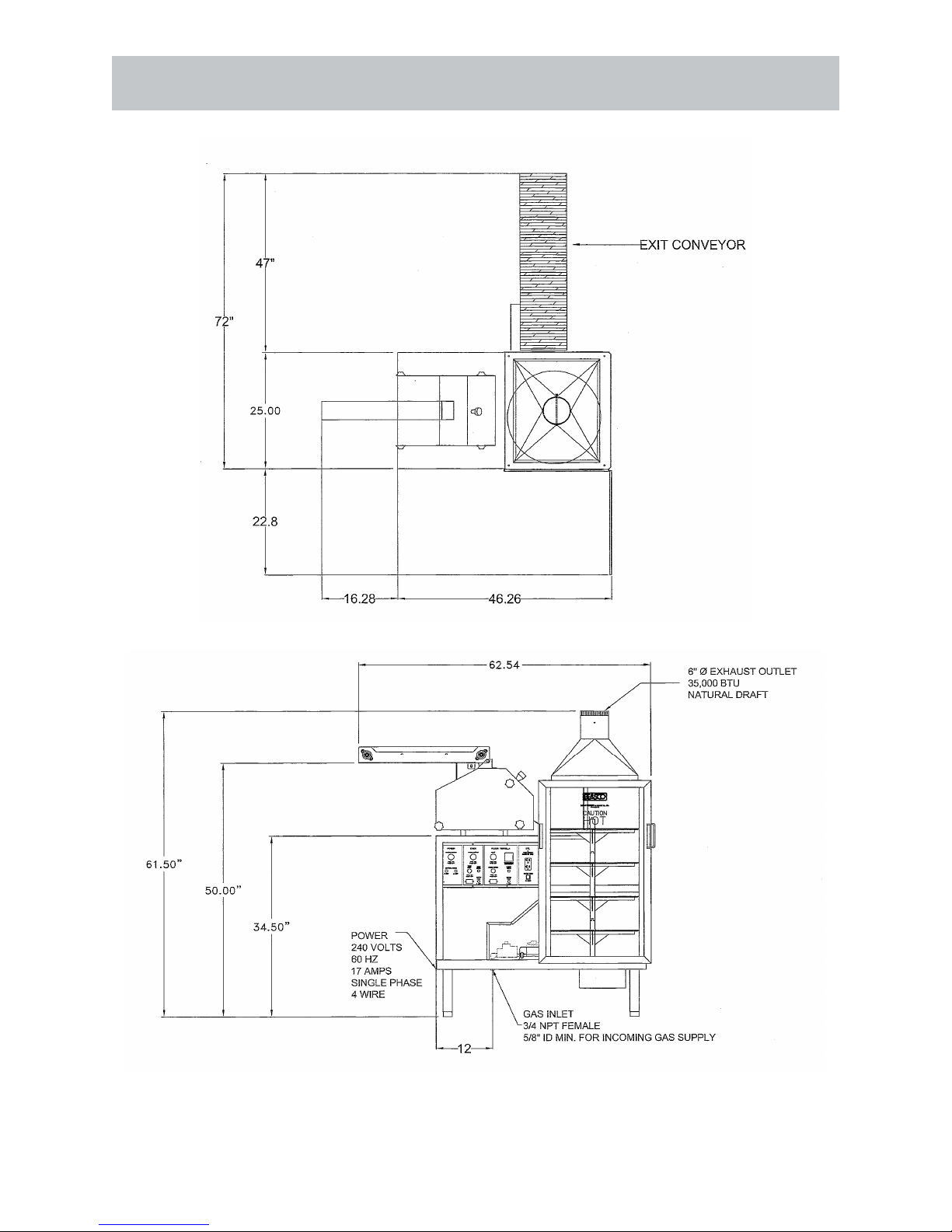

Beta 900 with Right Side Exit with optional Dough Trolley Loader

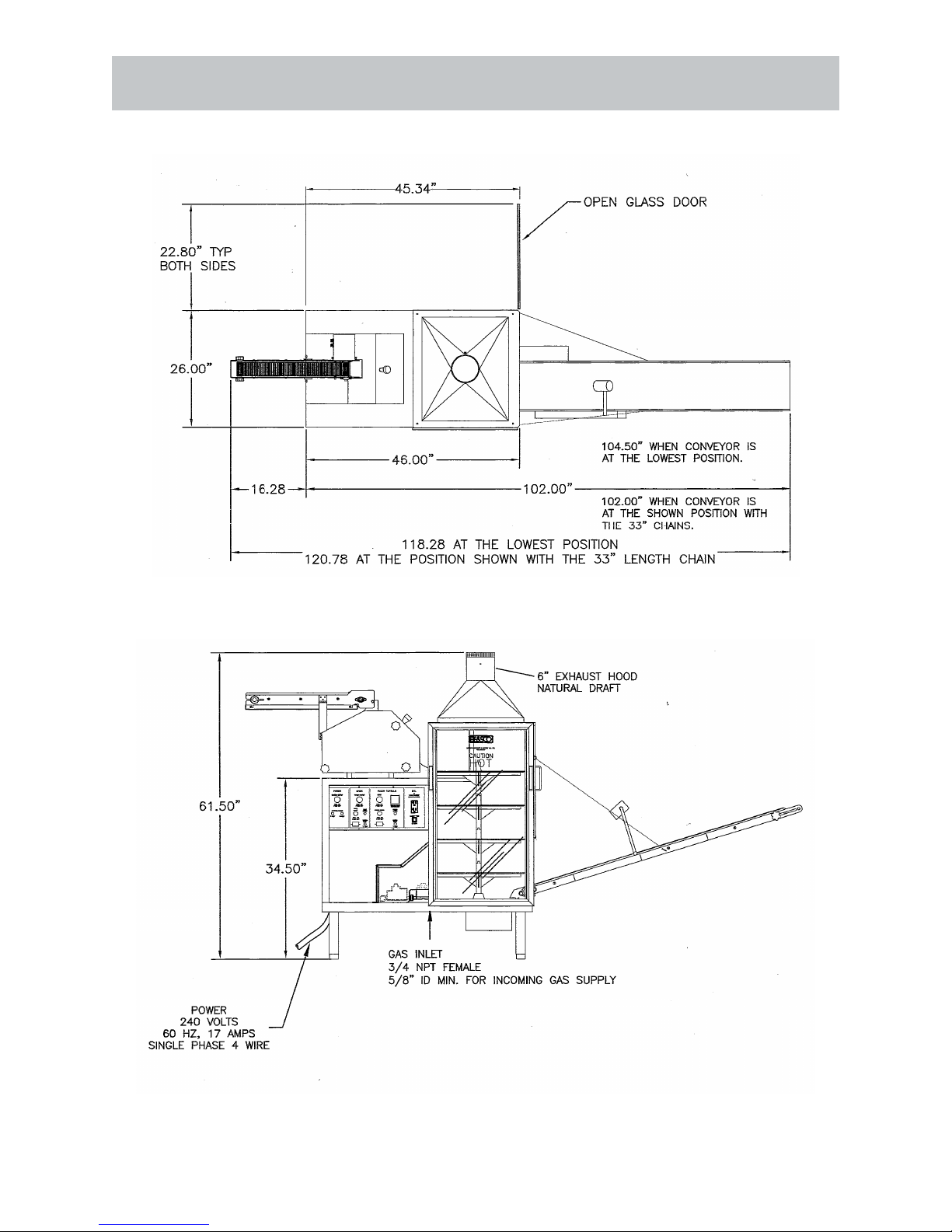

Beta 900 with Left Side Exit with optional Dough Trolley Loader
