BCM IN865GVR Manuel utilisateur

P4 Socket 478 Motherboard

IN865GVR

User’s Manual

http://www.bcmcom.com

Declaration

Rights:

No part of this manual, including but not limited to the products and software described in it, may

be reproduced, transmitted, transcribes, stored in a retrieval system, or translated in any form or by

any means without the expressed written permission from the manufacturer.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies and are used only for identification or explanation

purposes without intent to infringe.

zIntel, Pentium4 are registered trademarks of Intel Corporation.

zMicrosoft and Windowsare registered trademarks of Microsoft Corporation.

zPhoenixand Awardare registered trademarks of Phoenix Technologies LTD..

Responsibility:

This manual is provided “As-Is” with no warranties of any kind, either expressed or implied,

including, but not limited to the implied warranties or conditions of this product’s fitness for any

particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of

data, interruption of business, or indirect, special, incidental, or consequential damages of any kind,

even the possibility of such damages arising from any defect or error in this manual or product.

We reserve the right to modify and update the user manual without prior notice.

WARNING:

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin

cell (or equivalent) battery type to avoid risk of personal injury or physical damage to your

equipment. Always dispose of used batteries according to the manufacturer’s instructions, or as

required by the local ordinance (where applicable).

References:

This manual is created and written by BCM Technical Dept., but not limited, to the information

from the IN865GVR External Production Specifications, and IN865GVR Specifications. If any

comments, suggestions, or errors for this manual, please write an e-mail to support@bcmcom.com.

Compliance & Certificate

ISO 9001 Certificate:

This device was produced in our plant with advanced quality system certified by DNV QA Ltd. in

according to ISO 9001. This Certificate is valid for:

DESIGN & MANUFACTURE OF MOTHERBOARD AND PERSONAL COMPUTERS.

CE Declaration:

CE marking is a visible declaration by the manufacturer or his authorized representatives

that the electrical equipment to which it relates satisfies all the provisions of the 1994

Regulations.

FCC Compliance:

FCC stands for Federal Communications Commission.

This product complies with FCC Rules Part 15 and has been tested, and complied with the EMI

rules by a certified body. In normal operation, there shall be no harmful interference caused by this

device nor shall this device accept any interference received, including interference that may cause

undesired operation of this product.

Year 2000 Compliance:

This product is test to be qualified to bear the NSTL Year 2000 Compliant logo. Year 2000

problem is mainly a problem of computer software (OS), and the hardware issue. With the support

of BIOS on motherboard, the Y2K problem can be thoroughly conquered.

Easy Installation

Easy Installation Steps

The following “Easy Installation” steps are for users

accustomed to the assembly of a computer system. For those

individuals requiring more specific information, please refer

to the more detailed descriptions located within the latter

chapters of this manual.

Note: You must keep your power cable unplugged until the

following installation steps are completed.

Getting Started

Touch a grounded metal surface to release static electricity

stored in your body before unpacking your motherboard. For

details please refer to Precaution.

Install the CPU by correctly aligning the CPU with the socket

478 as noted in the motherboard diagram. Once aligned,

press down on the CPU gently but firmly and lock it. Next,

install the 3.3 volt un-

uffered DDR SDRAM into the 184

pin DIMM slots.

Plug in any peripheral card(s) that you want to be included in

the setup.

Plug in all cables included in the package except for the

power cord.

Please recheck all steps to ensure no mistakes have been

made and then plug in the power cord and turn on the power

to enter the BIOS setup, Chapter 3.

USER’S NOTICE 1

MANUAL REVISION INFORMATION 1

COOLING SOLUTIONS 1

CHAPTER 1 INTRODUCTION OF IN865GVR MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD 3

1-2 SPECIFICATION 4

1-3 LAYOUT DIAGRAM 5

1-4 LAYOUT DIAGRAM & JUMPER SETTING 6

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS 7

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING 7

2-3 INSTALL CPU 9

2-3-1 GLOSSARY 9

2-3-2 ABOUT INTEL PENTIUM 4 478-PIN CPU 11

2-4 INSTALL MEMORY 12

2-5 EXPANSION CARD 13

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION 13

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD 13

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD 14

2-6 CONNECTORS, HEADERS 15

2-6-1 CONNECTORS 15

2-6-2 HEADERS 18

2-7 STARTING UP YOUR COMPUTER 23

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP 24

3-2 GETTING HELP 24

3-3 THE MAIN MENU 25

3-4 STANDARD CMOS FEATURES 27

3-5 ADVANCED BIOS FEATURES 29

3-6 ADVANCED CHIPSET FEATURES 32

3-6-1 DRAM TIMING SETTINGS 33

3-7 INTEGRATED PERIPHERALS 34

3-7-1 ONBOARD IDE FUNCTION 35

3-7-2 ONBOARD DEVICE FUNCTION 37

3-7-3 ONBOARD SUPER IO FUNCTION 38

3-8 POWER MANAGEMENT SETUP 40

3-9 PNP/PCI CONFIGURATION SETUP 42

3-10 PC HEALTH STATUS 43

3-11 MISCELLANEOUS CONTROL 44

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS 44

3-13 SET SUPERVISOR/USER PASSWORD 45

TABLE OF CONTENT

USER’S NOTICE

THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY

BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY

FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE

MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION NECESSARY TO USE OF

RX845GL/IN845GL MOTHER-BOARD AND WE DO ASSURE THIS MANUAL CONTENT

AS MANY INFORMATION AS POSSIBLE, BUT WE RESERVE RIGHT TO CHANGE,

UPDATE ANYTIME WITHOUT PRIOR NOTICE. MANUFACTURER PROVIDES THIS

MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE

FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF

DATA, INTERRUPTION OF BUSINESS OF ANY KIND ALIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY

NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE

COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION

AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGEMENT.

Manual Revision Information

Reversion Revision History Date

1.0 First Release May. 2004

Item Checklist

5IN865GVR

5Cable for IDE/Floppy

5CD for motherboard utilities

□Cable for USB Port 3/4 (Optional)

5IN865GVR User’s Manual Digital Format on CD

5IN865GVR Quick Reference Guide

Intel Pentium 4 Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management

becomes increasingly crucial when building computer systems. Maintaining the proper thermal

environment is key to reliable, long-term system operation. The overall goal in providing the

proper thermal environment is keeping the processor below its specified maximum case

temperature. Heatsinks induce improved processor heat dissipation through increased surface area

and concentrated airflow from attached fans. In addition, interface materials allow effective

transfers of heat from the processor to the heatsink. For optimum heat transfer, Intel recommends

the use of thermal grease and mounting clips to attach the heatsink to the processor.

When selecting a thermal solution for your system, please refer to the website below for collection

of heatsinks evaluated and recommended by Intel for use with Intel processors. Note, those

heatsinks are recommended for maintaining the specified Maximum T case requirement. In

addition, this collection is not intended to be a comprehensive listing of all heatsinks that support

Intel processors.

For vendor list of heatsink and fan, please visit :

http://developer.intel.com/design/Pentium4/components/index

Chapter 1

Introduction

1-1 Feature of motherboard

The IN865GVR motherboard is design for use Intel Pentium 4 with 512-KB cache on 0.13

micron/ 90 nm process (Prescott) processor in 478 Pin Package Processor with Hyper-Threading

Technology support, the Intel 865GV Chipset delivers a high performance and professional desktop

platform solution. Which utilize the Socket 478 design and the memory size expandable to 2.0GB.

IN865GVR motherboard use the Intel 865GVR Chipset Supports 400/533/800MHz System Bus in

data transfer rate, This motherboard provided a wide range of memory choices with 133/200MHz

SDRAM clock frequency to support DDR400/333/266 SDRAM. This motherboard offers ULTRA

ATA 100 and SATA ports to provide speedier HDD throughout that boosts overall system

performance.

With integrated Intel Extreme2 2D/3D Graphics Accelerator which supports 256 bit graphics core, and

supports hardware motion compensation assist for software MPEG/DVD decode, makes this board a

low cost solution. The IN865GVR also provide DFP support for those who wish to use of a digital

display equip with LVDS TFT panel.

The IN865GVR motherboard including 2 LAN onboard, an Intel GbE 82547GI and a Realtek

RTL8100B 10/100 PCI LAN Controller.

Its also has integrated onboard an AC’97 2.1 ADI AD1981B Audio CODEC, which is fully

compatible with Sound Blaster Prothat gives you the best sound quality and compatibility.

With USB control as well as capability of expanding to 6 USB2.0 function ports to meet faster data

transfer, built-in hardware monitor function. This enable system monitor and protect your computer.

These motherboards provided design in hardware to protect BIOS from virus crash BIOS data.

IN865GVR provides high performance & Longevity for Embedded Application. It is really a wise

choice of computing solution.

1-2 Specification

Spec Description

Design ∗Micro ATX form factor 4 layers PCB size: 9.5”(W) x 9.5”(D) (244 x

244 mm)

Chipset ∗Intel 865GV Graphics Memory Controller Hub (GMCH) Chipset for

IN865GVR

∗Intel 82801ER I/O Controller Hub (ICH5R) Chipset

CPU Socket

(mPGA478B Socket)

∗Support Intel Pentium 4 with 512KB L2 cache on 0.13 micron / 90

nm process 478 Pin processor, Flip-Chip Pin Grid Array (FC-PGA2)

package

∗Support CPU Frequency 400/533 & 800MHz

∗Support 1.6G∼3.4G 478 Pin Pentium 4 processor

∗Reserves support for future Intel Pentium 4 processors

Video Display ∗Integrated Intel High Performance Extreme Graphics 2 2D/3D

∗24-bit Single/ Dual Channel Interface

∗TV-Out with Pal, NTSC Support

Memory Socket ∗184-pin DDR SDRAM module socket x2

∗Support Memory Type 128Mbit to 512Mbit Technology

∗Support Only 8x and 16x SDRAM device with 4 banks

∗Support DDR400/DDR333/DDR266 SDRAM (DDR333 at 533MHz

FSB Only)

∗Expandable to 2GB

Expansion Slot ∗32-bit PCI slot x3

Integrate IDE ∗Two PCI IDE controllers support PCI Bus Mastering, ATA

PIO/DMA and the ULTRA DMA 33/66/100 functions that deliver the

data transfer rate up to 100 MB/s

∗Two Serial ATA host controller with independent DMA operation on

2 ports.

Data transfer rates up to 1.5Gb/s

Raid Level 0, 1 support (ICH5R Only)

LAN On Board

∗Intel 82541GI Gigabit LAN

∗Realtek RTL8100BL 10/100 PCI LAN Controller chip

Audio ∗AC’97 Digital Audio controller integrated

∗AC’97 2.1 Audio CODEC on board

∗Sound Blaster Pro compliant

∗Audio driver and utility included

BIOS ∗Phoenix/ Award 4MB Flash ROM

Multi I/O ∗PS/2 keyboard and PS/2 mouse connectors

∗Floppy disk drive connector x1

∗Parallel port x1, Serial port x2 (one on header)

∗USB 2.0 connector x6, (2 on header)

∗Audio connector Line-in, Line-out, MIC

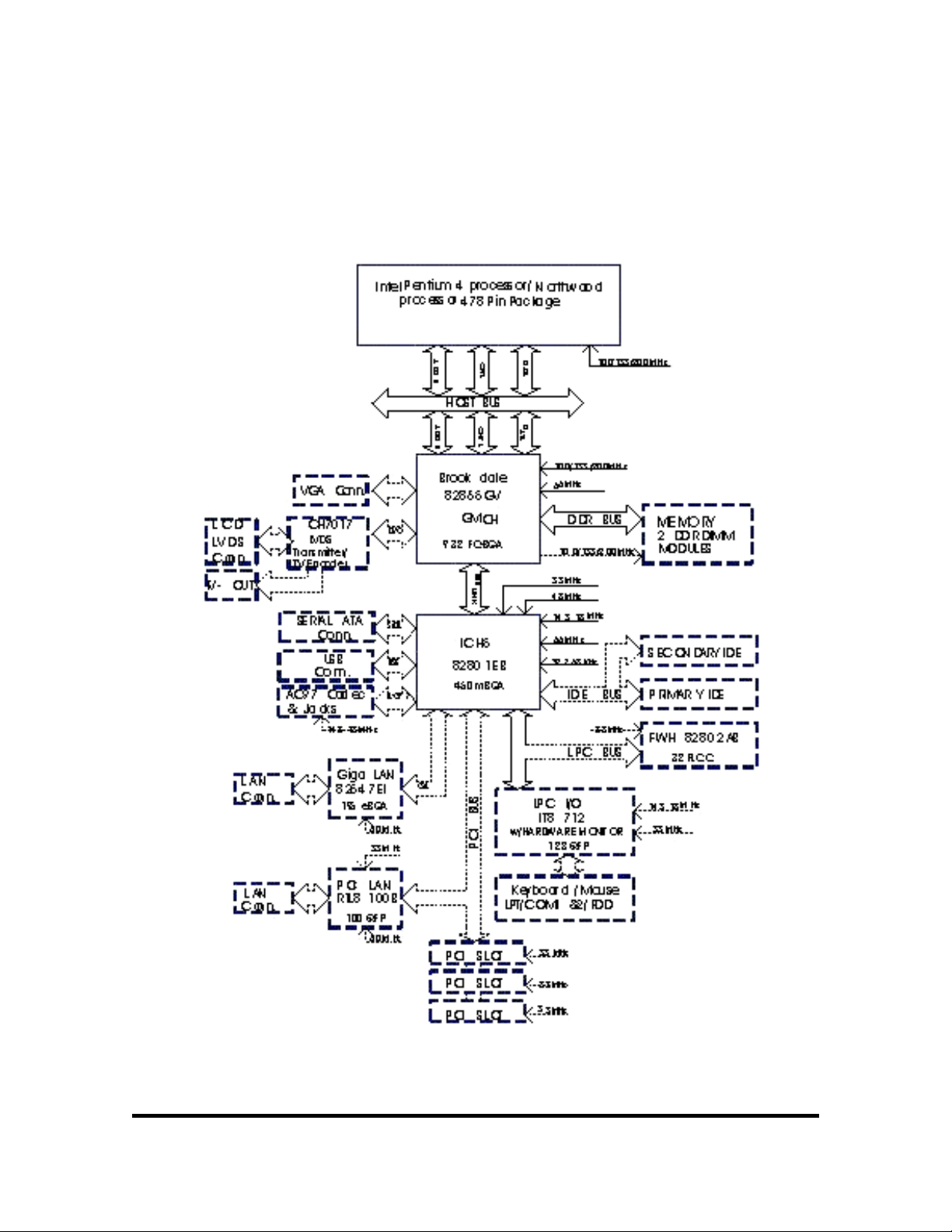

1-3 System Diagram

IN865GVR Mainboard Diagram

Table des matières

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
