BBC Bircher CleanSwitch Manuel utilisateur
1
1 2 3
4 5
TOP TOP
Made in China / Designed in Switzerland
BBC Bircher Smart Access, BBC Bircher AG, Wiesengasse 20, CH-8222 Beringen, www.bircher.com
58
90
60
90
66.6
32.3
20.8
34.3
439.5
4 2

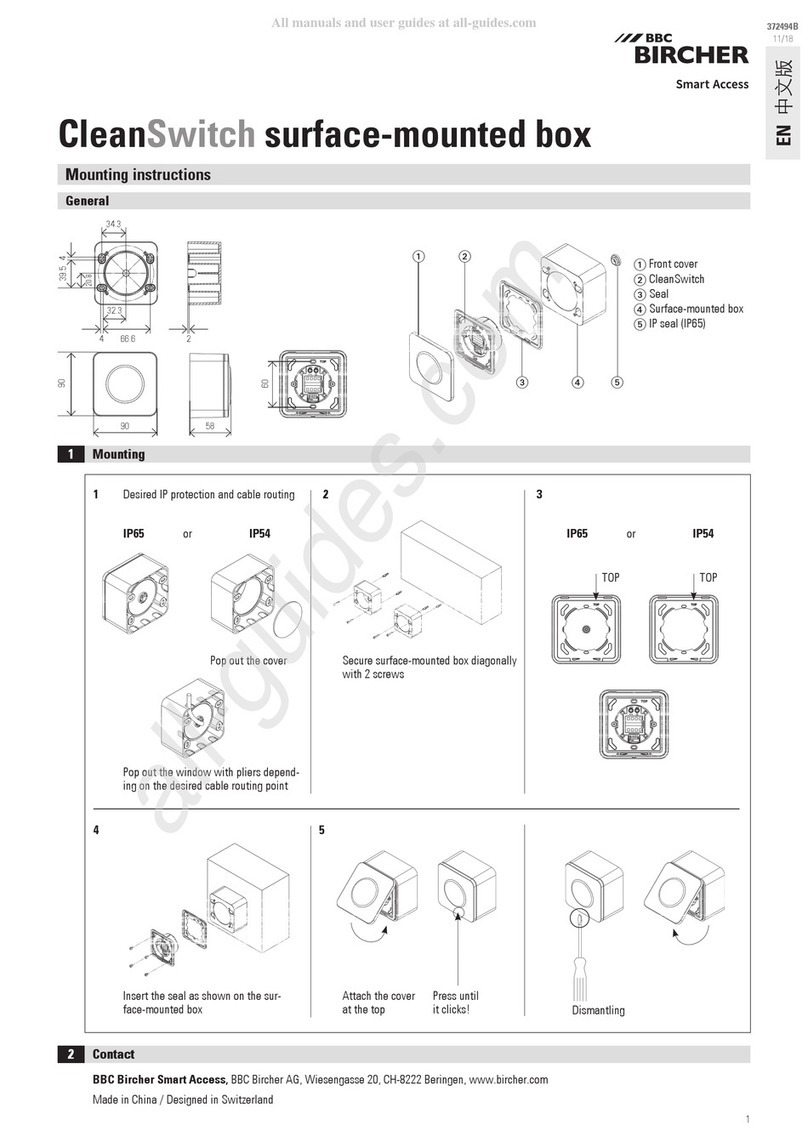

1Mounting
Mounting instructions
General
Front cover
CleanSwitch
Seal
Surface-mounted box
IP seal (IP65)
EN 中文版
372494B
11/18
Secure surface-mounted box diagonally
with 2 screws
Attach the cover
at the top
Insert the seal as shown on the sur-
face-mounted box Dismantling
Press until
it clicks!
IP54IP65
Desired IP protection and cable routing
or IP54IP65 or
Pop out the window with pliers depend-
ing on the desired cable routing point
Pop out the cover
2Contact
CleanSwitch surface-mounted box
2
1 2 3
4 5
TOP TOP
Made in China / Designed in Switzerland
BBC Bircher Smart Access, BBC Bircher AG, Wiesengasse 20, CH-8222 Beringen, www.bircher.com
58
90
60
90
66.6
32.3
20.8
34.3
439.5
4 2
1安装
装配说明书
概述
前盖
CleanSwitch
密封件
表面安装盒
密封件 (IP65)
用2 个螺栓对角固定 表面安装盒
挂上顶部
盖板
将密封件如标记所
示放到表面安装件上 拆卸
按下直
到卡住！
IP54IP65
所需的 IP 防护和电缆布线
或IP54IP65 或
根据所需的电缆布线，
用钳子拆下端盖
拆下盖板
2联系方式
CleanSwitch 表面安装盒
EN 中文版
372494B
11/18
