Baxi Combi 133 HE Plus

Baxi Combi 100 HE Plus

Baxi Combi 80 HE Plus

Gas Fired Wall Mounted Condensing

Combination Boiler

User’s Operating Instructions &

Important Warranty Information

2© Baxi Heating UK Limited 2005

Baxi is one of the leading manufacturers of domestic

heating products in the UK.

Our first priority is to give a high quality service to our

customers. Quality is designed into every Baxi product -

products which fulfil the demands and needs of customers,

offering choice, efficiency and reliability.

To keep ahead of changing trends, we have made a

commitment to develop new ideas using the

latest technology - with the aim of continuing to

make the products that customers want to buy.

Everyone who works at Baxi has a commitment to quality

because we know that satisfied customers mean continued

success.

We hope you get a satisfactory service from Baxi. If not,

please let us know.

Natural Gas

Baxi Combi 133 HE Plus

G.C.No47 075 14

Baxi Combi 100 HE Plus

G.C.No47 075 15

Baxi Combi 80 HE Plus

G.C.No47 075 16

Baxi Heating UK Limited is a

BS-EN ISO 9001 Accredited Company

Baxi supports

The code of practice for the

installation, commissioning &

ervicing of central heating systems

This product has an energy rating (A) on a scale of A to G.

For more information see www.boilers.org.uk. This is a certification mark.

1.0 Quick Reference Guide 3

2.0 Troubleshooting 4

3.0 Repressurising 6

4.0 Clearances 7

5.0 Care of the Boiler 8

6.0 Legislation 9

7.0 Emergency 10

8.0 Warranty & Service 12

Section Page

Contents

may be reproduced or transmitted in any form or by any means, or stored in any

retrieval system of any nature (including in any database), in each case whether

electronic, mechanical, recording or otherwise, without the prior written

permission of the copyright owner, except for permitted fair dealing under

Copyrights, Designs and Patents Act 1988.

Applications for the copyright owner’s permission to reproduce or make other

use of any part of this publication should be made, giving details of the proposed

use, to the following address:

The Company Secretary, Baxi Heating UK Limited, Pentagon House,

Sir Frank Whittle Road, Derby, DE21 4XA.

Full acknowledgement of author and source must be given.

WARNING: Any person who does any unauthorised act in relation to a

Reset Button

If the Red Flame Failure Light ( ) is ON or

flashing, press the Reset button until the red light

goes OFF. If this occurs frequently a fault is indicated,

you should contact your installer.

1.0 Quick Reference Guide

Low

High

Reset

Low

High

Domestic Hot Water Temperature Control

Turn the Domestic Hot Water Temperature Control

Knob clockwise to increase or anticlockwise to

decrease the temperature. Range 45 - 55° C.

Central Heating Temperature Control

Turn the Central Heating Temperature Control Knob

clockwise to increase or anticlockwise to decrease

the boiler flow temperature.

Low

High

Reset

Low

High

Low

High

Flame Failure

(Red Light)

Burner On

(Green Light)

Mains On

(Green Light)

Central Heating

Control Knob

(No OFF Position)

Reset Button

If Flame Failure Light is ON press the Reset Button. If Flame Failure occurs

frequently consult your Installer.

This indicates that the Burner has fired up and is heating your system.

This indicates that there is electricity to the Boiler.

Turn the Central Heating Control Knob clockwise to increase or anticlockwise

to decrease the boiler flow temperature.

The Reset Button should extinguish the Flame Failure Light and allow

normal operation to commence.

Low

High

Domestic Hot Water

Control Knob

(No OFF Position)

Turn the Domestic Hot Water Control Knob clockwise to increase or

anticlockwise to decrease the temperature.

Domestic Hot Water

(Green Light) This indicates that the Burner has fired up and heating your water.

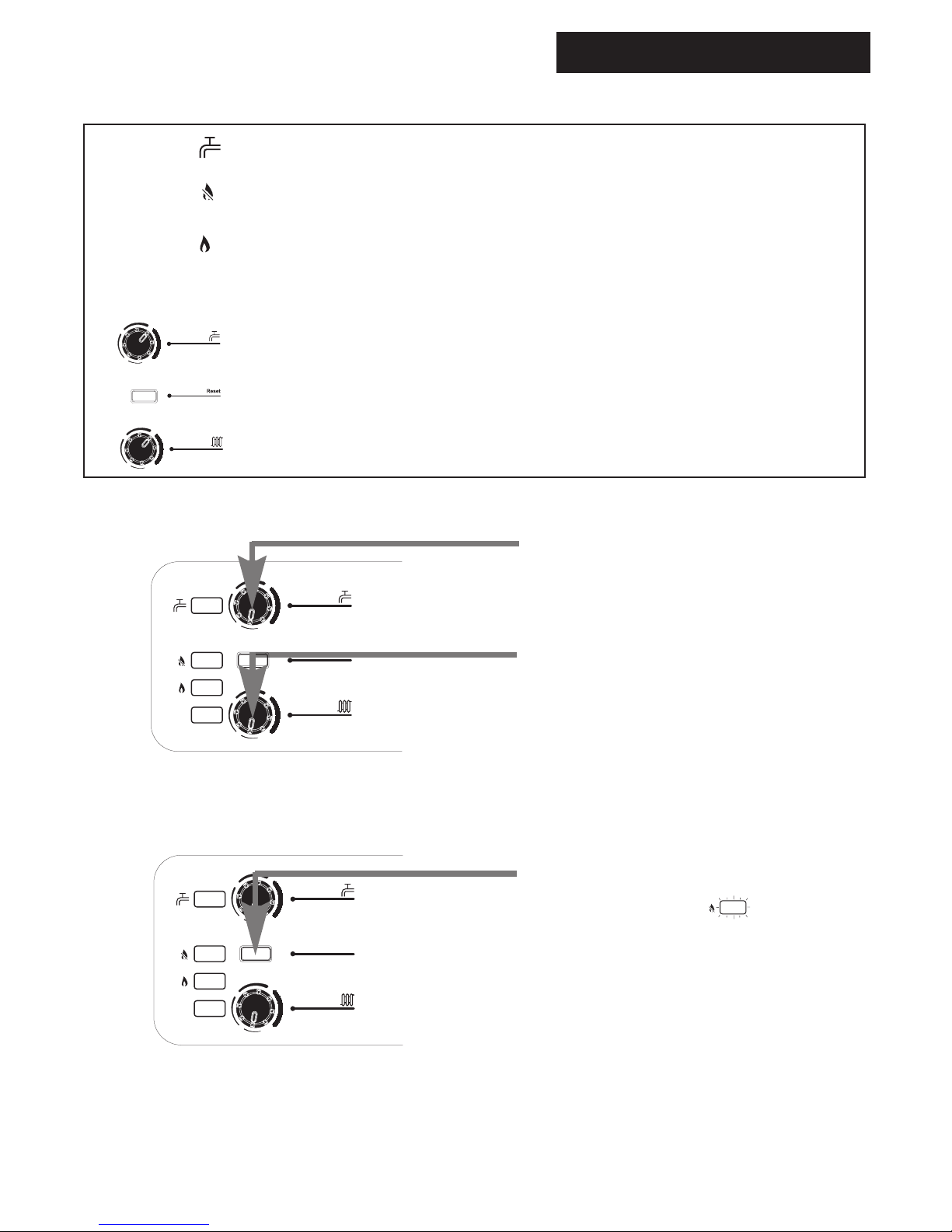

Key to Controls

2.0 Troubleshooting

4© Baxi Heating UK Limited 2005

Make sure the gas

supply is turned ON

and check if other

gas appliances are

operating (e.g. fire,

cooker).

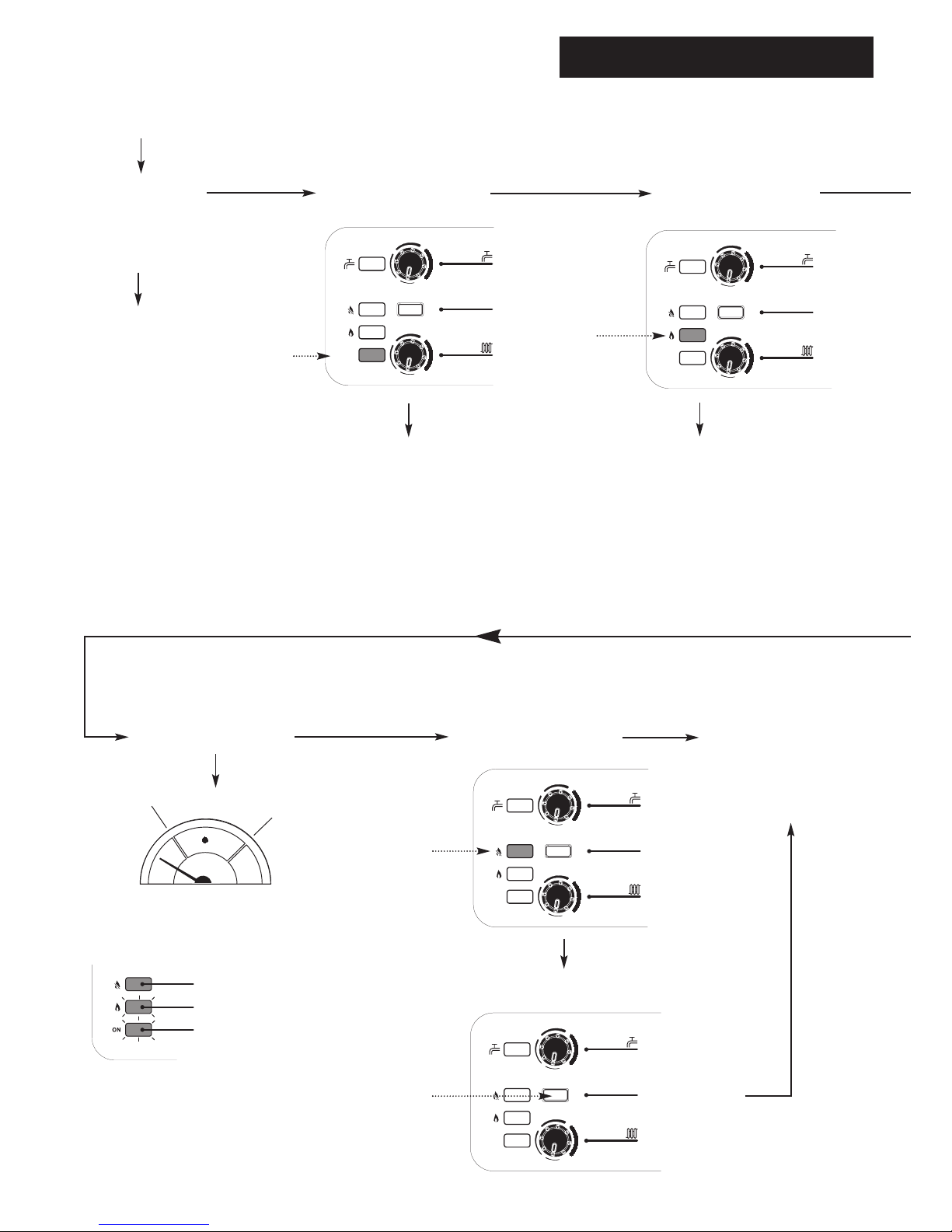

START

Is there electricity to the

boiler ? (Green Mains ON

Light lit).

Low

Hig h

Rese t

Low

Hig h

Check electrical supply to

boiler is switched on.

Mains ON Light

(Green)

requires

repressurising

Is the Central Heating

System Pressure between

1 and 2.5 bar ?

If the reading falls below 1 bar

repressurise the system as

described in section 3.0.

Is the Red Flame Failure

Light illuminated or flashing ?

Low

Hig h

Reset

Low

Hig h

Flame Failure

(Red)

Low

High

Reset

Low

High

Press the Reset Button

until the red light goes off.

Reset Button

Boiler not working

CONTACT YOUR

INSTALLER OR

SERVICE

ENGINEER.

YES YES

Light ON

Light FLASHING

YES NO

Pressure

Gauge

Boiler indicators

showing low

pressure

YES

If the light

does not go

out or keeps

coming on

If no gas, consult

your supplier.

Low

Hig h

Reset

Low

Hig h

Is the Green Burner ON

Light illuminated ?

Burner ON Light

(Green)

Boiler operating

satisfactorily.

YES

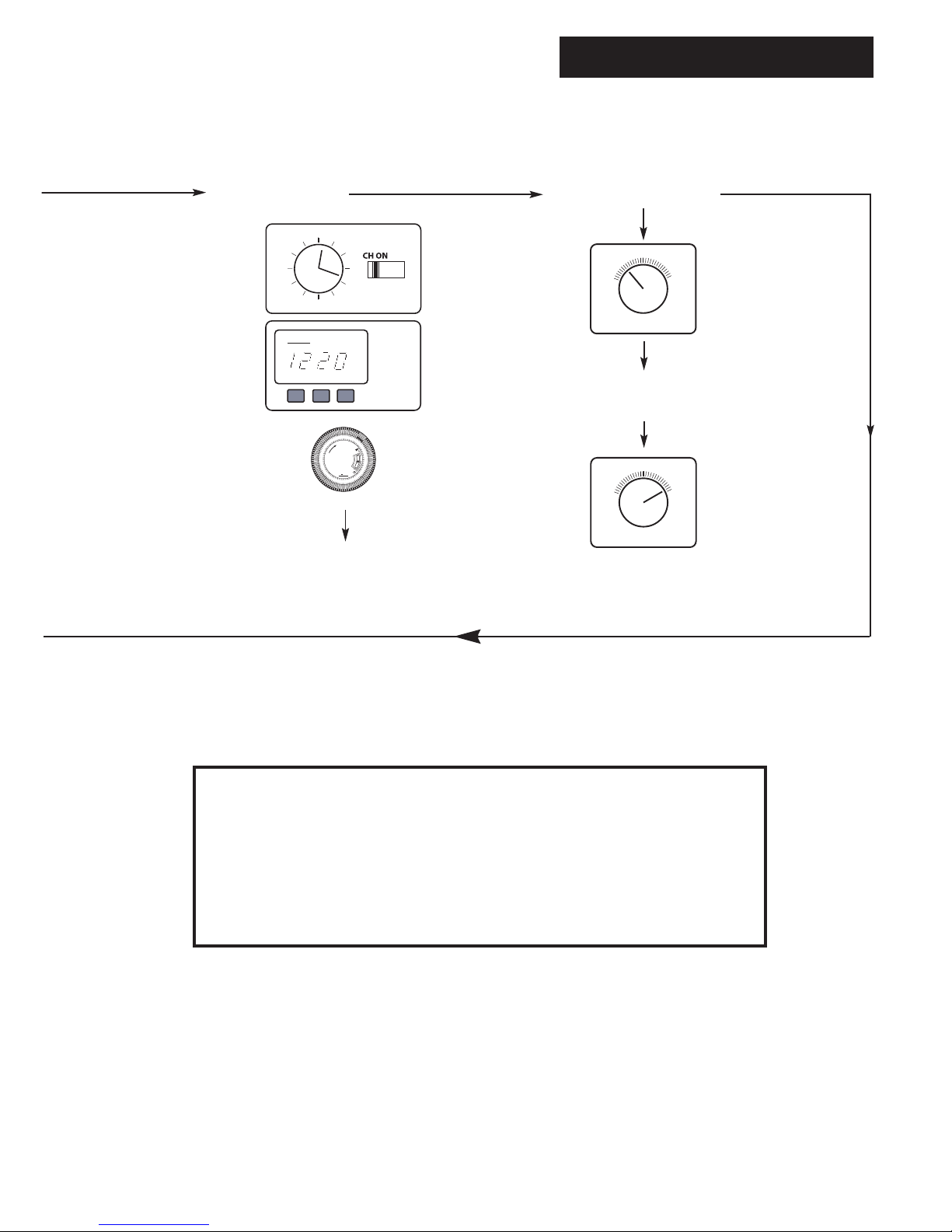

2.0 Troubleshooting

Is the Room Thermostat (if

fitted) set high enough ?

Turn Room Thermostat to

maximum setting (typical

example shown)

Is the Timer ON and

calling for heat ?

CH ON CH OFF

Ensure timer is set for Central

Heating ON (see any instructions

supplied with timer)

YES YES

GRASSLIN

Typical

examples of

external timers

Optional

integral timer

If you don’t know what you need to do

to get the boiler to light, or need help

with the system and controls, contact

your installer as soon as possible

3.0 Repressurising System

6© Baxi Heating UK Limited 2005

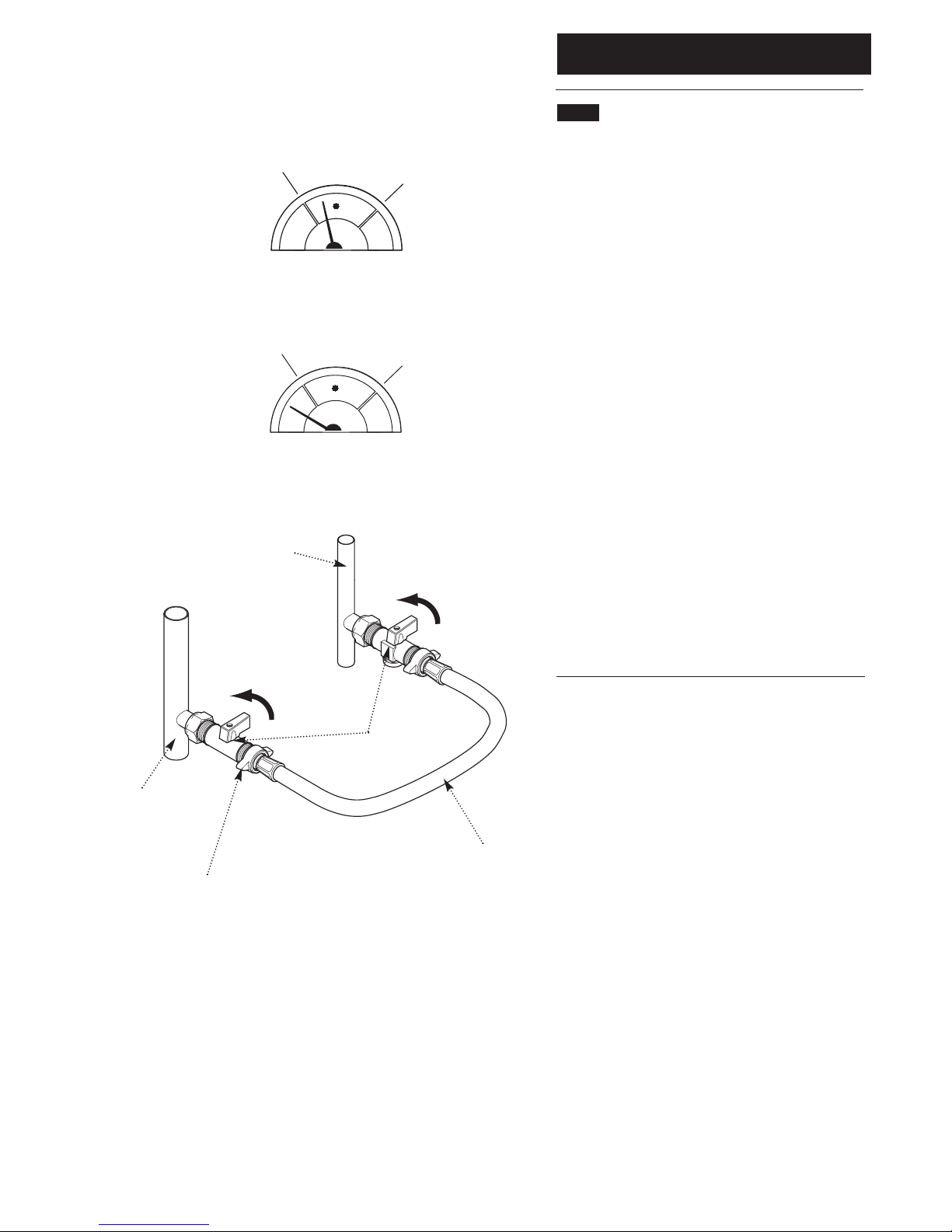

3.1 Central Heating System Pressure

1. The normal operating water pressure is in the green area

between 1 and 2.5 bar (Fig. 1). If the pressure exceeds 3 bar

the safety pressure valve will operate and a fault is indicated.

Contact your installer.

2. It may be necessary to repressurise the system occasionally

(Fig. 2). A filling device (the ‘filling loop’) will be fitted on the

system. This may be on the boiler itself, or on pipework near

to the boiler.

3. If you are unsure of its position, or cannot identify it, consult

the installer who fitted the boiler.

4. The filling loop consists of two taps and a separate metal

braided hose pipe (Fig. 3).

5. Only when repressurising should the hose be connected

between the two taps. No tools are necessary for this, but

ensure that the wing nuts on the hose pipe ends are tightened

onto the taps.

6. Fully open one of the taps first, and then while watching the

pressure gauge, carefully open the second tap.

7. When the needle on the gauge is into the green zone and

indicating 1 (Fig. 1) or more turn both taps off.

8. Disconnect the hose from the taps (a small amount of water

may be present) and remove it. Keep the hose in a safe place

for future use.

requires

repressurising

normal pressure

Taps

Hose

Copper Pipe

Fig. 1

Fig. 2

Fig. 3 Typical Filling Loop

Wing Nut

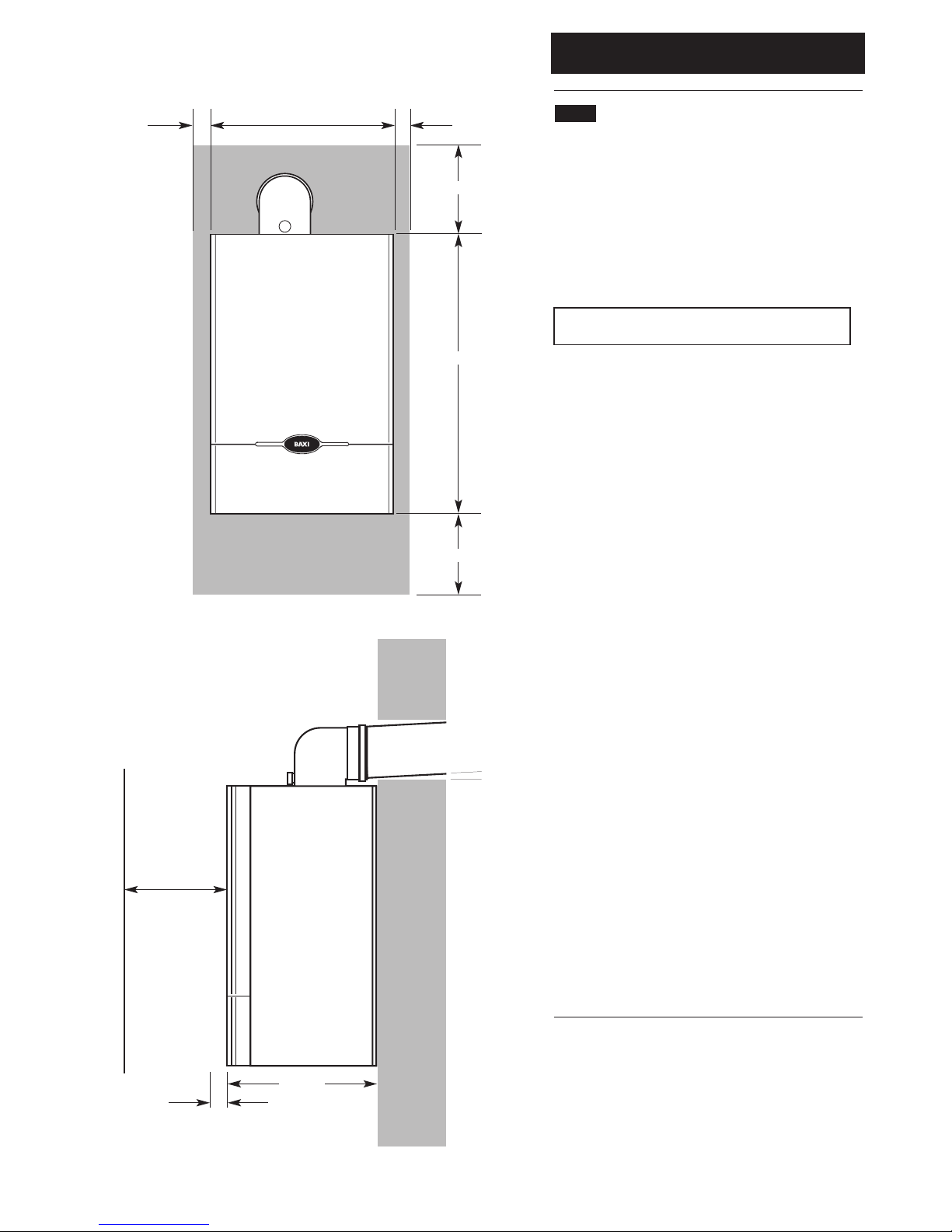

4.0 Clearances

200mm

850mm

490mm

200mm

5mm Min

5mm

500mm

For Servicing

Purposes

Fig. 4

Fig. 5 In Operation

3°

(1 in 20)

320mm

4.1 For your Safety

1. This appliance must have been installed in accordance

with the manufacturer’s instructions and the regulations in

force.

2. Any modification that may interfere with the normal

operation of the appliance without express written

permission from the manufacturer or his agent could

invalidate the appliance warranty. In GB this could also

infringe the Gas Safety (Installation and Use) Regulations.

3. Your boiler must not be operated without the casing

correctly fitted.

4. Do not interfere with any sealed components on this

boiler.

5. Take note of any warning labels on your boiler.

6. Your boiler should have the following minimum

clearances for Safety and Maintenance

(Figs. 4 & 5):-

Top - 200mm

Bottom - 200mm

Left side - 5mm

Right Side - 5mm

Front - 5mm (In Operation)

- 500mm (For Servicing)

7. If your boiler is installed in a compartment, do not use it

for storage purposes. Do not obstruct any purpose

provided ventilation openings.

8. Flammable materials must not be stored in close

proximity to your boiler.

9. Avoid skin contact when your boiler is in operation, as

some surfaces may get hot e.g. pipework.

10. Ensure that the flue terminal outside the house does

not become damaged or obstructed, particularly by trees or

bushes.

11. It is important that the condensate drain system is not

blocked, modified or damaged in any way as this would

affect the operation of your boiler. Your installer should

have insulated any exposed pipework.

GB - Heating Industry definition meaning England, Scotland,

Wales, Northern Ireland, Isle of Man and the Channel Isles

8© Baxi Heating UK Limited 2005

5.0 Care of the Boiler

5.1 Cleaning the Outercase

1. The painted panels should be wiped with a damp cloth

and then dried completely. DO NOT USE ABRASIVE

CLEANING AGENTS.

5.2 Protection & Precautions

1. The boiler incorporates an integral frost protection

feature that will operate in both modes. If the boiler

temperature falls below 4 °C, the boiler will fire until a

temperature of 15 °C is reached.

2. If a system frost thermostat has been fitted (your

Installer will be able to advise you), then to operate

correctly and protect your system, the gas and electricity

must be left on and the appliance set in the central

heating mode.

3. The boiler incorporates an integral pump protection

feature which continually monitors the time since the

pump last operated. To prevent seizure, the pump will

operate for approximately 1 minute if it has not run in the

last 24 hours.

6.0 Legislation

6.1 Installation, Commissioning, Service &

Repair

1. This appliance must be installed in accordance with the

manufacturer’s instructions and the regulations in force.

Read the instructions fully before installing or using the

appliance.

2. In GB, this must be carried out by a competent person

as stated in the Gas Safety (Installation & Use) Regulations.

3. Definition of competence: Aperson who works for a

CORGI registered company and holding current

certificates in the relevant ACS modules, is deemed

competent.

4. In IE (Eire), this must be carried out by a competent

person as stated in I.S. 813 “Domestic Gas Installations”.

All CORGI registered installers carry a CORGI

identification card (see Fig. 6) and have a registration

number. You can check your installer is registered by

telephoning 0870 4012300 or writing to:-

1 Elmwood,

Chineham Business Park,

Crockford Lane,

Basingstoke. RG24 8WG

or check online at www.corgi-gas-safety.com

The boiler meets the requirements of Statutory Instrument

“ The Boiler (Efficiency) Regulations 1993 No3083” and is

deemed to meet the requirements of Directive 92/42/EEC

on the energy efficiency requirements for new hot water

boilers fired with liquid or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0086.

Product/Production certified by:

Notified Body 0086.

Ref: 86-BL-647

For GB/IE only.

6.2 Benchmark Commissioning Check List

1. Please ensure that your installer hands you the boiler

Installation & Service Instructions with the “Benchmark”

Commissioning Checklist sections completed. The details

in the Checklist will be required in the event of any

warranty work. Keep the instructions in a safe place and

ensure that the Service Interval Record at the back is

completed at each service visit.

Registered

Gas Installer

CARD SERIAL NO.

999999999

NAME:

A.N.Installer

COMPANY:

Newtown Heating

EXPIRES:

31 DECEMBER 2010

PHOTOGRAPH

To confirm validity of this card please contact

CORGI on

0870 401 2300

www.corgi-group.com

CORGI

00000

Fig. 6 CORGI Registration Card

7.0 Emergency

If you smell gas

Turn off the gas supply at the meter and call your gas

supplier immediately. It is possible to isolate the boiler and

at the isolating valve (Fig. 7).

Transco operate a 24 hour emergency service and the

telephone number will be listed in your telephone

directory.

Faulty boiler

If it is known or suspected that a fault exists

on the boiler, it must not be used until the fault

has been corrected by a competent person.

Warning !

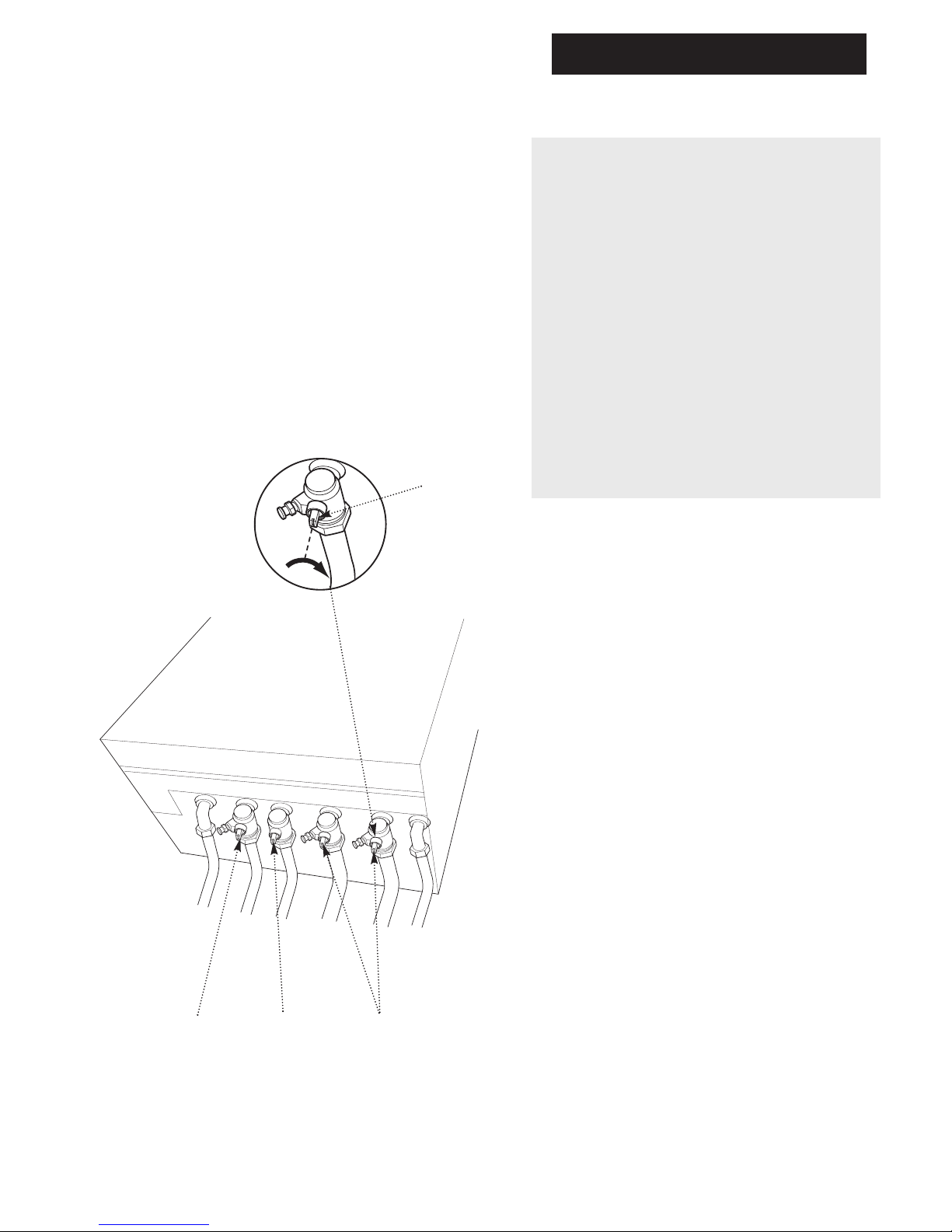

Gas Cock Heating Flow

and Return

Fig. 7

In an Emergency

If a water or gas leak occurs or is suspected, the boiler can

be isolated at the taps under the boiler as follows;

1. Turn off the electrical supply to the boiler.

2. Using a suitable flat bladed screwdriver turn the tap on

the gas cock 90° clockwise to isolate the gas supply at the

boiler (Fig. 7).

3. The heating system and mains water isolating valves are

positioned under the boiler and can be closed by turning

their taps 90° clockwise (Fig. 7).

4. Call your Installer or Service Engineer as soon as

possible.

Mains Water

Inlet

Tap

Table des matières

Autres manuels Baxi Chaudière

Baxi

Baxi Combi 105 HE Note de version

Baxi

Baxi Bioflo 12 kW Pear Instructions de fonctionnement

Baxi

Baxi Luna 3 Silver Space Manuel utilisateur

Baxi

Baxi 100 He Instructions de fonctionnement

Baxi

Baxi Luna 3 Comfort Guide de l'utilisateur

Baxi

Baxi KALINA ARLEQUIN 3C Series Manuel utilisateur

Baxi

Baxi Power HT 1.850 Manuel utilisateur

Baxi

Baxi LUNA HT 330 Fiche technique

Baxi

Baxi Eco Compact Manuel utilisateur

Baxi

Baxi ECOGEN 24/1.0 Instructions de fonctionnement

Baxi

Baxi Solo 2 60 RS Guide de l'utilisateur

Baxi

Baxi GA Combi & System Boiler Range Manuel utilisateur

Baxi

Baxi Megaflo 2 System Compact GA Range Note de version

Baxi

Baxi Duo-tec Combi HE LPG Instructions de fonctionnement

Baxi

Baxi Solo HE A Range Mode d’emploi

Baxi

Baxi Eco5 Compact+ Manuel utilisateur

Baxi

Baxi MULTI-HEAT Manuel utilisateur

Baxi

Baxi Solo HE A Range Manuel utilisateur

Baxi

Baxi Duo-tec 2 Combi GA Range Note de version

Baxi

Baxi NUVOLA DUO-TEC GA 16 Mode d’emploi

Baxi

Baxi Heat 613 Manuel utilisateur

Baxi

Baxi Solo 3 PFL 70 Instructions de fonctionnement

Baxi

Baxi Baxi Avanta Plus 18s Mode d’emploi

Baxi

Baxi Maxflow Combi WM Guide de l'utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel
