Baxi LUNA HT 1.650 Manuel
Setting Parameters:
The editable parameters are those between 504 and 652. Proceed as follows to access
these parameters:

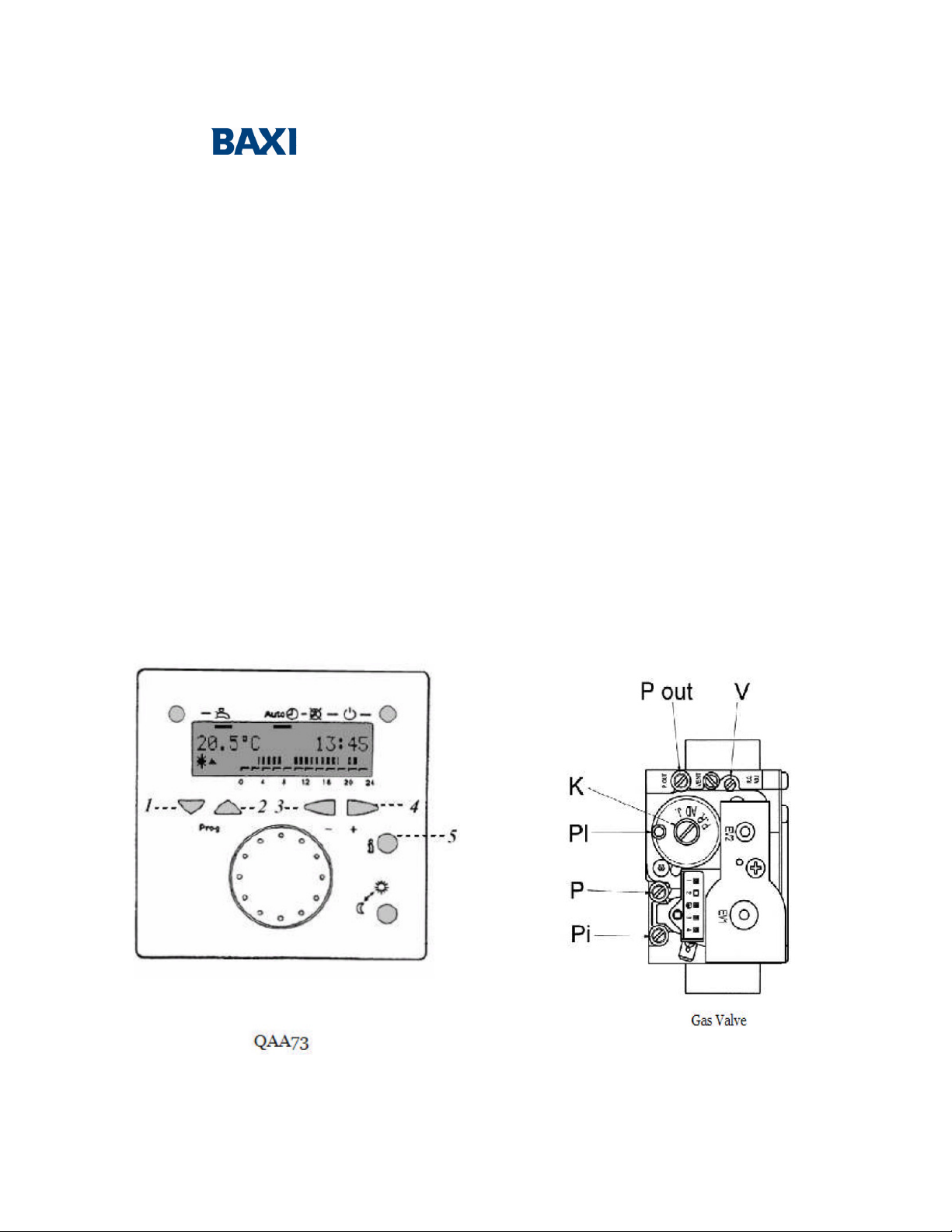

1. Simultaneously press eys 1 and 4 on the QAA73 controller for
approximately 3 seconds. The message “Initializing BMU parameters”
appears on the display.
2. Simultaneously press eys 1 and 2 for approximately 3 seconds. Parameter
504 will appear on the display.
3. Press ey 1 or 2 to scroll through the list of parameters.
4. To change the value of a selected parameter, press ey 3 or 4 to decrease or
increase the value respectively.
5. Press ey 5 to enter the new values and exit programming of the boiler.
BAXI LUNA HT 1.650 SETUP NATURAL GAS
Luna HT 1.650 Setup Natural Gas
CALIBRATION MODE:
Proceed as follows to enter “calibration mode” on the boiler control panel and calibrate
the gas value:

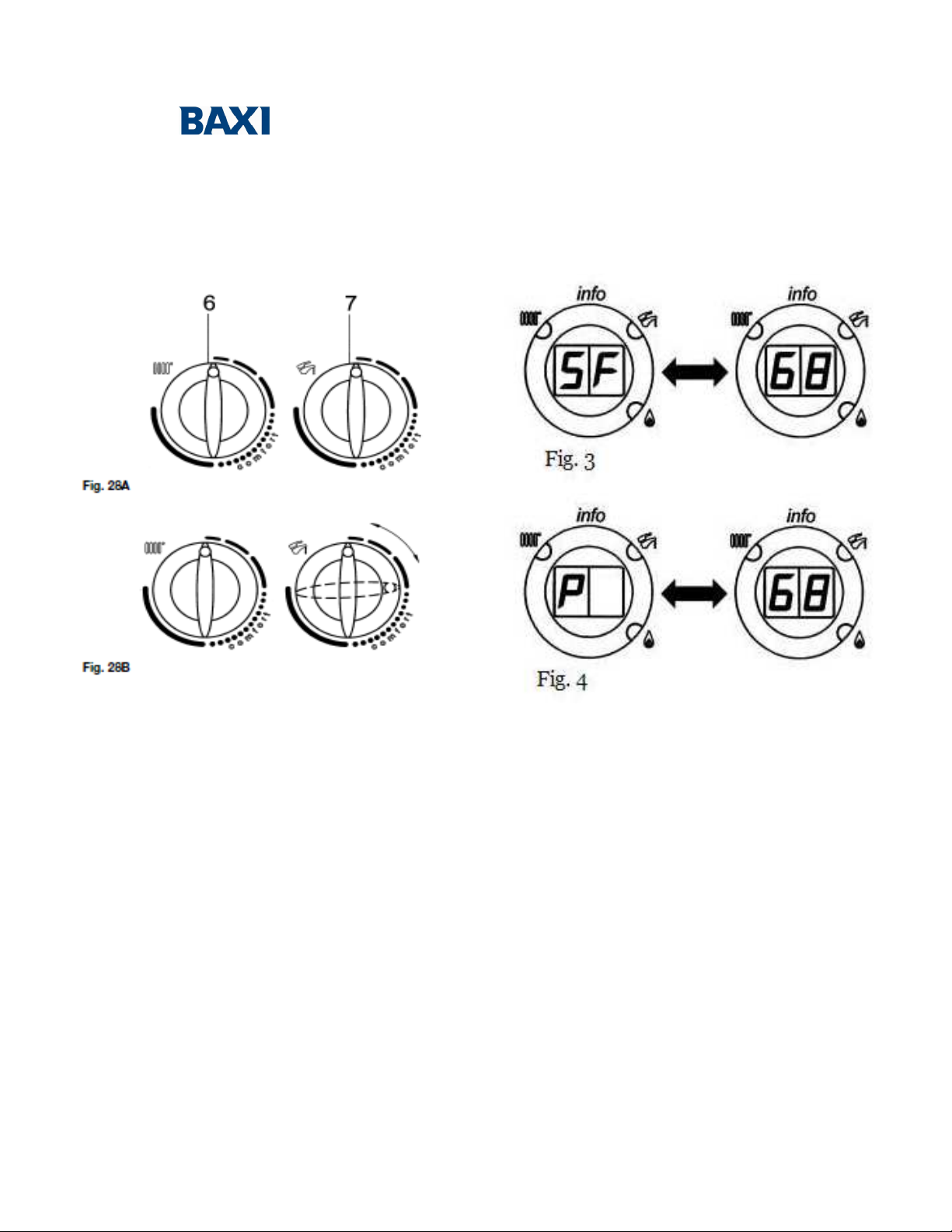

1. Turn the control knobs 6 and (fig. 1 7 fully counter-clockwise to their
minimum positions as shown below.
2. Starting in this position, quickly turn control knob 7 twice, consecutively,
clockwise approximately a ﾼ turn as shown below in fig. 2.
Note: LED’s 2 and 3 (fig. 4) f ash a ternate y and the disp ay a ternates the message
“SF” and the boi er output temperature every five seconds (fig. 3).
3. Now turn knob 6 to adjust the fan speed to a setting between minimum
thermal power (0% and maximum thermal power (100% .
Note: In “ca ibration mode”, the disp ay a ternates between the message “P” and
the boi er output temperature about every 5 seconds. (fig. 4)
4. Calibration mode remains active for 20 minutes. To exit “calibration mode”
before this time simply turn control knob 7 twice, consecutively, clockwise
approximately a ﾼ turn as shown in fig. 2.
Note: This function is interrupted if the centra heating de ivery temperature
reaches its MAX. SETPOINT.
PROCEED AS FOLLOWS TO CALIBRATE THE GAS VALVE:
1. Ensure your combustion analyzer is set to NG, insert the flue probe into the flue
opening on the top of the boiler, after removing the two flue test port plugs.
2. Calibrate maximum thermal power by turning knob 6 clockwise to max. With the
boiler operating at max. output, check the value for CO2 measured in the flue is
8.7%. If necessary, turn the adjustment screw, or “V” screw, on the gas valve.
Turn c ockwise to reduce the CO2 eve or counter-c ockwise to increase it.
3. Calibrate minimum thermal power. With boiler operating at minimum output by
turning knob 6 counter-clockwise to minimum setting. Check the CO2 value
measured in the flue to 8.4% CO2. If necessary adjust the “K” screw (4mm hex on
the gas valve. Turn c ockwise to increase the CO2 eve or counter-c ockwise
to reduce it.
Note: A ow time between adjustments for your combustion ana yzer to sense the adjusted for your
combustion ana yzer to sense the adjusted CO2 eve . The boi er is now ready for norma operation using NG
gas and can be returned to the service mode by turning contro knob 7.
BAXI LUNA HT 1.650 SETUP NATURAL GAS
Luna HT 1.650 Setup Natural Gas
BAXI LUNA HT 1.650 SETUP NATURAL GAS
Luna HT 1.650 Setup Natural Gas
Resetting the HT 1.650 for Natural Gas
The following must be performed before calibrating the gas valve.
1. Turn the adjusting screw, or “V” screw (2. mm hex) on the gas valve all the way clockwise until the
“V” is bottomed out. Then turn the “V” screw eleven complete revolutions counter clockwise.
2. On the QAA73 controller, which is connected to terminals 4 & on the M2 bus terminal, set
parameters 608 to 24% and parameter 611 to 2000 rpm.
Before lighting Boiler
The following must be performed before calibrating the gas valve.
1. Turn the adjusting screw, or “V” screw (2. mm hex) Five complete revolutions clockwise.
2. On the QAA73 controller, which is connected to terminals 4 & on the M2 bus terminal, set
parameters 608 to 24% and parameter 611 to 2000 rpm.
Setting Parameters:
The editable parameters are those between 04 and 6 2. Proceed as follows to access
these parameters:
1. Simultaneously press keys 1 and 4 on the QAA73 controller for
approximately 3 seconds. The message “Initializing BMU parameters”
appears on the display.
2. Simultaneously press keys 1 and 2 for approximately 3 seconds. Parameter
04 will appear on the display.
3. Press key 1 or 2 to scroll through the list of parameters.
4. To change the value of a selected parameter, press key 3 or 4 to decrease or
increase the value respectively.
. Press key to enter the new values and exit programming of the boiler.
BAXI LUNA HT 1.650 SETUP PROPANE
Luna HT 1.650 Setup Propane
CALIBRATION MODE:
Proceed as follows to enter “calibration mode” on the boiler control panel and calibrate
the gas value:
1. Turn the control knobs 6 and (fig. 1 7 fully counter-clockwise to their
minimum positions as shown below.
2. Starting in this position, quickly turn control knob 7 twice, consecutively,
clockwise approximately a ¼ turn as shown below in fig. 2.
Note: LED’s 2 and 3 (fig. 4) f ash a ternate y and the disp ay a ternates the message
“SF” and the boi er output temperature every five seconds (fig. 3).
3. Now turn knob 6 to adjust the fan speed to a setting between minimum
thermal power (0% and maximum thermal power (100% .
Note: In “ca ibration mode”, the disp ay a ternates between the message “P” and
the boi er output temperature about every 5 seconds. (fig. 4)
4. Calibration mode remains active for 20 minutes. To exit “calibration mode”
before this time simply turn control knob 7 twice, consecutively, clockwise
approximately a ¼ turn as shown in fig. 2.
Note: This function is interrupted if the centra heating de ivery temperature
reaches its MAX. SETPOINT.
PROCEED AS FOLLOWS TO CALIBRATE THE GAS VALVE:
1. Ensure your combustion analyzer is set to LPG, insert the flue probe into the flue
opening on the top of the boiler, after removing the two flue test port plugs.
2. Calibrate maximum thermal power by turning knob 6 clockwise to max. With the
boiler operating at max. output, check the value for CO2 measured in the flue is
10.0%. If necessary, turn the adjustment screw, or “V” screw, on the gas valve.
Turn c ockwise to reduce the CO2 eve or counter-c ockwise to increase it.
3. Calibrate minimum thermal power. With boiler operating at minimum output by
turning knob 6 counter-clockwise to minimum setting. Check the CO2 value
measured in the flue to 9.8% CO2. If necessary adjust the “K” screw (4mm hex on
the gas valve. Turn c ockwise to increase the CO2 eve or counter-c ockwise
to reduce it.
Note: A ow time between adjustments for your combustion ana yzer to sense the adjusted for your
combustion ana yzer to sense the adjusted CO2 eve . The boi er is now ready for norma operation using
LPG gas and can be returned to the service mode by turning contro knob 7.
BAXI LUNA HT 1.650 SETUP PROPANE
Luna HT 1.650 Setup Propane
BAXI LUNA HT 1.650 SETUP PROPANE
Luna HT 1.650 Setup Propane

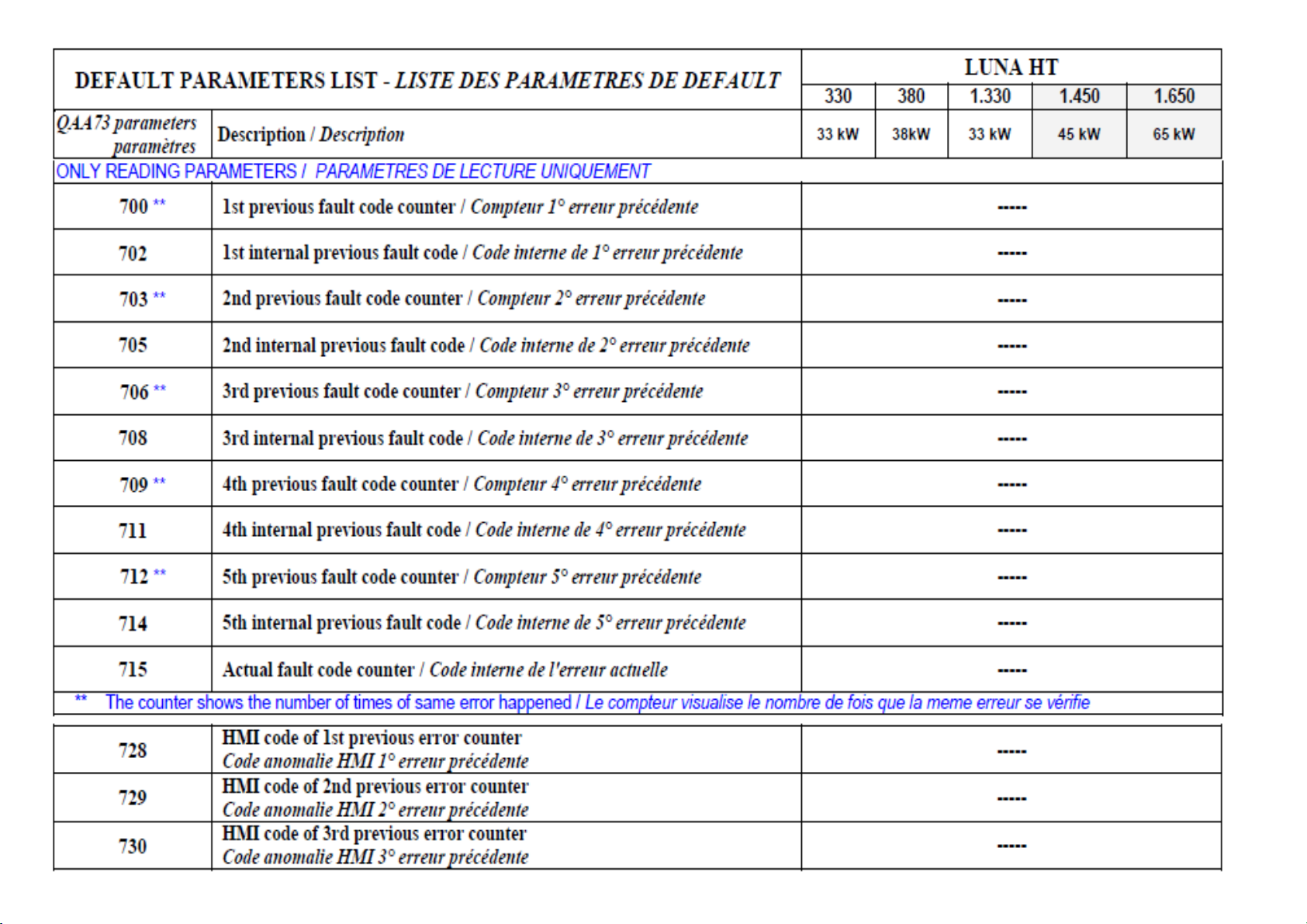

Using the QAA73 temperature regulator, it is possible to enter into main board LMU34 parameters.
En utilisant la commande distance QAA73 il est possible changer quelque param tres de la carte
lectronique LMU 34.
The editable parameters are those between 504 and 652 (parameters 6 0 and 6 2 are only reading
parameters).
Proceed as follows to access this parameters:

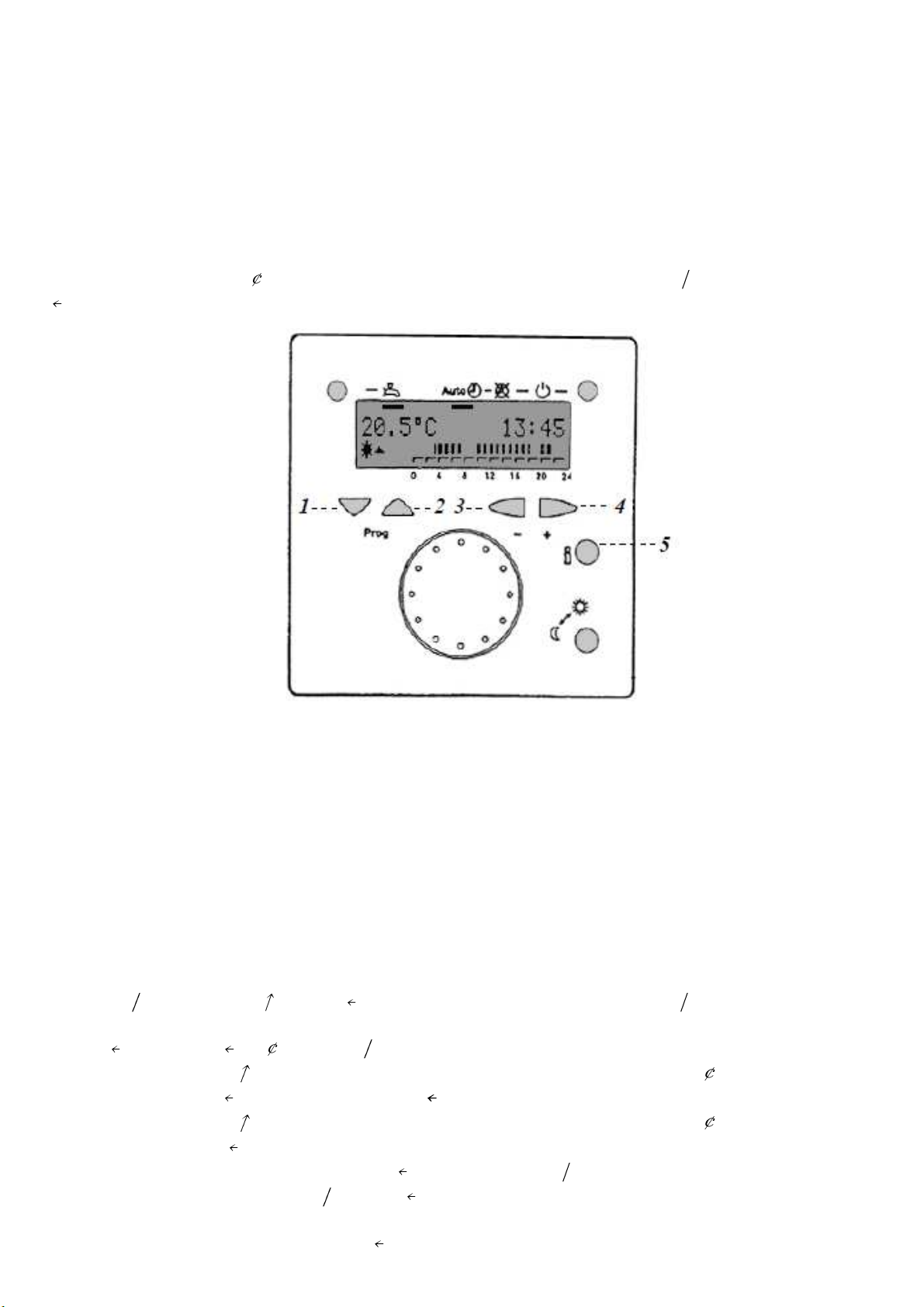

1) Simultaneously press keys 14 on QAA73 remote control for about 3 seconds. The “Initialising
BMU parameters” appears on the display (line 72 ).
2) Simultaneously press keys 12 on QAA73 temperature regulator for about 3 seconds. The
“Initialising BMU SERVICE” (line 04 “TkSmax”).
3) Press keys 12 to scroll through the list of parameters.
4) To change the value of the selected parameter, press key 3-4 to decrease or increase the value
respectively.
5) Press key 5 to enter the new values and exit programming of the boiler’s electronic main board.
Les param tres qui peuvent tre modifi s sont compris entre 504 et 652 (Les param tres 650 et 652 sont
seulement de lecture).
La proc dure pour acc der ces param tres est la suivante:
1) appuyer en m me temps sur les boutons 14 pour environ 3 seconds, jusqu’ l’affichage sur le
display de l’ crit “Initialisation param trage BMU" (par. 725);
2) appuyer en m me temps sur les boutons 12 pour environ 3 seconds, jusqu’ l’affichage sur le
display de l’ crit “Initialisation chauffagiste BMU” (par. 504 “TkSmax”);
) appuyer sur les boutons 12 pour s lectionner les param tres;
4) Pour modifier les param tres affich s appuyer les boutons -4 pour diminuer ou augmenter la
valeur;
5) appuyer sur le bouton 5 pour m moriser et sortir du niveau de programmation.
ADVA CED PARAMETERS
