Baumatic TITAN5 Manuel utilisateur

TITAN5 Stainless steel

4 door frost free

fridge/freezer

USER MANUAL FOR YOUR BAUMATIC

TITAN5 Stainless steel 4 door 607

litre frost free fridge/freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

DD 05/07/10

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of your fridge freezer 7 - 8

Description of the appliance 8

The fridge section 9-13

Adjustable safety glass shelves 10

Crisper drawers 11-12

Fullwidthpantry 12-13

General and bottle shelf height adjustment 13

The dairy compartments 13

The freezer section 14

Using your Baumatic fridge freezer 15-19

Beforeswitchingon 15

Duringfirstuse 15

Thecontrolpanel 16

Switching on the appliance 16

Setting the temperature in the fridge section 16-17

Setting the temperature in the freezer section 17

Expresschillmode 18

Express freeze mode 18-19

The water filter change neon 19

Arranging and storing food in the fridge section 19-20

The **** freezer compartment 21- 23

Freezing fresh food 21-22

Tipsonfreezing 22

Storing commercially frozen food 22-23

Defrosting frozen food 23

In the event of a power cut 23

Thedispensercontrolpanel 24-26

Thesafetylock 24

Setting the time of day 25

Using the water dispenser 25

Doorleftopenalarm 26

Theicemaker 26-28

How the ice maker works 26-27

Icemakeradviceandmaintenance 27

Switching the ice maker off 27

Dispenser and ice maker warnings 28

Saving energy when using your fridge-freezer 28-29

Cleaning and maintenance 30-36

Thedefrostdrainhole 31

Replacing the light bulb 32-33

Changing the water filter 34-36

Installation 36-46

Electricalconnection 36-37

Positioning 37-38

Installationpreparation 39

Attachingthehandles 39-40

Removing the right hand door 40-41

Removing the left hand door 41-42

Removing the upper freezer drawer 42-43

Removing the inner compartment of the lower freezer drawer 43

Adjustablefeet 43-44

Levellingthedoors 44

Water supply connection 45-46

Troubleshooting 46-51

Contactdetails 52

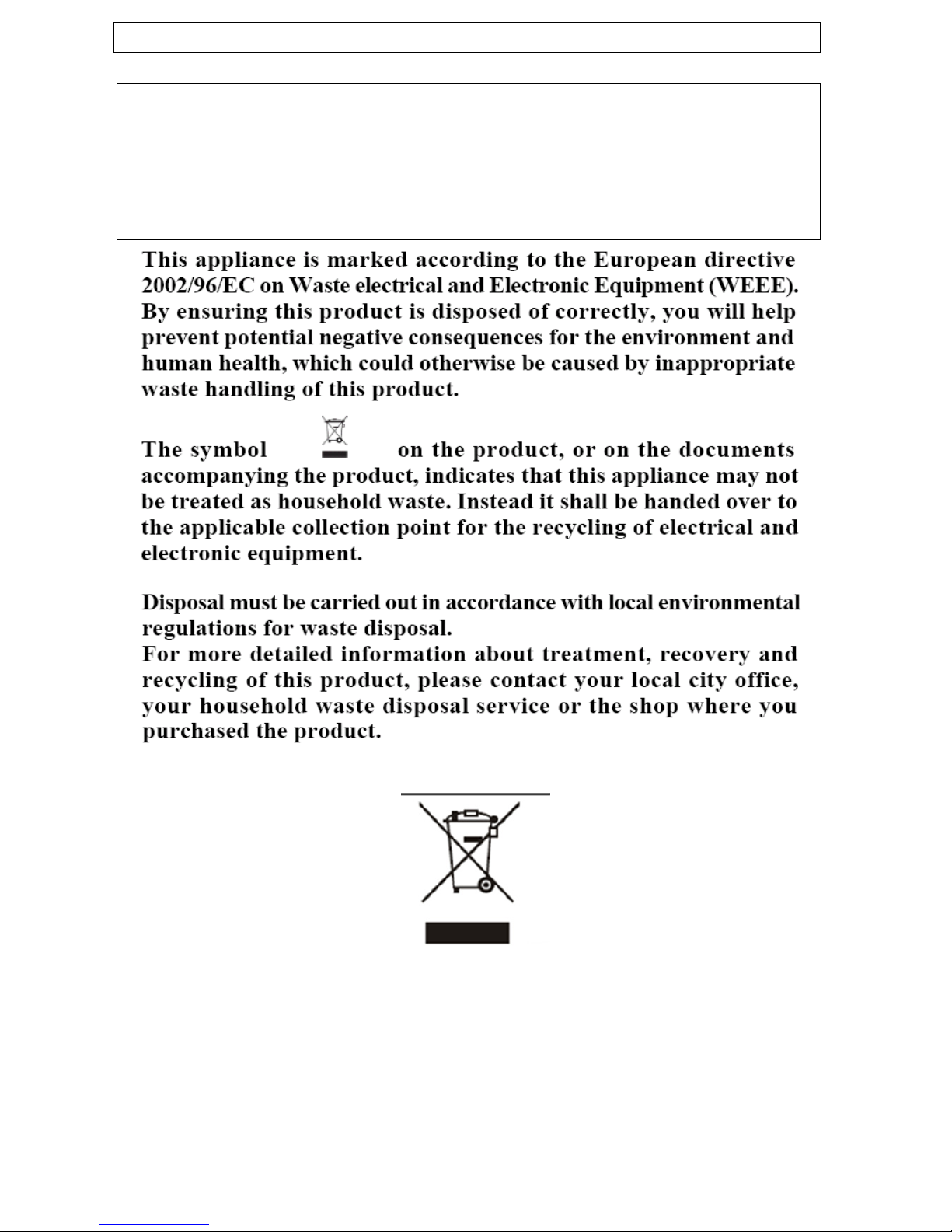

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Baumatic Customer Care Department.

Specifications of your fridge freezer

Congratulations on purchasing a Baumatic fridge freezer

Dimensions of your appliance

oHeight: 1770 mm

oWidth: 910 mm

oDepth: 700 mm (excluding handles)

Energy efficiency class

oEnergy class: A

Cubic capacities

oGross capacity (fridge): 428 litres

oGross capacity (freezer): 179 litres

oNet capacity (fridge): 397 litres

oNet capacity (freezer): 160 litres

Specifications of the appliance

oFreezer star rating: ****

oFrost free fridge and freezer

oAdjustable thermostat

oElectronic control operation

oLED display

oOpen door warning indicator

oTemperature rise warning indicator

oFast cooling switch

oFast freeze switch

oFast freeze indicator light

oMulti airflow cooling system

oWater dispenser

oAutomatic motor-driven ice maker

o2 x freezer drawers

oDigital control panel

o4 x adjustable safety glass shelves

o2 x crisper drawers

o2 x safety glass crisper covers

o2 x bottle shelves

o2 x general door shelves

o2 x egg racks

oWine rack

o2 x butter and cheese compartments

oFull width pantry

oAdjustable feet

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located inside of the fridge

section. You will need to open the door of your appliance to be able to

find it. The rating plate will indicate the ambient temperature range

that your appliance will function correctly within.

Description of the appliance

The fridge section

oWe recommend that you leave storage space between food

items, to allow for good air circulation.

oThe temperatures in the fresh food compartment are slightly

warmer towards the top and cooler towards the base.

oPlease find below some storage suggestions, that you may wish

to follow:-

1) Eggs, butter, cheese etc

2) Tins, cans, condiments etc

3) Drinks and bottled foods

4) Pickled foods, drinks or cans

5) Meat, poultry, fish and raw foods

6) Pastries, cans, dairy etc

7) Cooked meats, sausage etc

8) Fruits, vegetables or salads

Adjustable safety glass shelves

oThe shelves may be placed in any of the guide slots within the

interior of the appliance. They are protected from sliding out.

oTo remove a shelf: Take off all of the items that are stored on

the shelf that you want to remove. Then whilst lifting the front of

the shelf, pull it forwards to unhook it from the slots at the rear

of the cabinet.

oTo refit a shelf: When placing a shelf back inside the fridge

compartments, place the hooks into the slots at the rear of the

cabinet. Lower the front of the shelf back down again.

oIMPORTANT: You must ensure that both of the hooks are in

slots that are at the same height; otherwise the shelf will not be

level.
