Baumatic BR17A Manuel utilisateur

U d

BR17A

Built under

fridge with freezer

com

artment

USER MANUAL FOR YOUR BAUMATIC

BR17A Built under fridge

with freezer compartment

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference. for

you or any person not familiar with the operation of the appliance.

DD 30/04/09

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of your larder fridge 7

Description of the appliance 8

Description of the product features 8 - 9

Using your Baumatic larder fridge 10

Beforeswitchingon 10

Duringfirstuse 10

Turning on the appliance and setting the thermostat 11

Arranging and storing food in your refrigerator 12

Cleaning and maintenance 13

Defrosting the refrigerator compartment 13 – 14

Replacing the light bulb 14

Installation 15

Electricalconnection 15

Positioning 16

Aperturedimensions 16

Adjusting the height and leveling off your larder fridge 17

Installing your refrigerator 18 – 21

Adjusting the plinth/kickboard 22

Reversing the door of your appliance 22 - 24

Troubleshooting 25 - 26

Contactdetails 27

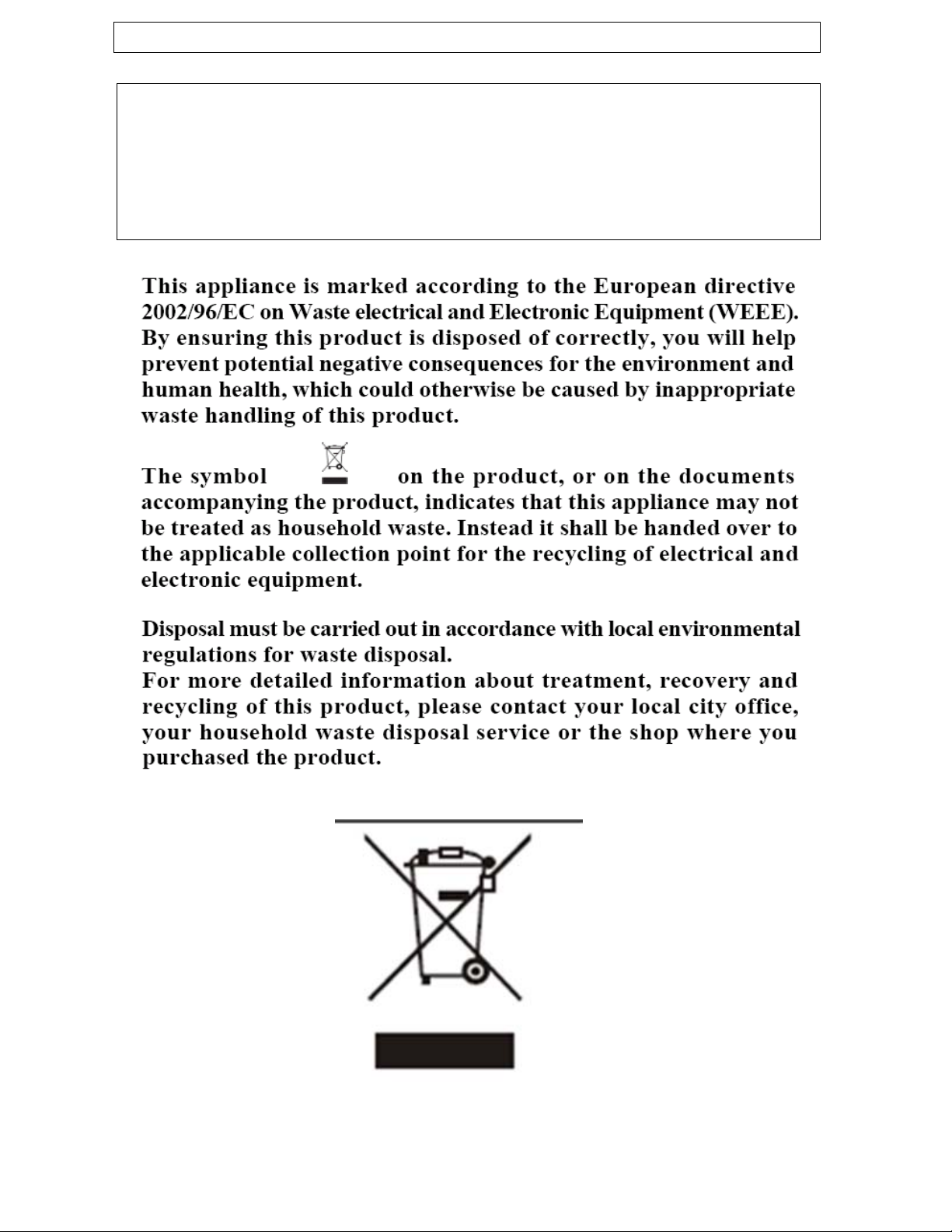

Environmental note

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that might be caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your supplier.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers and electric ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Customer Care Department.

Specifications of your fridge

Congratulations on purchasing a Baumatic fridge.

oTotal gross/net capacity: 139/128 litres

oGross capacity (fridge/freezer): 120/19 litres

oNet capacity (fridge/freezer): 111/17 litres

oEnergy efficiency class: A

oFreezer star rating

oAdjustable thermostat

o2 safety glass shelves

o3 door racks

oEgg trays

oSalad crisper

oIce cube tray

oReversible door

oAdjustable feet

Dimensions of appliance

Height: 820 - 900 mm

Width: 595 mm

Depth: 550 mm

Dimensions of aperture*

Height: 820 mm – 900 mm

Width: 600 mm (min)

Depth: 550 mm (min)

* Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge. You will need to open the door of your

appliance to be able to find it.

The rating plate will indicate the ambient temperature range that your

appliance will function correctly within.

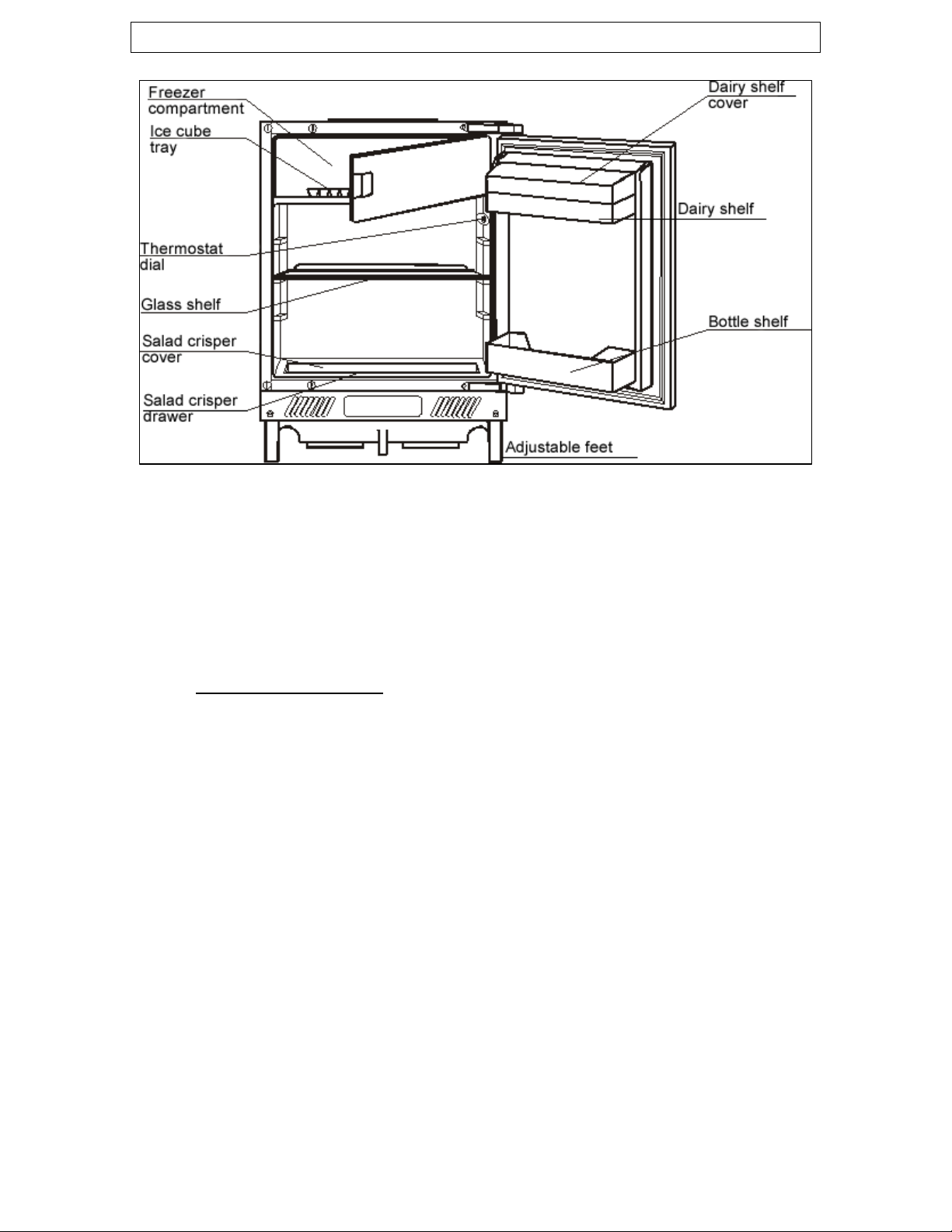

Description of the appliance

*There is also a half width door shelf and two egg racks, which are

not shown in the above drawing.

Description of the product features

1) Shelves

oThe shelf may be placed in any of the guide slots within the

interior of the appliance. It is protected from sliding out.

oTo remove the shelf: Take off all of the items that are stored on

the shelf, then lift the front of the shelf and carefully pull it out of

the grooves.

2) Defrost water outlet

oThe interior of the refrigerator is cooled by the cooling plate that

is on the rear wall. Beneath this there is a channel and an outlet

for the defrost water.

oIt is important that this channel never becomes clogged (see

“Defrosting the refrigerator compartment” for a detailed

explanation of how to keep the channel clear).

3) Crisper drawer and cover

oThe crisper drawer is in the bottom of your refrigerator and there

is a cover that goes over it.

oThe cover helps to prevent fruit and vegetables from drying out

prematurely.

4) Dairy shelf

oThe dairy shelf is suitable for storing eggs, cheese and yogurt.

As well as smaller packages, tubes, cans etc.

5) Bottle shelf

oThe lower shelf should be used for storing reasonably sized

bottles.

IMPORTANT: IT IS IMPORTANT THAT NONE OF THE SHELVES

THAT SIT IN THE DOOR ARE OVERLOADED, AS THIS WILL

DRASTICALLY REDUCE THEIR WORKING LIFE.

6) Freezer compartment

oA freezer section, with a net capacity of 19 litres.

Using your Baumatic fridge

Before switching on

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it, should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned

with a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.

oThere can be an odour when you first switch on the appliance. It

will lessen as the appliance starts to cool.

During first use

oWhen you first switch on the appliance, the compressor will run

continuously for approximately 24 hours or until the refrigerator

reaches a cool enough temperature.

oDuring this period of time, you should try not to open the door

frequently or place a large amount of food in the appliance.

oIf the unit is switched off or unplugged, you must allow at least 5

minutes before restarting the appliance with the thermostat or

connecting it to your mains supply.

Turning on the appliance and setting the thermostat

You switch on your appliance by connecting it to your mains supply

and setting the thermostat. The thermostat control knob is located on

the right hand side of the fridge.

oThe thermostat automatically regulates the temperature inside of

the fridge, depending on what number you have turned the

thermostat control knob to:-

oPosition <0> means that the appliance will not cool. However

the light will still function.

oPosition <1> will give you a higher temperature inside of the

fridge.

oPosition <7> will give you a lower temperature inside of the

fridge.

oIdeally the thermostat should be set to a position of between

<3> to <4>.

oYour refrigerator can maintain a temperature of

between 4 – 6 degrees centigrade.
