Baumatic BHG300.5SS Manuel utilisateur

Ng a User Manual for the

BHG300.5SS BHG604.5SS/W

BHG610.5SS BHG710.5SS

BHG900.5SS

GAS HOB

User Manual for your Baumatic

BHG300.5SS

BHG604.5SS/W

BHG610.5SS

BHG710.5SS

BHG900.5SS

GAS HOB

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 18/07/12

Contents

Environmentalnote 4

Important safety information 5-7

Specifications 8-13

Product details/specifications/dimensions:

oBHG300.5SS 8

oBHG604.5SS/W 9

oBHG610.5SS 10

oBHG710.5SS 11

oBHG900.5SS 12

Electricaldetails 13

Gasdetails 13

Using the gas hob 14-16

Beforefirstuse 14

Thegashob 14

Automatic ignition with flame failure safety device 15

Energysavingtips 16

Cleaning 17-18

Cleaningthehobtop 17

Aftereachuse 17

Cleaning the hob burners 17

Maintaining the enamelled pan stands 18

Maintaining the cast iron pan stands 18

Installation 19-29

Positioning 20-21

Unpacking the appliance 21

Installing the appliance 22-23

Gasconnection 24

Ventilation requirements 24

Gas Safety (Installation and Use) Regulations 25

Gas Adjustment (Conversion to LPG) 26

Minimum flow adjustment for hob gas taps 27

Gastapmaintenance 28

Electricalconnection 29

Replacing the mains supply cable 29

My appliance isn’t working correctly 30

Baumatic consumables 31

Contactdetails 32

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Customer Care

ent.

ehold use and for

ambient temperature of the

scolouration at

of this temperature limit, will be the liability of

Guarantee. The foregoing does not

nt of Baumatic Ltd will

ld not use this appliance to store items on or as a work

kept away

atic Service

rs or their authorised service agent.

Departm

General Information

This appliance is designed for domestic housothe cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreeme

invalidate any warranty or liability claim.

oYou shou

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baum

Enginee

hild Safety

ce at any time. During and after use, all

surfaces will be hot.

se ensure that they are kept under close supervision

at all times.

uld only be allowed to utilise the appliance

when supervised.

eneral Safety

e installed and connected by a

GASSAFE registered installer.

uild the appliance into, meet with the relevant

standards.

uring use

hob surface when it

is delivered should be removed before use.

the appliance, otherwise

there is a risk of burns being caused.

t with the hob surface when it is hot or any hot

cookware.

ng with fat and oil the appliance should

not be left unattended.

sure that all of the cooking zones are switched off after

use.

leaning

Cleaning of the hob should be carried out on a regular basis.

appliance, it

should be disconnected from the mains and cool.

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the applian

oIf it is necessary for younger family members to be in the

kitchen, plea

oOlder children sho

oThe appliance should only b

oCare should be taken to ensure that the units and work surfaces

that you b

oAny film or stickers that are present on the

oCare should be taken when utilising

oYou should not allow the electrical connection cables to come

into contac

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooki

oMake

oIMPORTANT: Before attempting to clean the

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

GASSAFE registered installer, strictly in

accordance with the manufacturer’s instructions

and the relevant British Standards. Please see the

specific section of this booklet that refers to

installation.

oBaumatic Ltd declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oIf the appliance is being used in a Leisure Accommodation

Vehicle, the requirements of N 721 MUST be followed.

oBaumatic Ltd DOES NOT recommend that this appliance is

installed on any type of marine vessel.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-2009/142/CE Concerning gas appliances

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

The manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance with

the standards currently in force. This appliance must be used by a

trained person for domestic purposes only.

Specifications – BHG300.5SS

Product dimensions:

Aperture dimensions:

Depth: 510 mm

Width: 288 mm

Height: 45 mm

Depth: 494 mm

Width: 270 mm

Product specifications:

o1 x 3.00 kW rapid burner

o1 x 1.00 kW auxiliary burner

oFront control operation

oEnamelled pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

Gas hob surface layout

1 = 1.00 kW auxiliary burner

2 = 3.00 kW rapid burner

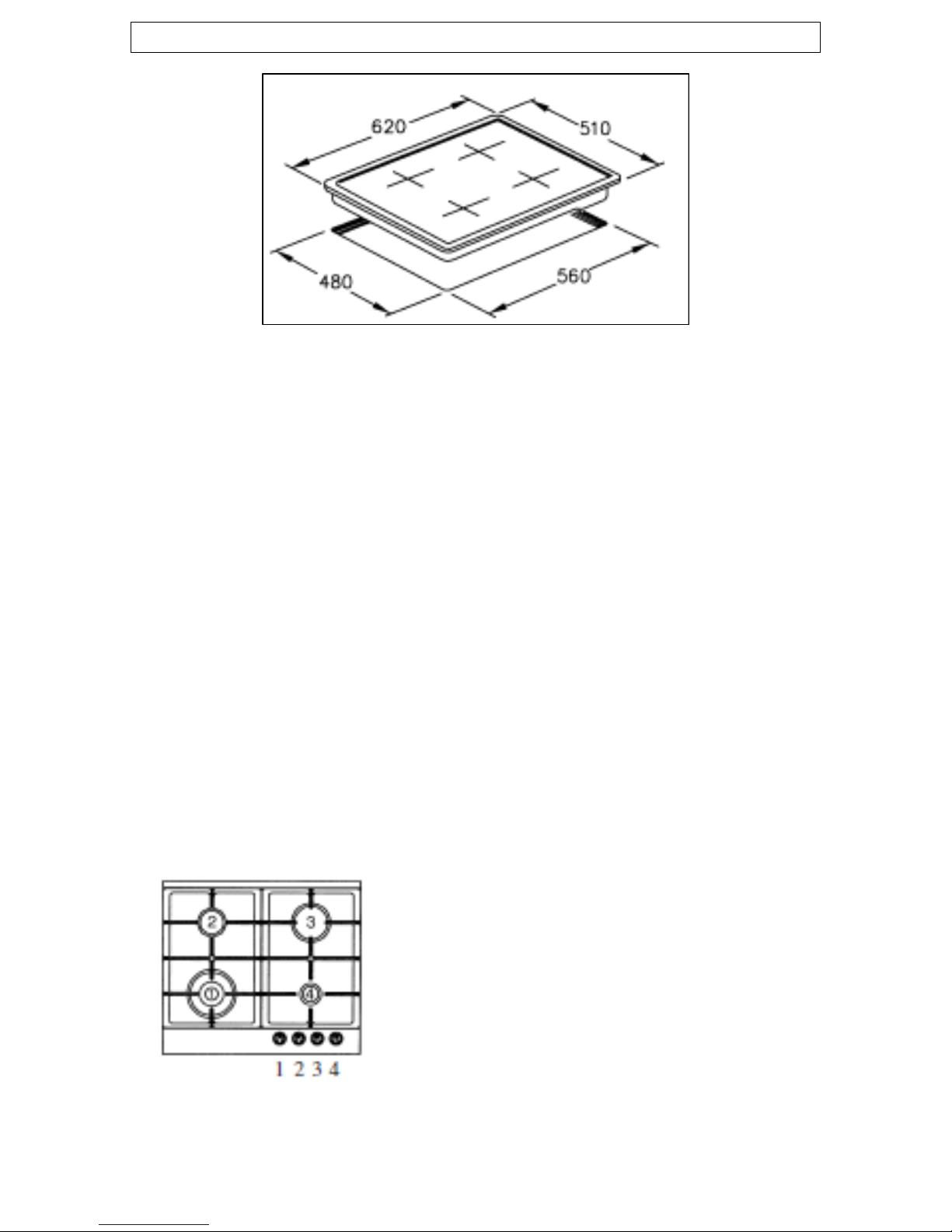

Specifications – BHG604.5SS/W

Product dimensions:

Aperture dimensions:

Depth: 510 mm

Width: 620 mm

Height: 50 mm

Depth: 480 mm

Width: 560 mm

Product specifications:

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oEnamelled pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

Gas hob surface layout

1 = 1.75 kW semi-rapid burner

2 = 1.75 kW semi-rapid burner

3 = 3.00 kW rapid burner

4 = 1.00 kW auxiliary burner

Specifications – BHG610.5SS

Product dimensions: Aperture dimensions:

Depth: 510 mm

Width: 620 mm

Height: 50 mm

Depth: 480 mm

Width: 560 mm

Product specifications:

o1 x 3.50 kW triple crown (wok) burner

o1 x 1.75 kW semi-rapid burners

o1 x 3.00 kW rapid burner

o1 x 1.00 kW auxiliary burner

oFront control operation

oHeavy duty cast iron pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

Gas hob surface layout

1 = 3.50 kW triple crown burner

2 = 1.75 kW semi-rapid burner

3 = 3.00 kW rapid burner

4 = 1.00 kW auxiliary burner
