Barco UDM W22 Manuel utilisateur

Download Product Manual

Product manuals and documentation are available online at www.barco.com/td/R9009049

Registration may be required; follow the instructions given on the website.

IMPORTANT!

Read Installation Instructions before connecting equipment to the mains power supply.

UDM

Quick reference guide

Button backlight status

BUTTON COLOR STATUS DESCRIPTION

Projector starts up (Booting)Blinking WHITE

Projector is in StandbySolid WHITE

Blinking RED Error condition

Blinking BLUE Projectorgoes to ON mode

Projector is ON

Power button

Solid BLUE

O Projector not in power ON state

Solid WHITE Shutter is open

Shutter is closedSolid RED

Shutter button

1Menu Navigation

2Menu Selection

3Open Menu

4Menu Back

5Power On/O

6OSD On/O

7Input Selection

8Shutter Open/Close

9Test Patterns

10 Lens Menu

11 LCD Panel

10 9 8 7

1 2 3 4 5 6

Local keypad

- 2 -

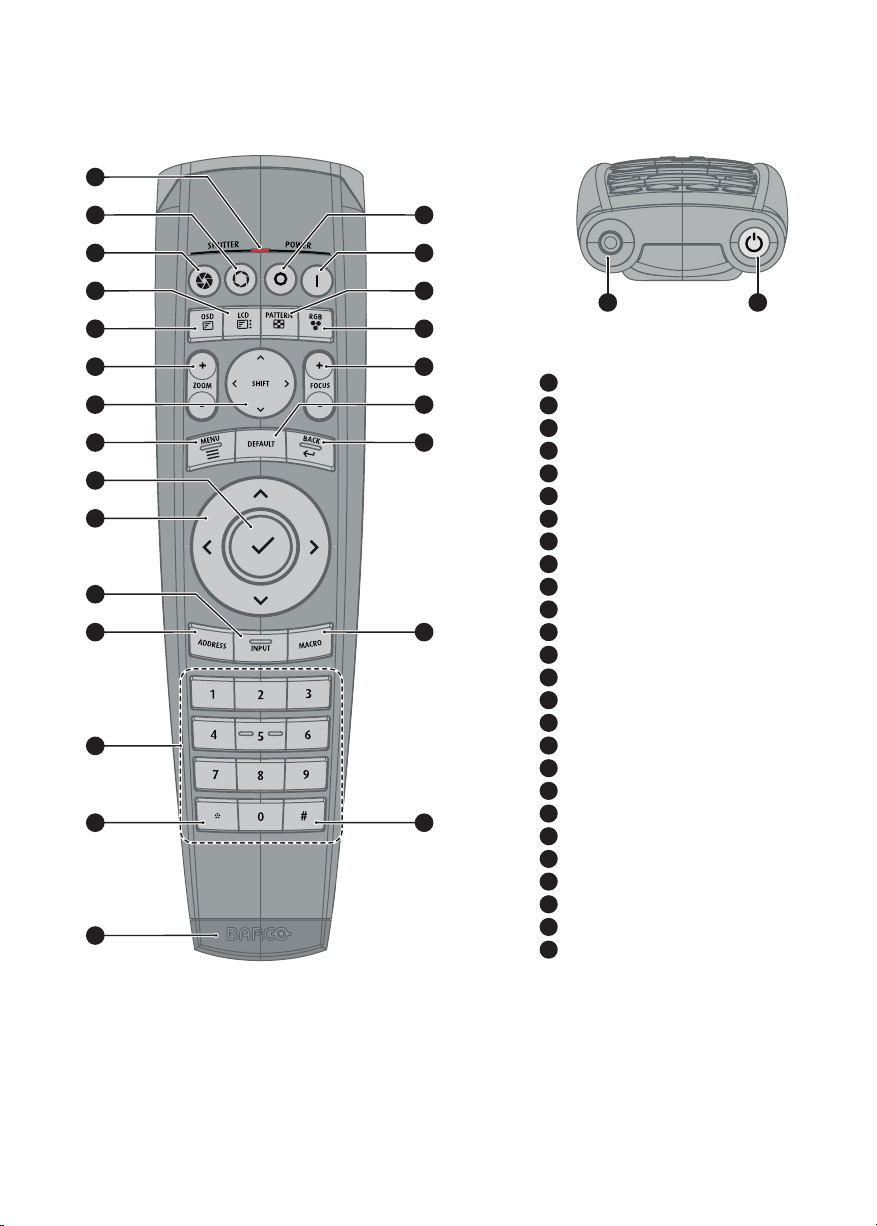

1Button pressed indicator

2Shutter Open

3Shutter Close

4LCD panel On/O

5OSD On/O

6Lens Zoom

7Lens Shift

8MenuOpen/Close

9Menu Selection, OK button

10 Menu Navigation

11 Input Selection

12 Address button

13 Numeric buttons

14 Backspace (when entering values)

15 XLR connector

16 Decimal mark (when entering values)

17 Macro button

18 MenuBack

19 Defaultbutton

20 Lens Focus

21 Color menu

22 Test Patterns

23 Power On

24 Power O

25 3.5 mm jack

26 RCU On/O

25 26

14 16

RCU buttons

RCU batteries

- Two AA size batteries. Use alkaline batteries for optimum range and life time.

- Replacing batteries will reset the broadcast address of the RCU to its default value ’0’.

- Replacing batteries switches on the RCU automatically.

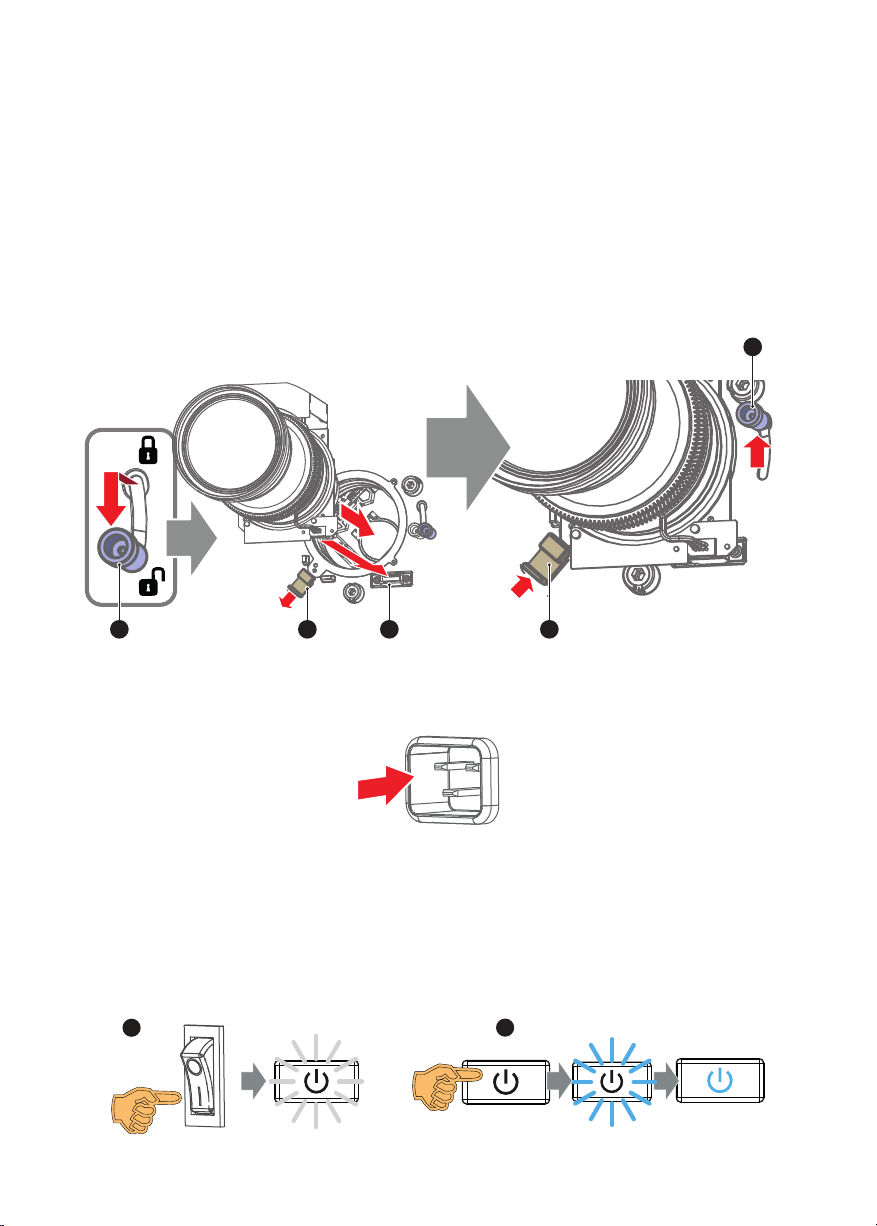

1. Place the primary lens lock in “unlock” position. Handle (ref. 1) towards electrical socket (ref 3).

2. If present, remove the plastic protection cover from the lens holder opening.

3. Check if the secondary lens lock stands in the “ulock” position (ref 2).

4. Gently insert the lens. Ensure the lens connector matches the electrical socket on

the lens holder.

5. Insert the lens until the connector seats into the socket.

- The secondary lens lock (ref. 2) makes an audible clicking sound when latching.

- Do not release the lens holder by sliding the primary lens lock handle into the

“locked” position.

6. Check if the lens touches the front plate of the Lens Holder.

7. Check if the lens is really secured by trying to pull the lens out of the lens holder.

Start up

1. Power on. Turn the mains switch to on ( I ).

- Startup sequence starts. Backlight of the Power on / o button ﬂashes WHITE.

- When startup sequence is ﬁnalized the Power on / o button will be lit WHITE.

2. Press the Power on / o button.

- The backlight of the Power on / o button changes from WHITE to BLUE.

- local LCD displays a startup screen.

Connect power

Ensure that the power is properly connected to the power input.

(120-180V / 200-240V, 60 - 50Hz).

Install Lens !! ONLY USE TLD+ Zoom Lenses !!

2 3 2

2. Orientation of the unit is set as standard in table front projection mode.

Change the projector set up in the INSTALLATION > ORIENTATION menu.

3. For Advanced adustments like Warping, Light management, etc. see projector User Guide.

1. Adjust the lens settings by pressing the lens menu button on the keypad or via the zoom,

shift and focus buttons on the RCU.

1. Press the Power on/o button for three seconds.

2. Wait until the after-cooling cycle is ﬁnished (approximately 5 minutes).

3. Turn the mains switch to o (’0’).

4. Unplug the power cord from the projector.

Adjust

Switch o

Precautions

- Remove the lens before transporting the projector.

- Switch the projector to standby mode and wait until the after-cooling

cycle is ﬁnished before switching o the main power.

- Ensure the projector is operating with clean ﬁlters.

- Do not block the ventilation in and outlets of the projector and chiller

(if used).

- External laser light can cause severe damage to the DMD. This damage

is not covered by warranty.

1 2 3

3 sec 5 min

Please allow the projector to cool down properly as this will positively impact the lifetime

of its components.

Note

Connect and select source

1. Connect available sources to the appropriate input ports.

2. Select connected source:

- Select LED (1) = GREEN -> Port conﬁgured as input. Image appears on the screen

- Select LED (1) = Blinking GREEN -> Bidirectional port conﬁgured as output/loopthrough

- Sync LED (2) = YELLOW -> sync/signal is present

Sync

Select

SEL SEL SEL SEL SEL SEL SEL

SDI IN SDI IN/OUT

SEL

SYNC SYNC

AB CD

SYNC SYNC SYNC SYNC

DP HDBT 2

SYNC

HDMI HDBT 1

SYNC

3G/12G 3G 3G 3G

1Quad SDI channel A: 3G/12G input

2Quad SDI channel B: 3G input

3Quad SDI channel C: 3G input or 3G/12G output

4Quad SDI channel D: 3G input/output

5DisplayPort 1.2 Input

6HDMI 2.0 Input

7HDBaseT Input 1

8HDBaseT Input 2

1 2 3 4 5 6 7 8

Quad combo input card

SEL SEL SEL SEL

DP ADP BDP CDP D

SYNC SYNC SYNC SYNC

3 4

1Quad DisplayPort 1.2 channel A Input

2Quad DisplayPort 1.2 channel B Input

3Quad DisplayPort 1.2 channel C Input

4Quad DisplayPort 1.2 channel D Input

1 2

Quad DP1.2 input card

Support

Website www.barco.com/esupport

- USA +1 866 374 7878

- EMEA +32 56 36 8019

- APAC +86 400 88 22726

Tel.:

Communication panel

O No power

Projector is in Standby

RED

Projector is Ready

ORANGE

GREEN Projector is on

Light source is o

O

Light source not detected

RED

GREEN Light source is on in normal mode

Light source is on in CLO mode

GREEN-ORANGE

O No error

RED toggles on/o Error

ORANGE toggles on/o Warning / Software update

IR signal received

RED

GREEN IR signal acknowledged

LED COLOR STATUS DESCRIPTION

PWR (power LED)

LIGHT (Illumination LED)

ERR (error LED)

Doc No: R5911411 /00 ENABLING BRIGHT OUTCOMES

1WiFi antenna for wireless IP (optional)

212V 1A output

3Firmware update/Download log ﬁles

410/100 base-T for external control over IP / Art-Net

5DMX interface input

6DMX interface output

7XLR input for wired projector control

8RS232 for serial communication

9Sync Out 3D

10 Sync In 3D

11 Status lights

12 IR receive sensor

13 GSM antenna input (optional)

1 2 3 4 5 6 7 8 9 10 11 12 13

LED status
