Barco PHXG-91B Instructions d'utilisation et de sécurité

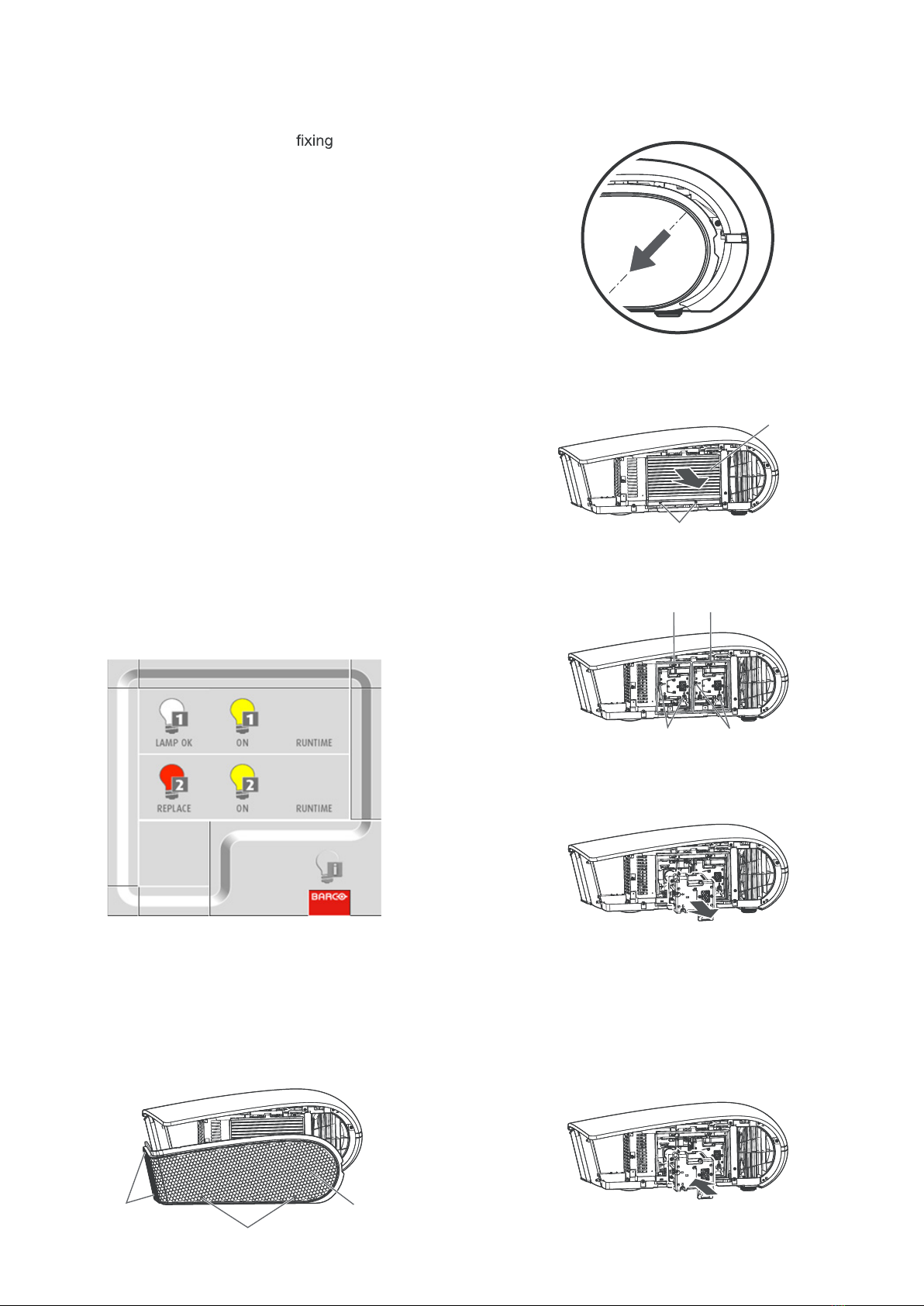

To replace the lamp:

1. Unplug the power cord from the outlet or appliance

inlet.

2. Loosen two screws (a) on the rear and two screws

(b) on the side that are securing the side cover (c)

using a Phillips screwdriver.

(c)

(b)

(a)

3. Slide and remove the side cover towards the rear.

4. Loosen two screws (d) that are securing the lamp

cover using a Phillips screwdriver and remove the

lamp cover (e) from the projector.

(e)

(d)

5. Loosen two screws (f) that are securing the lamp

box to be removed using a Phillips screwdriver.

LAMP 2 LAMP 1

(f)

6. Pull the handle.

7. Pull out the lamp box by the handle while holding

the projector.

• Pull the lamp box out of the projector slowly.

When the lamp is broken, glass fragments may

be scattering by quickly pulling out the lamp box.

•

Do not spill liquid on the removed lamp box or

do not place it near any ammable object or

where children can reach to prevent injury or re.

8. Load a new lamp box securely into the projector in

the right orientation.

9. Put the handle back to the original position.

• Make sure that the handle is locked.

Warning:

• Be careful not to drop the lamp screws into

the inside of the projector. Don’t put a metal piece

or ammable object into the projector. Using the

projector with any foreign object present inside

may result in electric shock or re. When you can’t

remove the foreign object from the inside, contact

your dealer for removal.

• Do not touch the lamp with bare hands or give

a shock to the lamp. Attach the lamp properly.

Improper handling may cause explosion.

• Be sure to install the lamp securely. When the lamp

isn’t installed properly, it won’t illuminate. Improper

installation may also result in re.

• Don’t shake the removed lamp or don’t lift it above

your face. You may be injured in your eye by ying

or falling glass fragments.

• Don’t replace the lamp immediately after use

because the lamp cover is very hot. You may get

burned. Turn off the power using the POWER key.

After the lamp goes out, wait about 2 minutes until

the intake and exhaust fans for cooling the lamp

stop rotating. Then unplug the power cord, and

wait at least 1 hour to allow the lamp to cool down

enough to the touch.

Before replacing the lamp

1. Check which lamp is to be replaced using the INFO

menu in the OSD Lite menu.

H LAMP 350W

Replacement Manual

Spare lamp

The lamp in this product contains

mercury. Please dispose of

properly. (For US only.)

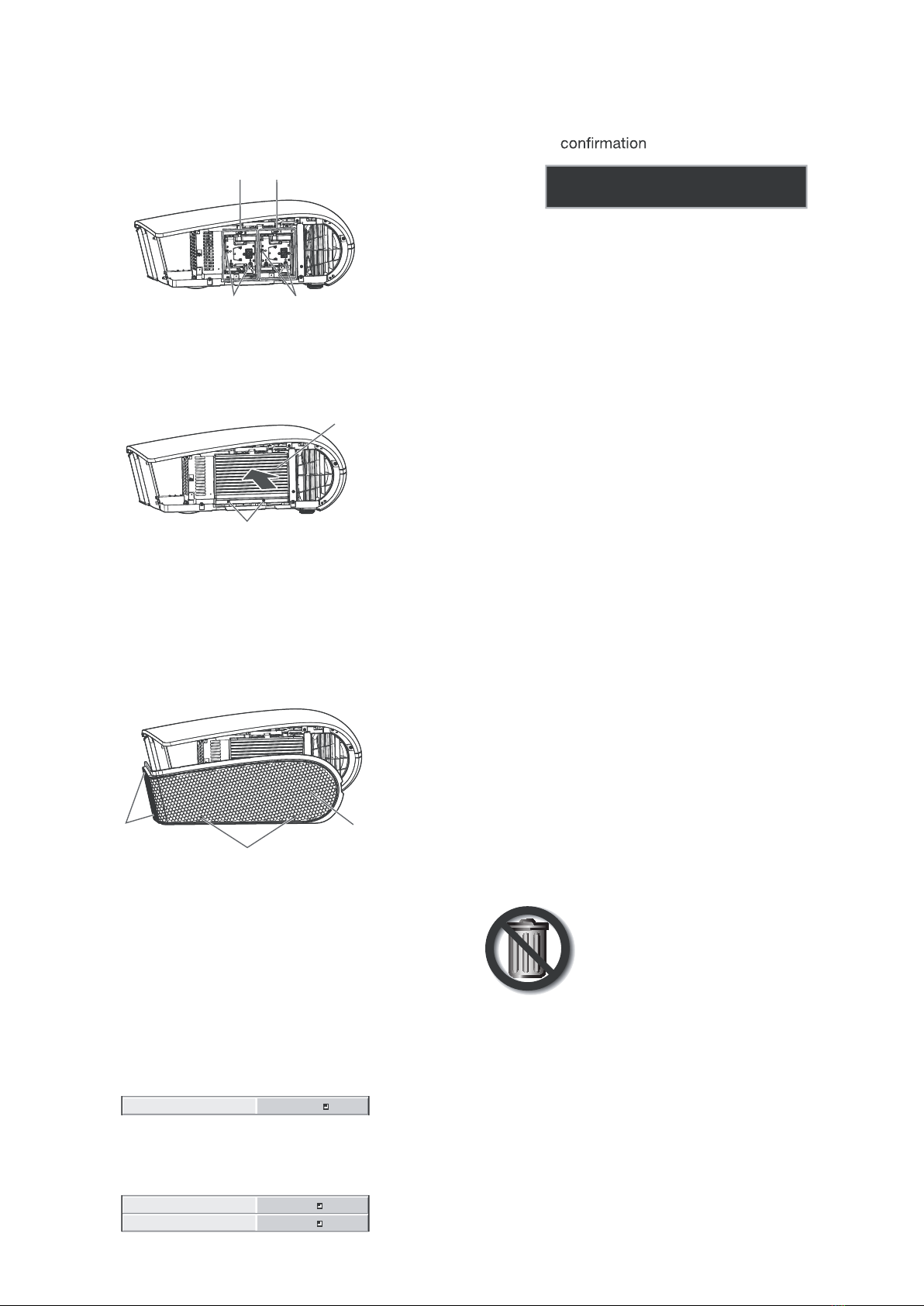

10.Tighten two screws (f) of the new lamp box tightly

using a Phillips screwdriver.

LAMP 2 LAMP 1

(f)

• Make sure that the screws are tightened rmly.

11.Insert the lamp cover (e) into the projector and

tighten two screws (d) on the lamp cover rmly

using a Phillips screwdriver.

(e)

(d)

• You cannot turn on the projector without

attaching the lamp cover.

12.Insert the side cover (c) into the projector and

tighten two screws (a) on the rear and two screws

(b) on the side of the side cover using a Phillips

screwdriver.

(c)

(b)

(a)

Reset of the lamp operation time

Reset the lamp operating time of the newly

installed lamp.

You can reset the lamp operation time using the menu.

(See page 30 for menu setting.)

13.Plug the power cord into the wall outlet.

14.Press the POWER key.

15.Display the FEATURE menu in the ADVANCED

menu.

16.Select ADVANCED menu by pressing the or 

key.

ADVANCED MENU ENTER

17.Press the ENTER key.

18.Select LAMP 1 TIME RESET or LAMP 2 TIME RESET by

pressing the or key.

LAMP 1 TIME RESET OK

LAMP 2 TIME RESET OK

19.Press the ENTER key.

• The dialog appears.

EXECUTE LAMP 1 TIME RESET ?

OK : ENTER CANCEL : MENU

20.Reset by pressing the ENTER key.

• When the lamp operating time isn’t reset, press

the MENU key.

Important:

• When the operation times of both lamps have

exceeded 4000 hours*, you can operate the

projector only for 3 minutes after turning on the

power. During this time, carry out steps 15 to 20 to

reset the lamp operation times.

• The projector doesn’t turn on if the lamp cover isn’t

attached securely.

• Be sure to reset the lamp operation time whenever

you replace the lamp.

• Do not reset the lamp operation time unless you

replace the lamp.

• The lamp is fragile. If it is broken, be careful not to

cut yourself with glass fragments.

* When LAMP MODE is set to STANDARD, this duration

will be shorted to 2000 hours.

When removing the lamp from the ceiling-mounted

projector

When removing the lamp from the ceiling-mounted

projector, follow the same steps as “To replace the

lamp.”
