Barco’s FLM R20+ is the quietest 20,000 lumens projector on the market today. Not

only is it extremely bright and very compact but the FLM projector is designed to be

the perfect solution for rental & staging applications in large events and venues.

The FLM boasts fully sealed optics and impressive lamp maintenance ensuring an

overall lower cost of ownership. Moreover, the lens range (TLD HB) of the industry

leading Barco RLM and SLM projector series can be re-used on the FLM series,

meaning you do not have to invest in new lenses. Furthermore, you will enjoy

exceptional video performance thanks to advanced 10 bit processing.

Its exceptional brightness and near silent operation make it perfect for that special

occasion where quality and high brightness cannot be compromised.

Ultra quiet, compact 20k lumens projector

BR FLM Series jan06 17-01-2006 13:06 Pagina 2

Ultra bright 20k stunning images

Be ready to be impressed by crisp, clear images (both data and

video) in the most demanding environments. Barco’s FLM

R20+ projector includes a high reliable, high contrast 3-chip

DLP™ engine, based on Texas Instruments technology. The FLM

projector offers true native SXGA+ resolution, 20,000 Center

lumens and a contrast ratio of 1800:1.

Enjoy exceptional video performance thanks to advanced 10

bit processing and highly uniform images thanks to special

optical design.

Fit for any Widescreen & Creative application

Able to meet the most challenging large venue projections, the

FLM R20+ offers the following features:

•High brightness projection at 20,000 lumens

•“

High-Contrast Mode” (2400:1) feature enables you to make

a trade-off between brightness and contrast, depending

on your application.

•Low video delay, very important when broadcasting live

events

• Ultimate solution for projection on multiple screens and

special surfaces

- Barco’s unique ScenergiX software enables fast & easy

edge-blending when using multiple projectors

- Multiple color adjustments possible for optimal multi-

screen applications

- Projection on spherical surfaces is easy thanks to the

special optional WARPING module

Low total cost of ownership

Reliable, and built to work around the clock, the FLM R20+ is

designed to minimise the total cost of ownership.

• Sealed engine with constant image quality over time

• Projector designed for high resistance against external

contamination

• Extended lamp warranty (750 hours)

• Extremely good lamp maintenance (typical 1,000 hrs)

• The lens range (TLD HB) of the industry leading Barco SLM and

RLM projector series can be re-used on the FLM series,

meaning no re-investment in new lenses.

Universal lense range: one lense range for RLM, SLM and FLM.

New “Projector Toolset” software

The FLM comes with standard “Projector Toolset” software,

offering basic control, diagnostics and other features (e.g. a

lens program). Additional software plug-ins can be offered as

an option delivering added functionality for multi-screen

applications, advanced settings control, etc. A user friendly GUI

(Graphical User Interface) ensures easy control.

BR FLM Series jan06 17-01-2006 13:06 Pagina 3

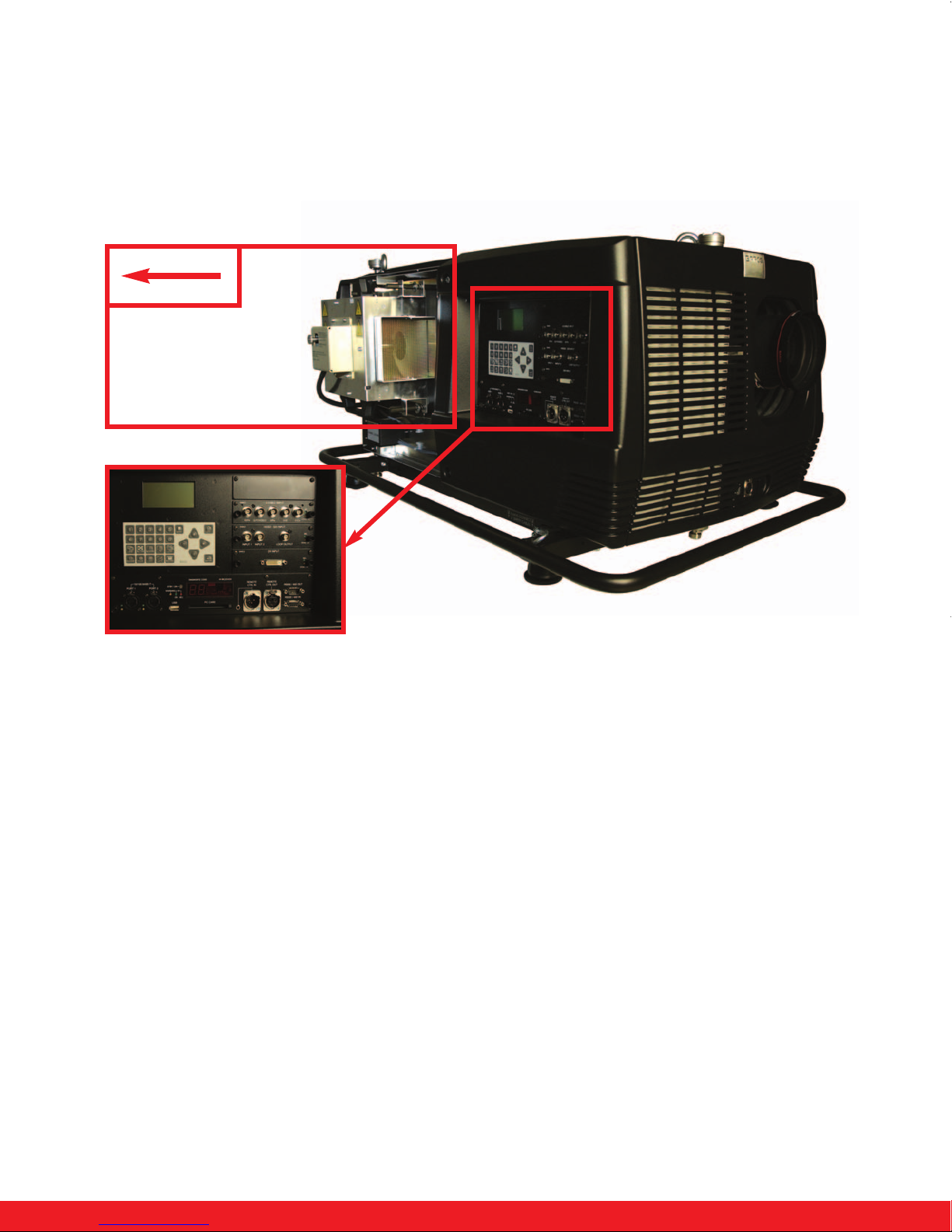

• Removable lamp house

• Removable power supply

• Removable electronics

Purpose built for demanding rental & staging applications

Easy to set-up and install

• Compact projector size

• Lenses

- Very stable lens holder for rockstable images

- Wide choice of motorized ‘click and play’ lenses

(TLD HB lenses)

- Very large vertical & horizontal lens shift range

• Source connection

- Wide range of analog and digital inputs

- Auto-detection of input sources

- Black level and white level adjustment for analogue

and digital inputs

• Stacking & rigging features standard incorporated

- Skew adjustment for dual stacked projector

- Tilt and inclination adjustments in rigging kit

• Control

- Remote control through network interface

• Special adapter plates available in case SLM or RLM

projectors are used as backup units

Easy to service

• Easy access to all optical components and adjustments

• Rugged and modular design with swappable parts

• Remote diagnostics through network interface

Easy to transport

• Lamp can remain in the projector during transport

• Projector Flight case certified for the toughest jobs

• Dual stacked flight cases below 1.60m

Recognized as the industry leader for over ten years in the Rental & Staging market, Barco understands, like no other, the needs of

this demanding industry. During the design of the FLM, Barco has given priority to features enabling easy set-up, flexible installation,

swift transportation and servicing.

Fully sealed optics

Barco’s FLM R20+ features fully sealed optics that guarantees

protection against smoke and dust often found in entertain-

ment and large event environments.

BR FLM Series jan06 17-01-2006 13:06 Pagina 4

Barco Events

Noordlaan 5, 8520 Kuurne - Belgium

Tel. +32 56 36 8047 - Fax + 32 56 36 83 86

email: sales.events@barco.com

www.barco.com/events

Ref.no. R599997 - January 2006

DLP™ technology by Texas Instruments offers crystal clear images with superior quality.

DLP is a trademark of Texas Instruments.

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice

The latest version of this product sheet can be found on www.barco.com.

FLM R20+ specifications

Light output (1) 18,000 Ansi lumen • 20,000 Center lumen

Resolution 1,400 x 1,050 (native)

Contrast ratio (2) 1,800:1 (full field)

High Contrast Mode (3) (4) 2,400:1 (full field)

Lamp 3kW Xenon

Warranty universal lamphouse 750 Hrs

Max. ambient temperature 40°C (104°F)

Power consumption 3.6kW

Mains voltage 200 - 240 V

Weight 99 kg (220 lbs)

Dimensions (W x L x H) 707 x 1025 x 548 mm (27.8 x 40.3 x 21.5 inch) • incl. carrying handle + rigging points

Noise level at 40°C 56 dBA

FEATURES

Scenergix standard horizontal & vertical electronic edge blending

Network connectivity 10/100 base-T

Advanced picture in picture 2 sources simultaneous

INPUTS

Input source compatibility (5) max. input: up to QXGA (2048 x 1536)

Standard inputs configurable 5 cable (BNC) • DVI • (HD)SDI (+ loop through)

ORDER INFORMATION

Projector R9004430

Spare lamp (universal lamp house) R9854420

LENSES throw ratio on FLM R20+

Fixed focal lenses TLD HB 0.8 0.75 R9842040

TLD HB 1.2 1.1 R9840770

Zoom lenses TLD HB 1.6 - 2.0 1.45 - 1.85 R9842060

TLD HB 2.0 - 2.8 1.85 - 2.55 R9842080

TLD HB 2.8 - 5.0 2.55 - 4.55 R9842100

TLD HB 5.0 - 8.0 4.55 - 7.3 R9842120

Dust filters dense, high quality microfilters available as spare kit, in a 6-pack & 24-pack

• 6-pack R9854470

• 24-pack R9854480

RGB HV module R9854440

FLM/SLM adaptor plate R9854490

FLM rigging kit R9854500

FLM flight case R9854510

(1) Measured with TLD 1.2:1 lens, on axis at 220 V

(2) Full white / full black on full field

(3) High Contrast Mode setting reduces light output to about 75% of the max. light output

(4) Contrast ratio’s up to 2000:1 are possible in high contrast mode

in combination with TLD lenses

(5) all current video sources in composite, S-VHS, RGB or component or Serial digital format

all current proposed HDTV, extended and improved television standards (1080i, 720p, ...)

computer and workstations with a resolution up to 1,600 x 1,200

most Macintosh computers

direct digital interfacing with current and future digital standards

BR FLM Series jan06 17-01-2006 13:06 Pagina 1
